2023 GENESIS G90 Owners Manual

6-51
06
ORS061049L
AUTO STOP elapsed time
AUTO STOP display shows the elapsed
time of engine stop by the Idle Stop and
Go system.
You may check AUTO STOP elapsed time
in the Normal view on the instrument
cluster.
Refer to “View Modes” section in chapter
4.
ISG System Off
ORS061022L
Press the ISG OFF button to turn off ISG
system. The ISG OFF button indicator will
illuminate. To use the system, press the
ISG OFF button again.

6-52
Driving Your Vehicle
Forced to Restart Engine
The engine is automatically restarted in
the following situations.

[The engine has stopped for about 5
minutes

[The air conditioning is ON with the fan
speed set to a certain high level

[The front defroster is ON

[The battery is weak

[The cooling and heating performance
of the climate control system is
unsatisfactory

[The vehicle is shifted to P (Park), N
(Neutral) or R (Reverse) when Auto
Hold is operating

[The door is opened or the seatbelt
is unfastened when Auto Hold is
activated

[The EPB switch is pressed when Auto
Hold is activated
The Auto Stop (
) indicator blinks in
green for 5 seconds on the instrument
cluster when the engine is restarted.
WARNING
When the engine is in Idle Stop mode,
the engine may restart without the
driver taking any action. Before leaving
the vehicle or working on the engine
compartment, turn off the engine by
pressing the ENGINE START/STOP
button to the OFF position.
ISG Malfunction
ISG system may not operate when there
is a malfunction with the ISG sensors or
ISG system.
The following will occur, when there is a
malfunction with the ISG system:

[The Auto Stop (
) indicator will
illuminate in yellow on the instrument
cluster.
Contact an authorized retailer of Genesis
Branded products.

6-53
06
Calibrating the Battery Sensor
If the AGM battery is reconnected or
replaced, ISG system will not operate
immediately. If you want to use the
system, the battery sensor needs to
be calibrated following the below
procedure.
ORS061023LA : Battery sensor
1. Turn off the engine.
2. Disconnect all electronic devices
that were additionally installed after
the vehicle was delivered, such as
navigation, dashcam, etc.
3. After 4 hours with the engine off, turn
the engine on and off 3 to 4 times.
Information
The ISG system may not operate in the
following situations.
-There is a malfunction with the ISG
system.
-The battery is weak.
-The brake vacuum pressure is low.
If this occurs, have the ISG system
checked by an authorized retailer of
Genesis Branded products.
NOTICE

[Use only a genuine Genesis ISG
battery for replacement. If not,
the ISG system may not properly
operate.

[Do not recharge the ISG battery with
a general battery charger. It may
damage or explode the ISG battery.

[Do not remove the battery cap. The
battery electrolyte, which is harmful
to the human body, may leak out.

6-54
Driving Your Vehicle
&2$67,1*

6-55
06

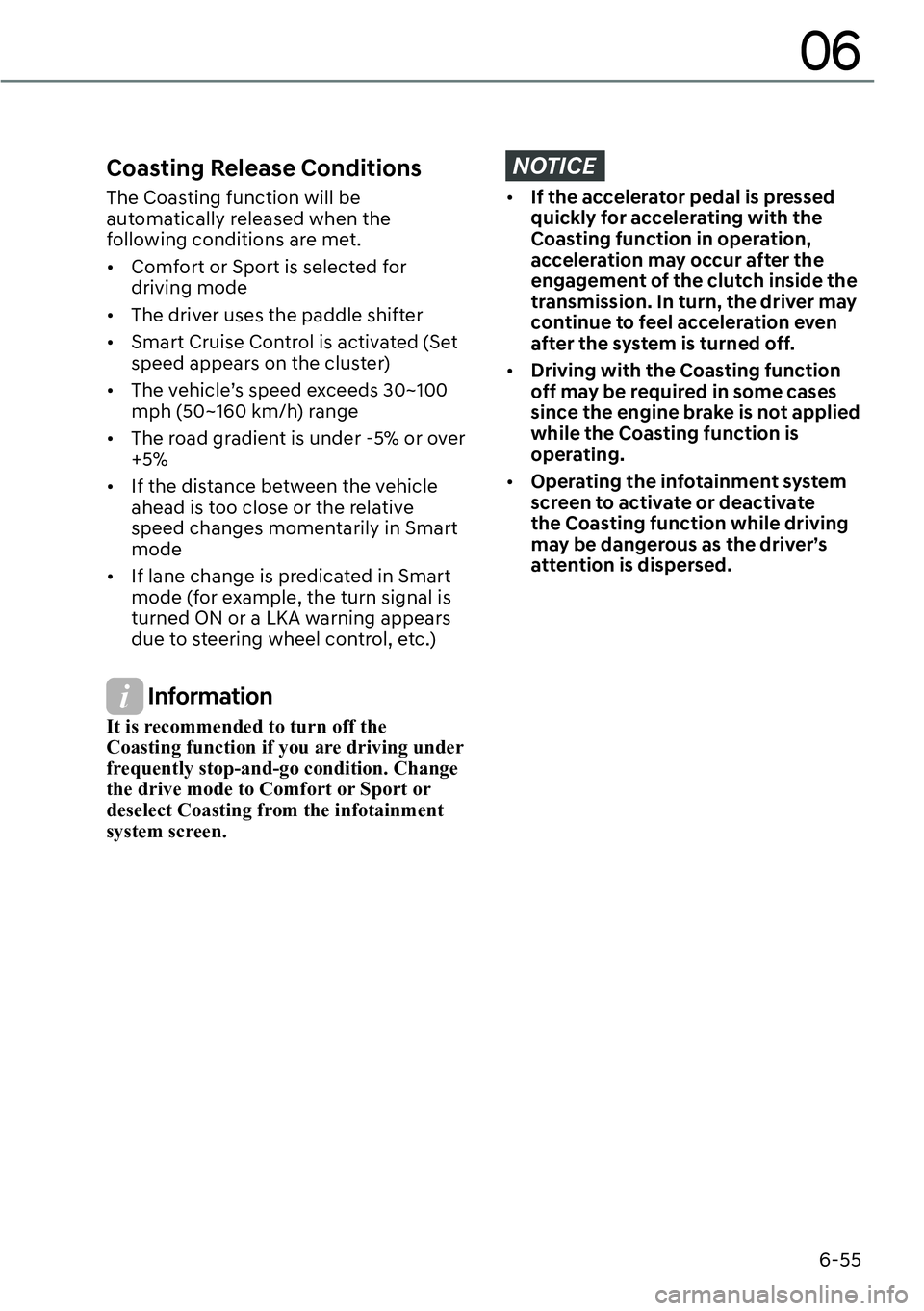

Coasting Release Conditions
The Coasting function will be
automatically released when the
following conditions are met.

[Comfort or Sport is selected for
driving mode

[The driver uses the paddle shifter

[Smart Cruise Control is activated (Set
speed appears on the cluster)

[The vehicle’s speed exceeds 30~100
mph (50~160 km/h) range

[The road gradient is under -5% or over
+5%

[If the distance between the vehicle
ahead is too close or the relative
speed changes momentarily in Smart
mode

[If lane change is predicated in Smart
mode (for example, the turn signal is
turned ON or a LKA warning appears
due to steering wheel control, etc.)
Information
It is recommended to turn off the
Coasting function if you are driving under
frequently stop-and-go condition. Change
the drive mode to Comfort or Sport or
deselect Coasting from the infotainment
system screen.
NOTICE

[If the accelerator pedal is pressed
quickly for accelerating with the
Coasting function in operation,
acceleration may occur after the
engagement of the clutch inside the
transmission. In turn, the driver may
continue to feel acceleration even
after the system is turned off.

[Driving with the Coasting function
off may be required in some cases
since the engine brake is not applied
while the Coasting function is
operating.

[Operating the infotainment system
screen to activate or deactivate
the Coasting function while driving
may be dangerous as the driver’s
attention is dispersed.

6-56
Driving Your Vehicle
Predictive shift feature proactively
upshifts or downshifts the gear based on
the data detected from the navigation,
front radar sensor, and camera.
CAUTION
Predictive shift is a convenience
feature. Regardless of its operation,
the driver must pay attention to
the road condition and abide traffic
laws. The vehicle manufacturer
does not take any responsibility for
traffic law violation and accidents.
Predictive shift Operating
Conditions
Predictive shift operates when it is in
the ready state, and a specific situation
is detected while driving. Details
on prerequisites for activation and
operations are as follows.

[Prerequisites for activation: Predictive
shift operates when all the following
conditions are met.
-Drive mode is set to SMART
-Gear is positioned in D (Drive)
-Smart cruise control is off
-Engine and transmission operate
normally
-Front radar sensor and related
controllers operate normally
-When driving on a highway

[Operating condition:
Predictive shift function operates
when one of the following situation is
detected.
-Curve or downhill ahead
-Roundabout ahead
-Entering highway
-Low speed vehicle ahead (Vehicle-
to-vehicle distance is closing in)
Predictive shift off Conditions
The predictive shift function will be
released when the following conditions
are met.
-The detected situation is over
-Drive mode is shifted from SMART to
another mode
-Gear is shifted from D (Drive) to
another gear position
-Paddle shifter is used
-Smart cruise control is on
-Engine or transmission malfunctions
-Front radar sensor or related
controllers malfunction
35(',&7,9(6+,)7

6-57
06
Limitations of the System
The predictive shift may have limited
operation in the following situations

[If you do not take the route guided in
the navigation, predictive shift may
not operate properly since the system
operates according to the navigated
route. Predictive shift will operate
properly again once the navigation
sets a new route.

[The navigation may reflect the real
time traffic condition and change the
route. If so, the predictive shift may
not correspond temporarily to the
current driving condition.

[If the destination is not set on the
navigation, predictive shift operates
according to the route which is most
likely to be taken. When driving
through roads such as a branch road,
predictive shift may not correspond to
the current driving condition until the
navigation sets a new route.

[While using the navigation app
through smart phone linked functions
such as Android Auto or Apple
CarPlay, predictive shift operates as
when the destination is not set in the
vehicle’s navigation.

[Predictive shift may not operate
properly in the following situations.
-Navigation system is not completely
booted.
-Real time GPS or map data has
errors, or the map data is not up to
date.
Checking Operation on the
Instrument Cluster
The operating condition of predictive
shift can be checked from the icons and
messages displayed on the instrument
cluster. If there are multiple conditions
detected, every related icon illuminates
but only the most important message
is displayed. The images and colors
of the messages may differ from the
description depending on the cluster
type.
CAUTION
Always be aware of the traffic and
road condition ahead. Checking the
instrument cluster while driving
may cause an accident.
When predictive shift is ready
ORS062039N
Refer to the following for icons displayed
when predictive shift is stand-by for use.

6-58
Driving Your Vehicle
Icons
WRS-502
Entering curve
WRS-503
Entering downhill
WRS-504
Approaching to vehicle ahead
WRS-505
Entering highway
WRS-523
Roundabout detected
WRS-507
Other situations detected
While predictive shift is on

[When shifting the gear by detecting
forward road condition
ORS062039N

[When shifting the gear by detecting
multiple conditions ahead
ORS062038N
