2023 GENESIS G90 Owners Manual

5-76
Convenience Features
Power Windows
The Engine Start/Stop button must be
in the ON position to be able to raise
or lower the windows. Each door has a
Power Window switch to control that
door’s window. The driver has a Power
Window Lock button which can block the
operation of rear passenger windows.
The power windows will operate for
approximately 3 minutes after the Engine
Start/Stop button is in the ACC or OFF
position. However, if the front doors are
opened, the Power Windows will not
operate even within the 3 minute period.
Window opening and closing
ORS051046
To open:
Press the window switch down to the
first detent position Q. Release the
switch when you want the window to
stop.
To close:
Pull the window switch up to the first
detent position Q. Release the window
switch when you want the window to
stop.
Auto up/down window
Pressing or pulling up the power window
switch momentarily to the second
detent position R completely lowers or
lifts the window even when the switch
is released. To stop the window at the
desired position while the window is in
operation, pull up or press down and
release the switch.
Resetting the power windows
If the power windows do not operate
normally, the automatic power window
system must be reset as follows:
1. Press the Engine Start/Stop button to
the ON position.
2. Close the window and continue
pulling up on the power window
switch for at least one second.
If the power windows do not operate
properly after resetting, have the system
inspected by an authorized retailer of
Genesis Branded products.
WARNING
The automatic reverse feature doesn't
activate while resetting the power
window system. Make sure body parts
or other objects are safely out of the
way before closing the windows to
avoid injuries or vehicle damage.

5-77
05
Automatic reverse
ORS051047
If a window senses any obstacle while it
is closing automatically, it will stop and
lower approximately 12 in. (30 cm) to
allow the object to be cleared.
If the window detects the resistance
while the power window switch is
pulled up continuously, the window
will stop upward movement then lower
approximately 1 in. (2.5 cm).
If the power window switch is pulled
up continuously again within 5 seconds
after the window is lowered by the
automatic window reverse feature,
the automatic window reverse will not
operate.
Information
The automatic reverse feature is only
active when the “Auto Up” feature is used
by fully pulling up the switch to the second
detent.
WARNING
Make sure body parts or other objects
are safely out of the way before closing
the windows to avoid injuries or vehicle
damage.
Objects less than 0.16 in. (4 mm) in
diameter caught between the window
glass and the upper window channel
may not be detected by the automatic
reverse window and the window will
not stop and reverse direction.

5-78
Convenience Features
Power window lock button
ORS051031
The driver can disable the power window
switches on the rear passenger doors by
pressing the power window lock button.
When the power window lock button is
pressed:

[The rear passenger control will not
be able to operate the rear passenger
power window.

[Note that the front passenger control
is still able to operate the front
passenger window, and that the driver
master control can still operate all the
power windows.
WARNING
Do not allow children to play with the
power windows. Keep the driver’s
door power window lock button in the
LOCK position. Serious injury or death
can result from unintentional window
operation by a child.
NOTICE

[To prevent possible damage to the
power window system, do not open
or close two windows or more at the
same time. This will also ensure the
longevity of the fuse.

[Never try to operate the main
switch on the driver’s door and the
individual door window switch in
opposite directions at the same time.
If this is done, the window will stop
and cannot be opened or closed.

5-79
05
5HPRWH:LQGRZ2SHQ)HDWXUH
(Remote Window Control) (if
equipped)
ORS051048N
You can open the window remotely with
the smart key.
1. Press and hold the door unlock button
M for over 3 seconds, while the engine
is turned off.

[Rear doors are unlocked and
windows are completely opened.

[If you release the button while the
window is opening, the window will
stop operating.
CAUTION

[If the distance between the vehicle
and your smart key changes while
the window is being opened or
closed, the window may stop
operating. Do not stand too far away
from the vehicle when remotely
opening or closing the window.

[Note that the doors are also unlocked
when you open the window with the
remote opening feature.

5-80
Convenience Features
If your vehicle is equipped with a
sunroof, you can slide or tilt your sunroof
with the sunroof switch located on the
overhead console.
ORS052049N
The sunroof can only be operated when
the Engine Start/Stop button is in the ON
or START position.
The sunroof can be operated for
approximately 3 minutes after the Engine
Start/Stop button is in the ACC or OFF
position. However, if the front door is
open, the sunroof cannot be operated
even within the 3minute period.
WARNING

[Adjust the sunroof or sunshade when
your vehicle stops. This could result
in loss of control and an accident
that may cause injury, or property
damage.

[Do not leave the engine running
and the key in your vehicle with
unsupervised children. Unattended
children could operate the sunroof,
which could result in serious injury.

[Do not sit on the top of the vehicle. It
may cause injury or vehicle damage.
NOTICE
Do not operate the sunroof when roof
bars are installed on the vehicle or
when there is luggage on the roof.
Power Sunshade
Use the power sunshade to block direct
sunlight coming through the sunroof
glass.
Using front seat power sunshade
ORS051050

[Push the sunroof switch rearward to
the first detent position, the power
sunshade automatically slides open.

[Push the sunroof switch forward to
the first detent position, the power
sunshade automatically closes.
However, if the sunroof glass is open,
the glass will close first.
To stop the power sunshade at any point,
push the sunroof switch in any direction.
3$125$0,&681522)

5-81
05
Using the rear seat power sunshade
(if equipped)
ORS052051N
2SHUDWLQJUHDUVHDWVXQVKDGHVZLWFK
Press the switch to open the rear seat
power sunshade. Press again to close the
sunshade.
The sunroof will not be opened.
ORS051249L
2SHUDWLQJUHDUVHDWVXQVKDGHIURP
touchscreen
: Stops the rear seat power
sunshade from opening or closing.
: Stops the seat mode and
the rear seat power sunshade from
operating.
1. Press
from the left side menu of
the armrest touchscreen.

[Sunshade adjusting screen is
displayed.
2. Press and slide
in the center of
the display upward or downward to
completely raise or lower the power
sunshade.

[To adjust the power sunshade to the
desired position when the sunshade
is opening or closing, press

on the upper right part of the
touchscreen or press
again.
CAUTION
Do not push or pull the power sunshade
with your hands. The sunshade may be
damaged and cause malfunction.
Information

[Wrinkles formed on the power
sunshade are normal due to material
characteristic.

[While the power sunshade is opened
or being operated, the mood lighting
turns off.

5-82
Convenience Features

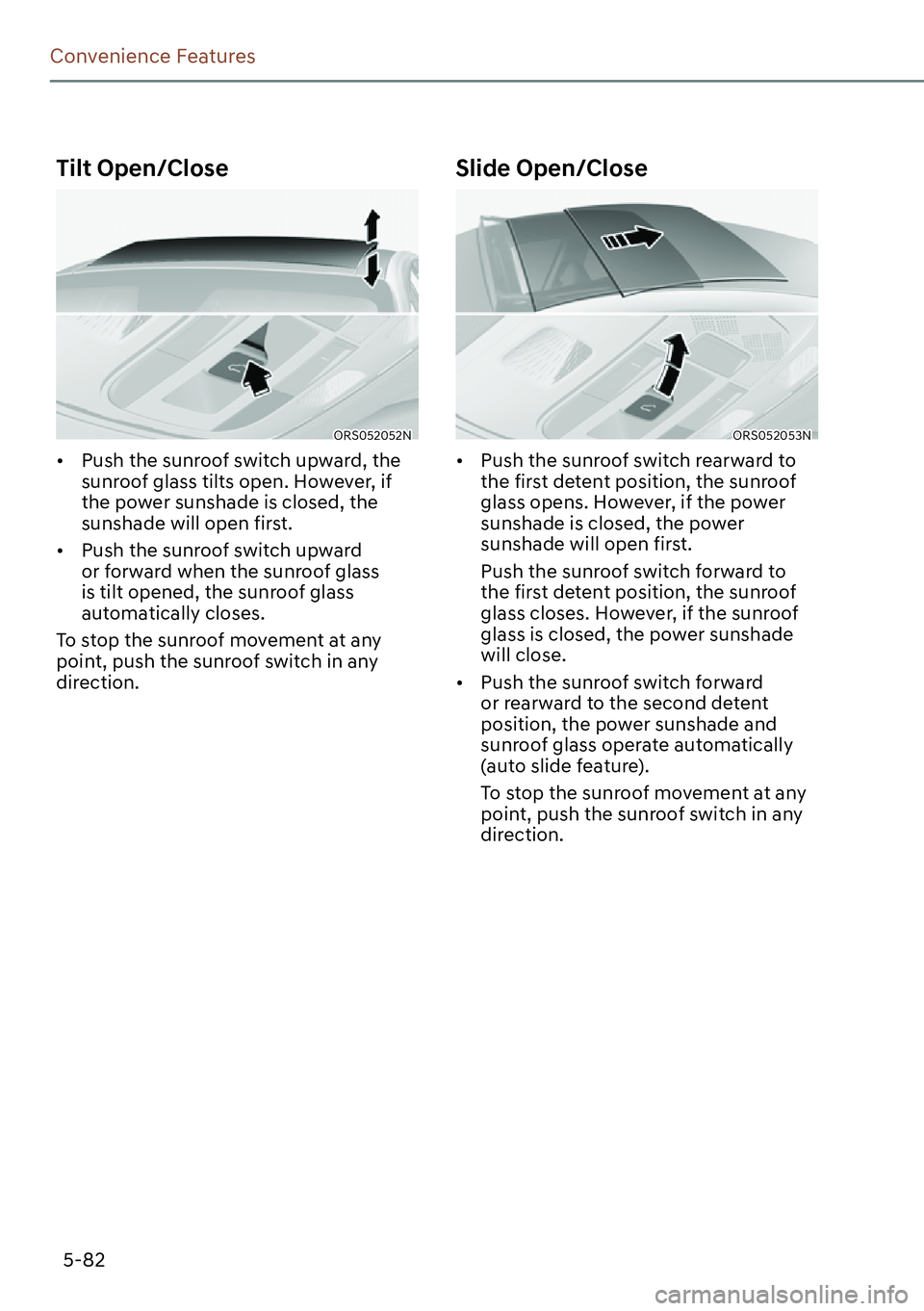

Tilt Open/Close
ORS052052N

[Push the sunroof switch upward, the
sunroof glass tilts open. However, if
the power sunshade is closed, the
sunshade will open first.

[Push the sunroof switch upward
or forward when the sunroof glass
is tilt opened, the sunroof glass
automatically closes.
To stop the sunroof movement at any
point, push the sunroof switch in any
direction.
Slide Open/Close
ORS052053N

[Push the sunroof switch rearward to
the first detent position, the sunroof
glass opens. However, if the power
sunshade is closed, the power
sunshade will open first.
Push the sunroof switch forward to
the first detent position, the sunroof
glass closes. However, if the sunroof
glass is closed, the power sunshade
will close.

[Push the sunroof switch forward
or rearward to the second detent
position, the power sunshade and
sunroof glass operate automatically
(auto slide feature).
To stop the sunroof movement at any
point, push the sunroof switch in any
direction.

5-83
05
Automatic Reverse
ORS051054
If the power sunshade or sunroof glass
senses any obstacle while it is closing
automatically, it will reverse direction
then stop at a certain position.
The auto reverse feature may not work if
an object thin or soft is caught between
the sliding power sunshade or sunroof
glass and sunroof sash.
WARNING

[Make sure heads, hands, arms or
any other body parts or objects are
out of the way before operating the
sunroof. Body parts or objects may
get caught causing injuries or vehicle
damage.

[Never deliberately use your body
parts to test the automatic reverse
feature. The power sunshade or
sunroof glass may reverse direction,
but there is a risk of injury.
NOTICE

[Do not continue to push the sunroof
switch after the sunroof is fully
opened, closed, or tilted. Damage to
the sunroof motor could occur.

[Continuous operations such as slide
open/close, tilt open/close, etc. may
cause the motor or sunroof system to
malfunction.

[Regularly remove any accumulated
dust on the sunroof rail.

[Dust accumulated between the
sunroof and roof panel can make
noise. Open the sunroof and remove
dust regularly using a clean cloth.

[Do not try to open the sunroof when
the temperature is below freezing
or when the sunroof is covered
with snow or ice. The sunroof may
not work properly and may break if
opened by force.

[Do not open or drive with the sunroof
glass open immediately after rain or
washing the vehicle. Water may wet
the interior of the vehicle.

[Do not extend any luggage outside
the sunroof while driving. Vehicle
damage may occur if the vehicle
suddenly stops.
WARNING
Do not extend your head, arms, body
parts or objects outside the sunroof
while driving. Injuries may occur if the
vehicle suddenly stops.
