Page 465 of 642
ENGINE SPECIFICATIONS - 2.3L ECOBOOST™
SpecificationEngine
10.0:1Compression ratio.
138 in³ (2,261 cm³)Displacement.
1-3-4-2Firing order.
Coil on plugIgnition system.
0.028 in (0.7 mm) - 0.031 in (0.8 mm)Spark plug gap.
461
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMCapacities and Specifications
Page 466 of 642
ENGINE SPECIFICATIONS - 2.7L ECOBOOST™
SpecificationEngine
10.0:1Compression ratio.
165 in³ (2,700 cm³)Displacement.
1-4-2-5-3-6Firing order.
Coil on plugIgnition system.
0.028 in (0.7 mm) - 0.031 in (0.8 mm)Spark plug gap.
462
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMCapacities and Specifications
Page 467 of 642
ENGINE SPECIFICATIONS - 3.0L ECOBOOST™
SpecificationEngine
10.5:1Compression ratio.
180 in³ (2,956 cm³)Displacement.
1-4-2-5-3-6Firing order.
Coil on plugIgnition system.
0.028 in (0.7 mm) - 0.031 in (0.8 mm)Spark plug gap.
463
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMCapacities and Specifications
Page 468 of 642

MOTORCRAFT PARTS - 2.3L ECOBOOST™
Motorcraft Part NumberComponent
FA-2022Air filter element.
DS7T-10655-ACBattery with only auxiliary switches or withauxiliary switches and winch.
JX6T-10655-AABattery less auxiliary switches and winch.
FP-93Cabin air filter.
FL-910-SEngine oil filter.1
SP-594Spark plug.
FT-202Transmission fluid filter.
WW-1703Windshield wiper blade-front.
WW-801Windshield wiper blade-rear.
1 If a Motorcraft oil filter is not available, use an oil filter that aligns to SAE/USCAR – 36Performance Specifications. Filter Type B.
We recommend Motorcraft parts that are available at your authorized dealer or atwww.parts.ford.com. We engineer these parts for your vehicle to meet or exceed ourspecifications. Use of other parts could impact vehicle performance, emissions anddurability. Your warranty could be void for any damage related to use of other parts.
464
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMCapacities and Specifications
Page 469 of 642
MOTORCRAFT PARTS - 2.7L ECOBOOST™
Motorcraft Part NumberComponent
FA-2022Air filter element.
DS7T-10655-ACBattery with only auxiliary switches or withauxiliary switches and winch.
JX6T-10655-AABattery less auxiliary switches and winch.
FP-93Cabin air filter.
FL-2062-AEngine oil filter.
SP-594Spark plug.
FT-202Transmission fluid filter.
WW-1703Windshield wiper blade-front.
WW-801Windshield wiper blade-rear.
We recommend Motorcraft parts that are available at your authorized dealer or atwww.parts.ford.com. We engineer these parts for your vehicle to meet or exceed ourspecifications. Use of other parts could impact vehicle performance, emissions anddurability. Your warranty could be void for any damage related to use of other parts.
465
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMCapacities and Specifications
Page 470 of 642

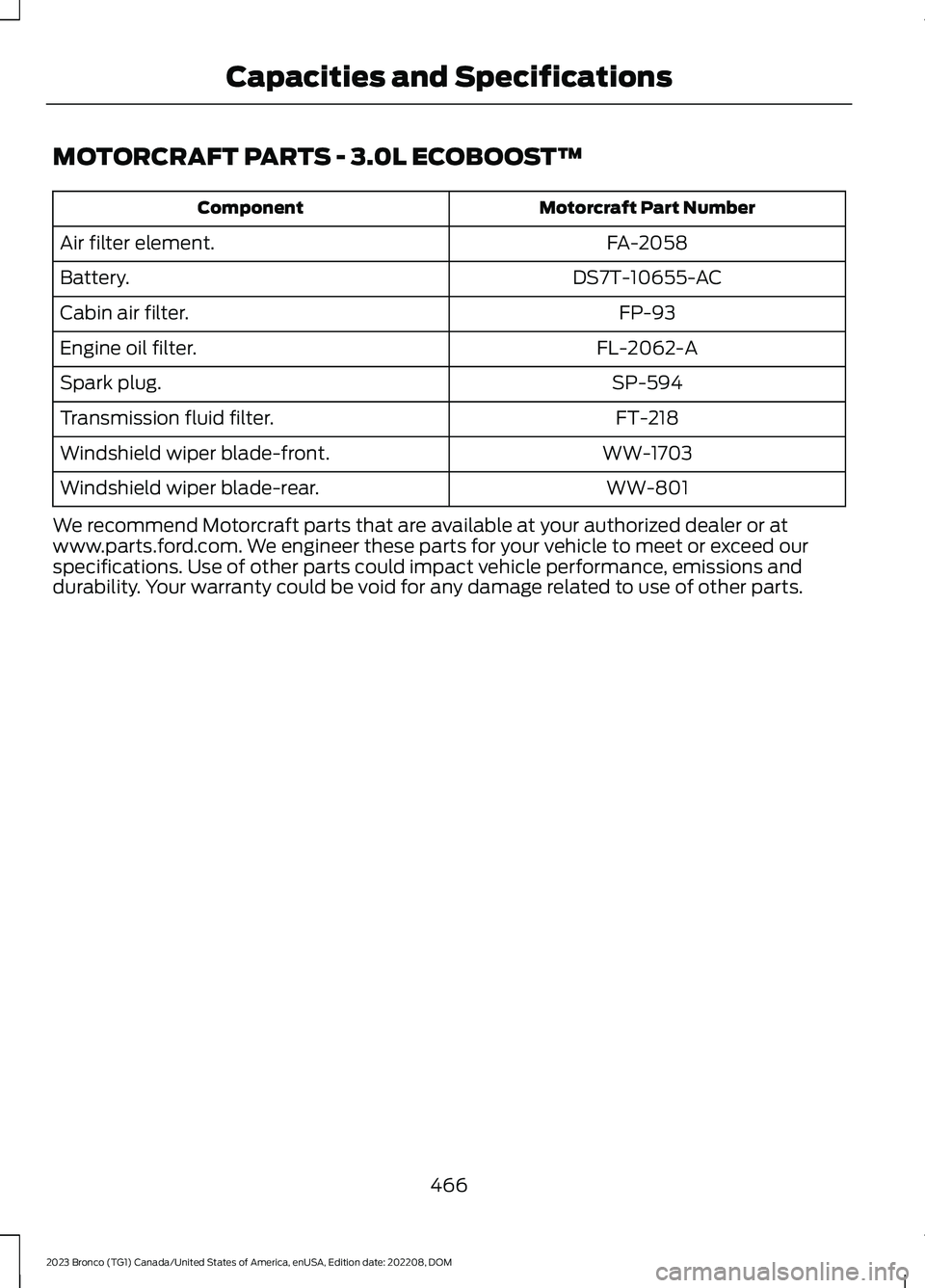

MOTORCRAFT PARTS - 3.0L ECOBOOST™
Motorcraft Part NumberComponent
FA-2058Air filter element.
DS7T-10655-ACBattery.
FP-93Cabin air filter.
FL-2062-AEngine oil filter.
SP-594Spark plug.
FT-218Transmission fluid filter.
WW-1703Windshield wiper blade-front.
WW-801Windshield wiper blade-rear.
We recommend Motorcraft parts that are available at your authorized dealer or atwww.parts.ford.com. We engineer these parts for your vehicle to meet or exceed ourspecifications. Use of other parts could impact vehicle performance, emissions anddurability. Your warranty could be void for any damage related to use of other parts.
466
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMCapacities and Specifications
Page 471 of 642

ENGINE OIL CAPACITY AND
SPECIFICATION - 2.3L
ECOBOOST™
Use oil that meets the definedspecification and viscosity grade.
If you do not use oil that meets the definedspecification and viscosity grade, it couldresult in:
•Component damage that your vehiclewarranty does not cover.
•Longer engine cranking periods.
•Increased emission levels.
•Reduced vehicle performance.
•Reduced fuel economy.
An oil that displays this symbol conformsto current engine, emission system andfuel economy performance standards ofILSAC.
We recommend Motorcraft motor oil foryour vehicle. If Motorcraft oil is notavailable, use motor oils of therecommended viscosity grade that displaythe API Certification Mark for gasolineengines.
Do not use supplemental engine oiladditives because they are unnecessaryand could lead to engine damage that yourvehicle warranty does not cover.
Capacities
Including the Oil FilterVariant
6.0 qt (5.7 L)All.
Materials
SpecificationName
WSS-M2C961-A1Motorcraft® SAE 5W-30 Synthetic Blend MotorOil(U.S.)Motorcraft® SAE 5W-30 Super Premium Motor Oil/ Huile moteur de très haute qualité SAE 5W-30Motorcraft®(Canada)XO-5W30-Q1SP(U.S.)CXO-5W30-LSP6(Canada)
467
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMCapacities and SpecificationsE142732
Page 472 of 642

Alternative Engine Oil forExtremely Cold Climates
To improve engine cold start performance,
we recommend that you use the followingalternative engine oil in extremely coldclimates, where the ambient temperaturereaches -22.0°F (-30°C) or below.
Materials
SpecificationName
WSS-M2C963-A1Engine Oil - SAE 0W-30 - Synthetic Blend
Note:If you use your vehicle regularly abovethe altitude of 7,500 ft (2,286 m) and underthe temperature of -4.0°F (-20°C), it isrecommended to use the alternative engineoil.
ENGINE OIL CAPACITY AND
SPECIFICATION - 2.7L
ECOBOOST™
Use oil that meets the definedspecification and viscosity grade.
If you do not use oil that meets the definedspecification and viscosity grade, it couldresult in:
•Component damage that your vehiclewarranty does not cover.
•Longer engine cranking periods.
•Increased emission levels.
•Reduced vehicle performance.
•Reduced fuel economy.
468
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMCapacities and SpecificationsE240523 E142732
