REMOVING AND INSTALLING THEREAR ROOF PANEL - RAPTOR, 4-DOOR
WARNING: Do not remove ormodify the B-Pillar brace or trim. Doingso could affect safety systemperformance, including safety canopyand front seat mounted side airbags,during a crash or rollover.
Do not remove or modify the C-pillar brace.
Remove the front panels and center panelbefore removing the rear roof panel.
1.Open the rear doors.
2.Open the tailgate window. SeeOpening and Closing the Windows(page 113).
3.Locate the wire harness and washerhose on the driver side rear insidecorner of the vehicle.
4.Release the locking tab by pushing itdown.
5.Push the tab inward when pulling downto disconnect and remove the wiringharness.
6.Push the release button on the hoseconnector and pull down to removethe washer hose.
7.Secure the wiring harness to the bodyside by plugging it into the receptacleand pushing up on the locking tab.
8.Secure the washer hose by snapping itinto the top of the body sidereceptacle.
389
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMRemovable Vehicle ComponentsE335339 E335340 E345383

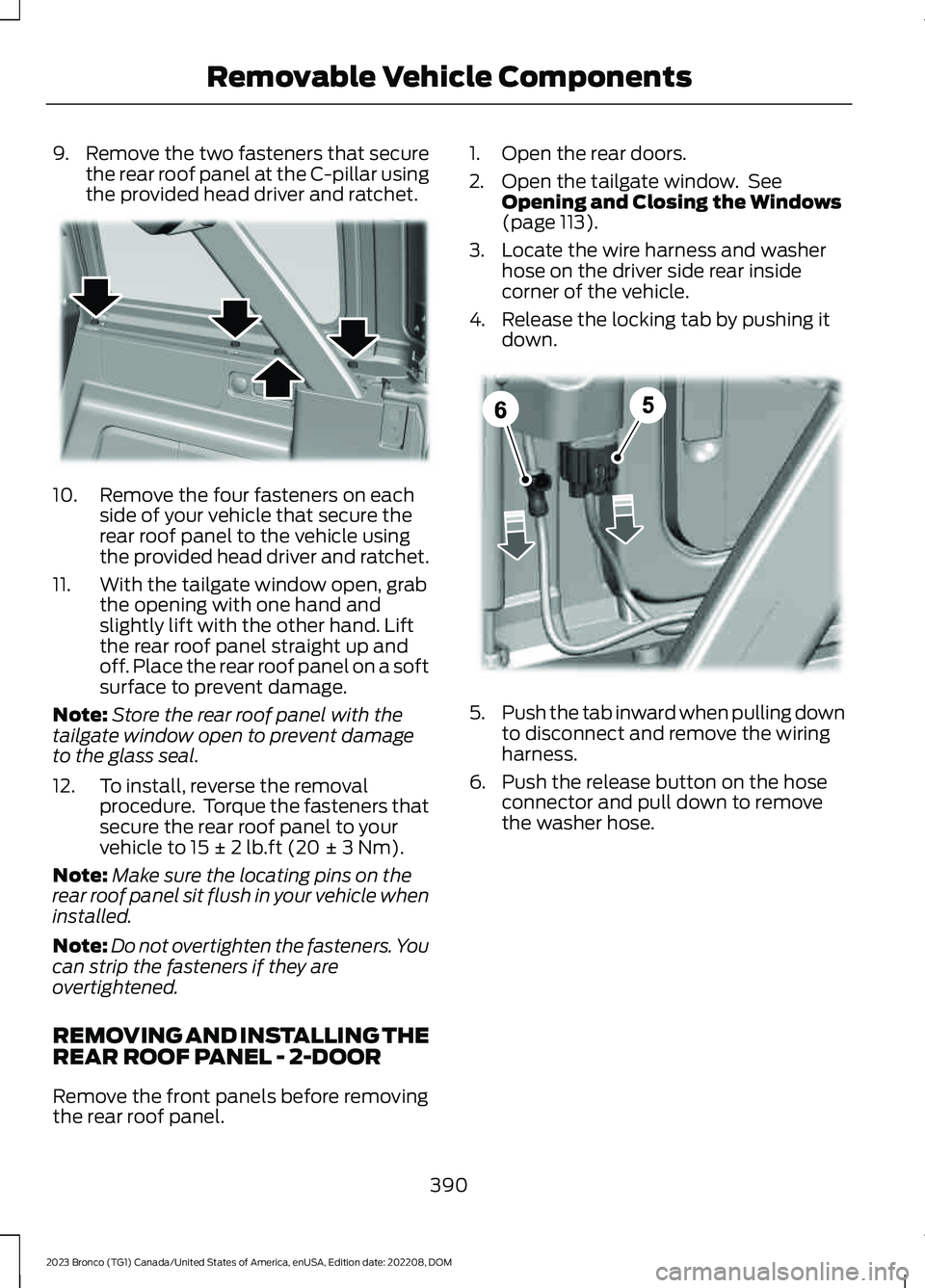

9.Remove the two fasteners that securethe rear roof panel at the C-pillar usingthe provided head driver and ratchet.
10.Remove the four fasteners on eachside of your vehicle that secure therear roof panel to the vehicle usingthe provided head driver and ratchet.
11.With the tailgate window open, grabthe opening with one hand andslightly lift with the other hand. Liftthe rear roof panel straight up andoff. Place the rear roof panel on a softsurface to prevent damage.
Note:Store the rear roof panel with thetailgate window open to prevent damageto the glass seal.
12.To install, reverse the removalprocedure. Torque the fasteners thatsecure the rear roof panel to yourvehicle to 15 ± 2 lb.ft (20 ± 3 Nm).
Note:Make sure the locating pins on therear roof panel sit flush in your vehicle wheninstalled.
Note:Do not overtighten the fasteners. Youcan strip the fasteners if they areovertightened.
REMOVING AND INSTALLING THEREAR ROOF PANEL - 2-DOOR
Remove the front panels before removingthe rear roof panel.
1.Open the rear doors.
2.Open the tailgate window. SeeOpening and Closing the Windows(page 113).
3.Locate the wire harness and washerhose on the driver side rear insidecorner of the vehicle.
4.Release the locking tab by pushing itdown.
5.Push the tab inward when pulling downto disconnect and remove the wiringharness.
6.Push the release button on the hoseconnector and pull down to removethe washer hose.
390
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMRemovable Vehicle ComponentsE333997 E335339

7.Secure the wiring harness to the bodyside by plugging it into the receptacleand pushing up on the locking tab.
8.Secure the washer hose by snapping itinto the top of the body sidereceptacle.
9.Remove the fasteners on each sidethat secure the rear roof panel at theC-pillar using the provided head driverand ratchet.
10.Install the fasteners back to theC-pillar.
11.Remove the four fasteners on eachside of your vehicle that secure therear roof panel to the vehicle usingthe provided head driver and ratchet.
12.With the tailgate window open, grabthe opening with one hand andslightly lift with the other hand. Liftthe rear roof panel straight up andoff. Place the rear roof panel on a softsurface to prevent damage.
Note:Store the rear roof panel with thetailgate window open to prevent damageto the glass seal.
13.To install, reverse the removalprocedure.
14.Remove the fasteners on the C-pillarbefore attaching the rear roof panel.Place the rear roof panel on theC-pillar and hand start the fasteners.
15.Torque the fasteners that secure therear roof panel to your vehicle to15 ± 2 lb.ft (20 ± 3 Nm).
Note:Make sure the locating pins on therear roof panel sit flush in your vehicle wheninstalled.
Note:Do not overtighten the fasteners. Youcan strip the fasteners if they areovertightened.
391
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMRemovable Vehicle ComponentsE335340 E376079 E333997

Removing and Installing theModular Roof Panel (If Equipped)
Store the modular roof panel in a safeplace when you remove it to prevent partdamage.
Modular roof panelA.
1.Pull and hold the spring-loaded slide.
2.Turn the L-shaped latch.
3.Repeat steps 1 and 2 on the other latchto unlock the modular roof panel fromthe roof.
4.Push up on the front of the panel.
5.Slide the panel forward to remove itfrom your vehicle.
6.To install, reverse the removalprocedure.
Note:Make sure the modular roof panelslides back into place and the locating pinssit in the front latch receiver when installingthe modular roof panel.
Note:You do not need to pull and hold thespring-loaded slides to turn the latches tolock the modular roof panel.
Note:When driving with only the modularroof panel removed, make sure to roll downthe windows.
REMOVABLE HARD TOP (IF
EQUIPPED)
REMOVING AND INSTALLING THEHARD TOP - EXCLUDING: RAPTOR
Bronco Hard Top Removal, Storage andReinstallation
WARNING: When opening, closing,removing or installing the removablevehicle components, take care not to getyour fingers or hands caught in themechanism. Failure to follow thisinstruction could result in personal injury.
1.Remove the roof panels. SeeRemovable Roof Panels (page 384).
2.To install, reverse the removalprocedure.
Removing the Soft Top Trim Piece
(If Equipped)
Make sure to remove the soft top trimpieces before installing the hard top.
Remove the three fasteners to the soft toptrim piece on each side of your vehicleusing the provided head driver and ratchet.
392
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMRemovable Vehicle ComponentsE342198 E334239

REMOVING AND INSTALLING THEHARD TOP - RAPTOR
Bronco Hard Top Removal, Storage andReinstallation
WARNING: When opening, closing,removing or installing the removablevehicle components, take care not to getyour fingers or hands caught in themechanism. Failure to follow thisinstruction could result in personal injury.
WARNING: Do not remove ormodify the B-Pillar brace or trim. Doingso could affect safety systemperformance, including safety canopyand front seat mounted side airbags,during a crash or rollover.
Do not remove or modify the C-pillar brace.
1.Remove the roof panels. SeeRemovable Roof Panels (page 384).
2.To install, reverse the removalprocedure.
Removing the Soft Top Trim Piece
(If Equipped)
Make sure to remove the soft top trimpieces before installing the hard top.
Remove the three fasteners to the soft toptrim piece on each side of your vehicleusing the provided head driver and ratchet.
REMOVABLE SOFT TOP (IF
EQUIPPED)
OPENING AND CLOSING THESOFT TOP
WARNING: When opening, closing,removing or installing the removablevehicle components, take care not to getyour fingers or hands caught in themechanism. Failure to follow thisinstruction could result in personal injury.
Partially Opening the Soft Top
Before pulling into a garage, make surethere is enough clearance.
1.Unlatch the two latches at the header.
2.Push the soft top up and rearward.
393
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMRemovable Vehicle ComponentsE334239 E337137 E337153

3.Attach the provided straps if you areoff-road driving or driving on roughroads.
Note:Do not drive without the soft topproperly latched or fully open.
Note:Do not store your vehicle in coldweather with the soft top open.
Note:Leaving the soft top roof in thepartially open position can reduce satelliteradio reception performance. See SatelliteRadio Limitations (page 492).
Fully Opening the Soft Top
1.Remove the rear quarter windows andthe rear window. See RemovableWindows (page 371).
Note:Do not drive unless all rear windowsare removed or installed.
2.Open the soft top to the partially openposition.
3.Press down the handle on the driverside of your vehicle to unlatch the softtop. Lift and rotate the soft toprearward, making sure to keep yourhands and fingers free of themechanism.
4.Make sure the soft top fabric foldsproperly and is not touching themechanism when folding.
394
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMRemovable Vehicle ComponentsE342767 E348154 E365632

5.Press down on the driver side andpassenger side of the soft top andmake sure both sides latch to fullysecure it.
Note:Do not store your vehicle in coldweather with the soft top open.
Closing the Soft Top
Partial Closing
Before pulling in a garage, make sure thereis enough clearance.
1.To return to the partially open position,press the handle down on the driverside of your vehicle to unlatch the softtop.
2.Use the side rail to lift and rotate thesoft top forward.
3.Make sure to latch both sides.
Fully Closing
1.Close the soft top to the partially openposition.
2.Use the side rail to lift and rotate thesoft top forward, making sure it latchesin place.
395
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMRemovable Vehicle ComponentsE339888 E365633 E365634

Note:Do not lift using the top rail only.
3.Make sure both sides fully latch.
4.Latch the two latches at the header.
Note:Do not drive without the soft topproperly latched or fully open.
Accessing the Rear Cargo Area
1.Open the tailgate.
2.Unlatch the soft top.
3.Lift the rear of the soft top just highenough to support it with the soft topprop rod.
Note:Lifting the soft top higher than theprop rod may cause damage to the soft top.
Note:If the temperature is 32°F (0°C) orbelow or if there is ice build-up on the softtop fabric or windows, do not:
•Open or close the soft top.
•Lift the rear window to access thecargo area.
•Install or remove the rear quarter orrear windows.
Failure to follow these instructions cancause damage to the soft top or windows.
REMOVING AND INSTALLING THESOFT TOP
Bronco Soft Top Removal, Storage andReinstallation
396
2023 Bronco (TG1) Canada/United States of America, enUSA, Edition date: 202208, DOMRemovable Vehicle ComponentsABA12203AAE343763 ABA12203AAE343786
