2023 CADILLAC XT4 Owners Manual

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22

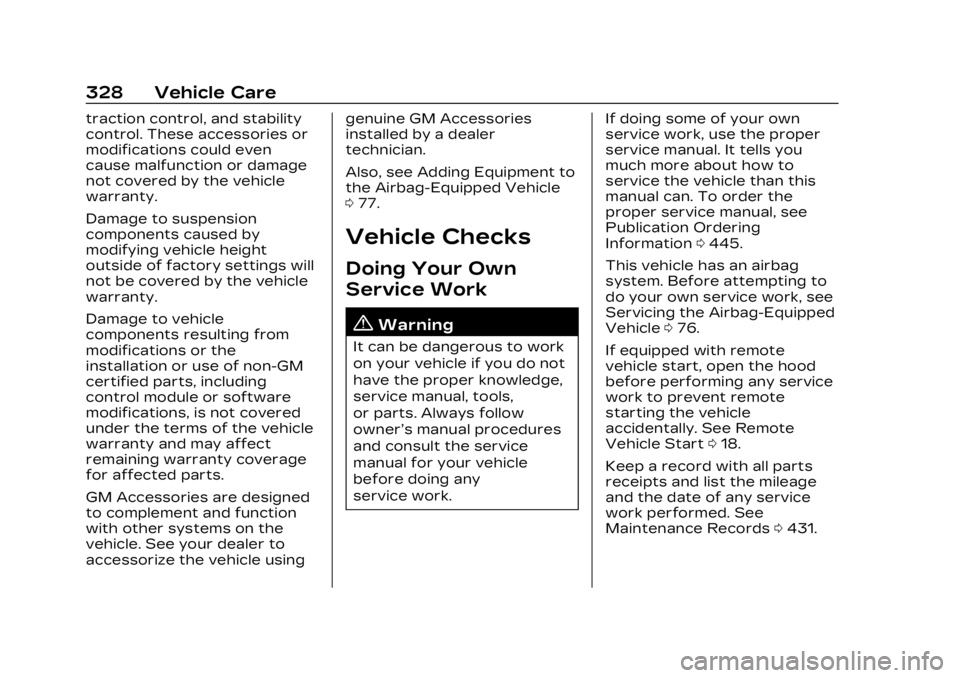

328 Vehicle Care
traction control, and stability
control. These accessories or
modifications could even
cause malfunction or damage
not covered by the vehicle
warranty.
Damage to suspension
components caused by
modifying vehicle height
outside of factory settings will
not be covered by the vehicle
warranty.
Damage to vehicle
components resulting from
modifications or the
installation or use of non-GM
certified parts, including
control module or software
modifications, is not covered
under the terms of the vehicle
warranty and may affect
remaining warranty coverage
for affected parts.
GM Accessories are designed
to complement and function
with other systems on the
vehicle. See your dealer to
accessorize the vehicle usinggenuine GM Accessories
installed by a dealer
technician.
Also, see Adding Equipment to
the Airbag-Equipped Vehicle
0
77.
Vehicle Checks
Doing Your Own
Service Work
{Warning
It can be dangerous to work
on your vehicle if you do not
have the proper knowledge,
service manual, tools,
or parts. Always follow
owner’s manual procedures
and consult the service
manual for your vehicle
before doing any
service work. If doing some of your own
service work, use the proper
service manual. It tells you
much more about how to
service the vehicle than this
manual can. To order the
proper service manual, see
Publication Ordering
Information
0445.
This vehicle has an airbag
system. Before attempting to
do your own service work, see
Servicing the Airbag-Equipped
Vehicle 076.
If equipped with remote
vehicle start, open the hood
before performing any service
work to prevent remote
starting the vehicle
accidentally. See Remote
Vehicle Start 018.
Keep a record with all parts
receipts and list the mileage
and the date of any service
work performed. See
Maintenance Records 0431.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Vehicle Care 329
Caution
Even small amounts of
contamination can cause
damage to vehicle systems.
Do not allow contaminants
to contact the fluids,
reservoir caps, or dipsticks.
Hood
{Warning
For vehicles with auto
engine stop/start, turn the
vehicle off before opening
the hood. If the vehicle is on,
the engine will start when
the hood is opened. You or
others could be injured.
{Warning
Components under the hood
can get hot from running the
engine. To help avoid the
risk of burning unprotected
skin, never touch these
components until they have
cooled, and always use a
glove or towel to avoid
direct skin contact.
Clear any snow from the hood
before opening.
To open the hood: 1. Pull the hood release lever with the
isymbol. It is
on the lower left side of
the instrument panel.
2. Go to the front of the vehicle and locate the
secondary release lever
under the front center of
the hood. Push the
secondary hood release
lever to the right to
release.
3. After you have partially lifted the hood, the gas
strut system will
automatically lift the hood
and hold it in the fully open
position.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
330 Vehicle Care
To close the hood:1. Before closing the hood, be sure all filler caps are on
properly, and all tools are
removed.
2. Pull the hood down until the strut system is no
longer holding up the hood.
3. Allow the hood to fall. Check to make sure the
hood is latched completely.
Repeat this process with
additional force if
necessary.{Warning
Do not drive the vehicle if
the hood is not latched
completely. The hood could
open fully, block your vision,
and cause a crash. You or
others could be injured.
Always close the hood
completely before driving.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Vehicle Care 331
Engine Compartment Overview

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
332 Vehicle Care
1. Engine Air Cleaner/Filter0337.
2. Engine Oil Fill Cap. See Engine Oil 0332.
3. Engine Oil Dipstick. See Engine Oil 0332.
4. Engine Cooling Fan (Out of View). See Cooling System
0338.
5. Brake Fluid Reservoir. See Brake Fluid 0345.
6. Battery - North America 0346.
7. Engine Coolant Surge Tank and Pressure Cap. See
Cooling System 0338.
8. Positive (+) Battery Terminal (Under Cover).
See Jump Starting - North
America 0404.
9. Windshield Washer Fluid Reservoir. See Washer
Fluid 0343.
10. Engine Compartment Fuse Block 0354. 11. Remote Negative (-)
Battery Terminal. See
Jump Starting - North
America 0404.
Engine Oil
To ensure proper engine
performance and long life,
careful attention must be paid
to engine oil. Following these
simple, but important steps
will help protect your
investment:
.Use engine oil approved to
the proper specification and
of the proper viscosity
grade. See “Selecting the
Right Engine Oil” in this
section.
.Check the engine oil level
regularly and maintain the
proper oil level. See
“Checking Engine Oil” and
“When to Add Engine Oil” in
this section.
.Change the engine oil at the
appropriate time. See Engine
Oil Life System 0335.
.Always dispose of engine oil
properly. See “What to Do
with Used Oil” in this section.
Checking Engine Oil
Check the engine oil level
regularly, every 650 km
(400 mi), especially prior to a
long trip. The engine oil
dipstick handle is a loop. See
Engine Compartment
Overview0331 for the
location.
{Warning
The engine oil dipstick
handle may be hot; it could
burn you. Use a towel or
glove to touch the dipstick
handle.
If a low oil Driver Information
Center (DIC) message displays,
check the oil level.
Follow these guidelines:
.To get an accurate reading,
park the vehicle on level
ground. Check the engine oil
level after the engine has

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Vehicle Care 333
been off for at least two
hours. Checking the engine
oil level on steep grades or
too soon after engine
shutoff can result in
incorrect readings. Accuracy
improves when checking a
cold engine prior to starting.
Remove the dipstick and
check the level.
.If unable to wait two hours,
the engine must be off for at
least 15 minutes if the
engine is warm, or at least
30 minutes if the engine is
not warm. Pull out the
dipstick, wipe it with a clean
paper towel or cloth, then
push it back in all the way.
Remove it again, keeping the
tip down, and check the
level.
When to Add Engine Oil
If the oil is below the
cross-hatched area at the tip
of the dipstick and the engine
has been off for at least
15 minutes, add 1 L (1 qt) of the
recommended oil and then
recheck the level. See
“Selecting the Right Engine
Oil”later in this section for an
explanation of what kind of oil
to use. For engine oil
crankcase capacity, see
Capacities and Specifications
0 433.
Caution
Do not add too much oil. Oil
levels above or below the
acceptable operating range
shown on the dipstick are
(Continued)
Caution (Continued)
harmful to the engine. If the
oil level is above the
operating range (i.e., the
engine has so much oil that
the oil level gets above the
cross-hatched area that
shows the proper operating
range), the engine could be
damaged. Drain the excess
oil or limit driving of the
vehicle, and seek a service
professional to remove the
excess oil.
See Engine Compartment
Overview 0331 for the
location of the engine oil
fill cap.
Add enough oil to put the level
somewhere in the proper
operating range. Push the
dipstick all the way back in
when through.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
334 Vehicle Care
Selecting the Right
Engine Oil
Selecting the right engine oil
depends on both the proper
oil specification and viscosity
grade. See Recommended
Fluids and Lubricants0429.
Specification
Use full synthetic engine oils
that meet the dexos1
specification.
Engine oils that have been
approved by GM as meeting
the dexos1 specification are
marked with the dexos1
approved logo. See
www.gmdexos.com.
Caution
Failure to use the
recommended engine oil or
equivalent can result in
engine damage not covered
by the vehicle warranty.
Viscosity Grade
Use SAE 0W-20 viscosity
grade engine oil.
When selecting an oil of the
appropriate viscosity grade, it
is recommended to select an
oil of the correct specification.
See “Specification” earlier in
this section.
Engine Oil Additives/
Engine Oil Flushes
Do not add anything to the oil.
The recommended oils
meeting the dexos1
specification are all that is
needed for good performance
and engine protection. Engine oil system flushes are
not recommended and could
cause engine damage not
covered by the vehicle
warranty.
What to Do with Used Oil
Used engine oil contains
certain elements that can be
unhealthy for your skin and
could even cause cancer. Do
not let used oil stay on your
skin for very long. Clean your
skin and nails with soap and
water, or a good hand cleaner.
Wash or properly dispose of
clothing or rags containing
used engine oil. See the
manufacturer's warnings
about the use and disposal of
oil products.
Used oil can be a threat to the
environment. If you change
your own oil, be sure to drain
all the oil from the filter before
disposal. Never dispose of oil
by putting it in the trash or
pouring it on the ground, into
sewers, or into streams or

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Vehicle Care 335
bodies of water. Recycle it by
taking it to a place that
collects used oil.
Engine Oil Life
System
When to Change
Engine Oil
This vehicle has a computer
system that indicates when to
change the engine oil and
filter. This is based on a
combination of factors which
include engine revolutions,
engine temperature, and miles
driven. Based on driving
conditions, the mileage at
which an oil change is
indicated can vary
considerably. For the oil life
system to work properly, the
system must be reset every
time the oil is changed.
When the system has
calculated that oil life has been
diminished, it indicates that an
oil change is necessary.
A CHANGE ENGINE OILSOON message comes on.
Change the oil as soon as
possible within the next
1 000 km (600 mi). It is
possible that, if driving under
the best conditions, the oil life
system may indicate that an oil
change is not necessary for up
to a year. The engine oil and
filter must be changed at least
once a year and at this time
the system must be reset.
Your dealer has trained
service people who will
perform this work and reset
the system. It is also important
to check the oil regularly over
the course of an oil drain
interval and keep it at the
proper level.
If the system is ever reset
accidentally, the oil must be
changed at 5 000 km
(3,000 mi) since the last oil
change. Remember to reset
the oil life system whenever
the oil is changed.
How to Reset the Engine
Oil Life System
Reset the system whenever
the engine oil is changed so
that the system can calculate
the next engine oil change. To
reset the system:
1. Using the DIC controls on the right side of the
steering wheel, display
REMAINING OIL LIFE on
the DIC. See Driver
Information Center (DIC)
0136. When remaining oil
life is low, the CHANGE
ENGINE OIL SOON
message will appear on the
display.
2. Press
Von the DIC
controls and hold down for
a few seconds to clear the
CHANGE ENGINE OIL
SOON message and reset
the oil life at 100%.
Be careful not to reset the
oil life display accidentally
at any time other than
after the oil is changed.
