2022 TOYOTA YARIS CROSS Owners Manual

327
5
CV Owner's Manual_Europe_M52N20_en
5-3. Using the storage features
Interior features
Pull up the lever to open the glove
box.
Front
Rear (if equipped)
Pulling the strap to pull down the
armrest.
Front
Glove box
WARNING
■Caution while driving
Keep the glove box closed. In the
event of sudden braking or sudden swerving, an accident may occur due to an occupant being struck by the
open glove box or the items stored inside.
Cup holders
WARNING
■Items unsuitable for the cup holder
Do not place anything other than cups or beverage cans in the cup holders.
Inappropriate items must not be stored in the cup holders even if the lid is closed.
Other items may be thrown out of the holders in the event of an accident or sudden braking and cause injury. If
possible, cover hot drinks to prevent burns.
Bottle holders

328
CV Owner's Manual_Europe_M52N20_en
5-3. Using the storage features
Rear
■Bottle holders
●When storing a bottle, close the cap.
●The bottle may not be stored depend-
ing on its size or shape.
Lift the lid while pulling up the knob.
■When not in use
The console box can be raised to reveal a secondary console box.
WARNING
■Items unsuitable for the bottle holders
Do not place anything other than a bottle in the bottle holders.Other items may be thrown out of the
holders in the event of an accident or sudden braking and cause injury.
Console box
WARNING
■Caution while driving
Keep the console box closed.
Injuries may result in the event of an accident or sudden braking.

329
5
CV Owner's Manual_Europe_M52N20_en
5-3. Using the storage features
Interior features
■Opening the deck board
Open the deck board.
Type A
Type B
■Changing the height of the
luggage compartment floor (if
equipped)
By changing the position of the
deck board, the height of the lug-
gage compartment floor can be
changed.
Upper position
Lower position
Open the deck board.
Open the floor cover.
If necessary, remove the deck
board.
Luggage compartment
features
Deck board (if equipped)
Auxiliary box (if equipped)

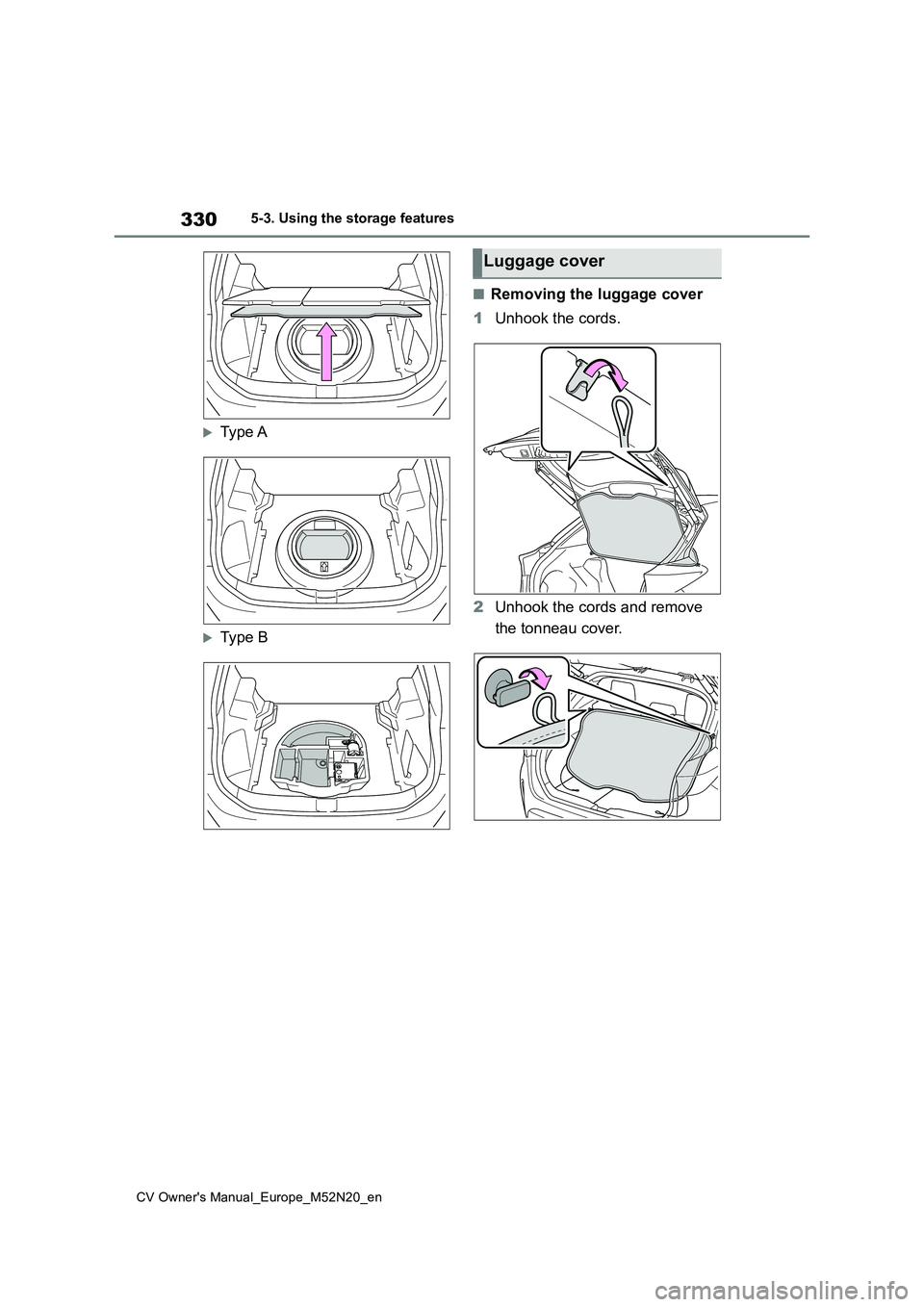

330
CV Owner's Manual_Europe_M52N20_en
5-3. Using the storage features
Type A
Type B
■Removing the luggage cover
1 Unhook the cords.
2 Unhook the cords and remove
the tonneau cover.
Luggage cover

331
5
CV Owner's Manual_Europe_M52N20_en
5-3. Using the storage features
Interior features
■Stowing the luggage cover
1 Hold the luggage cover with
both hands. Point your thumbs
in opposite directions.
2 Bend one side of the cover
towards you.
3 Twist the other side in the oppo-
site direction, as shown in the
illustration.
4 Make a small circle, then fold it
inward.
5 Make sure the three circles are
side by side.
6 Make sure the luggage cover is
properly folded.
WARNING
Observe the following precautions. Failure to do so may result in death or
serious injury.

332
CV Owner's Manual_Europe_M52N20_en
5-3. Using the storage features
WARNING
●Do not place anything on the lug- gage cover. In the event of sudden
braking or turning, the item may go flying and strike an occupant.
●Do not allow children to climb on the luggage cover. Climbing on the luggage cover could result in dam-
age to the luggage cover.
●Be sure to properly fold the luggage
cover. Otherwise it could unexpect- edly unfold.
●Be sure to attach the cords cor-rectly to prevent the cover from fly-ing off.
NOTICE
Do not apply too much force when folding the luggage cover. Doing so may damage the luggage cover.

333
5
CV Owner's Manual_Europe_M52N20_en
5-4. Other interior features
Interior features
5-4.Other interior features
The power outlet can be used for
12 V accessories that run on less
than 10 A.
Open the lid.
Front
Luggage compartment (if
equipped)
■The power outlet can be used when
The engine switch is in ACC or ON.
■When turning the engine switch off
Disconnect electrical devices with charging functions, such as mobile bat-tery packs.
If such devices are left connected, the engine switch may not be turned off nor-mally.
A portable device, such as a smart-
phone or mobile battery, can be
charged by just placing it on the
charging area, provided the device
is compatible with the Qi wireless
charging standard created by the
Wireless Power Consortium. The
wireless charger cannot be used
with a portable device that is larger
than the charging area. Addition-
ally, depending on the portable
device, the wireless charger may
not operate properly. Refer to the
operation manual of the portable
device.
■The “Qi” symbol
The “Qi” symbol is a trademark of
the Wireless Power Consortium.
Other interior features
Power outlet
NOTICE
■To prevent the fuse from being blown
Do not use an accessory that uses more than 12 V 10 A.
■To avoid damaging the power outlet
Close the power outlet lid when the
power outlet is not in use. Foreign objects or liquids that enter the power outlet may cause a short
circuit.
■To prevent the battery from being
discharged
Do not use the power outlet longer than necessary when the engine is
not running.
Wireless charger (if
equipped)

334
CV Owner's Manual_Europe_M52N20_en
5-4. Other interior features
■Name for all parts
Power supply switch
Operation indicator light
Charge area
■Using the wireless charger
1 Press the power supply switch
of the wireless charger.
Pressing the switch again turns the wireless charger off.
When turned on, the operation indicator light (green) comes on.When the engine switch is turned off,
the on/off state of the wireless charger will be memorized.
2 Place a portable device on the
charging area with its charging
surface facing down.
While charging, the operation indicator light (orange) will be illuminated. If charging does not begin, move the por-
table device as close to the center of the charging area as possible. When charging is complete, the opera-
tion indicator light (green) will illumi- nate.
■Recharging function
 If a certain amount of time has
elapsed since charging com-
pleted and the portable device
has not been moved, the wire-
less charger will restart charging.
 If the portable device is moved
within the charging area,
charging will stop temporarily
then restart.
