2022 TOYOTA YARIS CROSS Owners Manual

463
8
CV Owner's Manual_Europe_M52N20_en
8-2. Customization
Vehicle specifications
■PCS (Pre-Collision System)* (P.217)
*: If equipped
■LTA (Lane Tracing Assist)* (P.228)
*: If equipped
■RSA (Road Sign Assist)*1 (P.263)
*1: If equipped
*2: RSA function becomes On when the engine switch is turned to ON.
FunctionDefault settingCustomized setting
PCS (Pre-Collision Sys-
tem)OnOff—O—
Adjust alert timingMiddleEarly—O—Late
FunctionCustomized setting
Lane centering functionOn / Off—O—
Alert typesBuzzer / Steering
wheel vibration—O—
Alert sensitivityHigh / Standard—O—
Vehicle sway warning functionOn / Off—O—
Vehicle sway warning sensitivityHigh / Standard / Low—O—
FunctionDefault settingCustomized setting
RSA (Road Sign Assist)*2OnOff—O—
Excess speed notification
method*3Display onlyNo notification—O—Display and buzzer
Excess speed notification
level2 km/h (1 mph)5 km/h (3 mph)—O—10 km/h (5 mph)
No overtaking notification
methodDisplay onlyNo notification—O—Display and buzzer
Other notifications method
(No-entry notification)*4Display onlyNo notification—O—Display and buzzer

464
CV Owner's Manual_Europe_M52N20_en
8-2. Customization
*3: If a speed limit with supplemental mark is exceeded, the notification buzzer does
not operate.
*4: Vehicles with 7-inch/8-inch display navigation system
■Dynamic radar cruise control* ( P.238, 250)
*: If equipped
■Stop & Start system* (P.267)
*: If equipped
■BSM (Blind Spot Monitor)* (P.272)
*: If equipped
■Toyota parking assist-sensor* (P.277)
FunctionDefault settingCustomized setting
Radar Cruise Control with
Road Sign AssistOffOn—O—
FunctionDefault settingCustomized setting
Change the Stop & Start
system duration when the
A/C is on
StandardExtended—O—
FunctionDefault settingCustomized setting
BSM (Blind Spot Monitor)
functionOnOff—O—
Outside rear view mirror
indicator brightnessBrightDim—O—
Alert timing for presence of
approaching vehicle (sensi-
tivity)
Intermediate
Early
—O—Late
Only when vehicle
detected in blind spot
FunctionDefault settingCustomized setting
Toyota parking assist-sen-
sorOnOff—O—
Buzzer volumeLevel 2Level 1—O—Level 3

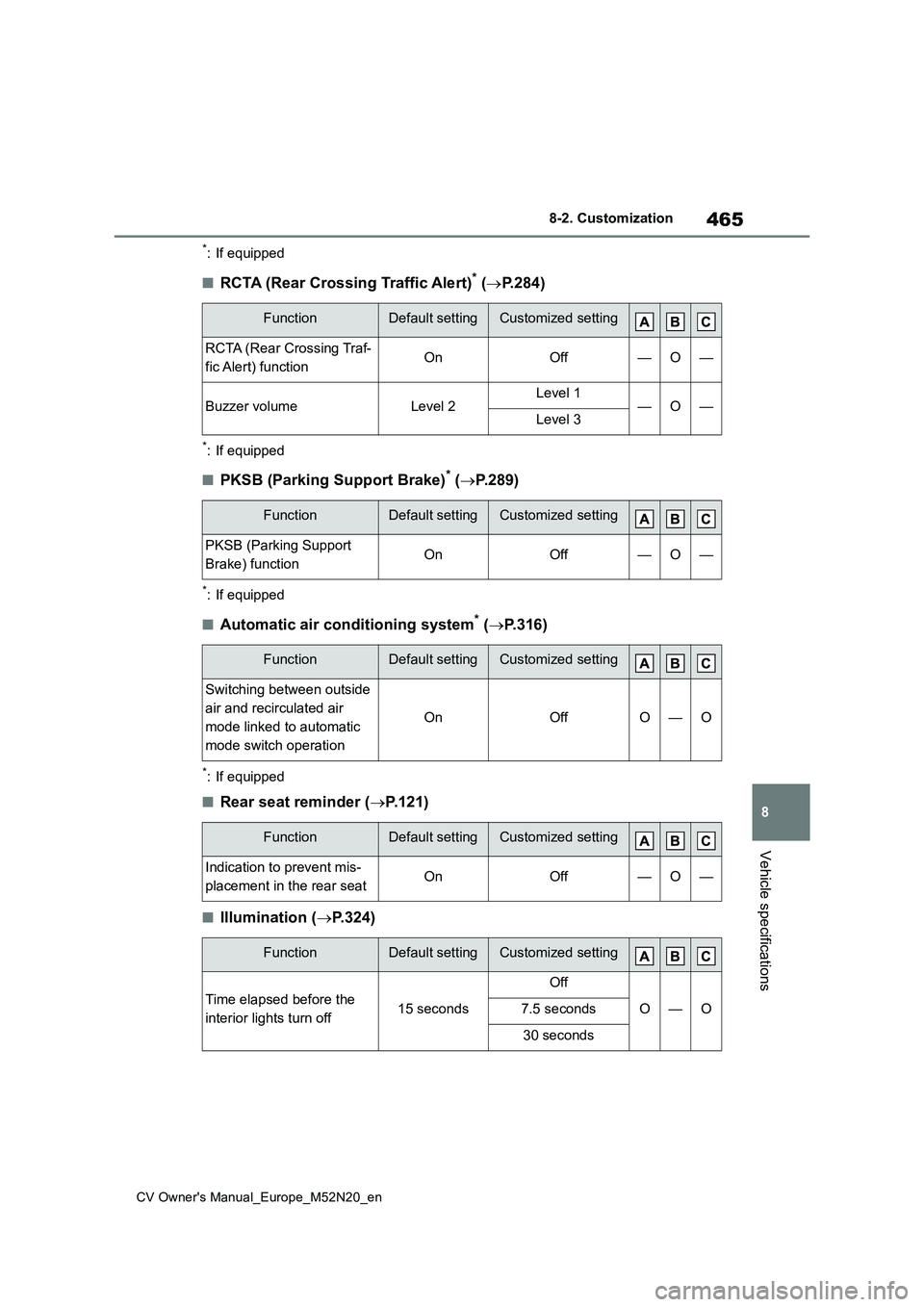

465
8
CV Owner's Manual_Europe_M52N20_en
8-2. Customization
Vehicle specifications
*: If equipped
■RCTA (Rear Crossing Traffic Alert)* (P.284)
*: If equipped
■PKSB (Parking Support Brake)* (P.289)
*: If equipped
■Automatic air conditioning system* (P.316)
*: If equipped
■Rear seat reminder (P.121)
■Illumination (P.324)
FunctionDefault settingCustomized setting
RCTA (Rear Crossing Traf-
fic Alert) functionOnOff—O—
Buzzer volumeLevel 2Level 1—O—Level 3
FunctionDefault settingCustomized setting
PKSB (Parking Support
Brake) functionOnOff—O—
FunctionDefault settingCustomized setting
Switching between outside
air and recirculated air
mode linked to automatic
mode switch operation
OnOffO—O
FunctionDefault settingCustomized setting
Indication to prevent mis-
placement in the rear seatOnOff—O—
FunctionDefault settingCustomized setting
Time elapsed before the
interior lights turn off15 seconds
Off
O—O7.5 seconds
30 seconds

466
CV Owner's Manual_Europe_M52N20_en
8-2. Customization
*: If equipped
■Vehicle customization
When the smart entry & start system is off, Smart door unlocking cannot be cus-tomized.
■In the following situations, custom-
ize mode in which the settings can be changed through the multi-infor-mation display will automatically
be turned off
●A warning message appears after the
customize mode screen is displayed
●The engine switch is turned off.
●The vehicle begins to move while the customize mode screen is displayed.
Operation after the engine
switch is turned offOnOff——O
Operation when the doors
are unlockedOnOff——O
Operation when you
approach the vehicle with
the electronic key on your
person*
OnOff——O
Footwell lights*, front con-
sole light and door trim
lights*
OnOff——O
FunctionDefault settingCustomized setting

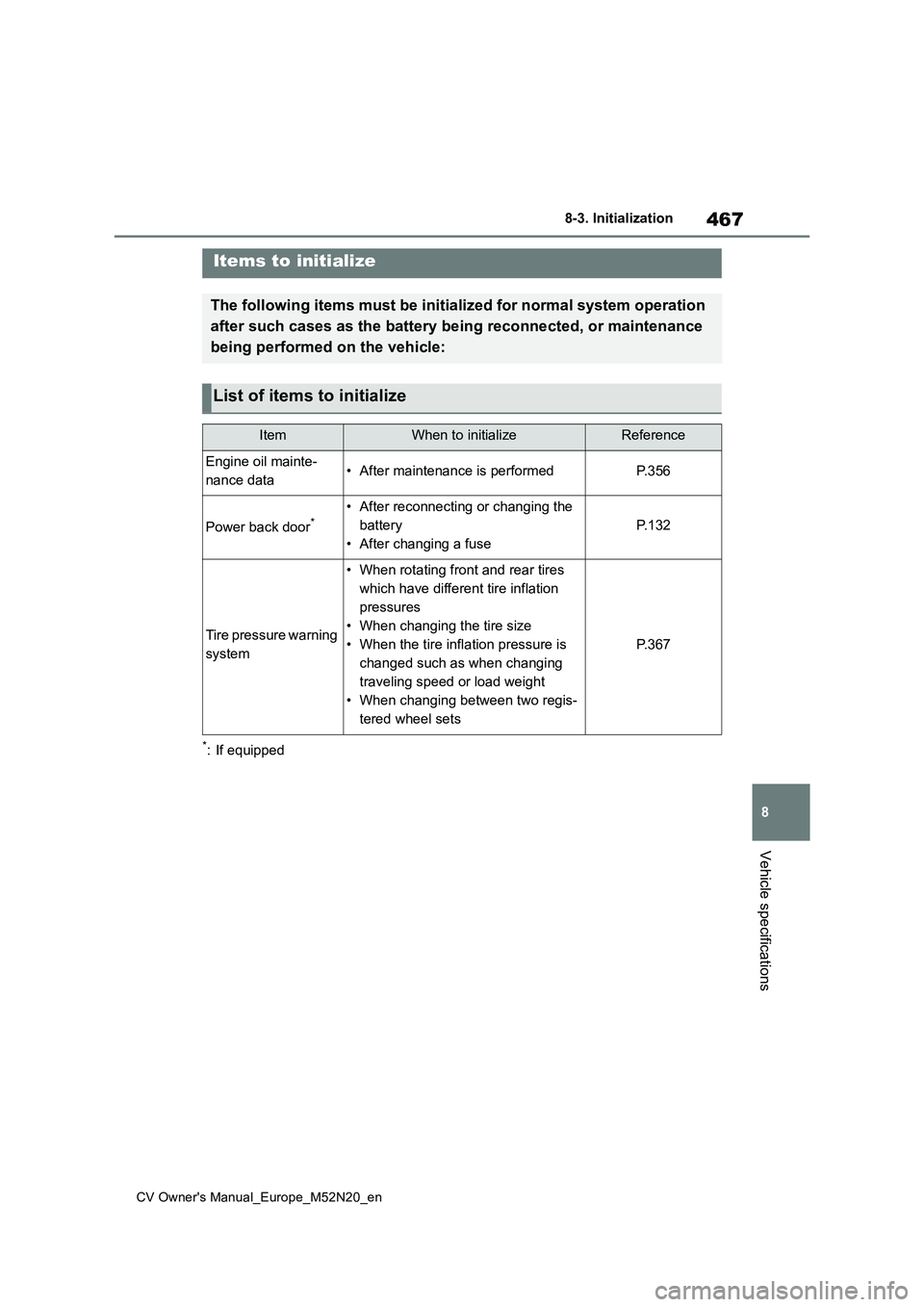

467
8
CV Owner's Manual_Europe_M52N20_en
8-3. Initialization
Vehicle specifications
8- 3. In it ia li za ti on
*: If equipped
Items to initialize
The following items must be initialized for normal system operation
after such cases as the battery being reconnected, or maintenan ce
being performed on the vehicle:
List of items to initialize
ItemWhen to initializeReference
Engine oil mainte-
nance data• After maintenance is performedP. 3 5 6
Power back door*• After reconnecting or changing the
battery
• After changing a fuse
P. 1 3 2
Tire pressure warning
system
• When rotating front and rear tires
which have different tire inflation
pressures
• When changing the tire size
• When the tire inflation pressure is
changed such as when changing
traveling speed or load weight
• When changing between two regis-
tered wheel sets
P. 3 6 7

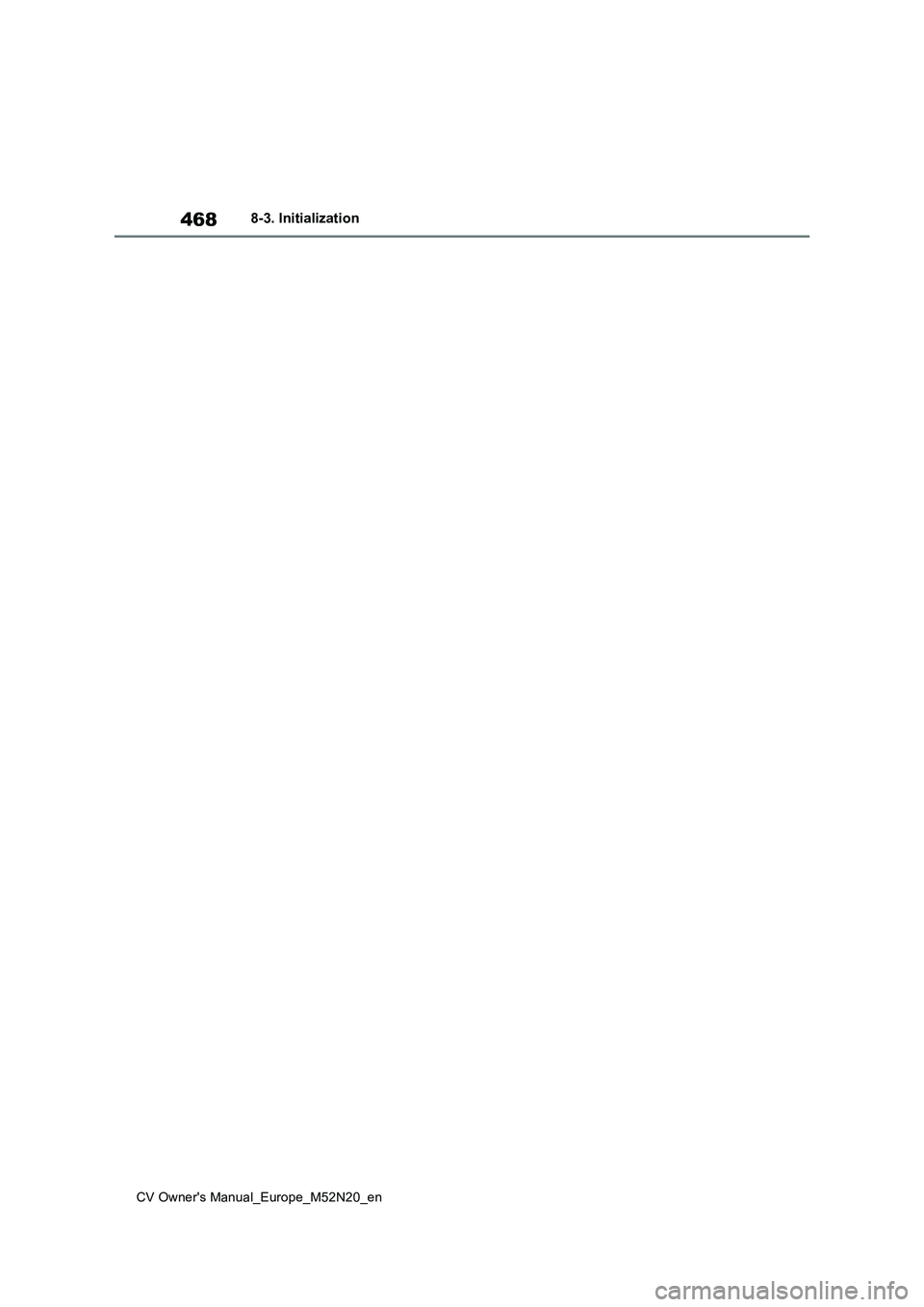

468
CV Owner's Manual_Europe_M52N20_en
8-3. Initialization

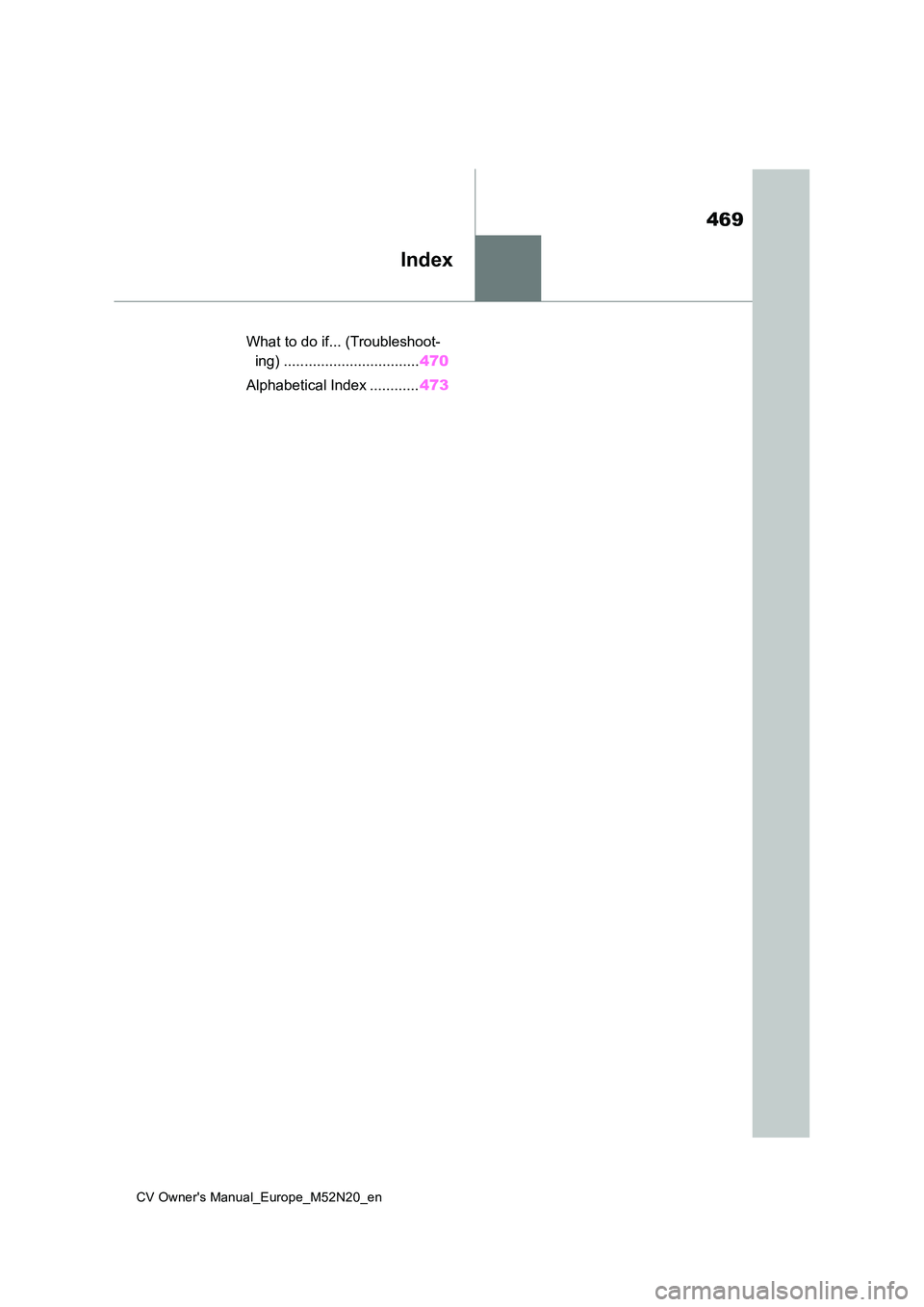

469
CV Owner's Manual_Europe_M52N20_en
Index
What to do if... (Troubleshoot-
ing) ................................. 470
Alphabetical Index ............ 473

470
CV Owner's Manual_Europe_M52N20_en
What to do if... (Troubleshooting)
1-1.What to d o if... (Tro ublesho oting)What to do if... (Troubleshooting)
If you lose your keys or mechani-
cal keys, new genuine keys or
mechanical keys can be made
by any authorized Toyota retailer
or Toyota authorized repairer, or
any reliable repairer. ( P.436)
 Vehicles with smart entry & start
system: If you lose your elec-
tronic keys, the risk of vehicle
theft increases significantly. Con-
tact any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable repairer
immediately. ( P.436)
 Is the key battery weak or
depleted? ( P.378)
 Vehicles with a smart entry &
start system: Is the engine switch
in ON?
When locking the doors, turn the
engine switch off. ( P.177)
Vehicles with a smart entry &
start system: Is the electronic
key left inside the vehicle?
When locking the doors, make sure that
you have the electronic key on your
person.
 The function may not operate
properly due to the condition of
the radio wave. ( P.117, 138)
 Is the child-protector lock set?
The rear door cannot be opened from
inside the vehicle when the lock is set.
Open the rear door from outside and
then unlock the child-protector lock.
( P.123)
Multidrive: Is the shift lever in P?
( P.173)
 Manual transmission: Do you
turn the key with the clutch pedal
depressed firmly? ( P.173)
 Is the steering wheel unlocked?
( P.173)
 Is the battery discharged?
( P.439)
If you have a problem, check
the following before contacting
any authorized Toyota retailer
or Toyota authorized repairer,
or any reliable repairer.
The doors cannot be locked,
unlocked, opened or closed
You lose your keys
The doors cannot be locked
or unlocked
The rear door cannot be
opened
If you think something is
wrong
The engine does not start
(vehicles without a smart
entry & start system)
