3505-1. MOBILITY
This chapter describes all standard,
country-specific and special equip-
ment available for the model series.
It may therefore describe equip-
ment and functions which are not
installed in your vehicle, for exam-
ple on account of the special equip-
ment selected or the country
specification. This also applies to
safety-relevant functions and sys-
tems. Please comply with the rele-
vant laws and regulations when
using the corresponding functions
and systems.
Breakdown Assist
Vehicle equipment
If a malfunction occurs
while driving
WA R N I N G
If a malfunction occurs while driving,
immediately stop the vehicle in a safe
place.
If a warning light illuminates or flashes, or a warning message is dis-
played, immediately stop the vehicle
in a safe place. Do not open the hood to inspect the engine, as doing so
may lead to serious injury, such as
steam burns. If a warning message is displayed, perform the necessary pro-
cedures according to the displayed
message or explanation in the owner’s manual.
These warning messages indicate that a malfunction has occurred in a
system or function of the vehicle. If
you continue to drive the vehicle, the engine may stop suddenly, possibly
leading to an accident. Also, even if
no warning lights are illuminated or messages are displayed, if any
abnormal sounds, smells or vibrations
are detected, or of the engine stops suddenly, refrain from opening the
hood to inspect the engine and con-
sult any authorized Toyota retailer or Toyota authorized repairer, or any reli-
able repairer.
WA R N I N G
If you hear a loud noise or feel some-
thing impact the underside of the vehicle while driving, immediately
stop the vehicle in a safe place.
After stopping the vehicle in a safe
place, check the underside of the
vehicle for any leaking brake fluid, oil or fuel. If any fluid is leaking, stop
driving immediately and have the
vehicle inspected by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.

351
5
5-1. MOBILITY
MOBILITY
WA R N I N G
Brake and fuel lines run under the
floor of the vehicle. If any of these
lines are damaged, the brakes may
fail or leaking fuel may ignite and cause a fire.
WA R N I N G
If the engine stalls while driving, sev-
eral warning lights will illuminate. Depending on vehicle specifications,
the power-assisted brakes and power
steering may stop operating. In this case the braking power will be
reduced and operation of the steering
wheel will become heavy. Although the operation of the brakes and steer-
ing will not be totally lost, they will
require stronger than normal input to
operate. Stop the vehicle in a safe place as soon as possible.
WA R N I N G
While driving, if a tire has been punc-
tured or has ruptured, firmly grip the
steering wheel, gradually reduce the vehicle speed and stop the vehicle in
a safe place. Avoid sudden braking
and steering operations as doing so may cause you to lo se control of the
vehicle. Gradually reduce the vehicle
speed and stop the vehicle in a safe
place.
●Vehicles equipped with run-flat tires
As the sidewalls of run-flat tires are
especially stiff, it may be difficult to
feel when a tire is punctured or if the tire pressure has decreased sud-
denly. It may also be difficult to vis-
ually tell that a tire is flat or the inflation pressure is low.
If the tire pressure warning indicator illuminates, while avoiding sudden
braking or steering operations,
decelerate to 80 km /h or less, care- fully stop the vehicle in a safe place
and check the condition of each tire.
For details on how to check the condi- tion of the tires, see page 292. If any
tire is damaged, contact any author-
ized Toyota retailer or Toyota author- ized repairer, or any reliable repairer
for assistance.
The tire pressure warning indicator
may not illuminate if the inflation pres-
sure of a tire drops rapidly, such as when a tire has burst.

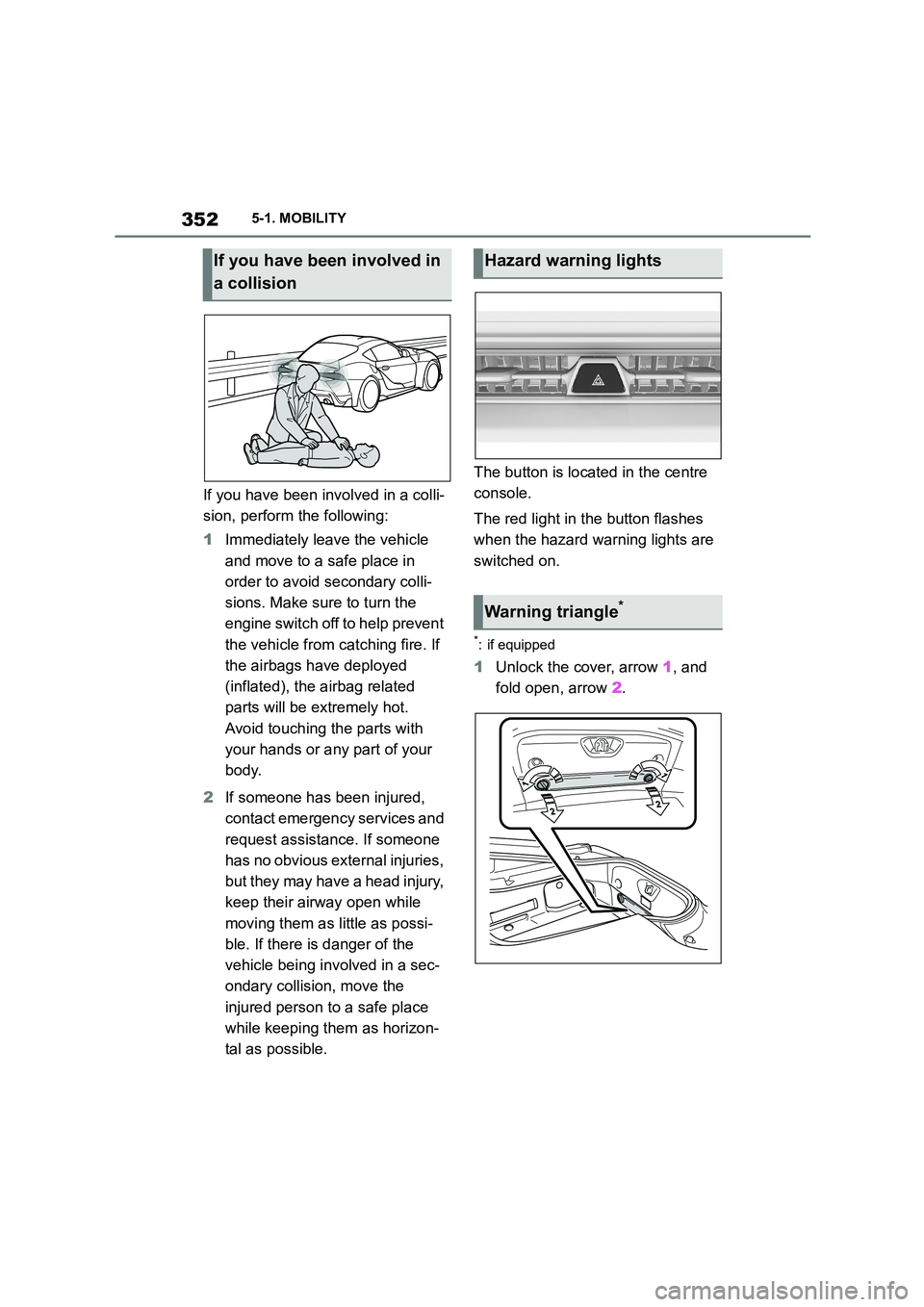

3525-1. MOBILITY
If you have been involved in a colli-
sion, perform the following:
1 Immediately leave the vehicle
and move to a safe place in
order to avoid secondary colli-
sions. Make sure to turn the
engine switch off to help prevent
the vehicle from catching fire. If
the airbags have deployed
(inflated), the airbag related
parts will be extremely hot.
Avoid touching the parts with
your hands or any part of your
body.
2 If someone has been injured,
contact emergency services and
request assistance. If someone
has no obvious external injuries,
but they may have a head injury,
keep their airway open while
moving them as little as possi-
ble. If there is danger of the
vehicle being involved in a sec-
ondary collision, move the
injured person to a safe place
while keeping them as horizon-
tal as possible.
The button is located in the centre
console.
The red light in the button flashes
when the hazard warning lights are
switched on.
*: if equipped
1 Unlock the cover, arrow 1, and
fold open, arrow 2.
If you have been involved in
a collision
Hazard warning lights
Warning triangle*

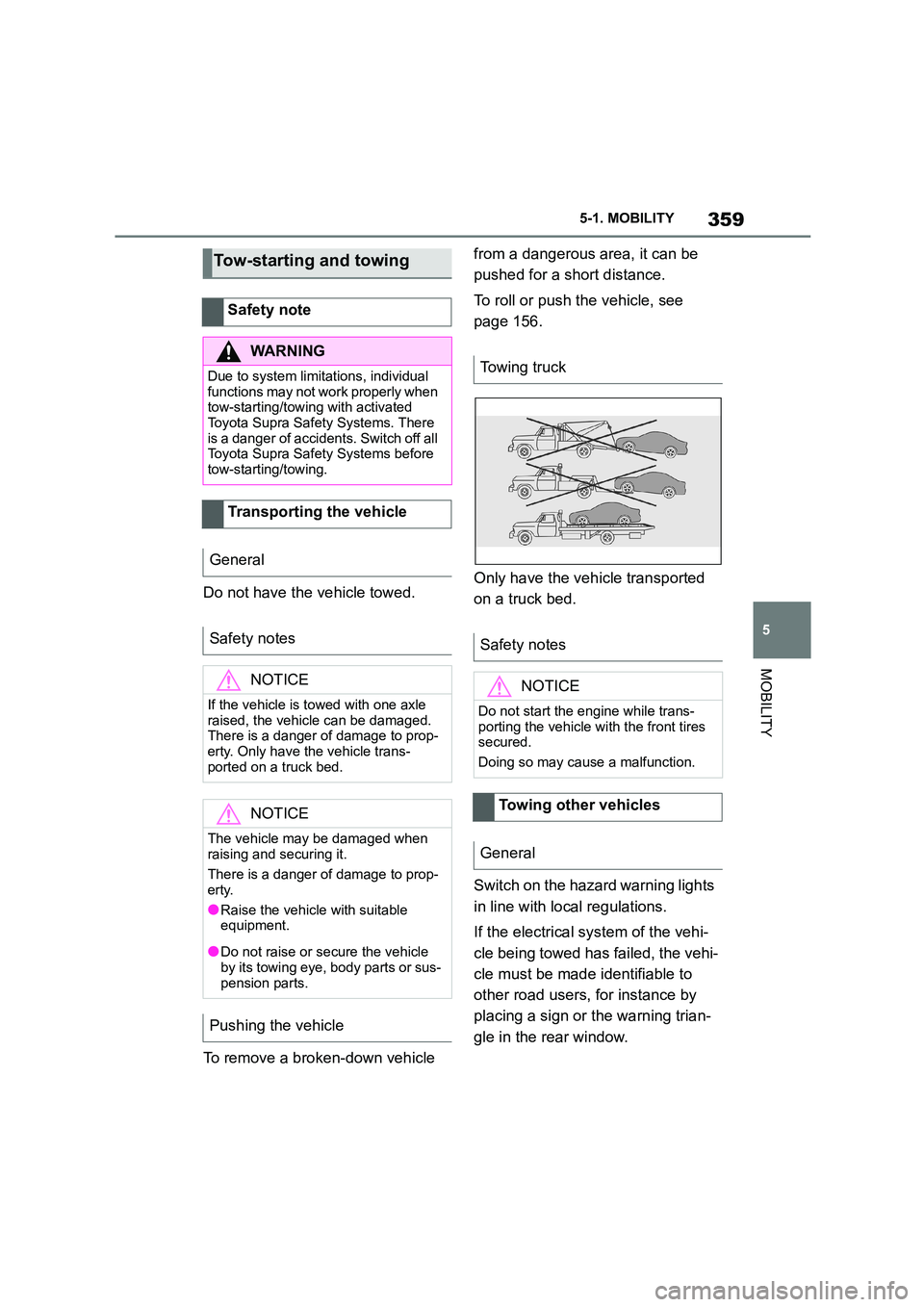

359
5
5-1. MOBILITY
MOBILITY
Do not have the vehicle towed.
To remove a broken-down vehicle
from a dangerous area, it can be
pushed for a short distance.
To roll or push the vehicle, see
page 156.
Only have the vehicle transported
on a truck bed.
Switch on the hazard warning lights
in line with local regulations.
If the electrical system of the vehi-
cle being towed has failed, the vehi-
cle must be made identifiable to
other road users, for instance by
placing a sign or the warning trian-
gle in the rear window.
Tow-starting and towing
Safety note
WA R N I N G
Due to system limitations, individual
functions may not work properly when
tow-starting/towing with activated
Toyota Supra Safety Systems. There is a danger of accidents. Switch off all
Toyota Supra Safety Systems before
tow-starting/towing.
Transporting the vehicle
General
Safety notes
NOTICE
If the vehicle is towed with one axle raised, the vehicle can be damaged.
There is a danger of damage to prop-
erty. Only have the vehicle trans- ported on a truck bed.
NOTICE
The vehicle may be damaged when raising and securing it.
There is a danger of damage to prop-
erty.
●Raise the vehicle with suitable
equipment.
●Do not raise or secure the vehicle by its towing eye, body parts or sus-
pension parts.
Pushing the vehicle
Towing truck
Safety notes
NOTICE
Do not start the engine while trans-
porting the vehicle with the front tires secured.
Doing so may cause a malfunction.
Towing other vehicles
General

484Alphabetical Index
Alphabetical Index
A
A/C button, see Cooling function 262
ABS, anti-lock braking system .... 228
ACC, see Dynamic radar cruise con-
trol ............................................... 238
Acceleration assistant, see Launch
Control ........................................ 159
Accessories and parts ..................... 7
Acknowledgement signals of the
vehicle ......................................... 102
Activated carbon filter.................. 266
Activation, airbags ....................... 202
Active bonnet, see Active pedestrian
protection.................................... 204
Active Guard, see Toyota Supra
Safety .......................................... 205
Active pedestrian protection ....... 204
Adaptive brake assist .................. 228
Adaptive variable suspension ..... 259
Adaptive variable suspension, adap-
tive ............................................... 259
Additional coolant tank cooling,
Capacity ...................................... 375
Additives, engine oil grades........ 326
Adjustable speed limit, see Manual
Speed Limiter ............................. 232
Adjusting the headlights.............. 190
Age of tyres................................... 295
Air conditioning ............................ 261
Air outlets, see Ventilation........... 266
Air pressure, tyres........................ 292
Airbag switch, see Key switch for
front passenger airbags ............ 202
Airbags .......................................... 192
Airbags, indicator/warning lamp . 195
Alarm system ................................ 102
Alarm, false ................................... 104
All-season tyres, see Winter tyres
..................................................... 297
Angle, backrest ............................. 110
Anti-lock braking system, ABS ... 228
Anti-theft alarm system, see Alarm
system ......................................... 102
Anti-theft system, locking.............. 90
Anti-theft system, see Thiefproof
wheel studs ................................. 314
Anti-theft, wheel studs ................. 314
Anti-trap mechanism, windows ... 106
Apple CarPlay, connection to the
vehicle ........................................... 84
Aquaplaning .................................. 283
AUTO programme, automatic air
conditioning ................................263
Auto Start Stop function .............. 145
Automatic air conditioning ..........261
Automatic anti-glare control, see
Automatic high-beam................. 188
Automatic Cruise Control, see
Dynamic radar cruise control .... 238
Automatic driving lights control .185
Automatic emergency call ........... 355
Automatic high-beam ................... 188
Automatic locking......................... 102
Automatic parking function, exterior
mirror ........................................... 118
Automatic start-sto p function ..... 145
Automatic transmission ...............154
Automatic transmission, Fluid .... 375
Automatic transmission, see Auto-
matic transmission.....................154
Automatic unlocking .................... 102
Avoiding false alarms................... 104
Axle load limit ............................... 371
Axle loads, weight ........................371
B
Backrest angle .............................. 110
Backrest contour, see Lumbar sup-
port .............................................. 110
Backrest width .............................. 110
Backrest, seats .............................107
Bag holders ...................................277
Bar for tow-starting/towing ..........360
Battery, vehicle .............................341
Belts, see Seat belts ..................... 111
Black ice, see Outside temperature
warning........................................169
Blind spot monitor ........................220

486Alphabetical Index
Compartments in the doors......... 274
Compressor .................................. 300
Condensation when vehicle is
parked ......................................... 285
Condition Based Service CBS..... 330
Connection point, starting assis-
tance ............................................ 358
Connections, Screen Mirroring ..... 85
Continuing a journey with a flat tyre
..................................................... 311
Control Display ............................... 59
Control Display, settings ............... 71
Control systems, driving stability228
Controller ........................................ 60
Coolant .......................................... 327
Coolant level ................................. 327
Coolant temperature .................... 169
Cooling effect, maximum............. 263
Cooling function ........................... 262
Cooling system ............................. 327
Cornering light .............................. 188
Corrosion of brake discs ............. 285
Cruise Control with distance control,
see Dynamic radar cruise control
..................................................... 238
Cruise Control without distance con-
trol, see Cruise Control ............. 234
Cruise Control, active with Stop &
Go ACC........................................ 238
Cruise Control, see Cruise Control
..................................................... 234
Cruise control, see Dynamic radar
cruise control ............................. 238
Cupholder ..................................... 275
Curtain shield airbag.................... 193
Customize settings, see Sport mode
switch .......................................... 160
D
Damage, tyres ............................... 295
Data protection, settings ............... 75
Data, see Deleting personal data .. 75
Data, technical .............................. 370
Date.................................................. 72
Daytime driving lights ..................187
Deactivation, airbags.................... 202
Deleting personal data ................... 75
Deletion of personal data ............... 75
Departure time, auxiliary heating 268
Departure time, independent ventila-
tion ............................................... 268
Desired speed, see Dynamic radar
cruise control..............................238
Devices, managing ......................... 86
Diagnosis connection ..................332
Diesel particle filter, see Exhaust gas
particle filter ................................281
Differential oil ................................375
Dimensions ...................................370
Dimmable exterior mirrors ........... 118
Dimming rear-view mirror ............ 118
Dipping headlights, see Automatic
high-beam ...................................188
Direct selection buttons, see Favour-
ites buttons ................................... 68
Display in windscreen, see Head-Up
Display.........................................182
Display lighting, see Instrument
lighting ........................................191
Displaying the device list ............... 86
Displays .........................................162
Displays and symbols ......................4
Displays, screens ......................... 368
Disposal, coolant ..........................328
Disposal, vehicle battery.............. 343
Disposing of the battery...............343
Disposing of the old battery ........ 343
Distance warning, see Parking Sen-
sors ..............................................248
Downhill gradients........................285
Drive mode, see Sport mode switch
..................................................... 160
Driver assistance, see Toyota Supra
Safety...........................................205
Driver Attention Control ...............226
Driver profiles ................................. 76
Drive-ready state, idle state and
standby state ................................ 53

487Alphabetical Index
Driving Assistant, see Toyota Supra
Safety .......................................... 205
Driving hints ................................. 281
Driving information, general........ 281
Driving information, running in ... 280
Driving lights control, automatic 185
Driving on racing tracks .............. 285
Driving path lines, rear-view camera
..................................................... 255
Driving Stability Control Systems228
Driving through water .................. 284
Drying air, see Cooling function . 262
Dynamic radar cruise control with
full-speed range ......................... 238
E
Electrical power window switches
..................................................... 105
Electronic oil measurement......... 324
Electronic Stability Programme, ESP,
see VSC ....................................... 229
Emergency assistance, see Break-
down assistance ........................ 353
Emergency braking function when
parking, Parking Sensors with
emergency braking function ..... 251
Emergency release, fuel filler flap
..................................................... 291
Emergency running properties, tyres
..................................................... 298
Emergency services, see Breakdown
assistance ................................... 353
Emergency unlocking, transmission
lockout ........................................ 158
Emergency wheel ......................... 318
Engine ........................................... 372
Engine compartment .................... 320
Engine coolant .............................. 327
Engine coolant, Capacity............. 375
Engine oil .............................. 323, 374
Engine oil change......................... 327
Engine oil filler neck .................... 325
Engine oil grades for topping up 326
Engine oil level, checking electroni-
cally ............................................. 324
Engine oil temperature ................. 169
Engine start, starting assistance 357
Engine, automatic start-stop func-
tion ............................................... 145
Entering letters and numbers ........ 63
Entry comparison, navigation ....... 57
ESP, Electronic Stab ility Programme,
see VSC ....................................... 229
Exhaust gas particle filter ............281
Exhaust system ............................ 281
Exhaust, see Exhaust system ..... 281
Exterior lights when unlocking ..... 89
Exterior lights with the vehicle
locked ............................................ 91
Exterior mirror, automatic parking
function ....................................... 118
Exterior mirror, automatically dim-
ming ............................................. 118
Exterior mirrors............................. 117
Exterior mirrors, malfunction ...... 118
External start, see Starting assis-
tance ............................................357
Extinguisher, see Fire extinguisher
..................................................... 356
Eye for towing ............................... 360
Eyes, see Lashing eye in the boot
..................................................... 276
F
Failure notification, see Vehicle mes-
sages ...........................................163
False alarm, see Avoiding false
alarms .......................................... 104
Fan run-on, see Exhaust gas particle
filter..............................................281
Fastening seat belts, see Seat belts
..................................................... 111
Fatigue warning function .............226
Fault display, see Vehicle messages
..................................................... 163
Favourites buttons, Toyota Supra
Command ...................................... 68

488Alphabetical Index
Filler neck for engine oil .............. 325
Filter, see Microfilter/activated car-
bon filter ...................................... 266
Fire extinguisher .......................... 356
Flank protection without Surround
View ............................................. 252
Flat tyre message, TPM ............... 308
Flat tyre warning lamp, TPM ........ 308
Flat tyre, continuing a journey .... 311
Flat tyre, see Tyre Pressure Monitor
..................................................... 304
Flat tyre, wheel change ................ 313
Flooding ........................................ 284
Floor carpet, care ......................... 367
Fog lights, see Bulbs and lights . 340
Fold-out position of windscreen wip-
ers ................................................ 153
Foot brake ..................................... 284
Foot mats, care ............................. 367
Front airbags ................................ 193
Front head restraints.................... 116
Front lights, see Bulbs and lights340
Front neck supports, see Head
restraints ..................................... 116
Front passenger airbags, deactivat-
ing/activating .............................. 202
Front passenger airbags, indicator
lamp ............................................. 204
Front passenger's mirror, tilting
down, see Automati c parking func-
tion............................................... 118
Front seats .................................... 107
Front-end collision warning with City
braking function ......................... 207
Fuel ................................................ 322
Fuel filler flap ................................ 290
Fuel gauge .................................... 168
Fuel quality ................................... 322
Fuel recommendation .................. 322
Fuel tank cap ................................ 290
Fuel, tank capacity ....................... 372
Fuses ............................................. 343
G
Gearbox, see Automatic transmis-
sion ..............................................154
General driving information.........281
General settings.............................. 71
Glare protection, see Sun visor... 269
Glove box ......................................274
Go function.................................... 238
Go function ACC ...........................238
GPS positioning, vehicle position. 73
H
Handbrake, see Parking brake .... 148
Hazard warning lights ..................352
Headlight cleaning system, see
Wiper system ..............................151
Headlight courtesy delay feature 187
Headlight flasher...........................150
Headlight glass .............................340
Headlights, care ............................ 363
Headlights, see Bulbs and lights 340
Head-Up Display ...........................182
Head-Up Display, care ..................368
Head-Up Display, see Memory func-
tion ............................................... 119
Head-Up Display, standard view . 182
Height, vehicle ..............................370
Help in driving off, see Hill-start
assist control .............................. 229
High-beam headlights ..................150
Hill Start Assist, see Hill-start assist
control .........................................229
Hill-start assist control ................. 229
Holder for beverages .................... 275
Horn ................................................. 46
Hot exhaust system ...................... 281
I
Ice warning, see Outside tempera-
ture warning ................................169
Identification number, see Vehicle
identification number ................... 22
