3 Display
Display
Meaning
Meaning
Lights up redT hegreen LED 0ashes
simultaneousl y:ove r-
te mp erature – the
ch arging per form ance
is reduced.
The green LED does
not 0ash: overtemper-
ature – thech arging
process is stopped.
Flashes redO vertemperature at
th e mains plug – the
ch arging process is
stopped. Safe
Safe
ty syst
ty syst em indicat
em indicat or
or4
4 Displ
ay
Display Meaning
Meaning
Flashes redC harging cable mal-
function – cann ot
car ryout thech arging
process, reset the
ch arging cable operat-
ing unit.
Lights up redW hite LED is o.:
po we r supply malfunc-
tion – cannot car ry
out thech arging proc-
ess, replace the mains
soc ket.
White LED is on: vehi-
cle malfunction – can-
not car ryout the
ch arging process,
re set thech arging
cable operating unit. When all
four displa yslight up, thech arging cable
operating unit per form s a self-test. If
te mp erature monitor 3indicates a malfunc-
tion, it may help toprotect thech arging cable
from direct sunlight.
T T o r
o r ese
ese t t
t the c
he c har
harging cable oper
ging cable oper ating unit:
ating unit:if
saf ety sy stem 4indicates a charging cable mal-
function or a vehicle malfunction, /rst reset the
ch arging cable operating unit. Todo this, discon-
nect thech arging cable from theve hicle and from
th e mains soc ket and waitfor appr oximately /ve
seconds. If the malfunction persists aTer the
ch arging cable is reconnected, charging at the
mains soc ket is not possible. The charging cable
must be replaced or theve hicle plug must be
ch ecked at a quali/ed specialist workshop,
depending on the indicator. F
F
unctions of t
unctions of t he indicat
he indicator lam
or lamps on t
ps on t he v
he vehicle
ehicle
soc ket
soc ket %
Depending on the national version, your vehi-
cle is equipped with one of thefo llowing vehi-
cle soc kets.
The soc ket 0ap is centrally loc ked and unloc ked
to get her with theve hicle. 174
174
Driving and parking

Combo 1
vehicle soc ket
1 Socket lamp
2 Charging process indicator lamp
3 Locking status indicator lamp Combo 2
vehicle soc ket
1 Socket lamp
2 Charging process indicator lamp
3 Locking status indicator lamp
Soc ket lamp 10ashes or lights up as with indi-
cator lamps 2and 3. Ov
Ov
er
er vie
vie w of t
w of t he loc
he loc king st
king st atus
atus Loc
Loc
king st
king st a-
a-
tus
tus 3
3 Display
Display
Meaning
Meaning
% Lights up
white Ve
hicle
soc ket
unloc ked,
insert or
re mo vecharg-
ing cable
% Flashes whiteMalfunction
during locking
or unlocking Ov Ov
er
er vie
vie w of t
w of t he c
he char
harging pr
ging pr ocess st
ocess st atus
atus S
S
t
t atus of t
atus of t he
he
c
c har
har ging
ging
pr
pr ocess
ocess 2
2 Displ
ay
Display Meaning
Meaning
# Flashes
orangeConnection is
being estab-
lished
# Flashesgreen Active energy
0ow Driving and parking
175 175

S
S
t
tatus of t
atus of t he
he
c
c har
har ging
ging
pr
pr ocess
ocess 2
2 Displ
ay
Display Meaning
Meaning
# Lights up
orangeInter
ruption in
ch arging
# Lights up
green Charging
process com-
ple
ted
# Flashesred
(for appr ox.
90 s) Ve
hicle mal-
function;
ch arging is
not possible S S
t
tar
ar ting t
ting t he alt
he alt er
ernating curr
nating curr ent c
ent char
harging pr
ging pr ocess
ocess
(mode 2/3)
(mode 2/3) &
D
DAN
AN GER
GER Risk of death when charging at a
damaged soc ket
The charging process uses high voltage. If
th ech arging cable, theve hicle soc ket or the
mains soc ket are damaged, you could receive
an elect ric shoc k. #
Only use an undamaged charging cable. #
Avoid mechanical damage such as crush-
ing, abrading or driving overth e cable. #
Have a damaged vehicle soc ketre placed
at a quali/ed specialist workshop as
soon as possible. #
Never connect thech arging cable to a
damaged vehicle soc ket. *
N
NOOTE
TE Damage due toove rheating of
ch arging cable and charging cable con-
nector During
thech arging process, thech arging
cable and charging cable connector can heat
up within their permissible limit values. The permissible limit
values are in0uenced by
th efo llowing factors:
R the po wer supply system and thech arging
cable are not damaged
R the inst ructions for handling thech arging
cable and the control element on the
ch arging cable ha vebeen obser ved #
Ifth ech arging cable or charging cable
connector becomes too hot, ha vethe
po we r supply system checked. *
N NOOTE TE Damaged or dirty vehicle soc ket
when the soc ket 0ap is open #
Alwayske ep the soc ket co ver and the
soc ket 0ap closed when there is no
ch arging cable connected. This pr otects
th eve hicle soc ket from dirt and damage. #
Make sure that the soc ket co ver is
closed proper lybefore closing the soc ket
0ap. This can otherwise result in damage
which may pr event the soc ket 0ap from
being opened again. 176
176
Driving and parking

*
N
N O
OTE
TE Damage totheve hicle soc ket or the
ch arging cable connector due toincor rect
handling Do not use
excessive forc e (maximum 300 N)
to insert thech arging cable connector into the
ve hicle soc ketto the stop. You may otherwise
damage theve hicle soc ket,thech arging cable
connector or their contacts. #
Ifyo ufe el there is increased resis tance,
pull thech arging cable connector out of
th e soc ket and reinsert it. R
R
eq
eq uir
uir ements:
ements:
R The transmission is in position j.
R The vehicle is unloc ked or the distance
between theke y and theve hicle does not
ex ceed 1 m.
R The vehicle has not been star ted.
R The charging cable is not taut.
% Depending on the national version, theve hicle
is equipped with one of thefo llowing vehicle

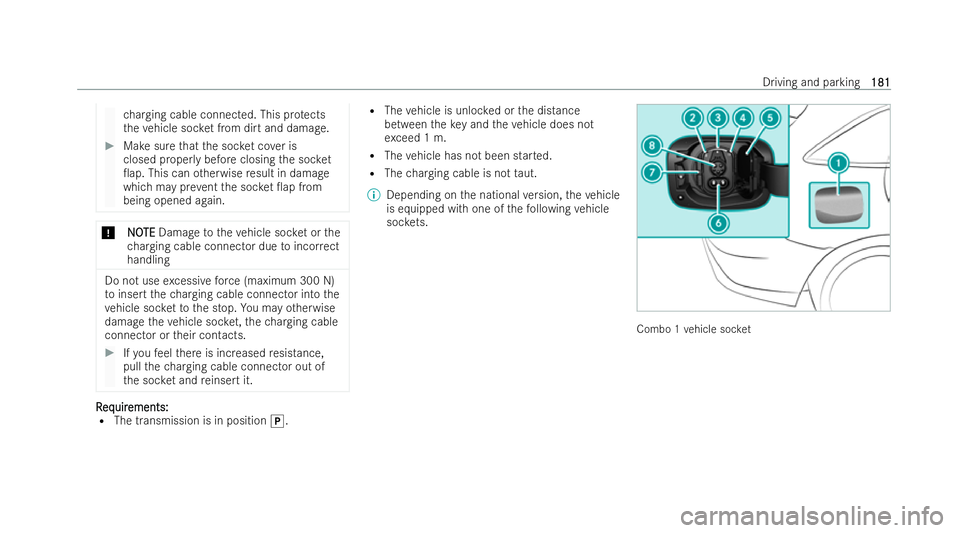

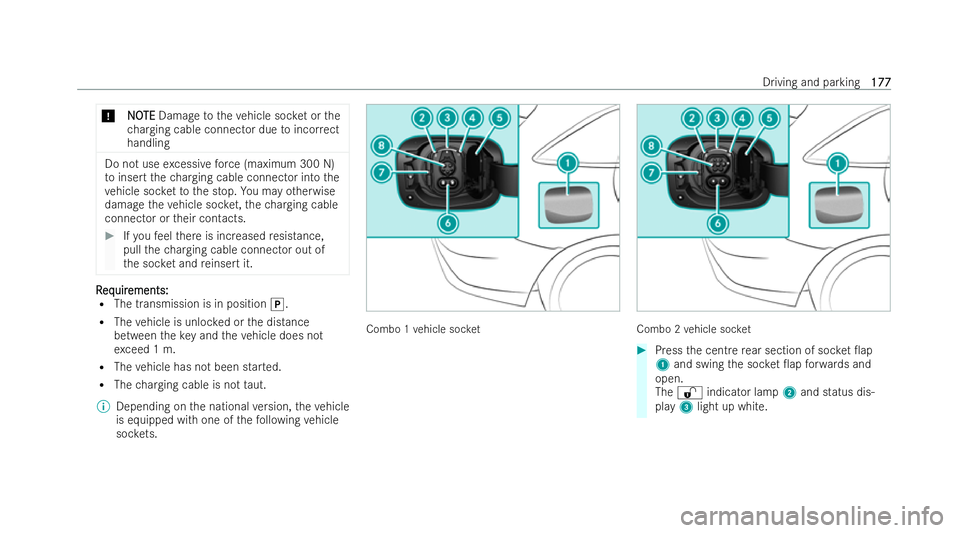

soc kets. Combo 1
vehicle soc ket Combo 2
vehicle soc ket #
Press the centre rear section of soc ket 0ap
1 and swing the soc ket 0ap forw ards and
open.
The % indicator lamp 2and status dis-
play 3light up white. Driving and parking
177 177

%
When theve hicle is star ted (the õdisplay
is lit in the Instrument Display), soc ket 0ap 1
cannot be opened. #
Press catch 7tothe leT and fold open
soc ket co ver5.
% Only connection 8isrequ ired forth ech arg-
ing cable connector. Open only the upper part
of soc ket co ver5. #
Tocharge at a mains soc ket, insert the mains
plug into the mains soc ket of theex tern al
po we r source tothe stop and set the maxi-
mum charging cur rent if requ ired
(/ page 172). #
Insert thech arging cable connector into vehi-
cle soc ket connection 8tothe stop. If the
wa llbox/charging station is not equipped with
a ch arging cable, inse rtthe plug of theve hi-
cle's charging cable into thewa llbox/charging
station soc ketto the stop.
Make sure that thech arging cable is not taut
when inser ted. The
# indicator lamp 4and status dis-
play 30ash orange and, as soon as the high-
vo ltage battery is charge d, green.
% When thech arging sequence forth e ambient
lighting is activated, the ambient lighting lights
up for appr oximately 30 seconds as with the
# indicator lamp 4(/ page 134).
When thech arging cable is connected totheve hi-
cle, theve hicle cann otbe star ted or mo ved.
At the start of thech arging process, thech arge
le ve l display is shown in the Instrument Display
with a charging prediction. The charging predic-
tion either refers to the predicted charge leve l at
th e set departure time, or the time at which the
high- voltage battery will be fully charge d.
% When theve hicle is switched on, a lightning
symbol appears next tothech arge leve l dis-
play during thech arging process.
% Depending on thete mp erature, thefa n and
bat tery cooling system may audibly switch on
during thech arging process.
% Ifth eve hicle is idle for lengt hyperiods and
connected tothe mains suppl y,the high-volt-
age battery will be rech arge d automatically as needed or when electrical consumers are
activated (e.g.
the pre-entry climate control).
% The vehicle is equipped with an elect rical fuse
which pr otects it against overvoltage in the
mains suppl y.This electrical fuse may trip dur-
ing se vere thunderstorms, forex ample, and
may cause the fuse in the building totrip or
may inter rupt thech arging process. These
functions pr otect theve hicle.
ATer the fuse in the building is switched on
again, thech arging process resumes automat-
icall y.Fo llowing an inter ruption in the po wer
supply without the fuse in the building being
tripped, it may take up to te n minutes for
ch arging toresume automaticall y. Ending t Ending t
he alt
he alter
ernating curr
nating curr ent c
ent char
harging pr
ging pr ocess
ocess
(mode 2/3)
(mode 2/3) R
R
eq
eq uir
uir ements:
ements:
R The dis tance between theke y and theve hicle
does not exceed 1 m. 178
178
Driving and parking

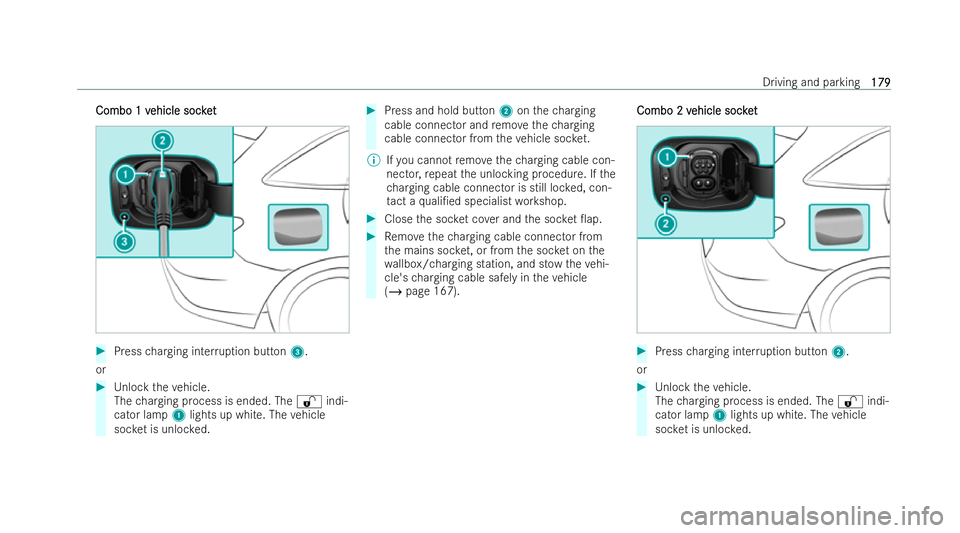

Combo 1 v
Combo 1 v
ehicle socket
ehicle soc ket #
Press charging inter ruption button 3.
or #
Unlock theve hicle.
The charging process is ended. The %indi-
cator lamp 1lights up white. The vehicle
soc ket is unloc ked. #
Press and hold button 2onthech arging
cable connector and remo vethech arging
cable connector from theve hicle soc ket.
% Ifyo u cannot remo vethech arging cable con-
nector, repeat the unlocking procedure. If the
ch arging cable connector is still loc ked, con-
ta ct a quali/ed specialist workshop. #
Close the soc ket co ver and the soc ket 0ap. #
Remo vethech arging cable connector from
th e mains soc ket, or from the soc ket on the
wa llbox/charging station, and st owtheve hi-
cle's charging cable safely in theve hicle
(/ page 167). Combo 2 v
Combo 2 v
ehicle socket
ehicle soc ket #
Press charging inter ruption button 2.
or #
Unlock theve hicle.
The charging process is ended. The %indi-
cator lamp 1lights up white. The vehicle
soc ket is unloc ked. Driving and parking
179
179

#
Remo vethech arging cable connector from
th eve hicle soc ket within 30 seconds.
ATer the 30 seconds ha veelapsed, theve hicle
soc ket will be loc ked again.
% Ifyo u cannot remo vethech arging cable con-
nector, repeat the unlocking procedure. If the
ch arging cable connector is still loc ked, con-
ta ct a quali/ed specialist workshop. #
Close the soc ket co ver and the soc ket 0ap. #
Remo vethech arging cable connector from
th e mains soc ket, or from the soc ket on the
wa llbox/charging station, and st owtheve hi-
cle's charging cable safely in theve hicle
(/ page 167).
% ATer thech arging cable connector has been
disconnected, the% indicator lamp 1on
th eve hicle soc ketre mains lit for some time
before switching o.. S
S
t
tar
ar ting t
ting t he dir
he dir ect curr
ect curr ent c
ent char
harging pr
ging process ocess
(mode 4)
(mode 4) &
D
DAN
AN GER
GER Risk of death when charging at a
damaged soc ket
The charging process uses high voltage.
If th ech arging cable, theve hicle soc ket or the
mains soc ket are damaged, you could receive
an elect ric shoc k. #
Only use an undamaged charging cable. #
Avoid mechanical damage such as crush-
ing, abrading or driving overth e cable. #
Have a damaged vehicle soc ketre placed
at a quali/ed specialist workshop as
soon as possible. #
Never connect thech arging cable to a
damaged vehicle soc ket. *
N
NOOTE
TE Damage due toove rheating of
ch arging cable and charging cable con-
nector During
thech arging process, thech arging
cable and charging cable connector can heat
up within their permissible limit values.
The permissible limit values are in0uenced by
th efo llowing factors:
R the po wer supply system and thech arging
cable are not damaged
R the inst ructions for handling thech arging
cable and the control element on the
ch arging cable ha vebeen obser ved #
Ifth ech arging cable or charging cable
connector becomes too hot, ha vethe
po we r supply system checked. *
N
NOOTE
TE Damaged or dirty vehicle soc ket
when the soc ket 0ap is open #
Alwayske ep the soc ket co ver and the
soc ket 0ap closed when there is no 180
180
Driving and parking

ch
arging cable connected. This pr otects
th eve hicle soc ket from dirt and damage. #
Make sure that the soc ket co ver is
closed proper lybefore closing the soc ket
0ap. This can otherwise result in damage
which may pr event the soc ket 0ap from
being opened again. *
N
NO OTE
TE Damage totheve hicle soc ket or the
ch arging cable connector due toincor rect
handling Do not use
excessive forc e (maximum 300 N)
to insert thech arging cable connector into the
ve hicle soc ketto the stop. You may otherwise
damage theve hicle soc ket,thech arging cable
connector or their contacts. #
Ifyo ufe el there is increased resis tance,
pull thech arging cable connector out of
th e soc ket and reinsert it. R
R
eq
eq uir
uir ements:
ements:
R The transmission is in position j.R
The vehicle is unloc ked or the distance
between theke y and theve hicle does not
ex ceed 1 m.
R The vehicle has not been star ted.
R The charging cable is not taut.
% Depending on the national version, theve hicle
is equipped with one of thefo llowing vehicle
soc kets. Combo 1
vehicle soc ket Driving and parking
181
181
