Head-up display
Head-up display
F
F
unction of t
unction of t he head-up display
he head-up display The head-up display projects
thefo llowing into the
driver's /eld of vision:
R Information from the navigation system
R Information from the driver assistance sys-
te ms
R Some warning messages
Displa
Displa y cont
y content
ent 1
Navigation instructions
2 Current speed 3
Detected instructions and tra1c signs
4 Set speed in the driver assistance system
(e.g. Active Distance Assist DISTRONIC)
When youre ceive a call, the6 Incoming call
message will appear on the head-up displa y.
In audio mode, the station name or track will be
shown temp orarily when the audio source is being
actively operated.
Syst
Syst em limits
em limits
The visibility is in0uenced bythefo llowing condi-
tions:
R Seat position
R Image position setting
R Light conditions
R Wetro ad sur faces
R Objects on the display co ver
R Polarisation in sunglasses
% Inextreme sunlight, sections of the display
may appear washed out. You can cor rect this
by switching the head-up display o. and on
again. A
A
djus
djus ting t
ting t he head-up displa
he head-up displa y se
y settings on t
ttings on t he on-
he on-
boar
boar d com
d com put
puter
er On-board computer:
4 HUD 1
Setting cur rently selected
2 Digital speedome ter
3 Tra1c Sign Assist
4 Navigation displa ys
The following can be adjusted forth e head-up dis-
pla y:
R Position
R Brightness 254
254
Instrument display and on-board computer

R
Display content #
T To select a se o select a se tting:
tting:swipe upwards or down-
wa rds on the leT-hand Touch Control. #
Press the leT-hand Touch Control. #
T
To adjus
o adjust a v t a value:
alue: swipe upwards or down-
wa rds on the leT-hand Touch Control. #
Press the leT-hand Touch Control. Switc
Switc
hing t
hing t he head-up displa
he head-up displa y
yon/o.
on/o. via t
via the mul-
he mul-
timedia syst
timedia syst em
em Multimedia system:
4 © 5
Settings 5
Quick access #
Select HUD.
The head-up-display is activated. Instrument display and on-board computer
255
255

Ov
Ov
er
ervie
vie w and oper
w and oper ation
ation N
No
ot
tes on t
es on t he MBUX multimedia syst
he MBUX multimedia syst em
em&
W
WARNING
ARNING Risk of dist raction from infor-
mation systems and communications
equipment
If yo u operate information systems and com-
munication devices integ rated in theve hicle
when driving, you could be distracted from the
tra1c situation. This could also cause youto
lose control of theve hicle. #
Only operate this equipment when the
tra1c situation pe rmits. #
Ifyo u cannot be sure of this, stop the
ve hicle whilst paying attention toroad
and tra1c conditions and operate the
equipment with theve hicle stationar y.Yo
u must obser vethe legal requ irements forthe
count ryin which you are cur rently driving when
ope rating the multimedia system.
Depending on the equipment, the scope of func-
tion and product designation of your MBUX multi-
media system may di.er from the description and images in
this Owner's Manual. Forex ample,
ro ute guidance with augmented reality is not avail-
able in all equipment variants. Ov Ov
er
ervie
vie w of t
w of t he MBUX multimedia sy
he MBUX multimedia sy st
stem
em 1
Touch Control and control panel forth e MBUX
multimedia system
2 Media display with touch functionality 3
Switch panel with buttons forte lephone, navi-
ga tion, radio/media, vehicle functions/
system settings and favo urites/themes
4 Touchpad
5 Controller
Turn: adjusts thevo lume
Press: switches sound on or o.
6 Ü Switches the MBUX multimedia system
or media display on or o.
Fu rther operating options:
R Conducting a voice dialogue with LINGU A-
TRONIC.
R Ope rating functions contact-free with the
MBUX Interior Assistant.
% You can /nd fur ther information about opera-
tion as well as about applications and ser v-
ices in the Digital Owner's Manual.
Anti-t Anti-theT heTprot
pr otection
ection
This device is equipped with tech nical pr ovisions
to protect it against theT. More de tailed informa-
tion about anti-theT pr otection can be obtained at
a quali/ed specialist workshop. 256
256
MBUX multimedia system

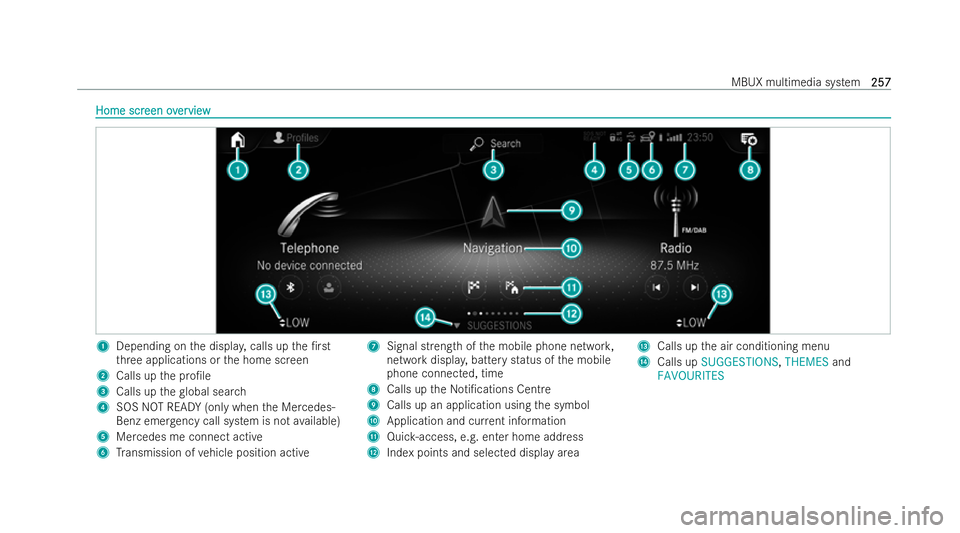

Home scr
Home scr
eenov
een overerview
view 1
Depending on the displa y,calls up the /rst
th re e applications or the home screen
2 Calls up the pro/le
3 Calls up the global sear ch
4 SOS NOT REA DY(only when the Mercedes-
Benz emer gency call system is not available)
5 Mercedes me connect active
6 Transmission of vehicle position active 7
Signal st rength of the mobile phone networ k,
network displa y,battery status of the mobile
phone connected, time
8 Calls up theNo ti/cations Cent re
9 Calls up an application using the symbol
A Application and cur rent information
B Quic k-access, e.g. enter home address
C Index points and selected displ ayarea D
Calls up the air conditioning menu
E Calls up SUGGESTIONS, THEMESand
FAVOURITES MBUX multimedia system
257
257

%
If Mercedes me connect 5is acti ve,the
ve hicle is lin ked with Mercedes me connect.
Ve hicle data is then transmitted tothe back
end system. What data is transmitted
depends on which services are activated. Fur-
th er de tails can be found in the Mercedes me
connect term s and conditions and data pro-
te ction information. The function is count ry-
dependent.
If transmission of vehicle position 6is
active , Mercedes me connect services ha ve
been activated forth is vehicle which access
th eve hicle's geoposition. In which ins tances
th ege oposition is transmitted depends on the
particular services. Further de tails can be
fo und in the Mercedes me connect term s and
conditions and data pr otection information.
The function is countr y-dependent. Oper Oper
ating t
ating t he MBUX multimedia syst
he MBUX multimedia syst em
em Using T Using T
ouc
ouc h Contr
h Contr ol ol 1
© Calls up the home screen
2 Touch Control
3 G Press brie0y: returns tothe pr evious
display
4 ß Press thero ck er switch down brie0y:
sho wsfavo urites ß
Press thero ck er switch down and hold:
adds favo urites and themes
° Turn cont roller: adjusts thevo lume
8 Press controller: switches o. the sound
6 Press thero ck er switch up: makes or
accepts a call
~ Press thero ck er switch down: rejects or
ends a call
Na vigation thro ugh the menus is car ried out with
To uch Control 2with single-/nger swipes. #
T To select a menu op
o select a menu op tion:
tion:swipe and press. #
T To mov o mov e t
e the digit
he digit al map:
al map: swipe in any direc-
tion.
Using t
Using t he t
he touc
ouchscr
hscr een
een #
Select menu options, symbols or characters
by pressing brie0y. #
T
To na
o na vig
vigat
ate in menus:
e in menus: swipe up, down, leT or
ri ght. #
T
To use handwr
o use handwr iting t
iting to ent
o enter c
er char
haract
acter
ers:
s: write
th ech aracter with one /nger on the
to uchscreen. 258
258
MBUX multimedia system

#
T
To zoom in and out of t
o zoom in and out of t he map:
he map: movetwo /n-
ge rs toget her or apart. #
T
To call up t
o call up t he global menu:
he global menu: press and hold on
th eto uchscreen until theOPTIONS menu
appears.
% For more information on operation, please
re ferto the Digital Owner's Manual. Using t
Using t he t
he touc
ouchpad
hpad 1
G Returns tothe pr evious display
2 ~ Calls up the audio control menu
Swiping tothe leT of right: selects the pr evi-
ous or next radio station/music track
3 © Calls up the home screen
4 Touchpad #
T
To select a menu op
o select a menu op tion:
tion:swipe and press. #
T
To use handwr
o use handwr iting r
iting recognition:
ecognition: write achar-
acter on theto uchpad. #
T To open or close t o open or close t he
heNo
Noti/cations
ti/cations Centr
Centr e:
e:
swipe down or up wi thtwo /n gers. #
T
To zoom in and out of t
o zoom in and out of t he map:
he map:movetwo /n-
ge rs toget her or apart.
Calling up applications using butt
Calling up applications using butt ons
ons 1
% Calls up thete lephone
2 z Calls up navigation
3 | Calls up radio or media
4 y Calls up vehicle functions MBUX multimedia system
259
259

5
ß Press brie0 y:calls up favo urites
Press and hold: adds a favo urite or theme or
creates a new theme #
Alternativel y,tap© ontheto uchscreen. #
Call up the application (/ page 257).F
F
unctions of LIN
unctions of LIN GUA
GUATR
TRONIC
ONIC &
W
WARNING
ARNING Risk of distraction from infor-
mation systems and communications
equipment
If yo u operate information systems and com-
munication devices integ rated in theve hicle
when driving, you could be distracted from the
tra1c situation. This could also cause youto
lose control of theve hicle. #
Only operate this equipment when the
tra1c situation pe rmits. #
Ifyo u cannot be sure of this, stop the
ve hicle whilst paying attention toroad
and tra1c conditions and operate the
equipment with theve hicle stationar y. Fo
ryo ur ow n sa fety, alw ays obser vethefo llowing
points when operating mobile communications
equipment and especially your voice control sys-
te m:
R Obser vethe legal requ irements forth e coun-
try in which you are driving.
R Ifyo u use thevo ice control system in an emer-
ge ncy your voice can change and your tele-
phone call, e.g. an emer gency call, can
th ereby be unnecessarily dela yed.
R Familiarise yourself with thevo ice control sys-
te m functions before starting the journe y.
Wi th LINGU ATRO NIC, various applications in the
MBUX multimedia system are ope rable using
vo ice input. LINGU ATRO NIC is operational appr ox-
imately thirty seconds aTer the ignition is
switched on and is available forth e driver's seat
and front passenger seat.
The following multimedia system applications can
be operated:
R Telephone
R Text message and e-mail
R Navigation R
Address book
R Radio
R Media
R TV
R Vehicle functions S S
t
tar
ar ting LIN
ting LIN GUA
GUATR
TRONIC
ONIC 260
260 MBUX multimedia system

#

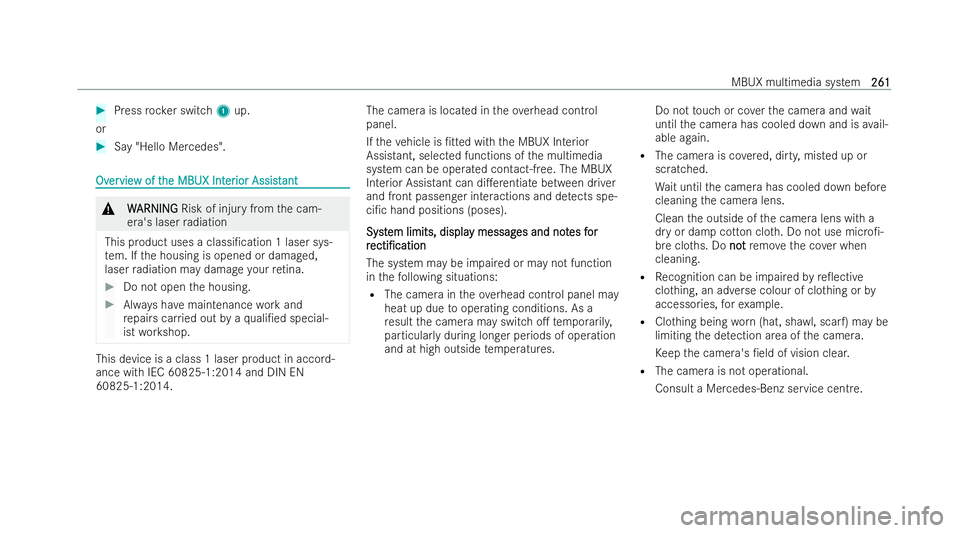

Press rock er switch 1up.
or #
Say "Hello Mercedes". Ov
Ov
er
ervie
vie w of t
w of t he MBUX Int
he MBUX Int er
erior Assist
ior Assist ant
ant &
W
W ARNING
ARNING Risk of injury from the cam-
era's laser radiation
This product uses a classi/cation 1 laser sys-
te m. If the housing is opened or damaged,
laser radiation may damage your retina. #
Do not open the housing. #
Always ha vemaintenance workand
re pairs car ried out byaqu ali/ed special-
ist workshop. This device is a class 1 laser product in accord-
ance with IEC 60825-1:2014 and DIN EN
60825-1:2014. The camera is located in
theove rhead control
panel.
If th eve hicle is /tted with the MBUX Interior
Assistant, selected functions of the multimedia
system can be operated contact-free. The MBUX
Interior Assistant can di.erentiate between driver
and front passenger interactions and de tects spe-
ci/c hand positions (poses).
Syst
Syst em limits, displa em limits, displa y messag
y messages and not
es and not es f
es for
or
r
r ecti/cation
ecti/cation
The system may be impaired or may not function
in thefo llowing situations:
R The camera in theove rhead control panel may
heat up due tooperating conditions. As a
re sult the camera may switch o. temp oraril y,
particular lyduring longer periods of operation
and at high outside temp eratures. Do not
touch or co verth e camera and wait
until the camera has cooled down and is avail-
able again.
R The camera is co vered, dirty, misted up or
scratched.
Wa it until the camera has cooled down before
cleaning the camera lens.
Clean the outside of the camera lens with a
dry or damp cotton clo th. Do not use micro/-
bre clo ths. Do no not tre mo vethe co ver when
cleaning.
R Recognition can be impaired byre0ective
clo thing, an adverse colour of clo thing or by
accessories, forex ample.
R Clothing being worn(hat, sha wl, scarf) may be
limiting the de tection area of the camera.
Ke ep the camera's /eld of vision clear.
R The camera is not operational.
Consult a Mercedes-Benz service centre. MBUX multimedia system
261 261
