2022 LINCOLN NAVIGATOR Owners Manual

Gray indicates the system is acquiring a
digital station.
Orange indicates digital audio is playing.
Multicast Indicator
The multicast indicator appears if the current
station is broadcasting multiple digital
broadcasts. The highlighted numbers
indicate additional digital channels available.
Note:
For stations that have more than one
HD multicast, the HD indicator and radio text
appears as a button. Press the button to
cycle through all of the HD stations on that
specific frequency.
SATELLITE RADIO (IF EQUIPPED)
WHAT IS SATELLITE RADIO
Your factory-installed SiriusXM radio system
includes a limited subscription term, which
begins on the date of sale or lease of your
vehicle. See an authorized dealer for
availability. For additional information about extended
subscription terms, visit
www .Sirius XM. com
in the United States, www .Sirius XM. ca in
Canada, or call SiriusXM at 1-888-539-7474.
Note: SiriusXM reserves the unrestricted
right to change, rearrange, add or delete
programming including canceling, moving
or adding particular channels, and its prices,
at any time, with or without notice to you.
Neither SiriusXM and its affiliates nor Ford
Motor Company and its affiliates will be
liable to you or any third party for any such
modification, suspension or termination.
SATELLITE RADIO LIMITATIONS
For optimal reception performance, keep the
antenna clear of snow and ice build-up and
keep luggage and other material as far away
from the antenna as possible. Placing
luggage over the antenna may reduce
performance. Factory-installed and
aftermarket vehicle structures including, but
not limited to, roof racks and soft top roofs
in a partially open position could reduce
reception performance. Hills, mountains, tall buildings, bridges,
tunnels, freeway overpasses, parking
garages, dense tree foliage and
thunderstorms can interfere with your
reception.
When you pass a ground-based
broadcast-repeating tower, a stronger signal
may overtake a weaker one and could result
in the audio system muting. Your display
could show an error message to indicate the
interference.
LOCATING THE SATELLITE RADIO
IDENTIFICATION NUMBER
1. Select SiriusXM as the audio source.
2. Tune to channel 0.
SELECTING A CHANNEL
Manually Selecting a Channel
Press the button to find the
previous or next available radio
channel.
493
2022 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Audio SystemE328569 E328570

Linear Tuner
The linear tuner is displayed when manually
selecting a channel. You can swipe left or
right on the linear tuner carousel to navigate
through the channel list. Tap on a channel
title to listen to it.
Using Direct Tune
1. Press the channel up or down button to
open the linear tuner screen.
2. Press Direct Tune to open the number
pad.
3. Enter the channel you prefer.
Using Browse
1. Press
Browse.
2. Select a channel.
SATELLITE RADIO SETTINGS
Subscription
Your subscription status is displayed. You
can subscribe or manage your subscription
directly from the touchscreen. Listener Add/Switch
You can create up to five listener profiles per
SiriusXM account. Each listener profile can
be personalized with a name and profile
image.
Note:
Requires a trial or active subscription
to use.
Note: A default profile is available when no
listener profiles are created.
SiriusXM Favorites
SiriusXM Favorites are shown for the active
listener profile. While you are listening to
SiriusXM, you can save favorites by: •
Tapping the currently tuned channel or
show logo on the SiriusXM audio screen.
A favorite icon appears next to the logo
when it is saved as a favorite.
• Tuning to a channel or show you want to
save as a favorite. Navigate to the
SiriusXM Favorites screen and press the
Add Current button. The currently tuned
channel or show is saved as a favorite.
• Saving a radio preset. This saves the
currently tuned SiriusXM channel or show
as a favorite.
Note: Requires a trial or active subscription
to use.
Listening History
Listening history is a list of recently listened
to SiriusXM content and is shown for the
active listener profile. You can view, manage
and reset the listening history using the
controls on the touchscreen.
Note: Requires a trial or active subscription
to use.
494
2022 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Audio System

Listener Settings
Listener settings apply to the active listener
profile.
Note:
Requires a trial or active subscription
to use.
Note: A default profile is available when no
listener profiles are created. Help and Support
You can contact SiriusXM Customer Care
directly from SYNC and view information
required to manage your SiriusXM account.
495
2022 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Audio System

AUDIO SYSTEM – TROUBLESHOOTING
AUDIO SYSTEM – INFORMATION MESSAGES
Satellite Radio Troubleshooting
Recommended Action
Potential Effects
Error Message
Internet connectivity is turned off. See
Connected Vehicle (page 482).
Internet streaming and On Demand shows are
unavailable and some SiriusXM features are disabled.
Connectivity Disabled
SYNC will attempt to connect.
See Satellite
Radio Limitations (page 493). Switch to a
satellite connection for the current channel if the option is available.
Audio system may mute. "Switch to Satellite"
button may be displayed on the SiriusXM
audio screen if the channel is also available via satellite.
No Internet
Antenna may be obstructed or satellite
reception is weak in your location.
See
Satellite Radio Limitations (page 493). Switch to an internet connection for the current channel if the option is available.
Audio system may mute. “Switch to Internet”
button may be displayed on the SiriusXM
audio screen if the channel is also available via streaming.
No Satellite Signal
Allow some time for audio to load or tune toa different channel.
Audio system may mute while audio attempts
to load.
Slow Network Connection
496
2022 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Audio System

A temporary update may be in progress. Allow
some time before retrying to tune to the
channel. If issue persists, the channel may no longer be available.
Audio system may mute. Radio may tune to a
different channel.
Channel Unavailable
A temporary update may be in progress. Allow
some time before retrying to play the episode.If issue persists, the episode may no longer be available.
Audio system may mute. Radio may tune to a
different channel.
Episode Unavailable
Retry action after some time or tune to adifferent channel.
Audio system may mute. Radio may tune to a
different channel.
Something went wrong
Your subscription has expired or you have not
yet subscribed for access to the listed content.Navigate to Subscription under the SatelliteRadio Settings menu. If you have an active
subscription which includes the listed channel or content and you see this error, you may
need to refresh your radio. To refresh your
SiriusXM radio, visit www.siriusxm.com/refresh in the US, or www.siriusxm.ca/refresh in Canada.
You may need to provide your SiriusXM Radio identification number. See Locating the
Satellite Radio Identification Number (page
493).
Cannot listen to selected content. Content
may appear grayed out and some features may be disabled.
Subscribe to Listen
497
2022 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Audio System

Your subscription does not include access to
the listed content. You may need to upgrade your subscription. Navigate to Subscription
under the Satellite Radio Settings menu. If you have an active subscription which includes
the listed channel or content and you see this error, you may need to refresh your radio. To refresh your SiriusXM radio, visit www.siri-usxm.com/refresh in the US, or www.siri- usxm.ca/refresh in Canada.
You may need to provide your SiriusXM Radio identification number. See Locating the
Satellite Radio Identification Number (page
493).
Cannot listen to selected content. Content
may appear grayed out and some features may be disabled.
Upgrade to Listen
Content is not available in your location or
SiriusXM is unable to determine your location.
Tuning to a different channel may resolve the issue.
Audio may mute. “Not available in your loca-
tion ” or “Unable to determine your location ”
may be displayed.
Location Restricted Content
The Block Explicit Content filter is turned on.
Navigate to Listener Settings under the Satel- lite Radio Settings menu to access the Block Explicit Content filter. Navigate to Listener
Settings.
See Satellite Radio Settings (page
494).
Audio may mute. Radio may tune to a different
channel.
Channel Blocked
498
2022 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Audio System

If issue persists, you may need to visit an
authorized dealer for service.
Audio may mute. Access to SiriusXM features
may be unavailable.
Antenna Problem or Hardware Problem
Allow SiriusXM some time to completeupdating.
Audio may mute.
SiriusXM Updating...
No action necessary. If loading time is longerthan usual, See Satellite Radio Limitations
(page 493).
Audio may mute. Content may be temporarily
unavailable while loading.
Loading...
No action necessary. Allow SiriusXM sometime to finish loading.
Audio may mute. Content and controls may
be temporarily unavailable.
SiriusXM Loading...
499
2022 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Audio System

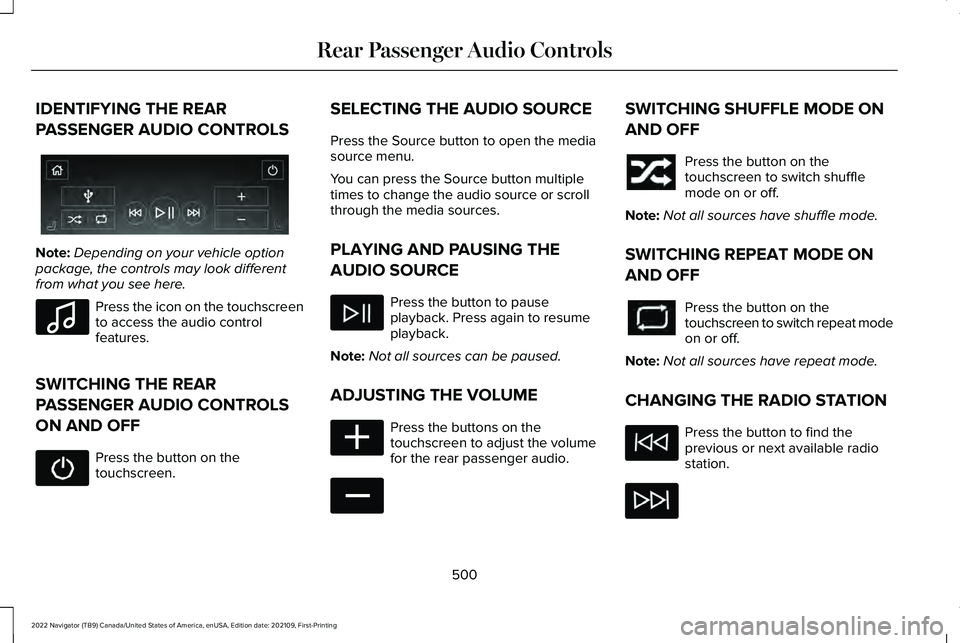

IDENTIFYING THE REAR
PASSENGER AUDIO CONTROLS
Note:
Depending on your vehicle option
package, the controls may look different
from what you see here. Press the icon on the touchscreen
to access the audio control
features.
SWITCHING THE REAR
PASSENGER AUDIO CONTROLS
ON AND OFF Press the button on the
touchscreen. SELECTING THE AUDIO SOURCE
Press the Source button to open the media
source menu.
You can press the Source button multiple
times to change the audio source or scroll
through the media sources.
PLAYING AND PAUSING THE
AUDIO SOURCE
Press the button to pause
playback. Press again to resume
playback.
Note: Not all sources can be paused.
ADJUSTING THE VOLUME Press the buttons on the
touchscreen to adjust the volume
for the rear passenger audio. SWITCHING SHUFFLE MODE ON
AND OFF
Press the button on the
touchscreen to switch shuffle
mode on or off.
Note: Not all sources have shuffle mode.
SWITCHING REPEAT MODE ON
AND OFF Press the button on the
touchscreen to switch repeat mode
on or off.
Note: Not all sources have repeat mode.
CHANGING THE RADIO STATION Press the button to find the
previous or next available radio
station.
500
2022 Navigator (TB9) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Rear Passenger Audio ControlsE356495 E100027 E356421 E356422
