2021 HYUNDAI VENUE Owners Manual

Page 305 of 392

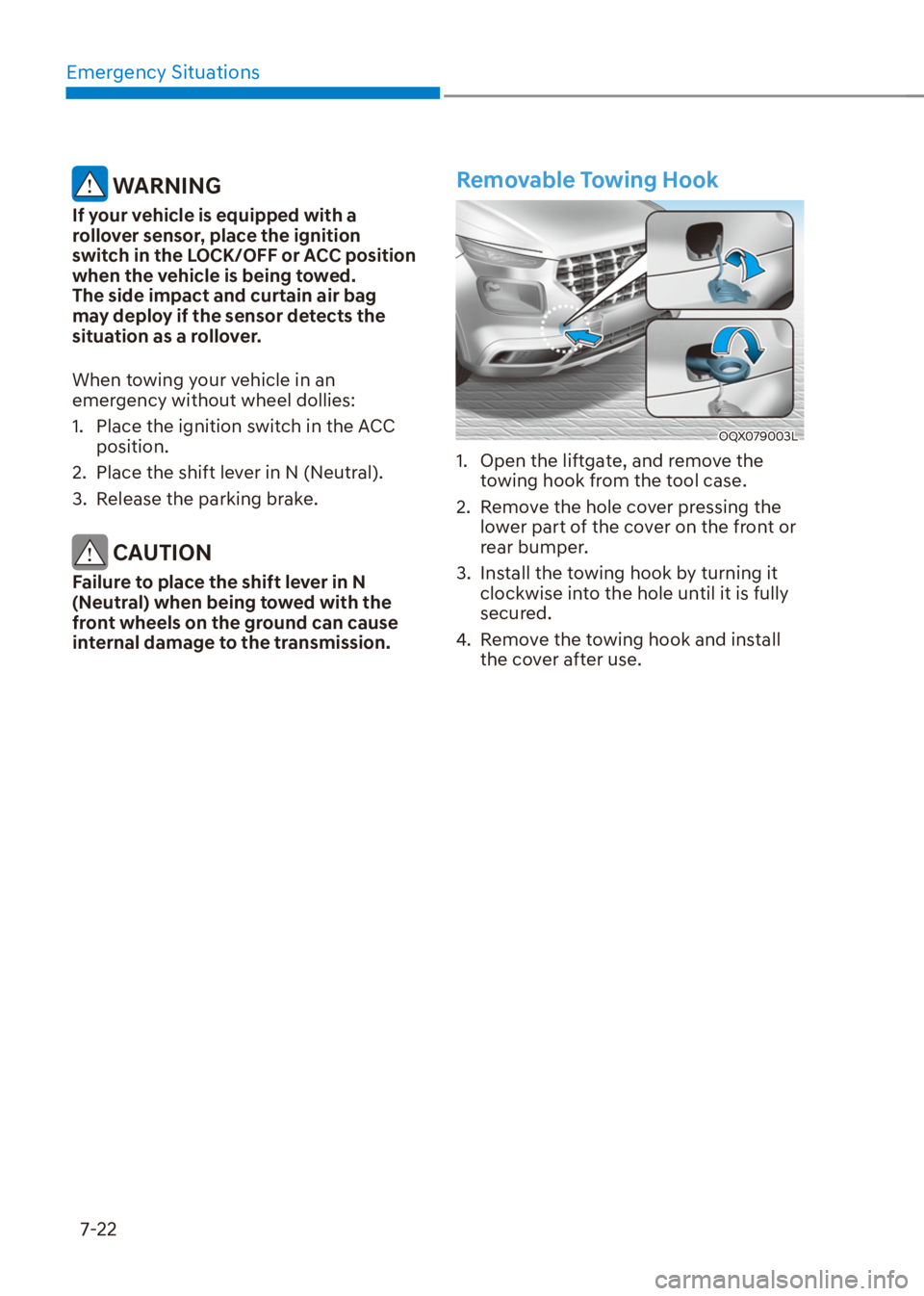

HYUNDAI VENUE 2021  Owners Manual Emergency Situations
7-22
 WARNING
If your vehicle is equipped with a
rollover sensor, place the ignition
switch in the LOCK/OFF or ACC position
when the vehicle is being towed.
The side impact an

Page 306 of 392

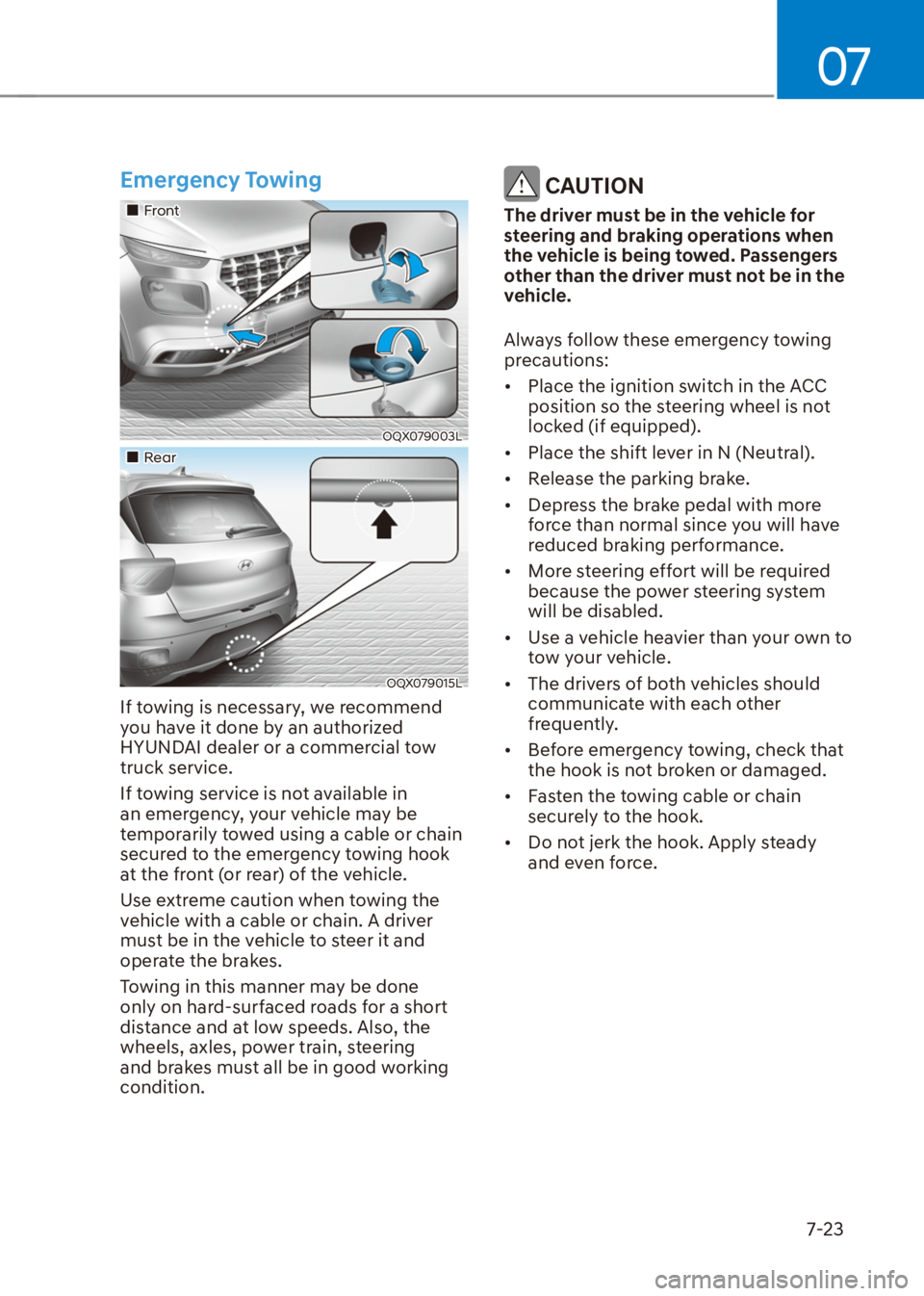

HYUNDAI VENUE 2021  Owners Manual 07
7-23
Emergency Towing
��„Front
OQX079003L
��„Rear
OQX079015L
If towing is necessary, we recommend
you have it done by an authorized
HYUNDAI dealer or a commercial tow
truck service.
If tow

Page 307 of 392

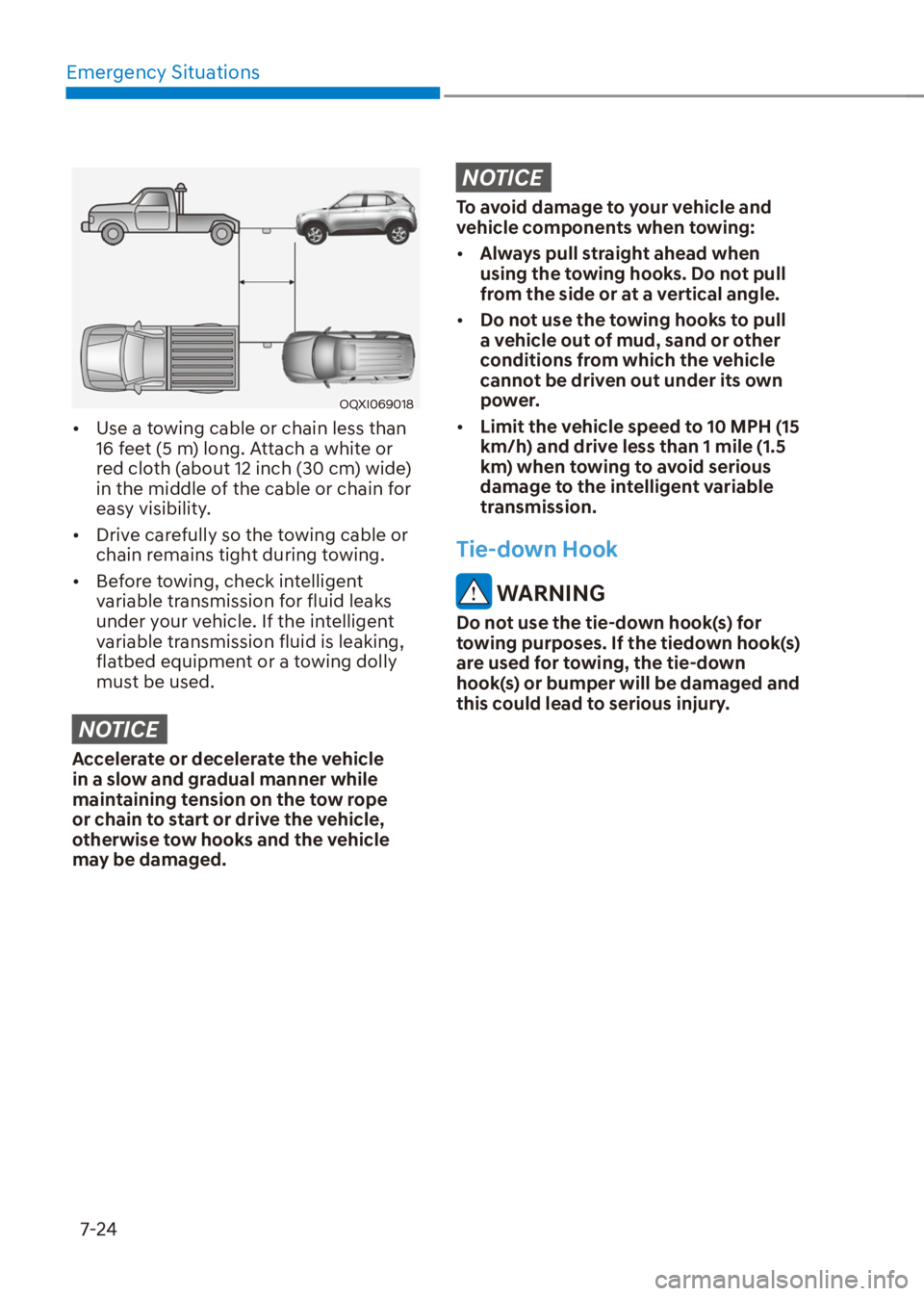

HYUNDAI VENUE 2021  Owners Manual Emergency Situations
7-24
OQXI069018
[�Use a towing cable or chain less than
16 feet (5 m) long. Attach a white or
red cloth (about 12 inch (30 cm) wide)
in the middle of the cable or chain for

Page 308 of 392

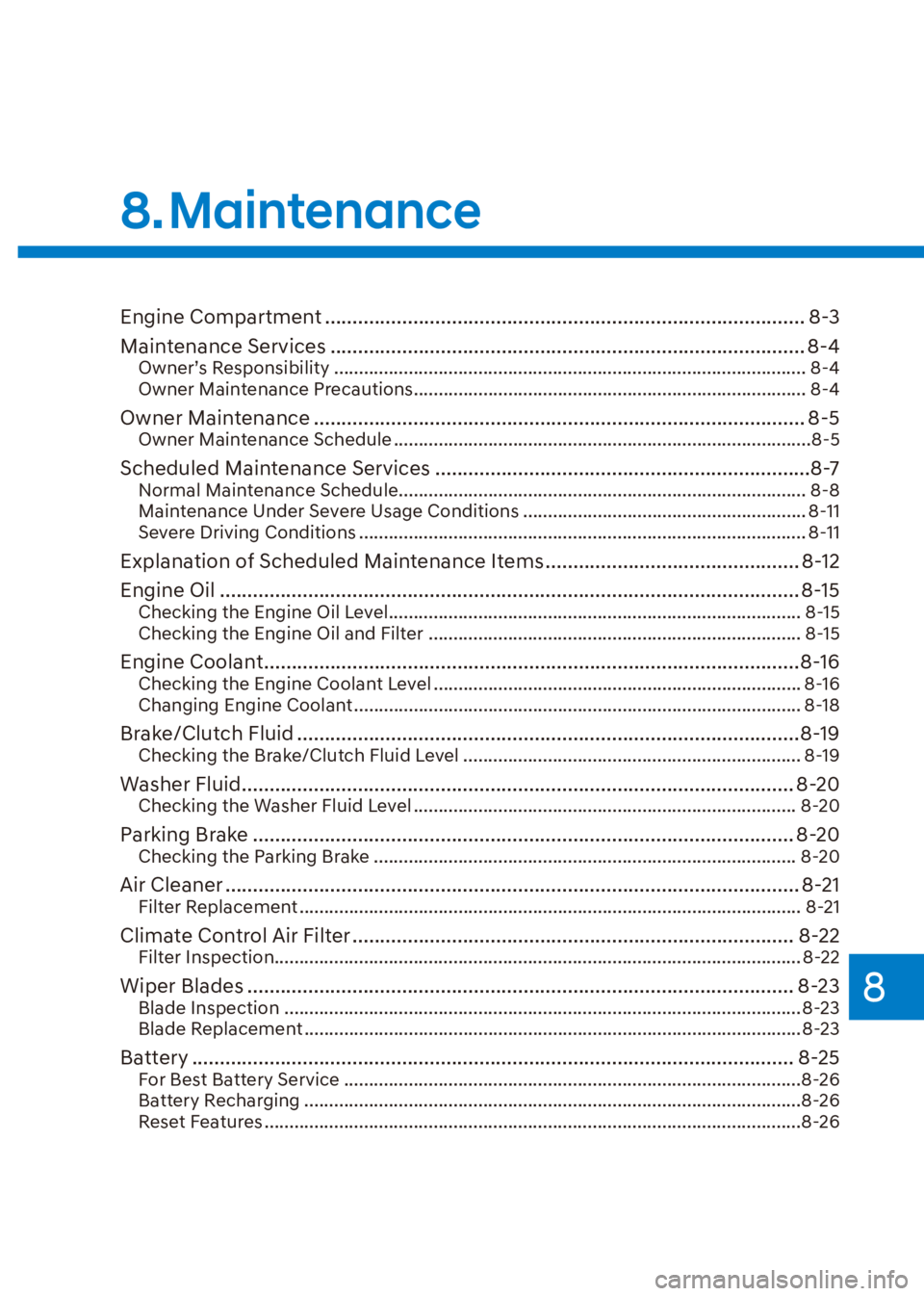

HYUNDAI VENUE 2021  Owners Manual 8
Engine Compartment ....................................................................................... 8-3
Maintenance Services ..................................................................

Page 309 of 392

HYUNDAI VENUE 2021  Owners Manual 8
Tires and Wheels ..............................................................................................8-27Tire Care .........................................................................

Page 310 of 392

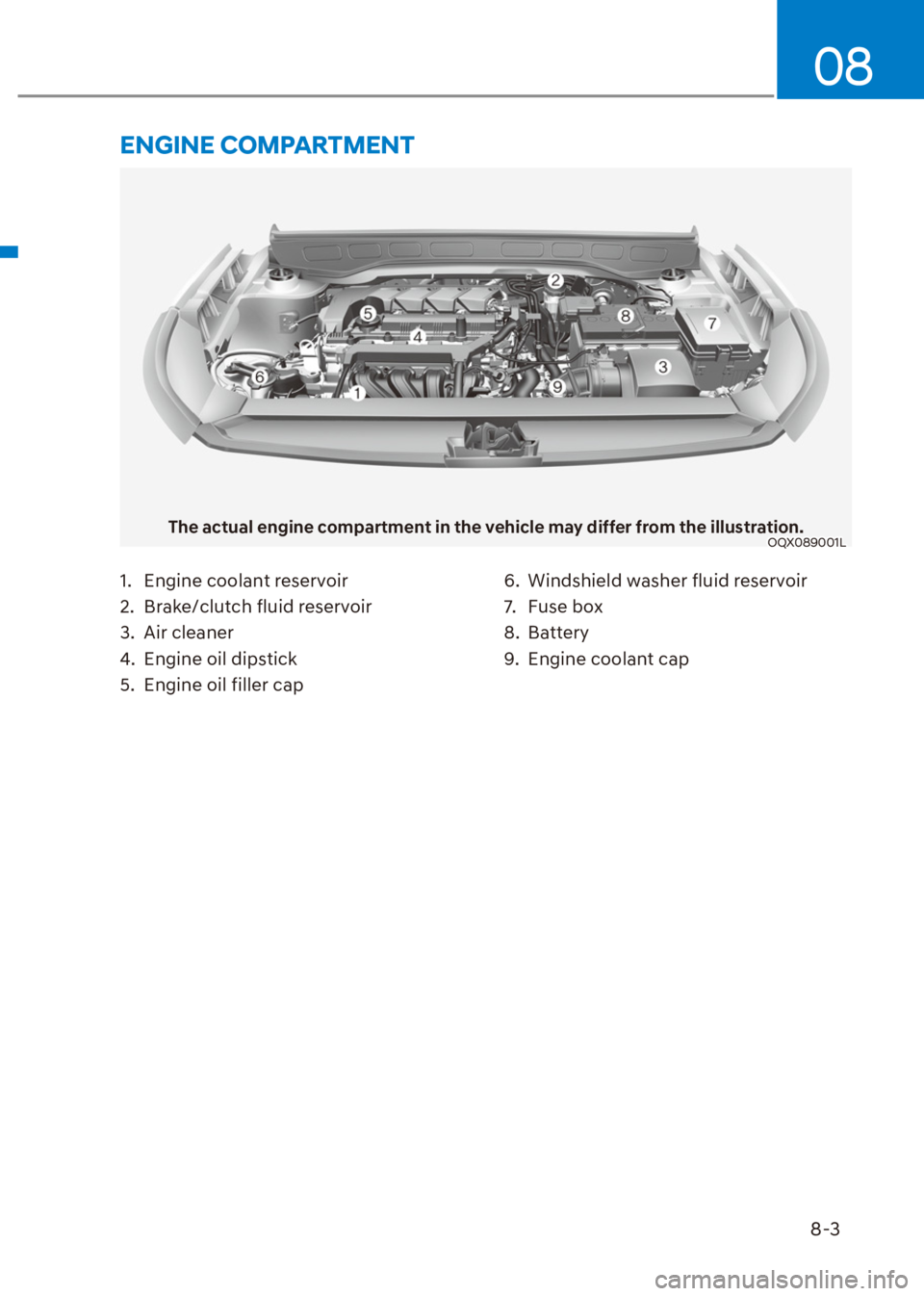

HYUNDAI VENUE 2021  Owners Manual 8-3
08
1.  Engine coolant reservoir
2.  Brake/clutch fluid reservoir
3. Air cleaner
4.  Engine oil dipstick
5.  Engine oil filler cap6.  Windshield washer fluid reservoir
7. Fuse box
8. Battery
9.  En

Page 311 of 392

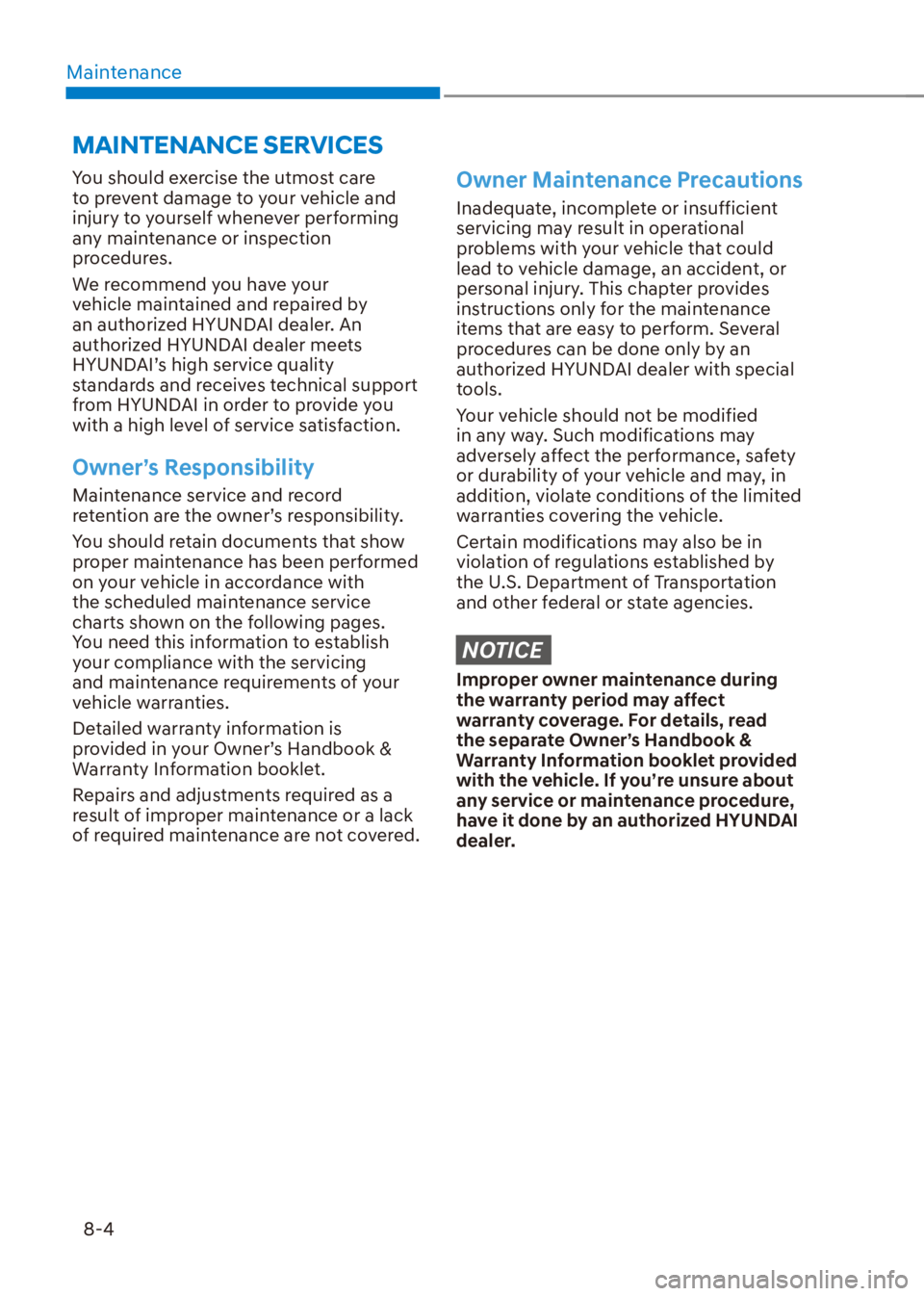

HYUNDAI VENUE 2021  Owners Manual Maintenance
8-4
You should exercise the utmost care
to prevent damage to your vehicle and
injury to yourself whenever performing
any maintenance or inspection
procedures.
We recommend you have you

Page 312 of 392

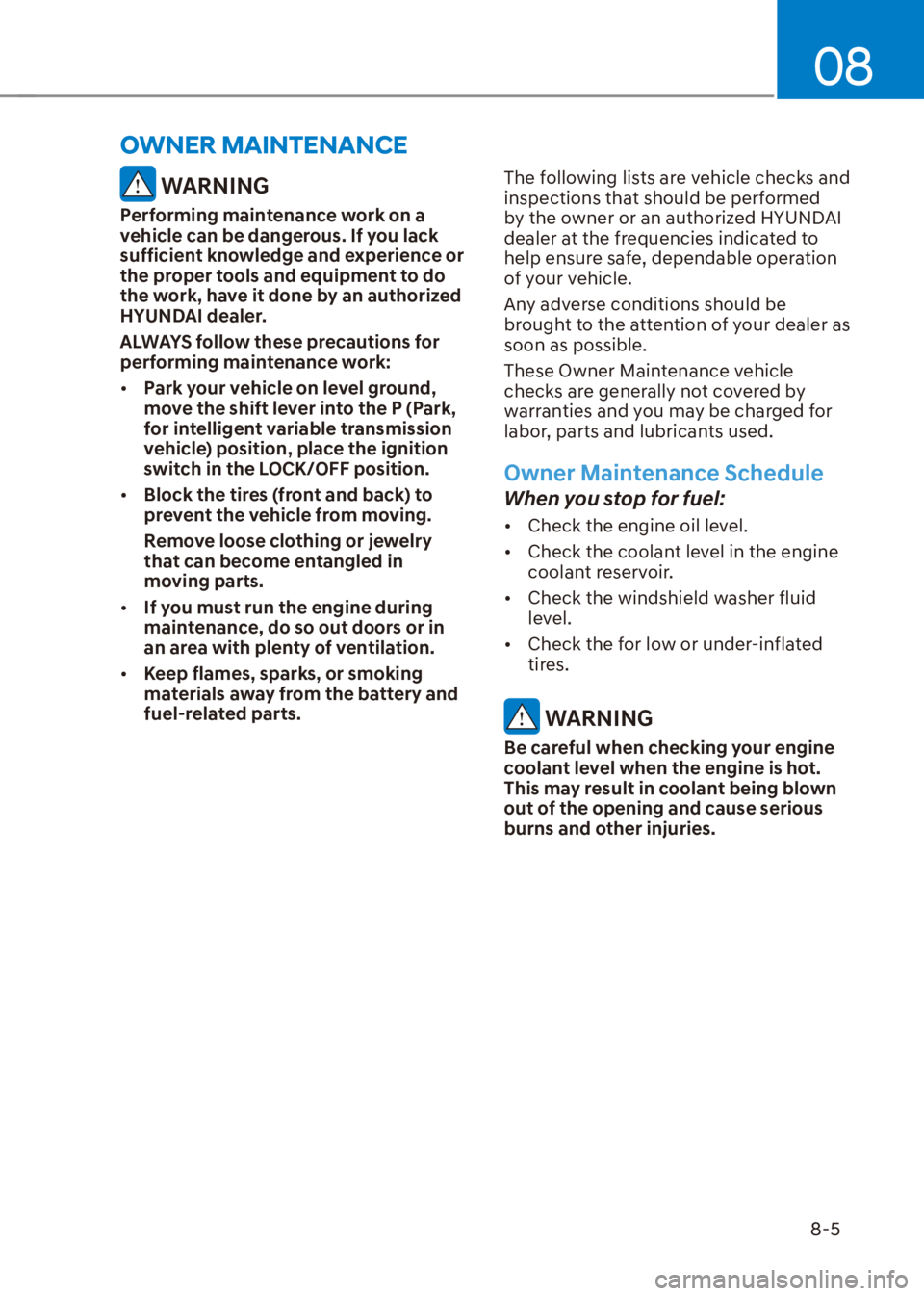

HYUNDAI VENUE 2021  Owners Manual 08
8-5
 WARNING
Performing maintenance work on a
vehicle can be dangerous. If you lack
sufficient knowledge and experience or
the proper tools and equipment to do
the work, have it done by an auth
