2021 HYUNDAI VENUE Owners Manual

2-4
Vehicle Information

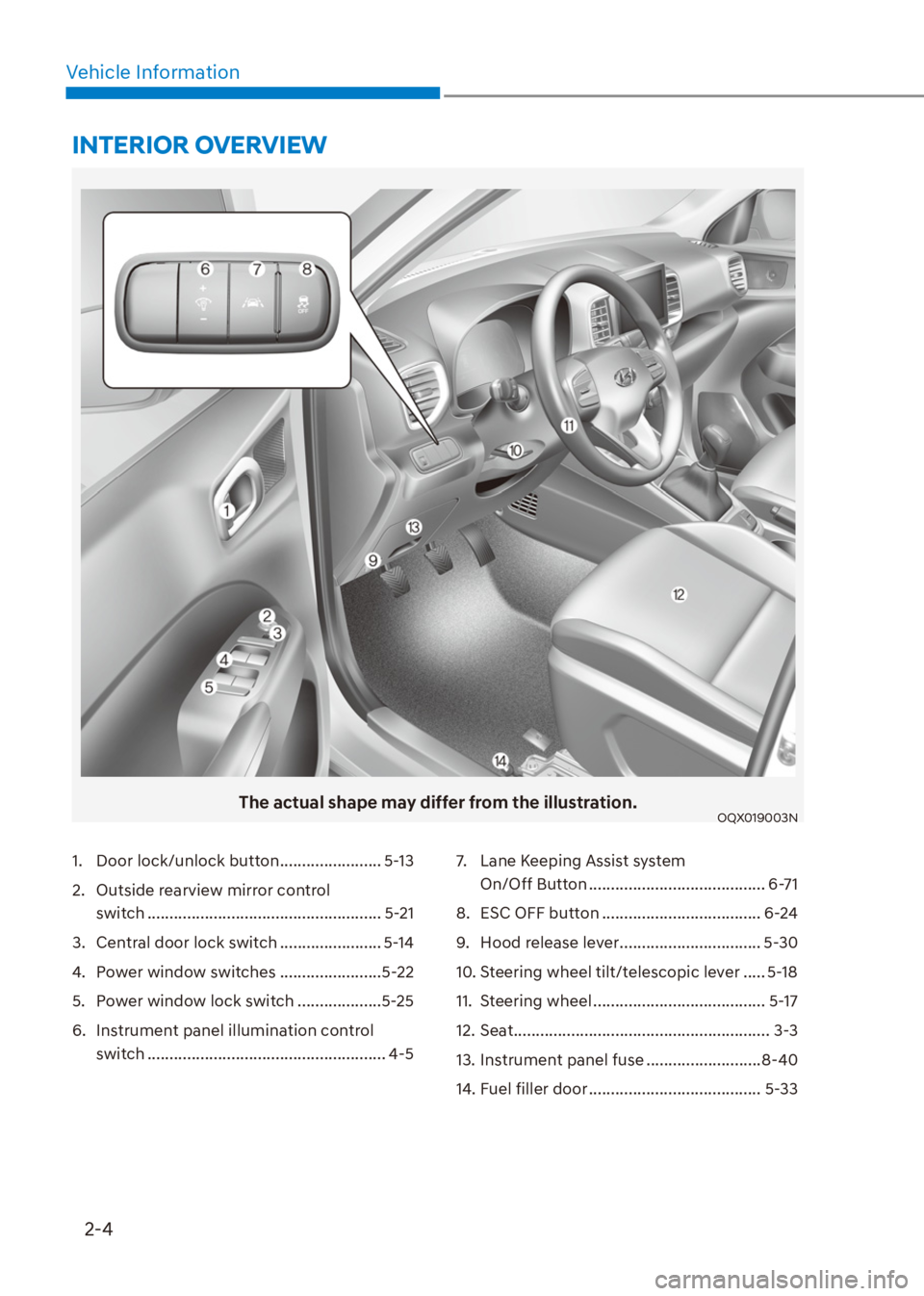

The actual shape may differ from the illustration.OQX019003N
1. Door lock/unlock button ....................... 5-13
2. Outside rearview mirror control
switch ..................................................... 5-21
3. Central door lock switch ....................... 5-14
4. Power window switches .......................5-22
5. Power window lock switch ...................5-25
6. Instrument panel illumination control
switch ...................................................... 4-57. Lane Keeping Assist system
On/Off Button ........................................ 6-71
8. ESC OFF button .................................... 6-24
9. Hood release lever ................................ 5-30
10. Steering wheel tilt/telescopic lever ..... 5-18
11. Steering wheel ....................................... 5-17
12. Seat .......................................................... 3-3
13. Instrument panel fuse ..........................8-40
14. Fuel filler door ....................................... 5-33
INTERIOR OVERVIEW

2-5
02

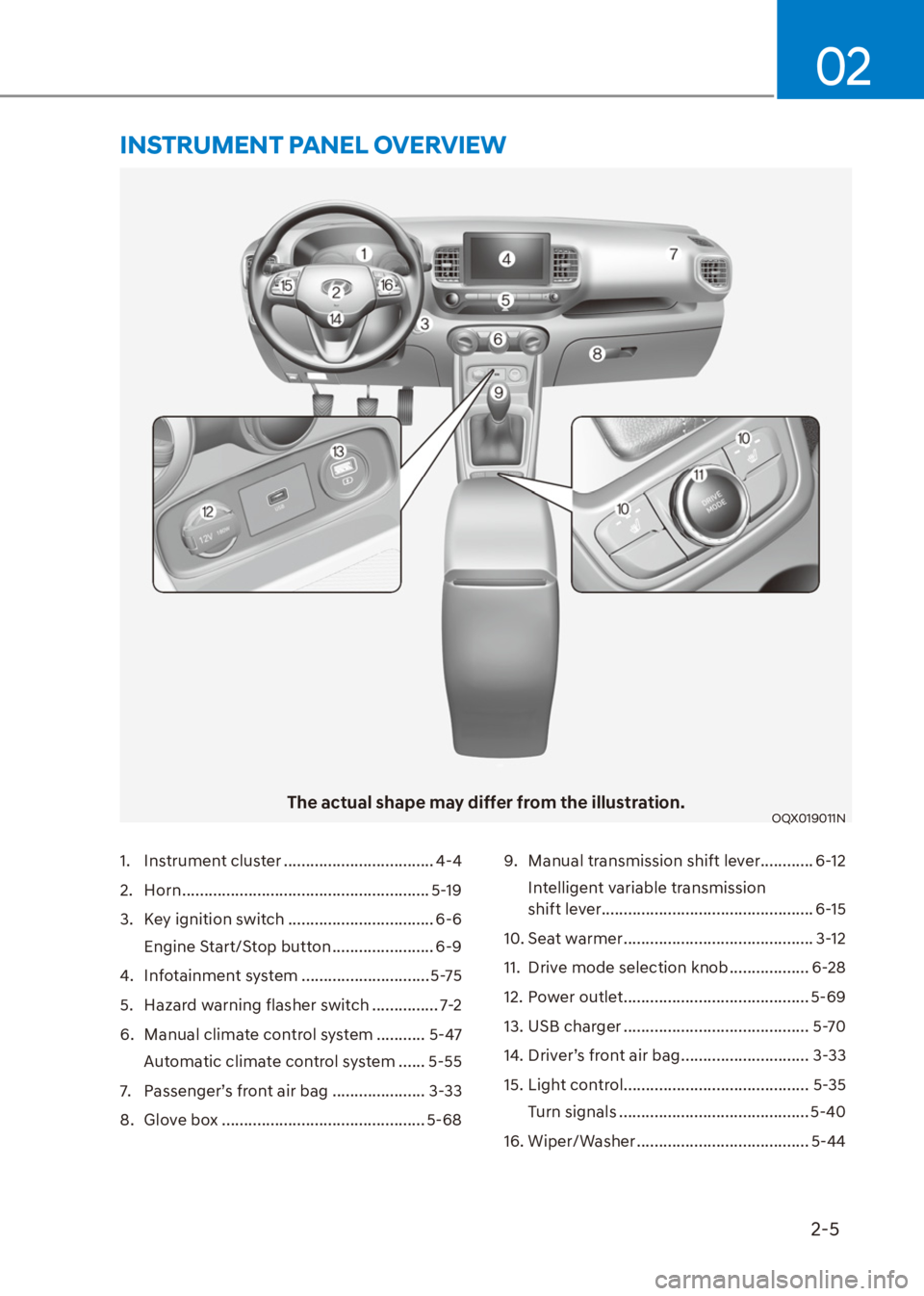

The actual shape may differ from the illustration.OQX019011N
1. Instrument cluster .................................. 4-4
2. Horn ........................................................ 5-19
3. Key ignition switch ................................. 6-6
Engine Start/Stop button ....................... 6-9
4. Infotainment system ............................. 5-75
5. Hazard warning flasher switch ............... 7-2
6. Manual climate control system ........... 5-47
Automatic climate control system ...... 5-55
7. Passenger’s front air bag ..................... 3-33
8. Glove box .............................................. 5-689. Manual transmission shift lever ............ 6-12
Intelligent variable transmission
shift lever................................................ 6-15
10. Seat warmer ........................................... 3-12
11. Drive mode selection knob .................. 6-28
12. Power outlet .......................................... 5-69
13. USB charger .......................................... 5-70
14. Driver’s front air bag ............................. 3-33
15. Light control .......................................... 5-35
Turn signals ........................................... 5-40
16. Wiper/Washer ....................................... 5-44
INSTRUMENT PANEL OVERVIEW

2-6
Vehicle Information
The actual engine room in the vehicle may differ from the illustration.OQX089001L

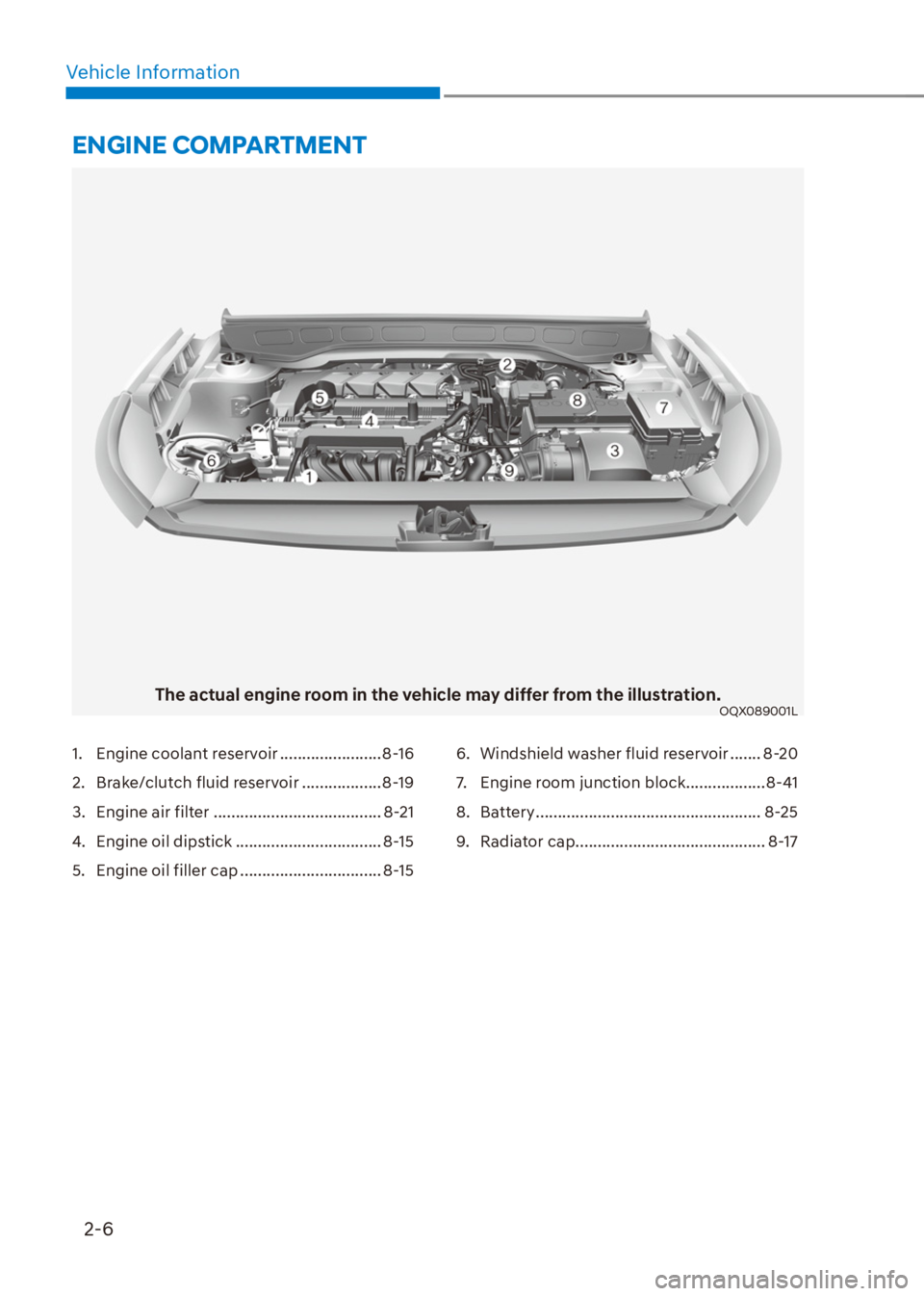

ENGINE COMPARTMENT
1. Engine coolant reservoir .......................8-16
2. Brake/clutch fluid reservoir ..................8-19
3. Engine air filter ...................................... 8-21
4. Engine oil dipstick ................................. 8-15
5. Engine oil filler cap ................................ 8-156. Windshield washer fluid reservoir ....... 8-20
7. Engine room junction block ..................8-41
8. Battery ................................................... 8-25
9. Radiator cap ........................................... 8-17

02
2-7

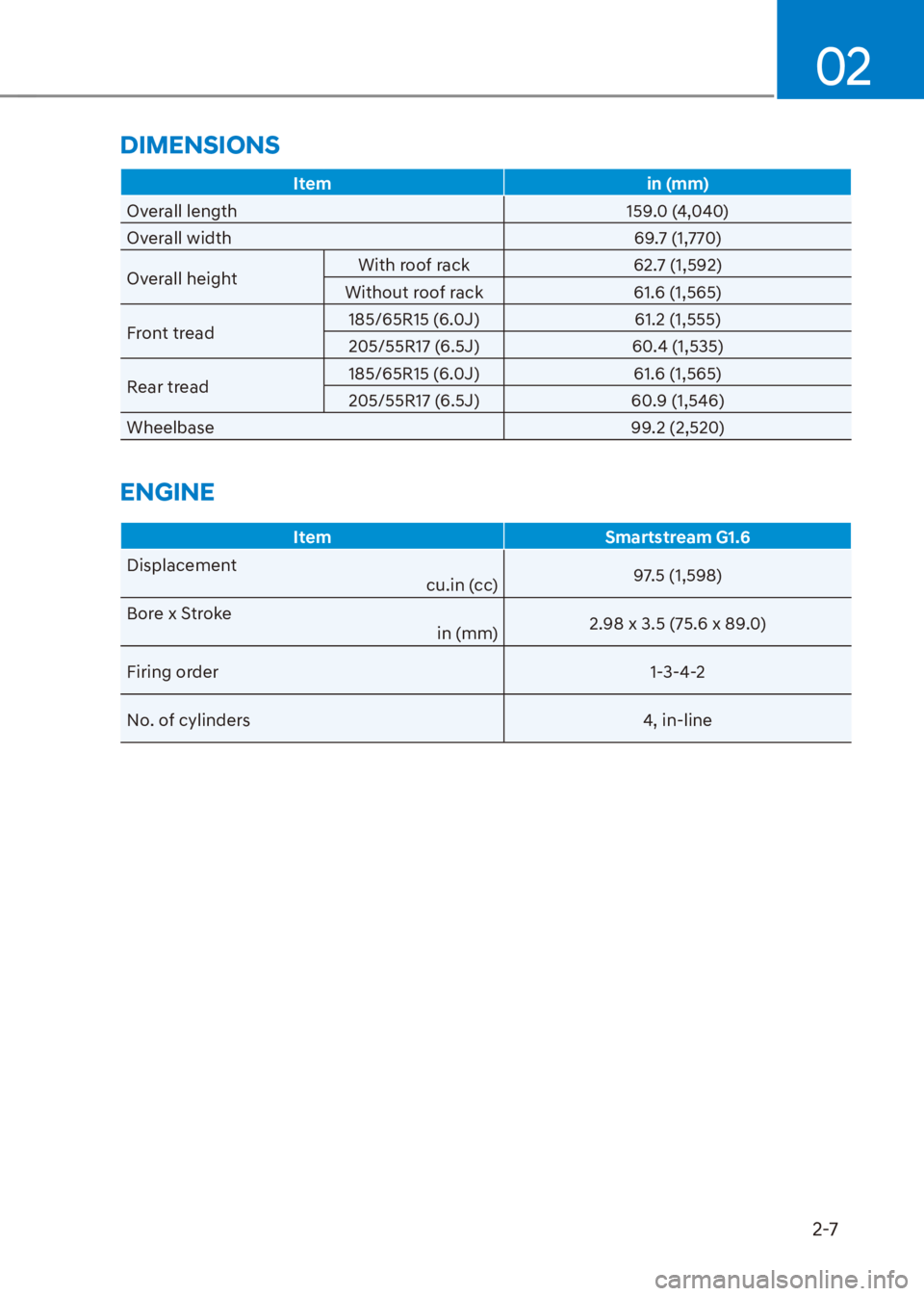

DIMENSIONS
Item in (mm)
Overall length 159.0 (4,040)
Overall width 69.7 (1,770)
Overall heightWith roof rack 62.7 (1,592)
Without roof rack 61.6 (1,565)
Front tread185/65R15 (6.0J) 61.2 (1,555)
205/55R17 (6.5J) 60.4 (1,535)
Rear tread185/65R15 (6.0J) 61.6 (1,565)
205/55R17 (6.5J) 60.9 (1,546)
Wheelbase 99.2 (2,520)
ENGINE
Item Smartstream G1.6
Displacement
cu.in (cc)97.5 (1,598)
Bore x Stroke
in (mm)2.98 x 3.5 (75.6 x 89.0)
Firing order 1-3-4-2
No. of cylinders 4, in-line

Vehicle Information
2-8
BULB WATTAGE
Light bulb Bulb type Wattage
FrontType AHeadlamp (High/Low) HB3 65
Parking lamp W5W 5
Type BHeadlamp HB3 65
Daytime running lamp
(DRL)/parking lampLED LED
Cornering lamp H7 55
Type CHeadlamp (High/low) LED LED
Daytime running lamp
(DRL)/parking lampLED LED
Cornering lamp H7 55
Turn signal lamp 28/8W 28/8
Side marker W5W 5
Side repeater lamp WY5W 5
Side repeater lamp (Outside mirror) LED LED
RearType AStop/tail lamp P21/5W 21/5
Turn signal lamp 27W 7
Side marker - -
Type BStop/tail lamp LED LED
Tail lamp LED LED
Side marker LED LED
Turn signal lamp PY21W 21
License plate lamp W5W 5
Back up lamp W16W 16
High mounted stop lamp W16W 16
InteriorMap lampType A W10W 10
Type B FESTOON 8
Room lamp FESTOON 8
Vanity mirror lamp FESTOON 5
Luggage compartment lamp FESTOON 8

02
2-9

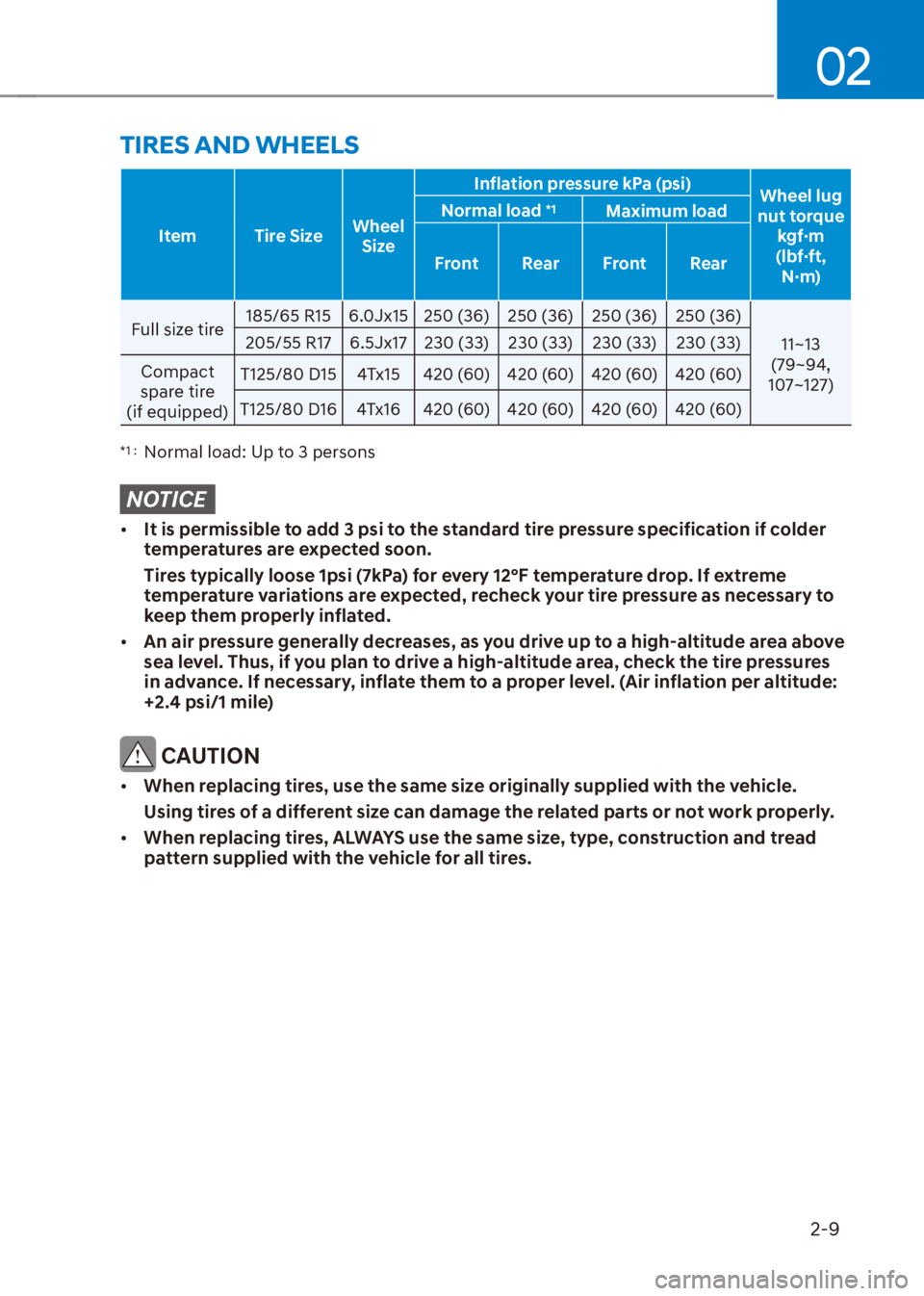

TIRES AND WHEELS
Item Tire SizeWheel
SizeInflation pressure kPa (psi)
Wheel lug
nut torque
kgf·m
(lbf·ft,
N·m) Normal load
*1Maximum load
Front Rear Front Rear
Full size tire185/65 R15 6.0Jx15 250 (36) 250 (36) 250 (36) 250 (36)
11~13
(79~94,
107~127) 205/55 R17 6.5Jx17 230 (33) 230 (33) 230 (33) 230 (33)
Compact
spare tire
(if equipped)T125/80 D15 4Tx15 420 (60) 420 (60) 420 (60) 420 (60)
T125/80 D16 4Tx16 420 (60) 420 (60) 420 (60) 420 (60)
*1 : Normal load: Up to 3 persons
NOTICE

[It is permissible to add 3 psi to the standard tire pressure specification if colder
temperatures are expected soon.
Tires typically loose 1psi (7kPa) for every 12°F temperature drop. If extreme
temperature variations are expected, recheck your tire pressure as necessary to
keep them properly inflated.

[An air pressure generally decreases, as you drive up to a high-altitude area above
sea level. Thus, if you plan to drive a high-altitude area, check the tire pressures
in advance. If necessary, inflate them to a proper level. (Air inflation per altitude:
+2.4 psi/1 mile)
CAUTION

[When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.

[When replacing tires, ALWAYS use the same size, type, construction and tread
pattern supplied with the vehicle for all tires.

Vehicle Information
2-10

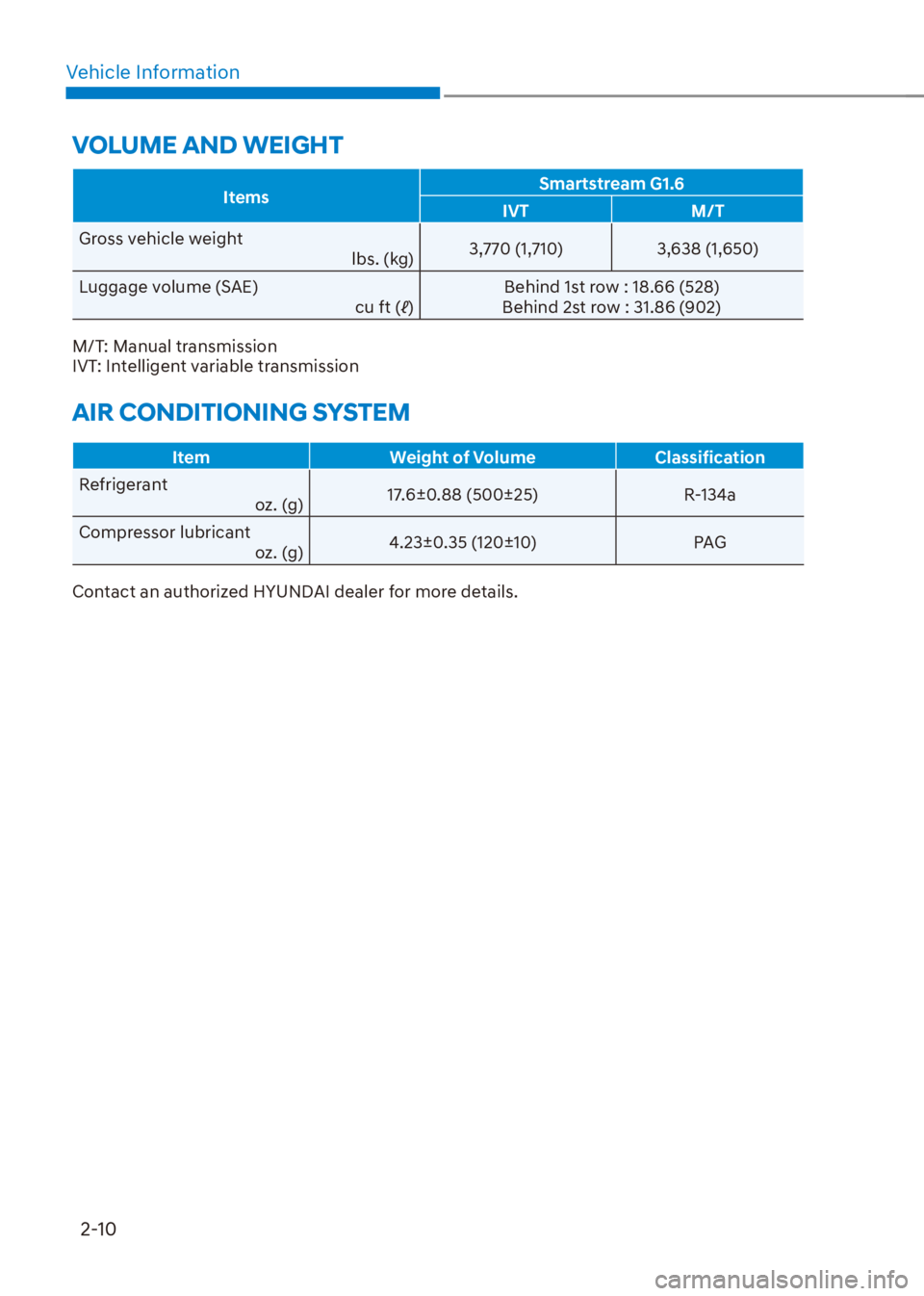

VOLUME AND WEIGHT
ItemsSmartstream G1.6
IVT M/T
Gross vehicle weight
lbs. (kg)3,770 (1,710) 3,638 (1,650)
Luggage volume (SAE)
cu ft (
b)Behind 1st row : 18.66 (528)
Behind 2st row : 31.86 (902)
M/T: Manual transmission
IVT: Intelligent variable transmission
AIR CONDITIONING SYSTEM
Item Weight of Volume Classification
Refrigerant
oz. (g)17.6±0.88 (500±25) R-134a
Compressor lubricant
oz. (g)4.23±0.35 (120±10) PAG
Contact an authorized HYUNDAI dealer for more details.

02
2-11

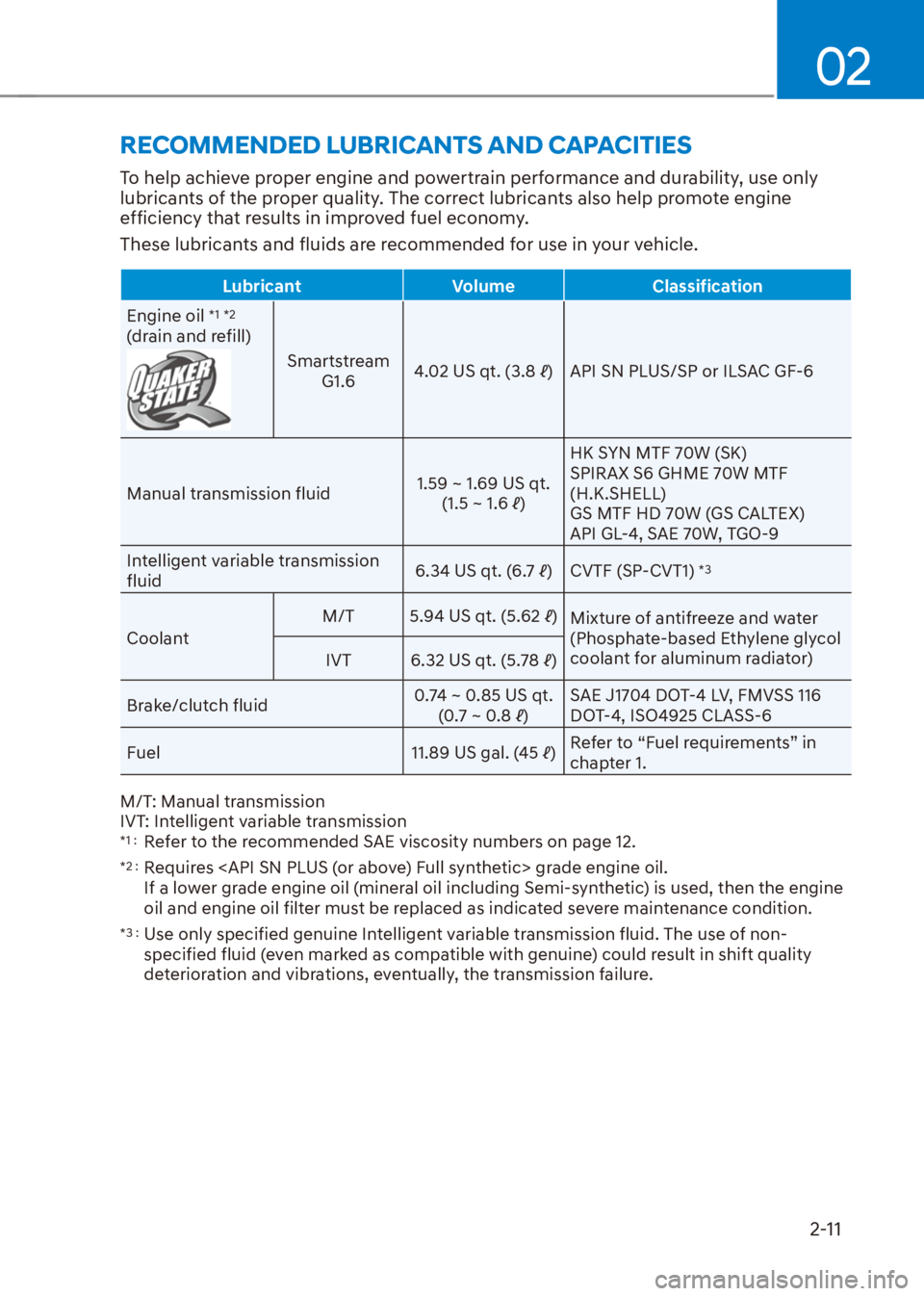

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Engine oil *1 *2
(drain and refill)
Smartstream
G1.64.02 US qt. (3.8
b) API SN PLUS/SP or ILSAC GF-6
Manual transmission fluid1.59 ~ 1.69 US qt.
(1.5 ~ 1.6
b)HK SYN MTF 70W (SK)
SPIRAX S6 GHME 70W MTF
(H.K.SHELL)
GS MTF HD 70W (GS CALTEX)
API GL-4, SAE 70W, TGO-9
Intelligent variable transmission
fluid6.34 US qt. (6.7
b) CVTF (SP-CVT1)
*3
CoolantM/T 5.94 US qt. (5.62
b)
Mixture of antifreeze and water
(Phosphate-based Ethylene glycol
coolant for aluminum radiator)
IVT 6.32 US qt. (5.78
b)
Brake/clutch fluid0.74 ~ 0.85 US qt.
(0.7 ~ 0.8
b)SAE J1704 DOT-4 LV, FMVSS 116
DOT-4, ISO4925 CLASS-6
Fuel 11.89 US gal. (45
b)Refer to “Fuel requirements” in
chapter 1.
M/T: Manual transmission
IVT: Intelligent variable transmission
*1 : Refer to the recommended SAE viscosity numbers on page 12.
*2 : Requires grade engine oil.
If a lower grade engine oil (mineral oil including Semi-synthetic) is used, then the engine
oil and engine oil filter must be replaced as indicated severe maintenance condition.
*3 : Use only specified genuine Intelligent variable transmission fluid. The use of non-
specified fluid (even marked as compatible with genuine) could result in shift quality
deterioration and vibrations, eventually, the transmission failure.
