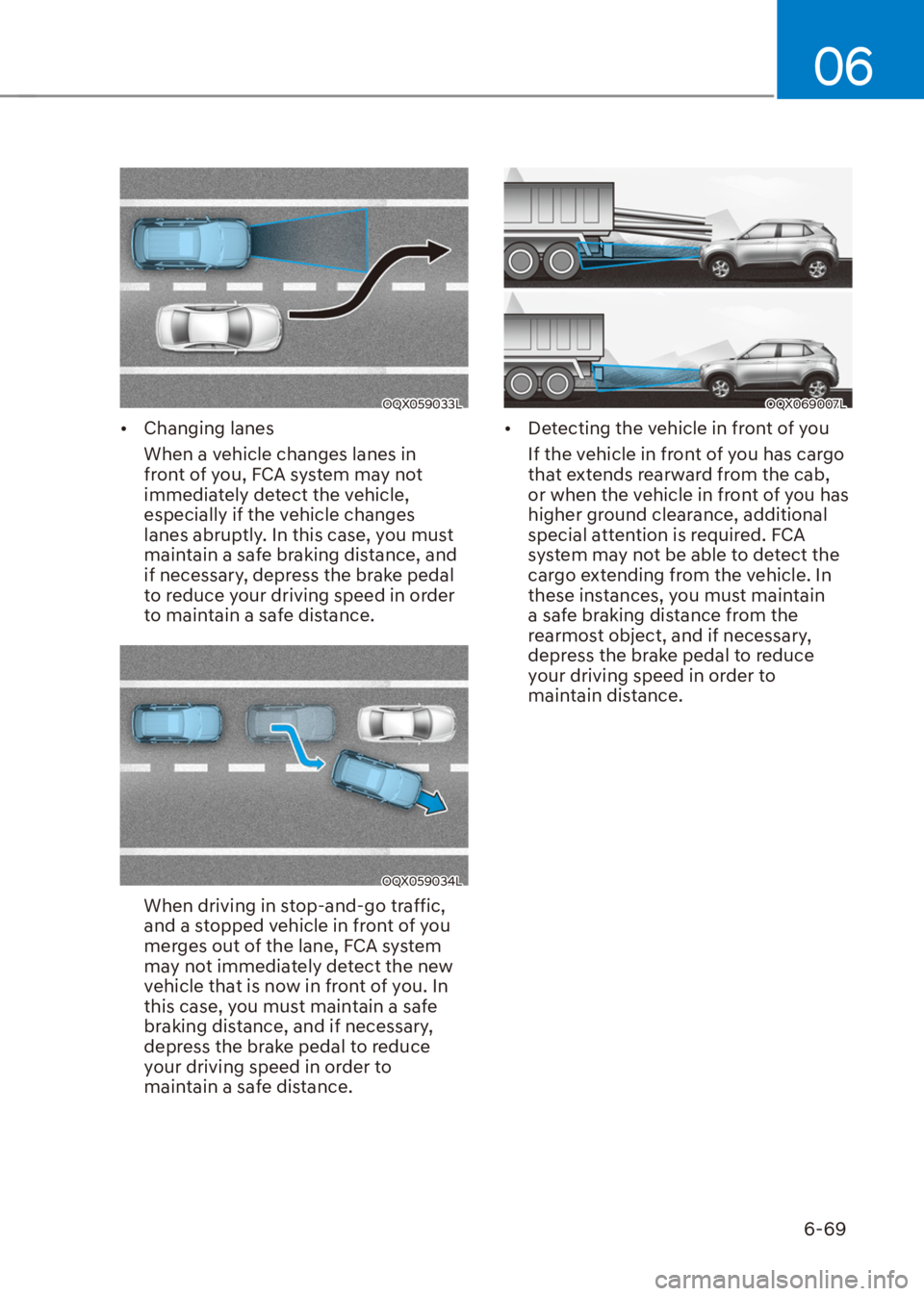

2021 HYUNDAI VENUE Owners Manual

Page 257 of 392

HYUNDAI VENUE 2021  Owners Manual 06
6-69
OQX059033L
[�Changing lanes
When a vehicle changes lanes in
front of you, FCA system may not
immediately detect the vehicle,
especially if the vehicle changes
lanes abruptly. In this cas

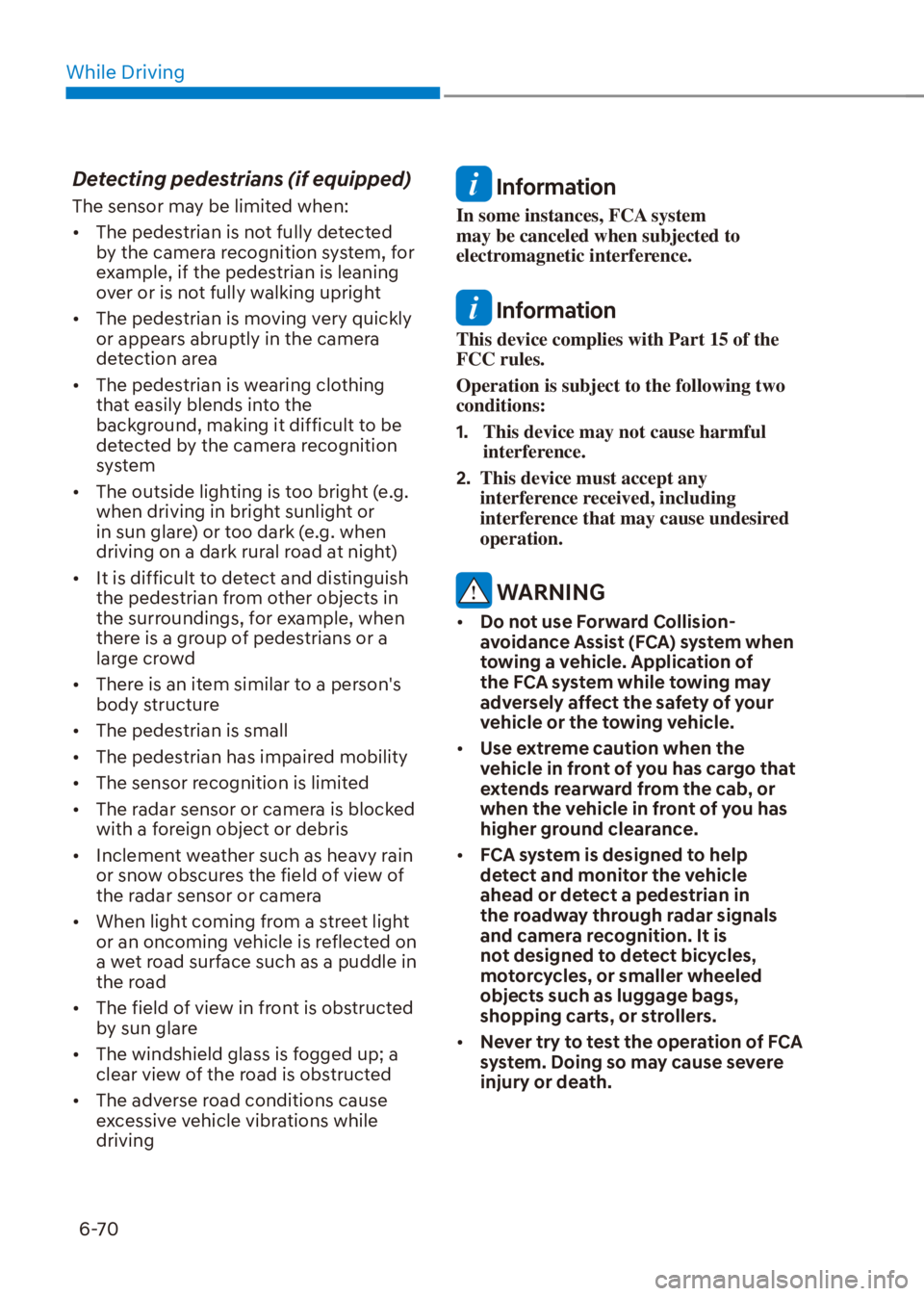

Page 258 of 392

HYUNDAI VENUE 2021  Owners Manual While Driving
6-70
Detecting pedestrians (if equipped)
The sensor may be limited when:
[�The pedestrian is not fully detected
by the camera recognition system, for
example, if the pedestrian is le

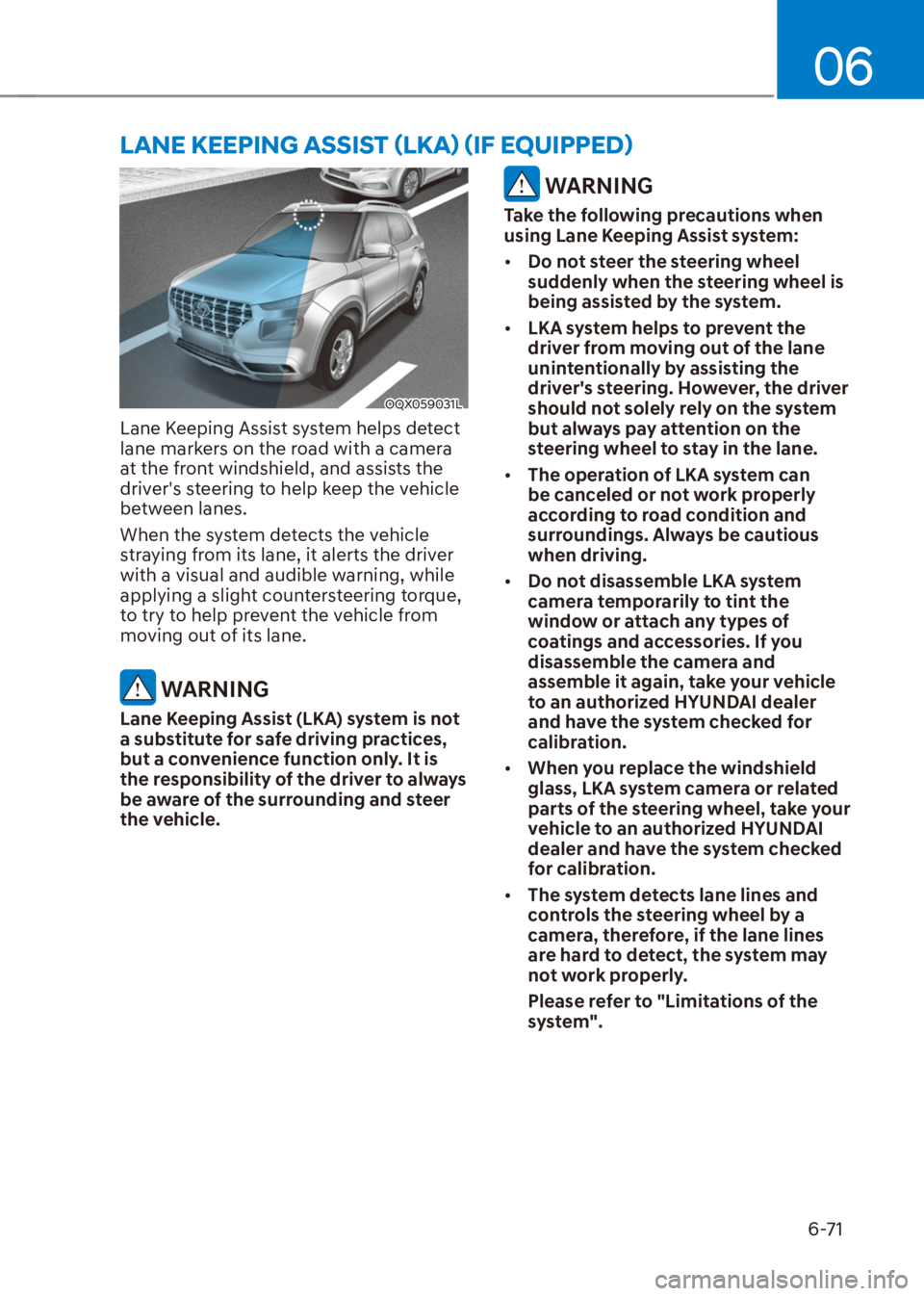

Page 259 of 392

HYUNDAI VENUE 2021  Owners Manual 06
6-71
�/�$�1�(��.�(�(�3�,�1�*��$�6�6�,�6�7�

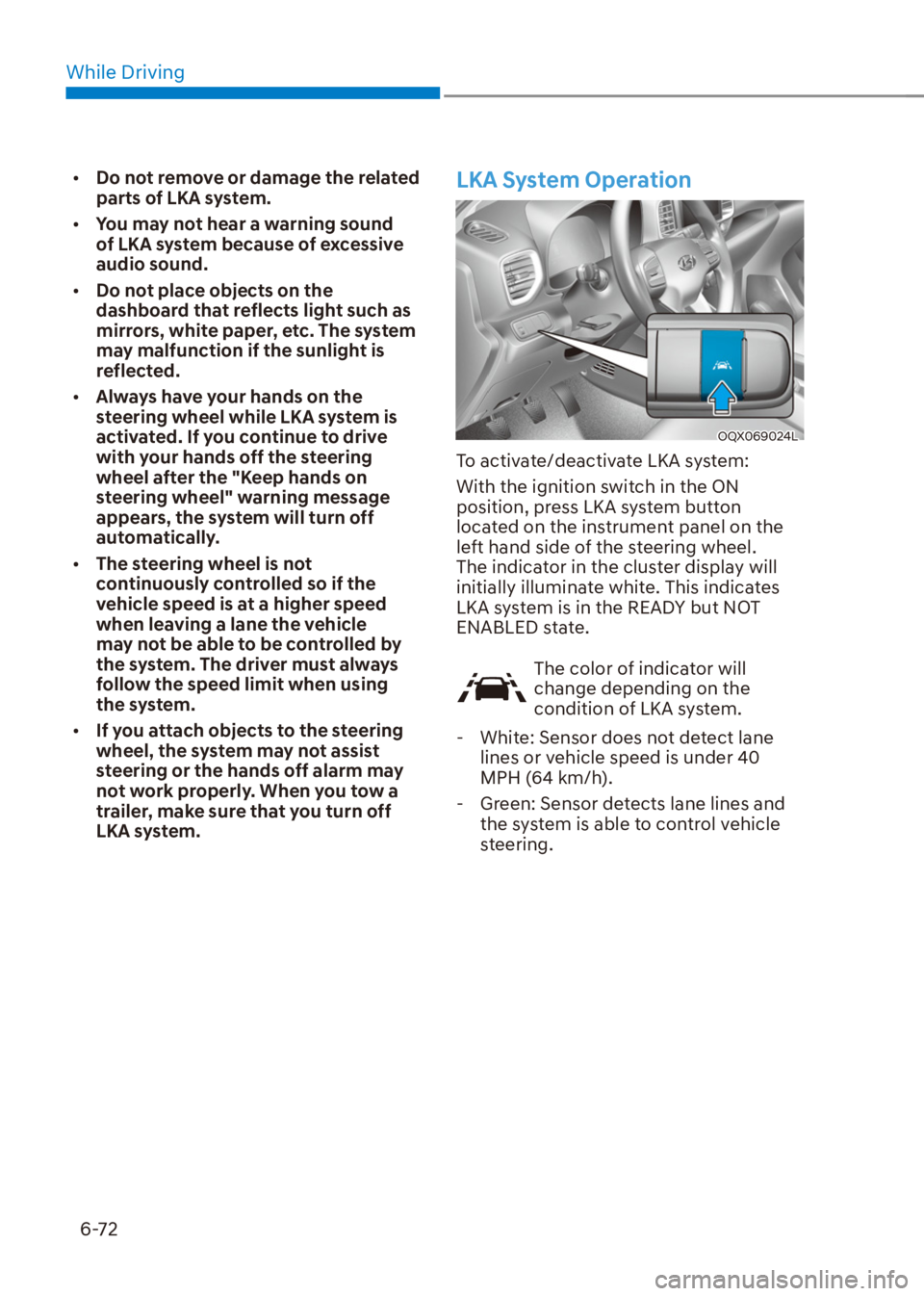

Page 260 of 392

HYUNDAI VENUE 2021  Owners Manual While Driving
6-72
[�Do not remove or damage the related
parts of LKA system.
[�You may not hear a warning sound
of LKA system because of excessive
audio sound.
[�Do not place objects on the

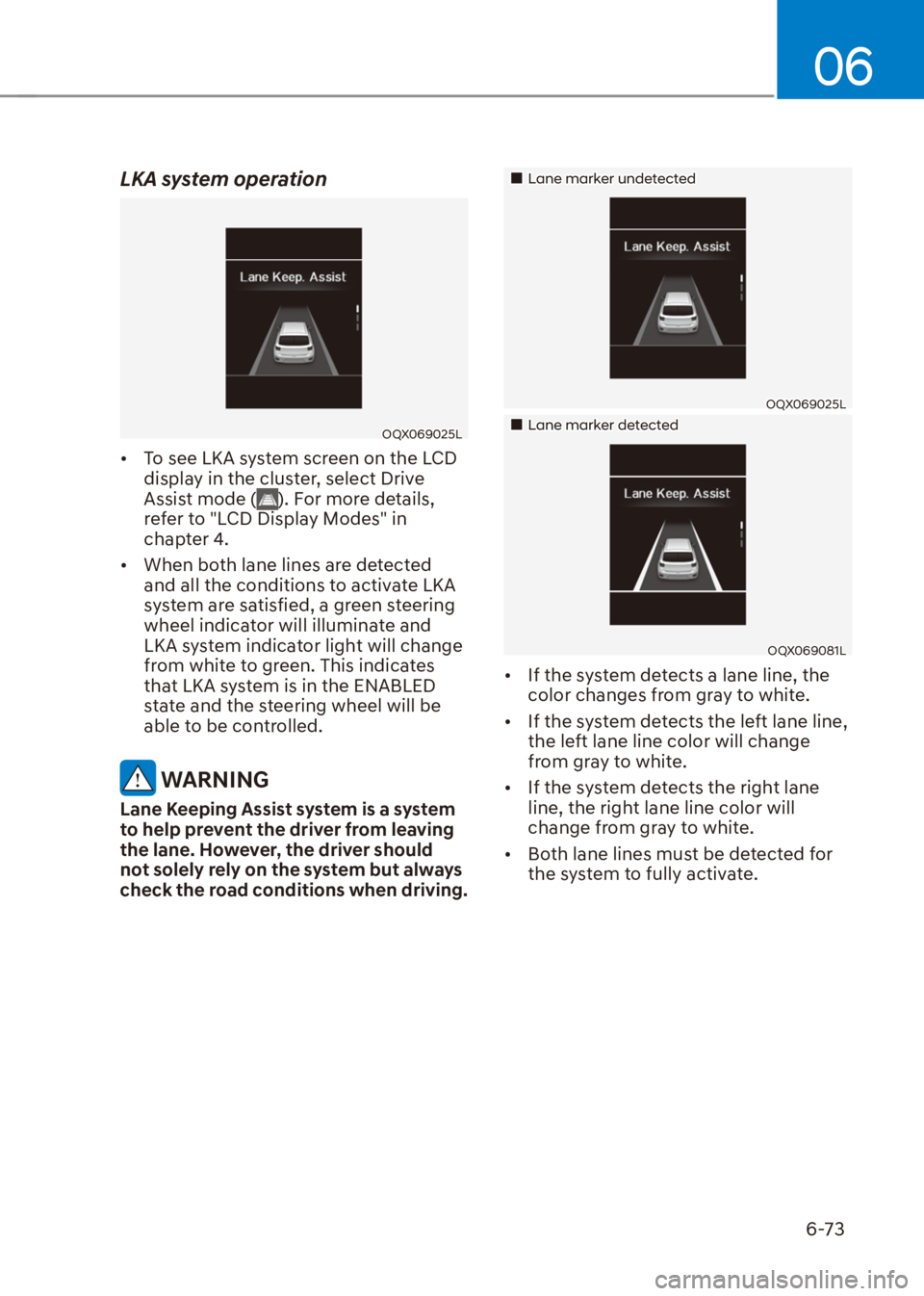

Page 261 of 392

HYUNDAI VENUE 2021  Owners Manual 06
6-73
LKA system operation
OQX069025L
[�To see LKA system screen on the LCD
display in the cluster, select Drive
Assist mode (
). For more details,
refer to "LCD Display Modes" in
chapter 4.

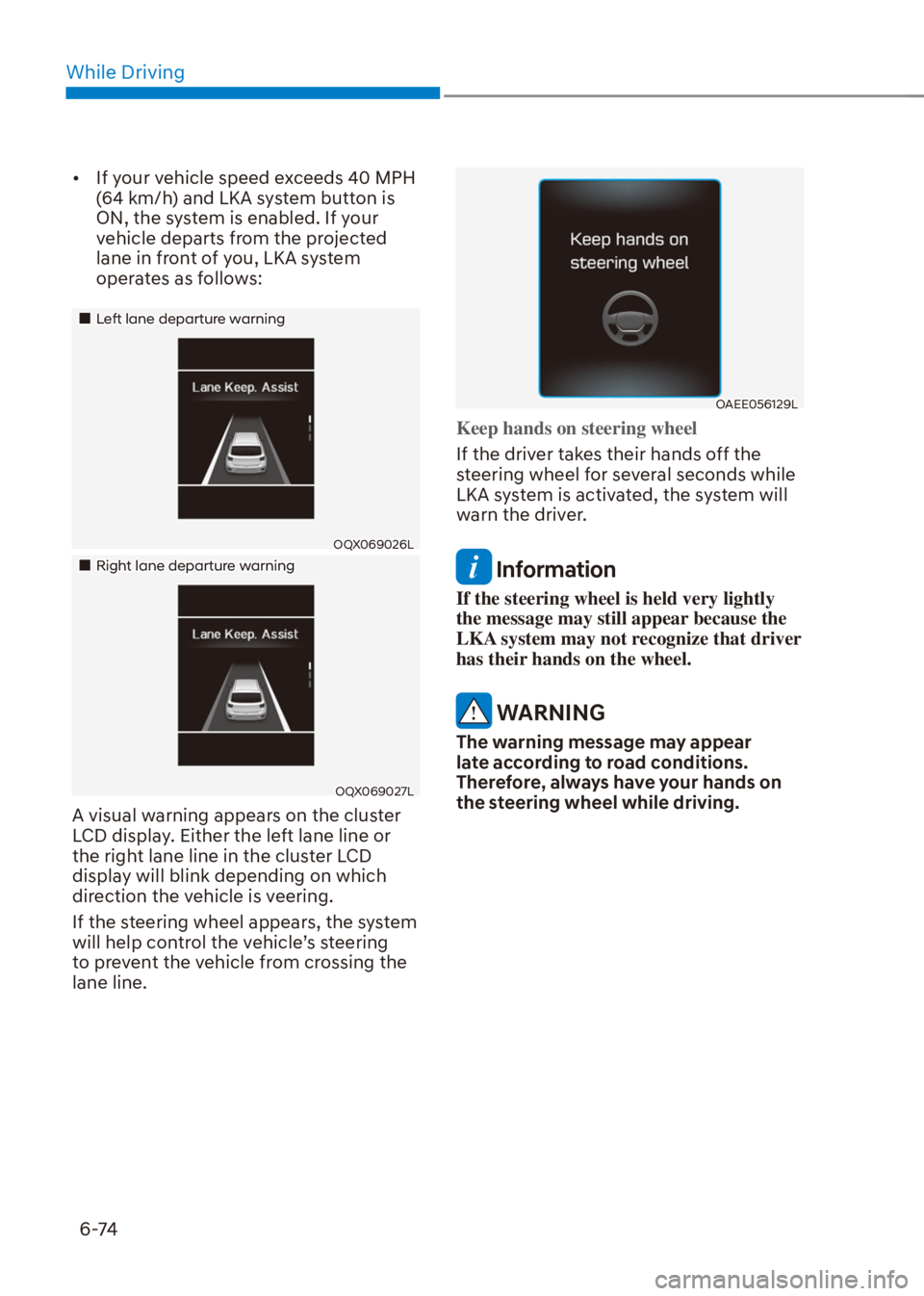

Page 262 of 392

HYUNDAI VENUE 2021  Owners Manual While Driving
6-74
[�If your vehicle speed exceeds 40 MPH
(64 km/h) and LKA system button is
ON, the system is enabled. If your
vehicle departs from the projected
lane in front of you, LKA syste

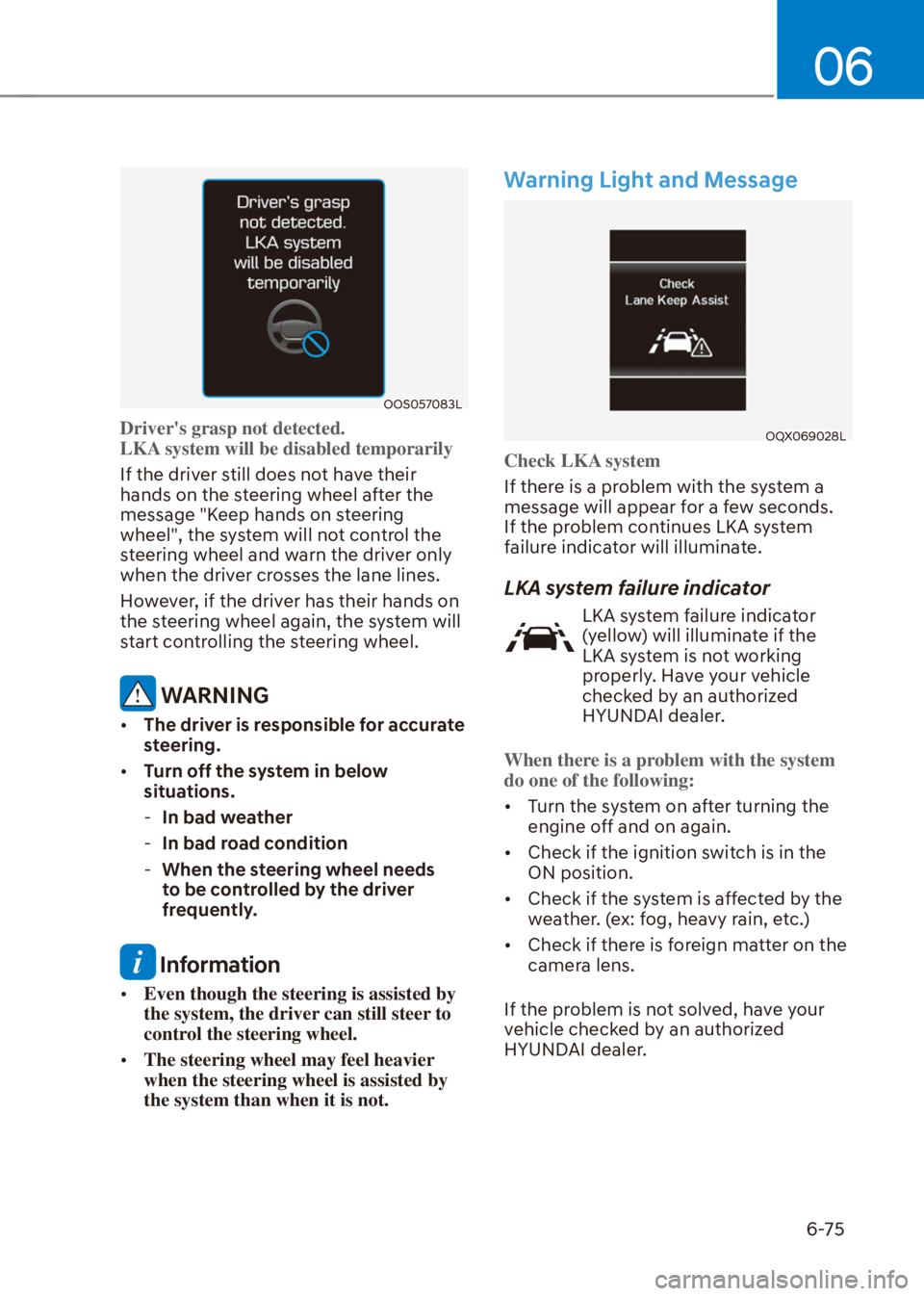

Page 263 of 392

HYUNDAI VENUE 2021  Owners Manual 06
6-75
OOS057083L
Drivers grasp not detected.
LKA system will be disabled temporarily
If the driver still does not have their
hands on the steering wheel after the
message "Keep hands on steerin

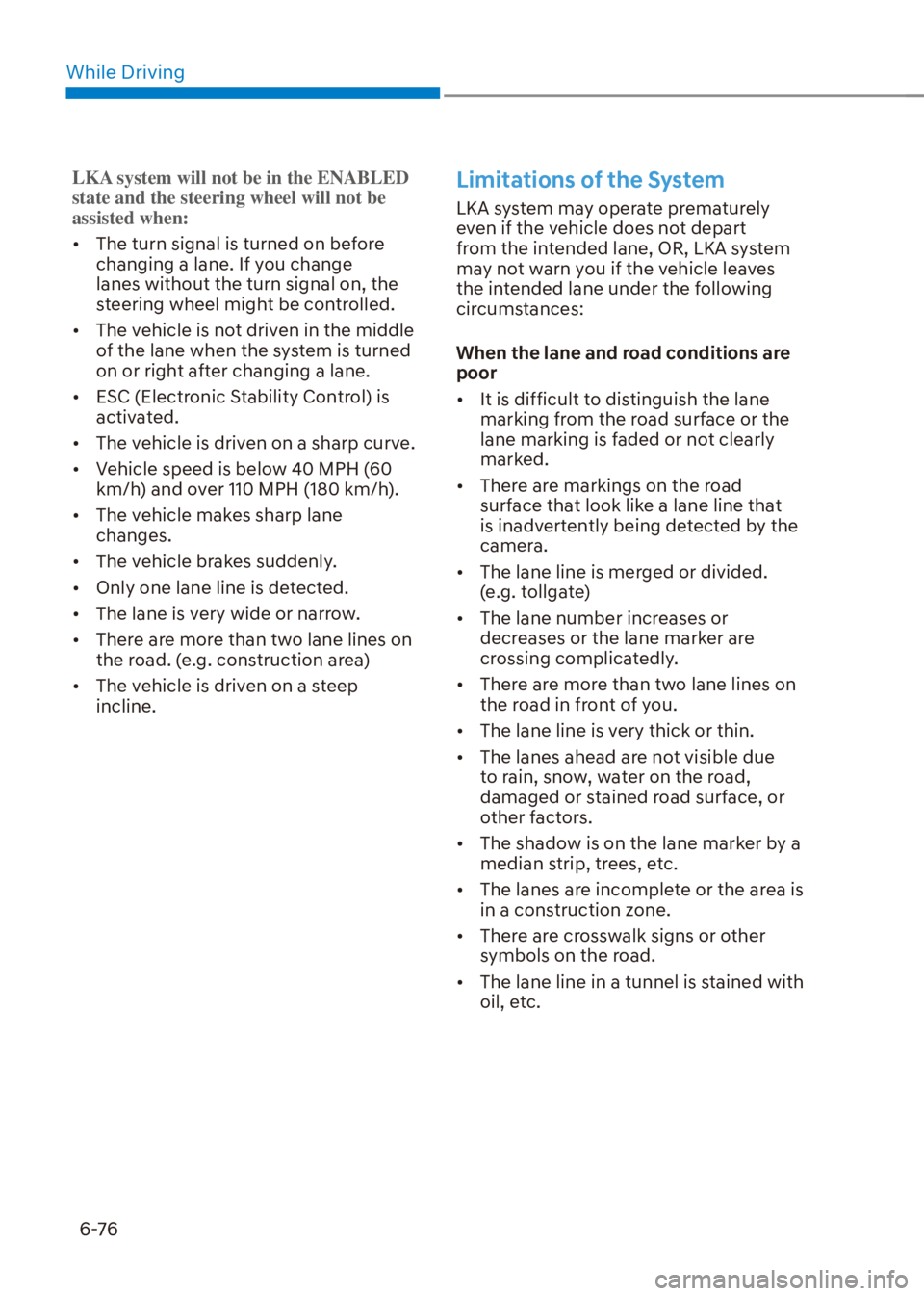

Page 264 of 392

HYUNDAI VENUE 2021  Owners Manual While Driving
6-76
LKA system will not be in the ENABLED
state and the steering wheel will not be
assisted when:
[�The turn signal is turned on before
changing a lane. If you change
lanes withou
