2021 HYUNDAI VENUE Owners Manual

Convenient Features
5-42

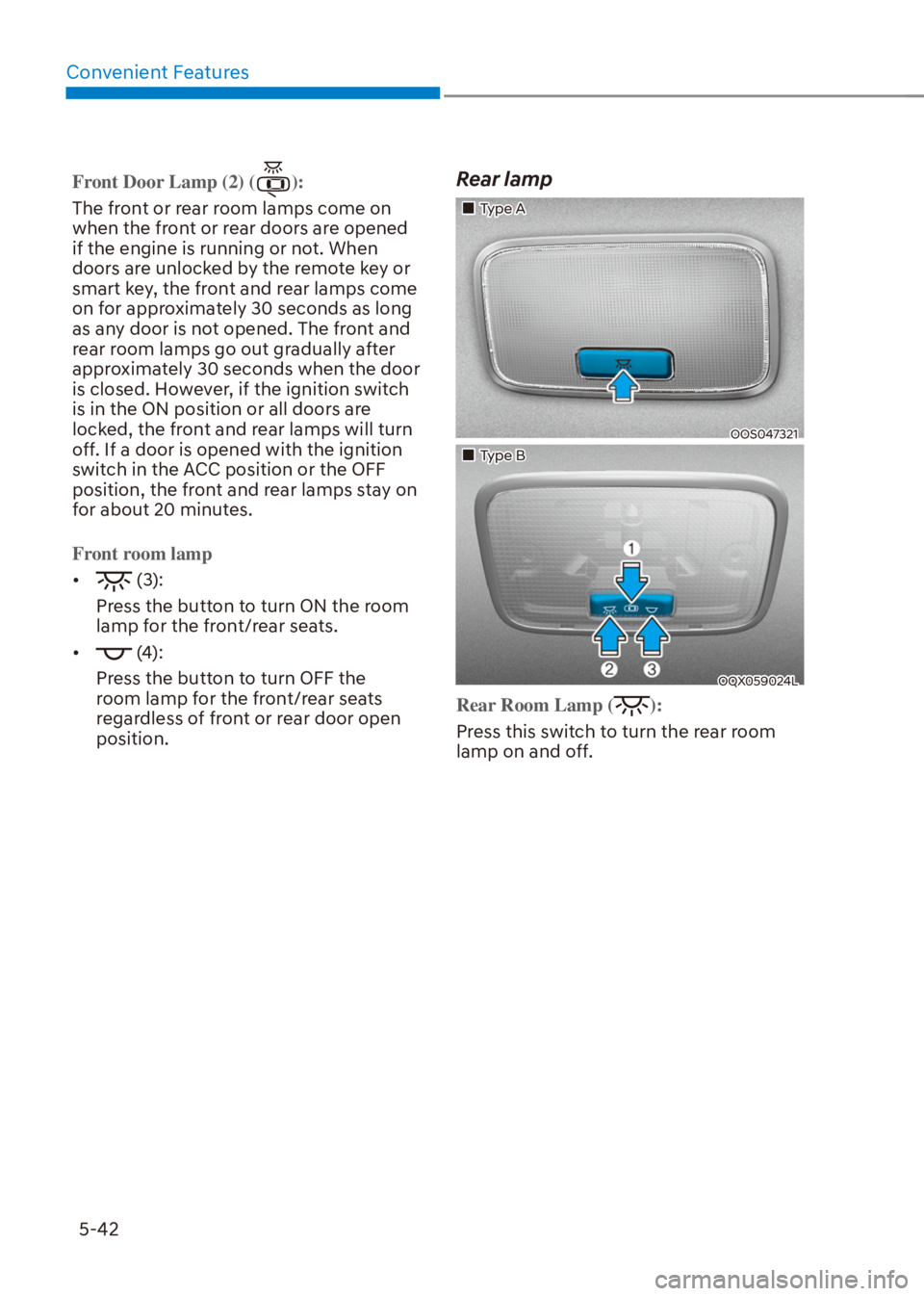

Front Door Lamp (2) ():
The front or rear room lamps come on
when the front or rear doors are opened
if the engine is running or not. When
doors are unlocked by the remote key or
smart key, the front and rear lamps come
on for approximately 30 seconds as long
as any door is not opened. The front and
rear room lamps go out gradually after
approximately 30 seconds when the door
is closed. However, if the ignition switch
is in the ON position or all doors are
locked, the front and rear lamps will turn
off. If a door is opened with the ignition
switch in the ACC position or the OFF
position, the front and rear lamps stay on
for about 20 minutes.
Front room lamp

[ (3):
Press the button to turn ON the room
lamp for the front/rear seats.

[
(4):
Press the button to turn OFF the
room lamp for the front/rear seats
regardless of front or rear door open
position.
Rear lamp
„Type A
OOS047321
„Type B
OQX059024L
Rear Room Lamp ():
Press this switch to turn the rear room
lamp on and off.

05
5-43

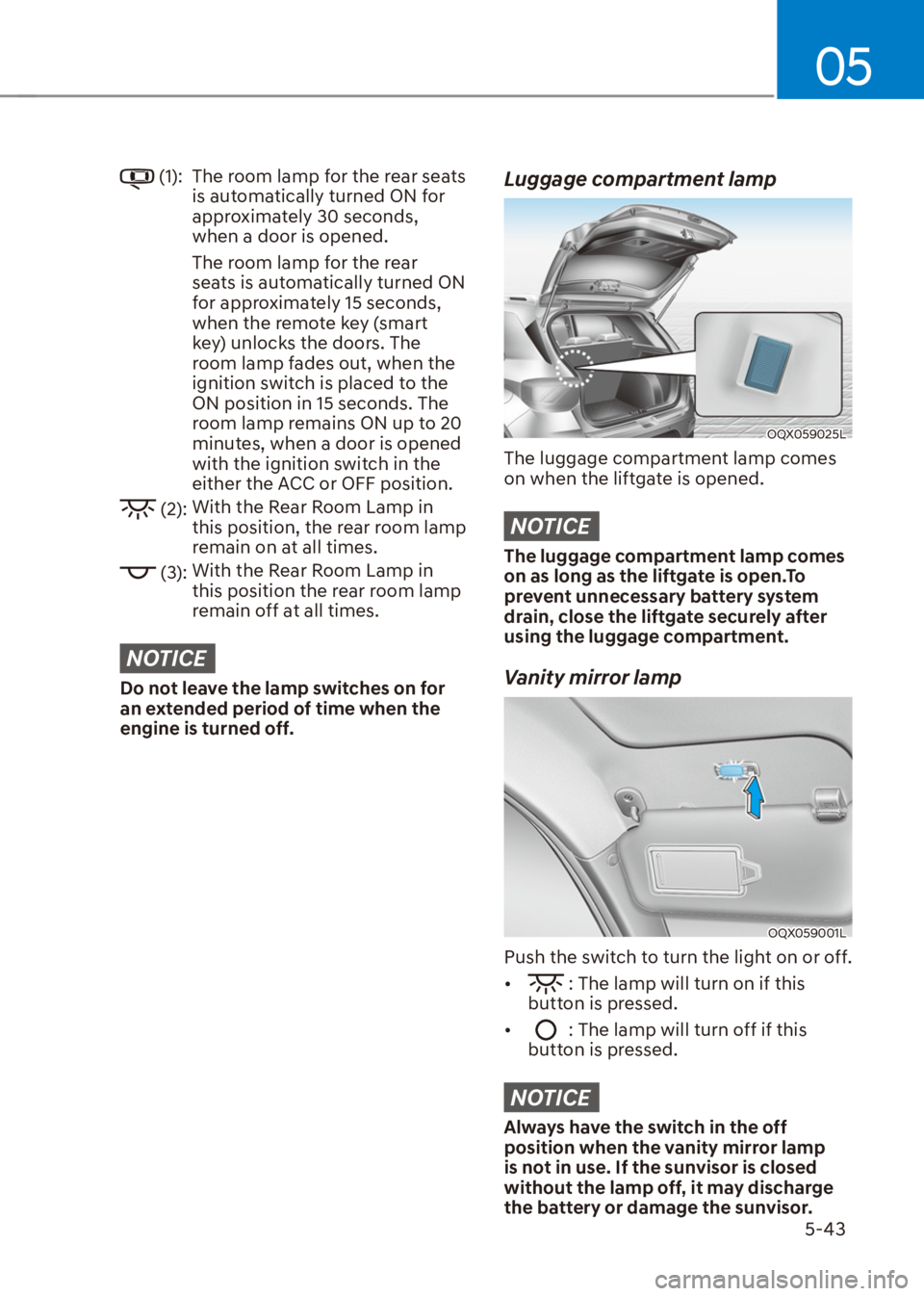

(1): The room lamp for the rear seats
is automatically turned ON for
approximately 30 seconds,
when a door is opened.
The room lamp for the rear
seats is automatically turned ON
for approximately 15 seconds,
when the remote key (smart
key) unlocks the doors. The
room lamp fades out, when the
ignition switch is placed to the
ON position in 15 seconds. The
room lamp remains ON up to 20
minutes, when a door is opened
with the ignition switch in the
either the ACC or OFF position.
(2):With the Rear Room Lamp in
this position, the rear room lamp
remain on at all times.
(3):With the Rear Room Lamp in
this position the rear room lamp
remain off at all times.
NOTICE
Do not leave the lamp switches on for
an extended period of time when the
engine is turned off.
Luggage compartment lamp
OQX059025L
The luggage compartment lamp comes
on when the liftgate is opened.
NOTICE
The luggage compartment lamp comes
on as long as the liftgate is open.To
prevent unnecessary battery system
drain, close the liftgate securely after
using the luggage compartment.
Vanity mirror lamp
OQX059001L
Push the switch to turn the light on or off.

[
: The lamp will turn on if this
button is pressed.

[
: The lamp will turn off if this
button is pressed.
NOTICE
Always have the switch in the off
position when the vanity mirror lamp
is not in use. If the sunvisor is closed
without the lamp off, it may discharge
the battery or damage the sunvisor.

Convenient Features
5-44
:,3(56$1':$6+(56

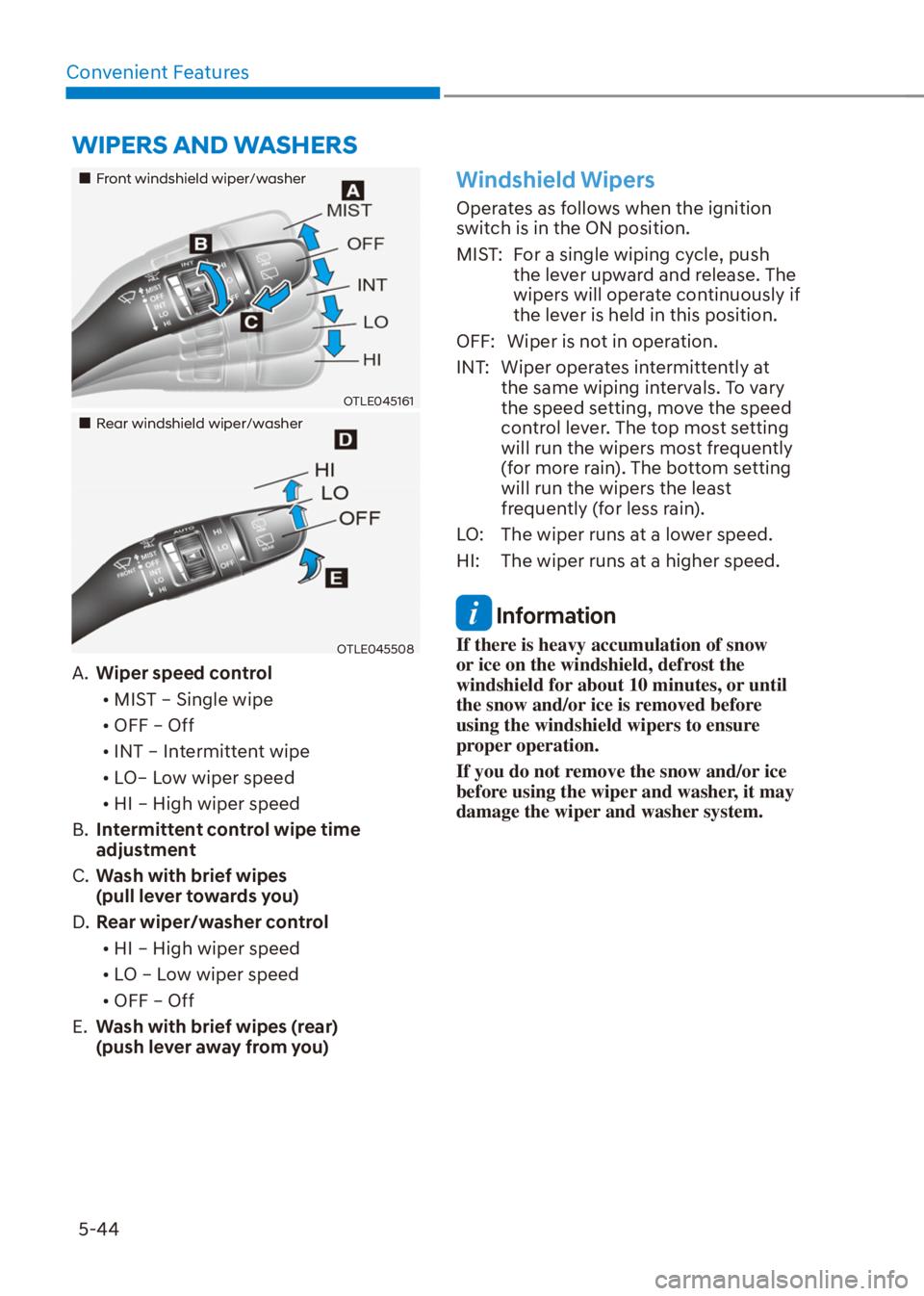

„Front windshield wiper/washer
OTLE045161
„Rear windshield wiper/washer
OTLE045508
A. Wiper speed control

[MIST – Single wipe

[OFF – Off

[INT – Intermittent wipe

[LO– Low wiper speed

[HI – High wiper speed
B. Intermittent control wipe time
adjustment
C. Wash with brief wipes
(pull lever towards you)
D. Rear wiper/washer control

[HI – High wiper speed

[LO – Low wiper speed

[OFF – Off
E. Wash with brief wipes (rear)
(push lever away from you)
Windshield Wipers
Operates as follows when the ignition
switch is in the ON position.
MIST: For a single wiping cycle, push
the lever upward and release. The
wipers will operate continuously if
the lever is held in this position.
OFF: Wiper is not in operation.
INT: Wiper operates intermittently at
the same wiping intervals. To vary
the speed setting, move the speed
control lever. The top most setting
will run the wipers most frequently
(for more rain). The bottom setting
will run the wipers the least
frequently (for less rain).
LO: The wiper runs at a lower speed.
HI: The wiper runs at a higher speed.
Information
If there is heavy accumulation of snow
or ice on the windshield, defrost the
windshield for about 10 minutes, or until
the snow and/or ice is removed before
using the windshield wipers to ensure
proper operation.
If you do not remove the snow and/or ice
before using the wiper and washer, it may
damage the wiper and washer system.

05
5-45

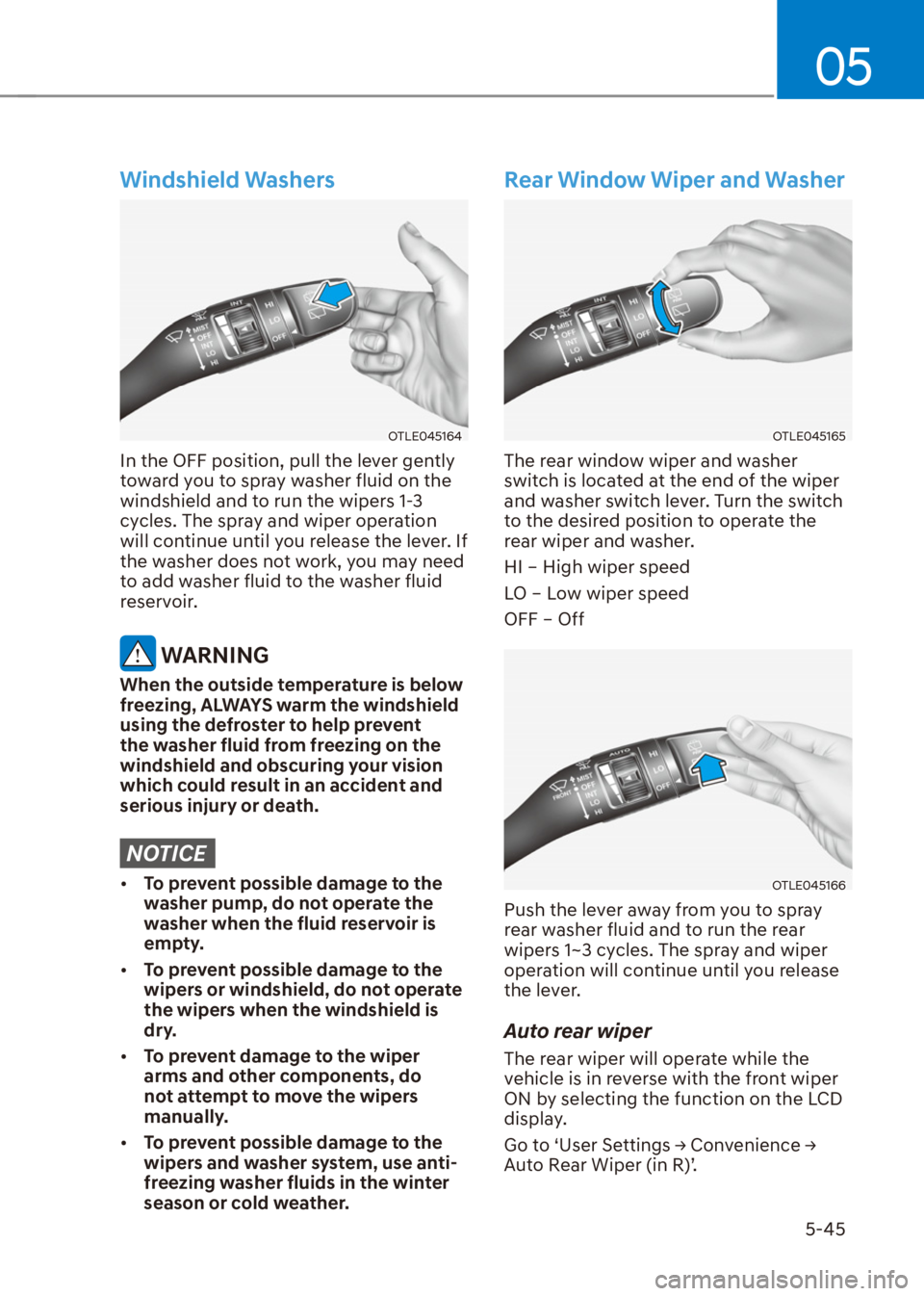

Windshield Washers
OTLE045164
In the OFF position, pull the lever gently
toward you to spray washer fluid on the
windshield and to run the wipers 1-3
cycles. The spray and wiper operation
will continue until you release the lever. If
the washer does not work, you may need
to add washer fluid to the washer fluid
reservoir.
WARNING
When the outside temperature is below
freezing, ALWAYS warm the windshield
using the defroster to help prevent
the washer fluid from freezing on the
windshield and obscuring your vision
which could result in an accident and
serious injury or death.
NOTICE

[To prevent possible damage to the
washer pump, do not operate the
washer when the fluid reservoir is
empty.

[To prevent possible damage to the
wipers or windshield, do not operate
the wipers when the windshield is
dry.

[To prevent damage to the wiper
arms and other components, do
not attempt to move the wipers
manually.

[To prevent possible damage to the
wipers and washer system, use anti-
freezing washer fluids in the winter
season or cold weather.
Rear Window Wiper and Washer
OTLE045165
The rear window wiper and washer
switch is located at the end of the wiper
and washer switch lever. Turn the switch
to the desired position to operate the
rear wiper and washer.
HI – High wiper speed
LO – Low wiper speed
OFF – Off
OTLE045166
Push the lever away from you to spray
rear washer fluid and to run the rear
wipers 1~3 cycles. The spray and wiper
operation will continue until you release
the lever.
Auto rear wiper
The rear wiper will operate while the
vehicle is in reverse with the front wiper
ON by selecting the function on the LCD
display.
*RWR
S8VHU6HWWLQJV

Convenient Features
5-46
5($59,(:021,7256<67(0
OQX059136L
OQX059082L

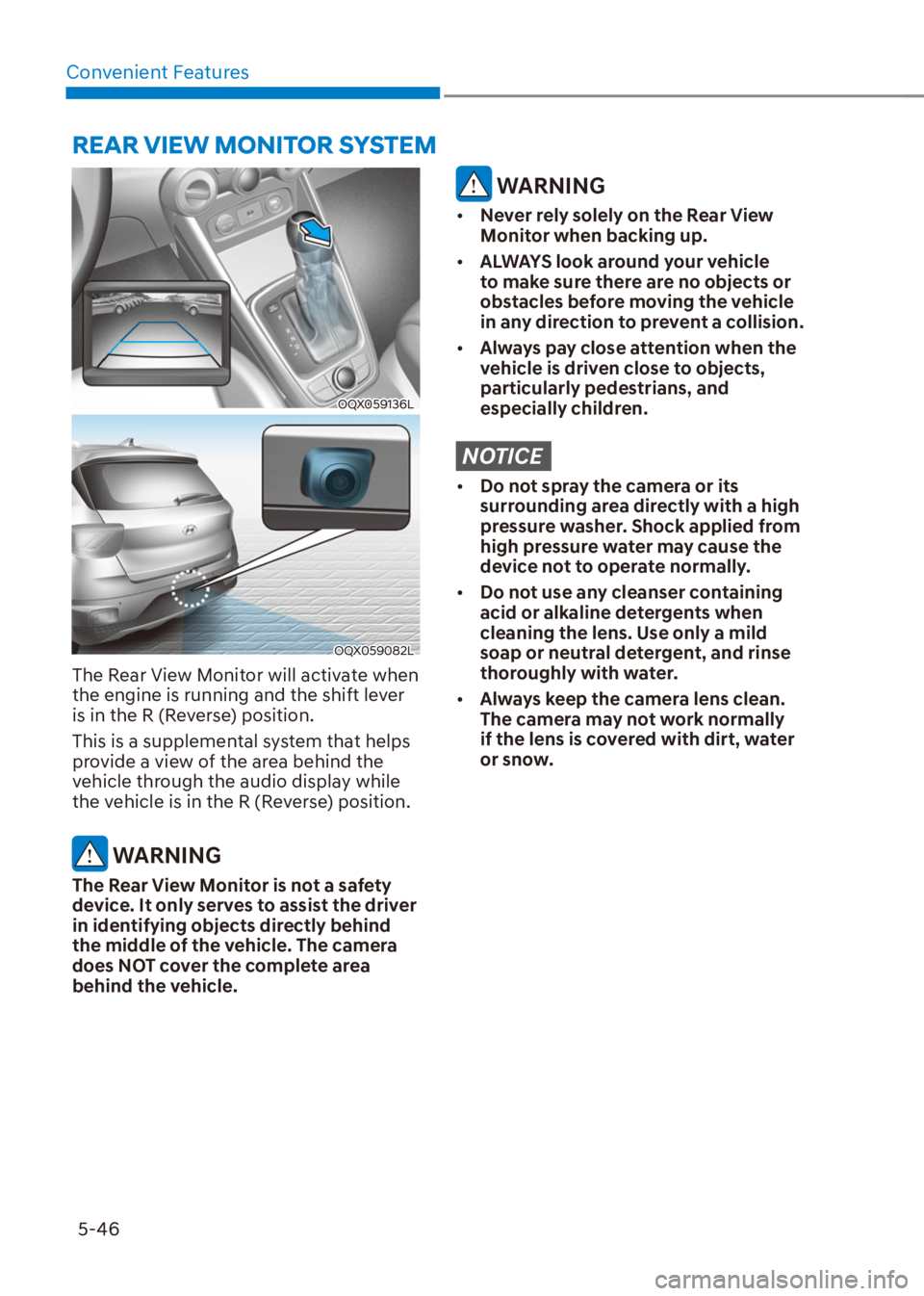

The Rear View Monitor will activate when
the engine is running and the shift lever
is in the R (Reverse) position.
This is a supplemental system that helps
provide a view of the area behind the
vehicle through the audio display while
the vehicle is in the R (Reverse) position.
WARNING
The Rear View Monitor is not a safety
device. It only serves to assist the driver
in identifying objects directly behind
the middle of the vehicle. The camera
does NOT cover the complete area
behind the vehicle.
WARNING

[Never rely solely on the Rear View
Monitor when backing up.

[ALWAYS look around your vehicle
to make sure there are no objects or
obstacles before moving the vehicle
in any direction to prevent a collision.

[Always pay close attention when the
vehicle is driven close to objects,
particularly pedestrians, and
especially children.
NOTICE

[Do not spray the camera or its
surrounding area directly with a high
pressure washer. Shock applied from
high pressure water may cause the
device not to operate normally.

[Do not use any cleanser containing
acid or alkaline detergents when
cleaning the lens. Use only a mild
soap or neutral detergent, and rinse
thoroughly with water.

[Always keep the camera lens clean.
The camera may not work normally
if the lens is covered with dirt, water
or snow.

5-47
05
1. Mode selection knob
2. Fan speed control knob
3. Temperature control knob
4. Air intake control button
(recirculated air position or outside
(fresh) air position)5. Rear window defroster button
(if equipped)
6. A/C (Air conditioning) button
0$18$/&/,0$7(&21752/6<67(0

Convenient Features
5-48

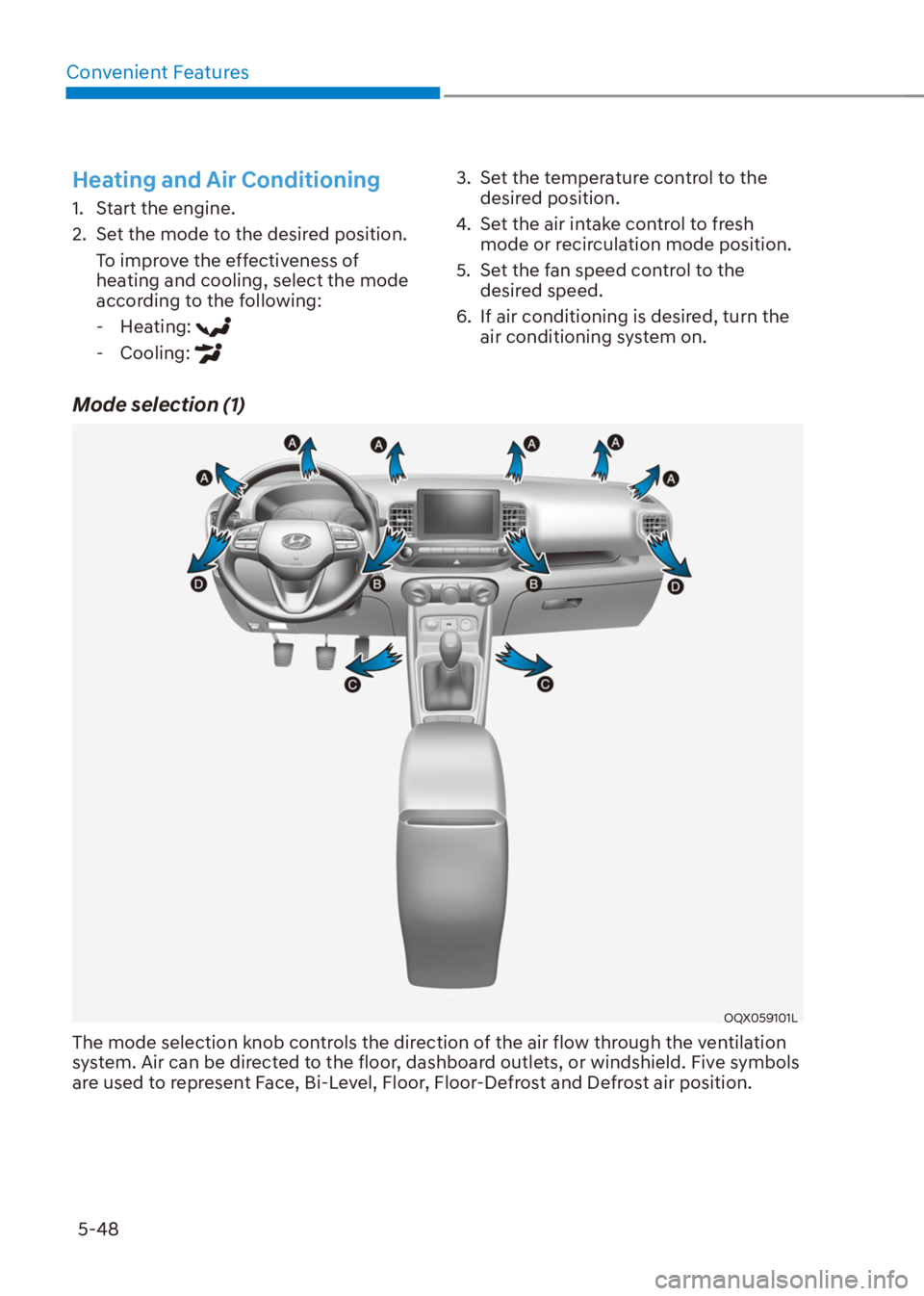

Heating and Air Conditioning
1. Start the engine.
2. Set the mode to the desired position.
To improve the effectiveness of
heating and cooling, select the mode
according to the following:
- Heating:
- Cooling:
3. Set the temperature control to the
desired position.
4. Set the air intake control to fresh
mode or recirculation mode position.
5. Set the fan speed control to the
desired speed.
6. If air conditioning is desired, turn the
air conditioning system on.
Mode selection (1)
OQX059101L
The mode selection knob controls the direction of the air flow through the ventilation
system. Air can be directed to the floor, dashboard outlets, or windshield. Five symbols
are used to represent Face, Bi-Level, Floor, Floor-Defrost and Defrost air position.

05
5-49

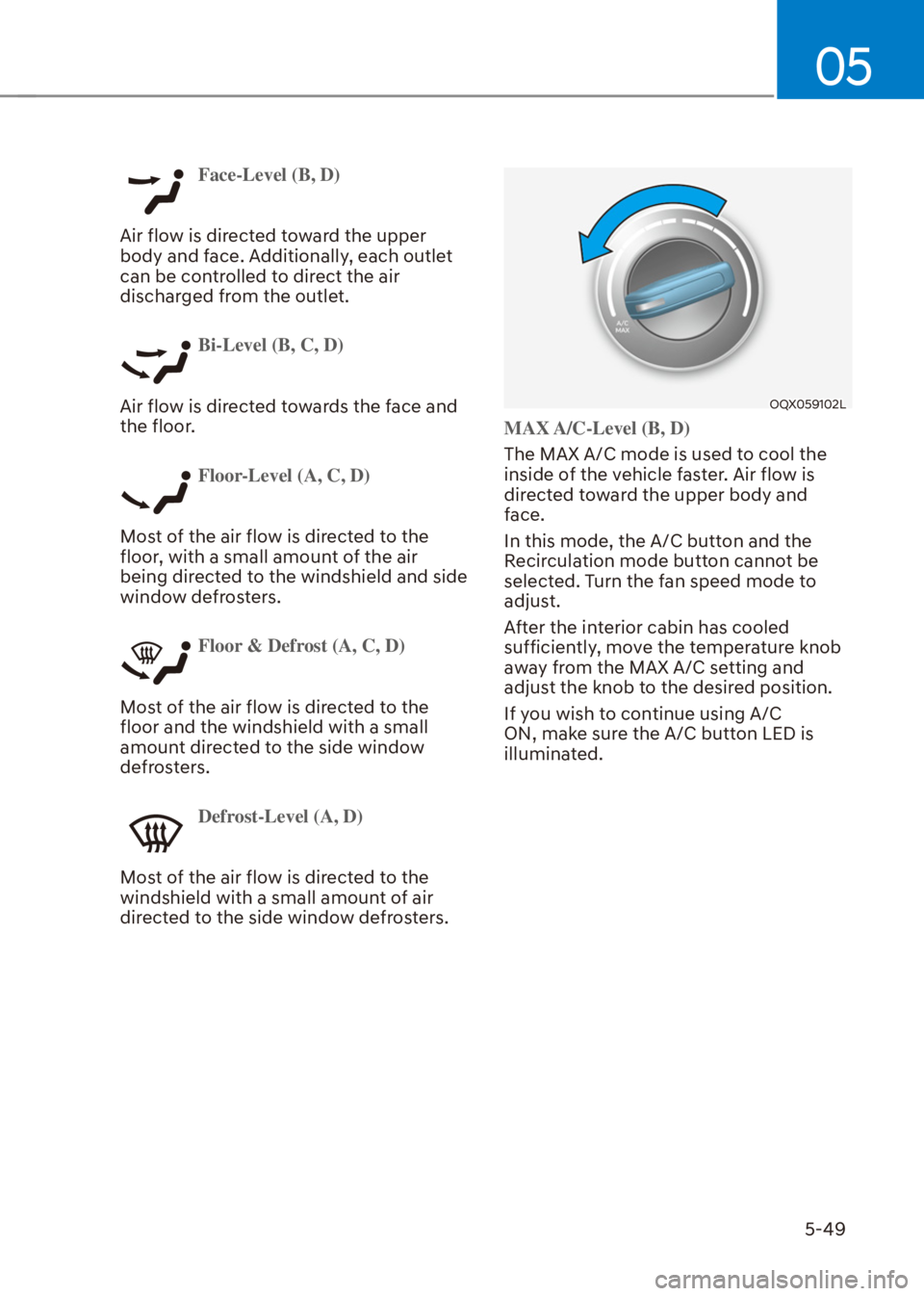

Face-Level (B, D)
Air flow is directed toward the upper
body and face. Additionally, each outlet
can be controlled to direct the air
discharged from the outlet.
Bi-Level (B, C, D)
Air flow is directed towards the face and
the floor.
Floor-Level (A, C, D)
Most of the air flow is directed to the
floor, with a small amount of the air
being directed to the windshield and side
window defrosters.
Floor & Defrost (A, C, D)
Most of the air flow is directed to the
floor and the windshield with a small
amount directed to the side window
defrosters.
Defrost-Level (A, D)
Most of the air flow is directed to the
windshield with a small amount of air
directed to the side window defrosters.
OQX059102L
MAX A/C-Level (B, D)
The MAX A/C mode is used to cool the
inside of the vehicle faster. Air flow is
directed toward the upper body and
face.
In this mode, the A/C button and the
Recirculation mode button cannot be
selected. Turn the fan speed mode to
adjust.
After the interior cabin has cooled
sufficiently, move the temperature knob
away from the MAX A/C setting and
adjust the knob to the desired position.
If you wish to continue using A/C
ON, make sure the A/C button LED is
illuminated.
