2021 HYUNDAI VENUE Owners Manual

04

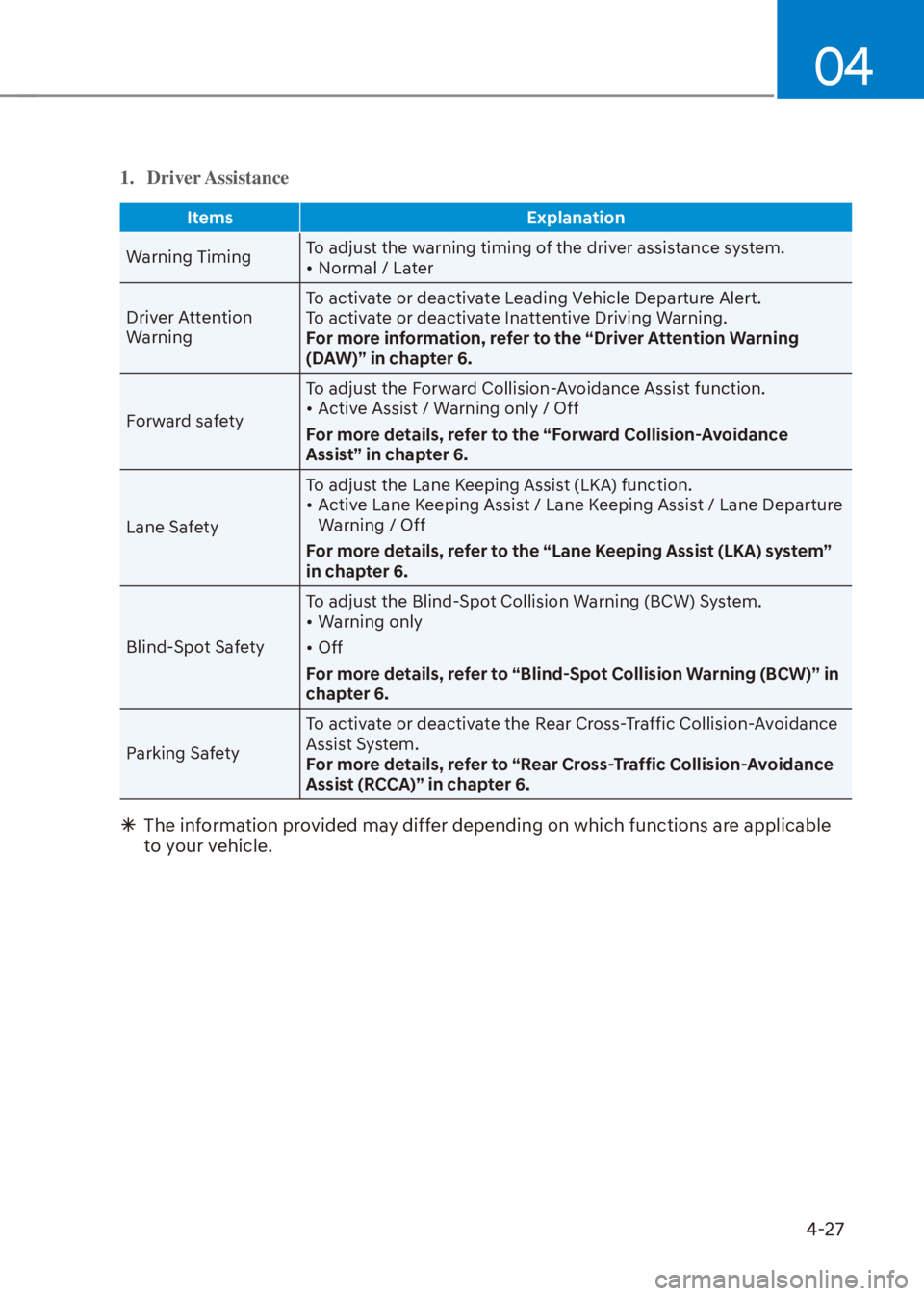

4-27
1. Driver Assistance
Items Explanation
Warning TimingTo adjust the warning timing of the driver assistance system.

[Normal / Later
Driver Attention
WarningTo activate or deactivate Leading Vehicle Departure Alert.
To activate or deactivate Inattentive Driving Warning.
For more information, refer to the “Driver Attention Warning
(DAW)” in chapter 6.
Forward safetyTo adjust the Forward Collision-Avoidance Assist function.

[Active Assist / Warning only / Off
For more details, refer to the “Forward Collision-Avoidance
Assist” in chapter 6.
Lane SafetyTo adjust the Lane Keeping Assist (LKA) function.

[Active Lane Keeping Assist / Lane Keeping Assist / Lane Departure
Warning / Off
For more details, refer to the “Lane Keeping Assist (LKA) system”
in chapter 6.
Blind-Spot SafetyTo adjust the Blind-Spot Collision Warning (BCW) System.

[Warning only

[Off
For more details, refer to “Blind-Spot Collision Warning (BCW)” in
chapter 6.
Parking SafetyTo activate or deactivate the Rear Cross-Traffic Collision-Avoidance
Assist System.
For more details, refer to “Rear Cross-Traffic Collision-Avoidance
Assist (RCCA)” in chapter 6.
ÃThe information provided may differ depending on which functions are applicable
to your vehicle.

Instrument Cluster
4-28
2. Door
Items Explanation
Auto Lock
[Disable: The auto door lock operation will be deactivated.

[Enable on Speed: All doors will be automatically locked when the
vehicle speed exceeds 9.3 mph (15km/h).
[Enable on Shift: All doors will be automatically locked if the
intelligent variable transmission shift lever is changed from the P
(Park) position to the R (Reverse), N (Neutral), or D (Drive) position.
(Only when the engine is running)
Auto Unlock
[Disable: The auto door unlock operation will be canceled.

[On key out/Vehicle Off: All doors will be automatically unlocked
when the ignition key is removed from the ignition switch or the
Engine Start/Stop button is set to the OFF position.

[On Shift to P: All doors will be automatically unlocked if the
intelligent variable transmission shift lever is changed to P (Park)
position.
(Only when the engine is running)
Two Press Unlock
[Off: The two press unlock function will be deactivated. Therefore,
all doors will unlock if the door unlock button is pressed.

[On: Only the driver’s door will unlock if the door unlock button is
pressed. When the door unlock button is pressed again within 4
seconds, the remaining doors will unlock.
Horn FeedbackTo activate or deactivate the horn feedback.
If the horn feedback is activated, after locking the door by pressing
the lock button on the remote key, and pressing it again within 4
seconds, the horn feedback sound will operate once to indicate that
all doors are locked (if equipped with remote key).
ÃThe information provided may differ depending on which functions are applicable
to your vehicle.
3. Light
Items Explanation
One Touch Turn
Signal
[Off: The one touch turn signal function will be deactivated.

[3, 5, 7 Flashes: The turn signal indicator will blink 3, 5, or 7 times
when the turn signal lever is moved slightly.
For more information, refer to "Lighting" in chapter 5.
Headlight Delay
[To activate or deactivate the headlamp delay function.
For more information, refer to "Lighting" in chapter 5.
High Beam Assist
[To activate or deactivate the High Beam Assist (HBA) System.
For more details, refer to “High Beam Assist (HBA) system” in
chapter 5.
ÃThe information provided may differ depending on which functions are applicable
to your vehicle.

04

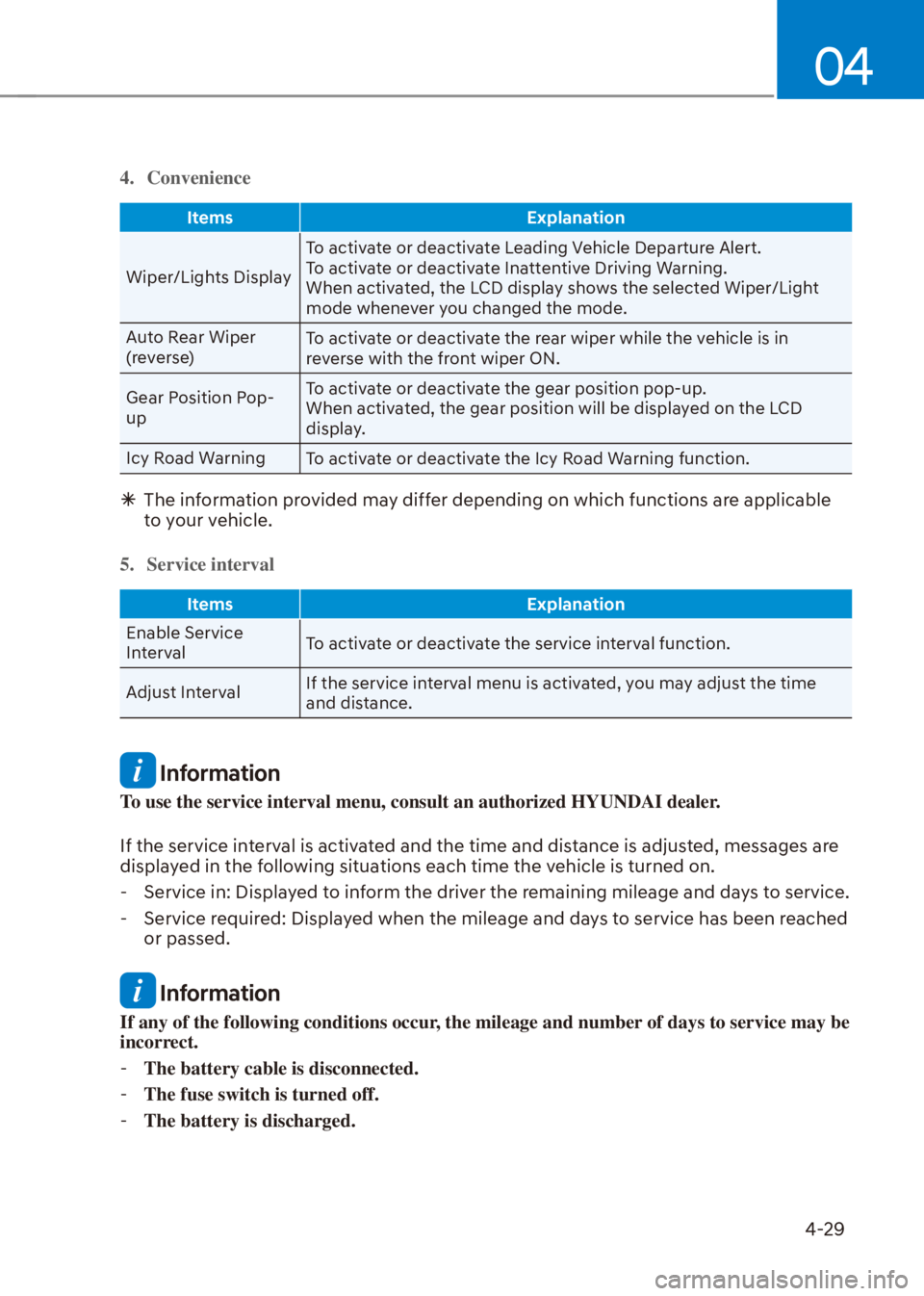

4-29
4. Convenience
Items Explanation
Wiper/Lights DisplayTo activate or deactivate Leading Vehicle Departure Alert.
To activate or deactivate Inattentive Driving Warning.
When activated, the LCD display shows the selected Wiper/Light
mode whenever you changed the mode.
Auto Rear Wiper
(reverse)To activate or deactivate the rear wiper while the vehicle is in
reverse with the front wiper ON.
Gear Position Pop-
upTo activate or deactivate the gear position pop-up.
When activated, the gear position will be displayed on the LCD
display.
Icy Road Warning
To activate or deactivate the Icy Road Warning function.
ÃThe information provided may differ depending on which functions are applicable
to your vehicle.
5. Service interval
Items Explanation
Enable Service
IntervalTo activate or deactivate the service interval function.
Adjust IntervalIf the service interval menu is activated, you may adjust the time
and distance.
Information
To use the service interval menu, consult an authorized HYUNDAI dealer.
If the service interval is activated and the time and distance is adjusted, messages are
displayed in the following situations each time the vehicle is turned on.
- Service in: Displayed to inform the driver the remaining mileage and days to service.
- Service required: Displayed when the mileage and days to service has been reached
or passed.
Information
If any of the following conditions occur, the mileage and number of days to service may be
incorrect.
-The battery cable is disconnected.
-The fuse switch is turned off.
-The battery is discharged.

Instrument Cluster

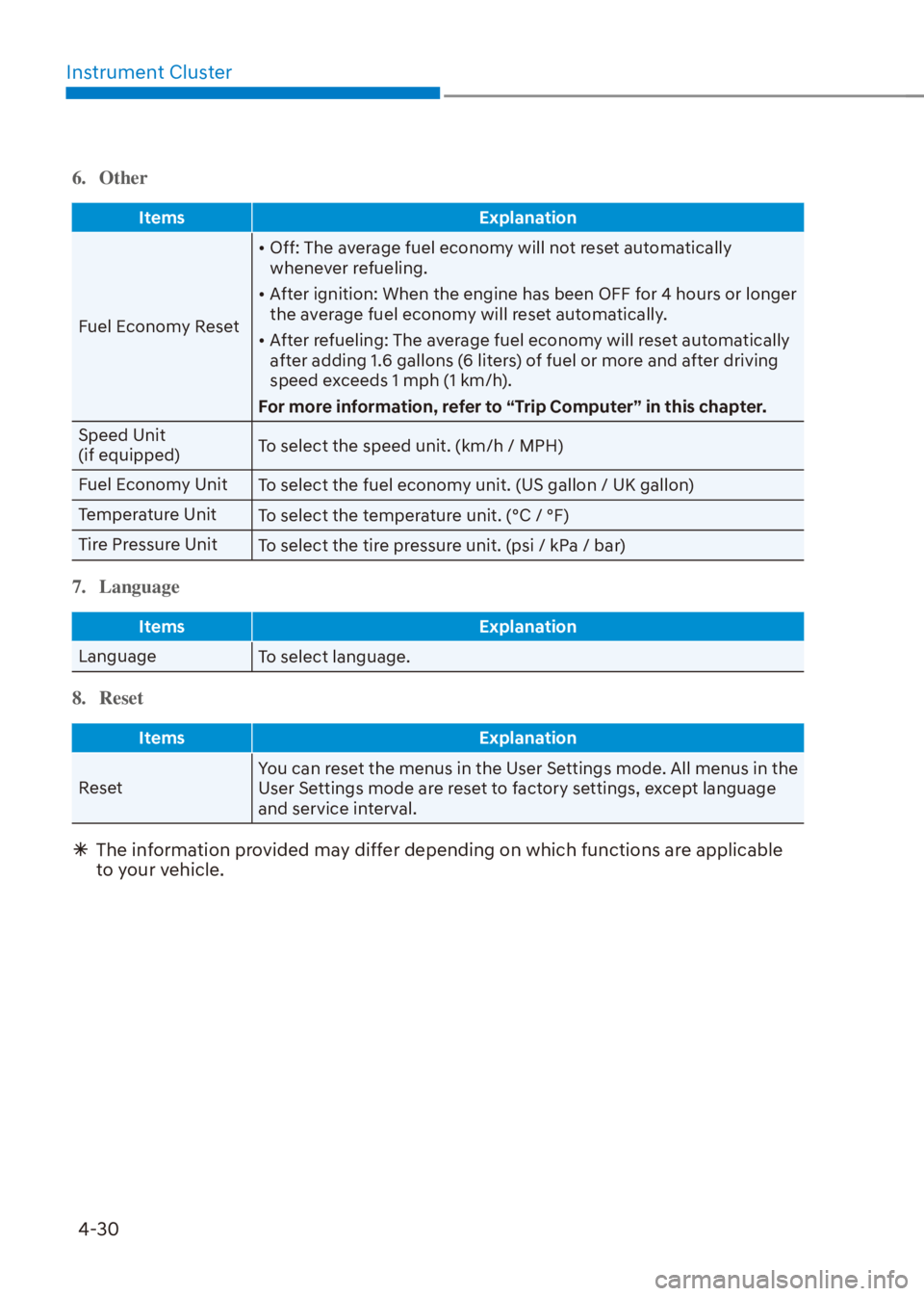

4-30
6. Other
Items Explanation
Fuel Economy Reset
[Off: The average fuel economy will not reset automatically
whenever refueling.

[After ignition: When the engine has been OFF for 4 hours or longer
the average fuel economy will reset automatically.

[After refueling: The average fuel economy will reset automatically
after adding 1.6 gallons (6 liters) of fuel or more and after driving
speed exceeds 1 mph (1 km/h).
For more information, refer to “Trip Computer” in this chapter.
Speed Unit
(if equipped)To select the speed unit. (km/h / MPH)
Fuel Economy Unit
To select the fuel economy unit. (US gallon / UK gallon)
Temperature Unit
To select the temperature unit. (°C / °F)
Tire Pressure Unit
To select the tire pressure unit. (psi / kPa / bar)
7. Language
Items Explanation
Language
To select language.
8. Reset
Items Explanation
ResetYou can reset the menus in the User Settings mode. All menus in the
User Settings mode are reset to factory settings, except language
and service interval.
ÃThe information provided may differ depending on which functions are applicable
to your vehicle.

04

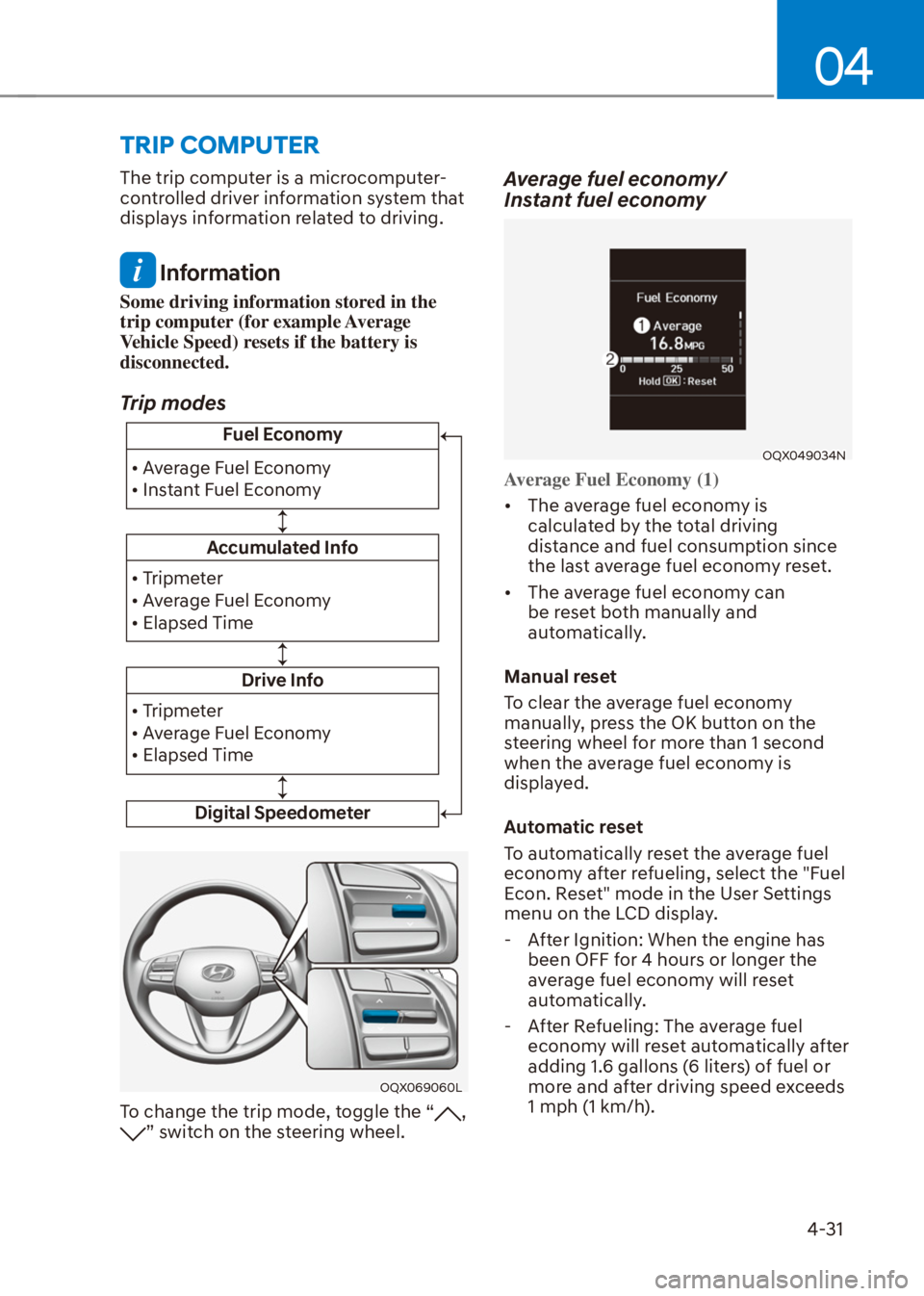

4-31
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
Information
Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is
disconnected.
Trip modes

[Average Fuel Economy

[Instant Fuel EconomyFuel Economy
Accumulated Info
Drive Info
Digital Speedometer
[Tripmeter

[Average Fuel Economy

[Elapsed Time

[Tripmeter

[Average Fuel Economy

[Elapsed Time
OQX069060L
To change the trip mode, toggle the “, ” switch on the steering wheel.
Average fuel economy/
Instant fuel economy
OQX049034N
Average Fuel Economy (1)

[The average fuel economy is
calculated by the total driving
distance and fuel consumption since
the last average fuel econ omy reset.

[The average fuel economy can
be reset both manually and
automatically.
Manual reset
To clear the average fuel economy
manually, press the OK button on the
steering wheel for more than 1 second
when the average fuel economy is
displayed.
Automatic reset
To automatically reset the average fuel
economy after refueling, select the "Fuel
Econ. Reset" mode in the User Settings
menu on the LCD display.
- After Ignition: When the engine has
been OFF for 4 hours or longer the
average fuel economy will reset
automatically.
- After Refueling: The average fuel
economy will reset automatically after
adding 1.6 gallons (6 liters) of fuel or
more and after driving speed exceeds
1 mph (1 km/h).
TRIP COMPUTER

Instrument Cluster

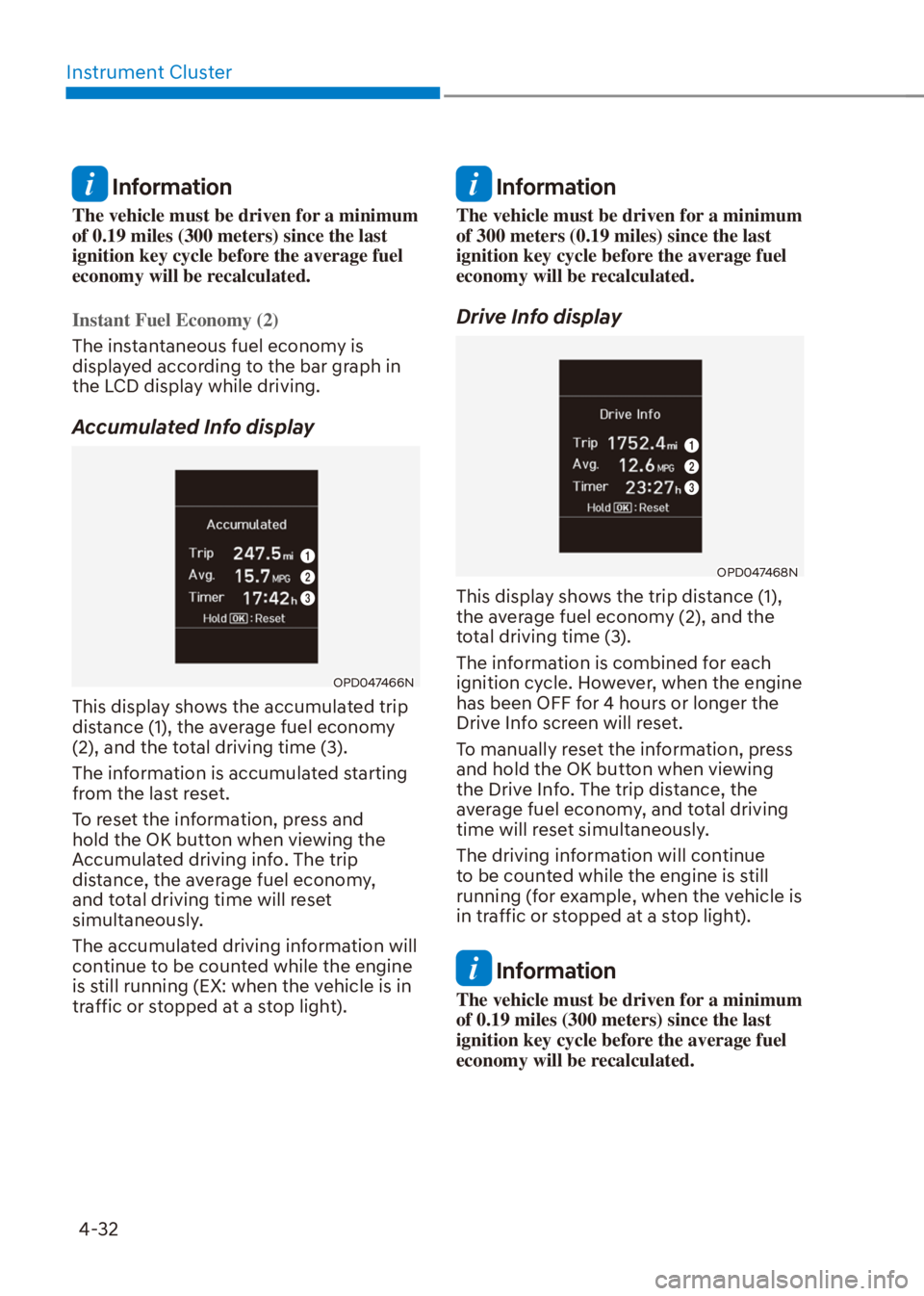

4-32
Information
The vehicle must be driven for a minimum
of 0.19 miles (300 meters) since the last
ignition key cycle before the average fuel
economy will be recalculated.
Instant Fuel Economy (2)
The instantaneous fuel economy is
displayed according to the bar graph in
the LCD display while driving.
Accumulated Info display
OPD047466N
This display shows the accumulated trip
distance (1), the average fuel economy
(2), and the total driving time (3).
The information is accumulated starting
from the last reset.
To reset the information, press and
hold the OK button when viewing the
Accumulated driving info. The trip
distance, the average fuel economy,
and total driving time will reset
simultaneously.
The accumulated driving information will
continue to be counted while the engine
is still running (EX: when the vehicle is in
traffic or stopped at a stop light).
Information
The vehicle must be driven for a minimum
of 300 meters (0.19 miles) since the last
ignition key cycle before the average fuel
economy will be recalculated.
Drive Info display
OPD047468N
This display shows the trip distance (1),
the average fuel economy (2), and the
total driving time (3).
The information is combined for each
ignition cycle. However, when the engine
has been OFF for 4 hours or longer the
Drive Info screen will reset.
To manually reset the information, press
and hold the OK button when viewing
the Drive Info. The trip distance, the
average fuel economy, and total driving
time will reset simultaneously.
The driving information will continue
to be counted while the engine is still
running (for example, when the vehicle is
in traffic or stopped at a stop light).
Information
The vehicle must be driven for a minimum
of 0.19 miles (300 meters) since the last
ignition key cycle before the average fuel
economy will be recalculated.

04

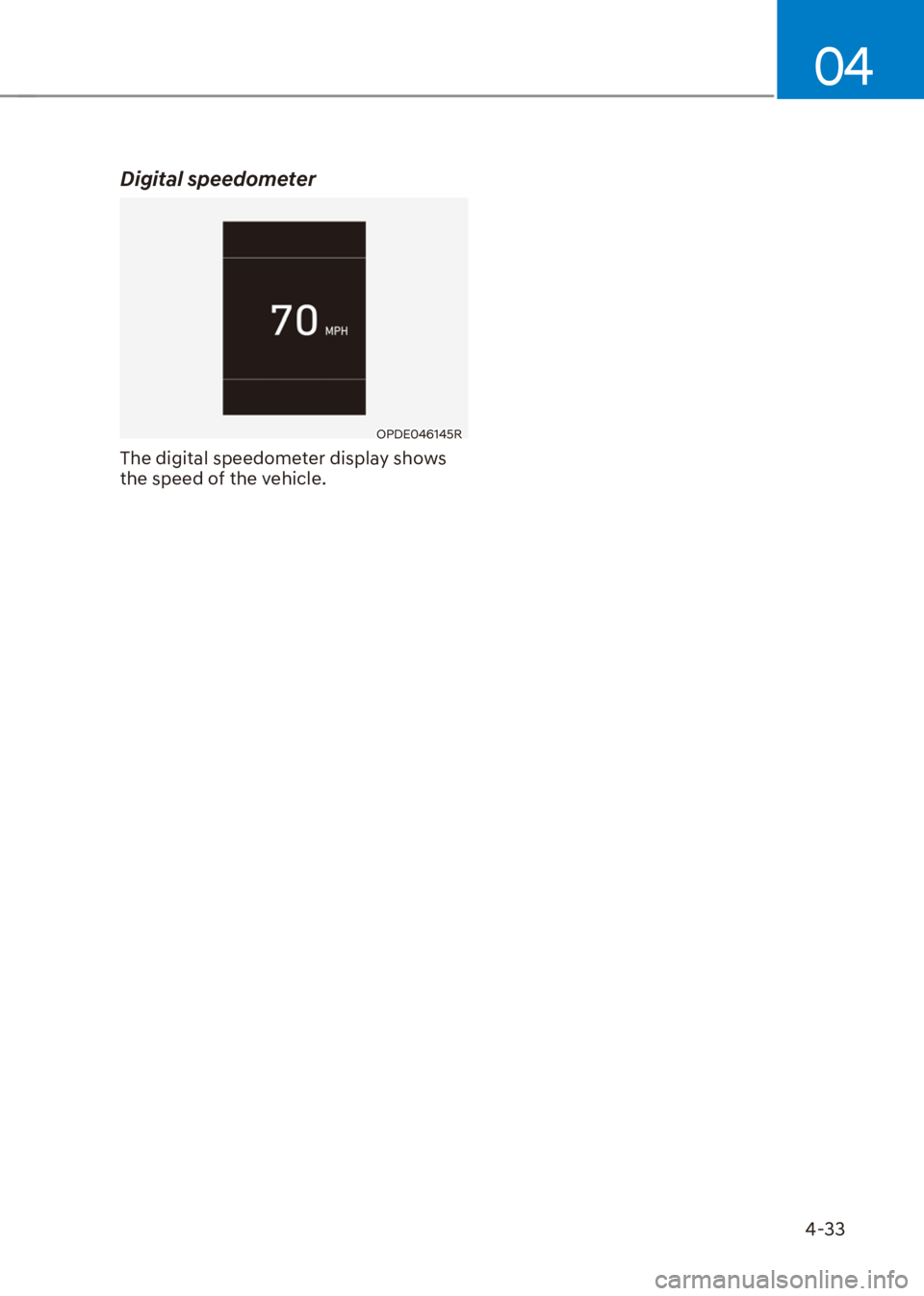

4-33
Digital speedometer
OPDE046145R
The digital speedometer display shows
the speed of the vehicle.

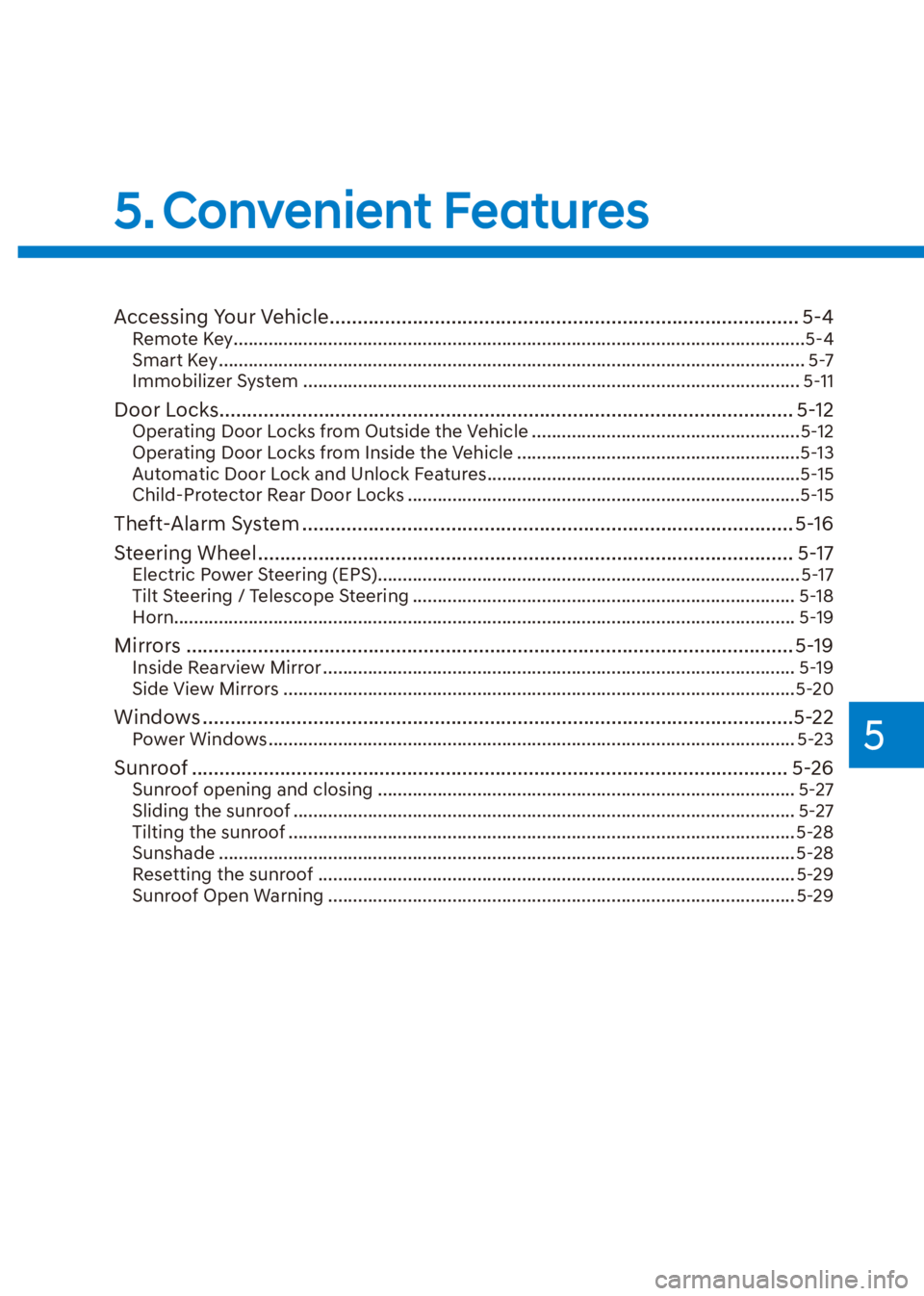

5
5. Convenient Features
Accessing Your Vehicle ..................................................................................... 5-4Remote Key ...................................................................................................................5-4
Smart Key ......................................................................................................................5-7
Immobilizer System .................................................................................................... 5-11
Door Locks ........................................................................................................ 5-12Operating Door Locks from Outside the Vehicle ......................................................5-12
Operating Door Locks from Inside the Vehicle .........................................................5-13
Automatic Door Lock and Unlock Features ...............................................................5-15
Child-Protector Rear Door Locks ...............................................................................5-15
Theft-Alarm System ......................................................................................... 5-16
Steering Wheel ................................................................................................. 5-17
Electric Power Steering (EPS) ..................................................................................... 5-17
Tilt Steering / Telescope Steering ............................................................................. 5-18
Horn............................................................................................................................. 5-19
Mirrors .............................................................................................................. 5-19Inside Rearview Mirror ............................................................................................... 5-19
Side View Mirrors .......................................................................................................5-20
Windows ...........................................................................................................5-22Power Windows .......................................................................................................... 5-23
Sunroof ............................................................................................................ 5-26Sunroof opening and closing .................................................................................... 5-27
Sliding the sunroof ..................................................................................................... 5-27
Tilting the sunroof ...................................................................................................... 5-28
Sunshade .................................................................................................................... 5-28
Resetting the sunroof ................................................................................................ 5-29
Sunroof Open Warning .............................................................................................. 5-29
