2021 HYUNDAI VENUE Owners Manual

04
4-19

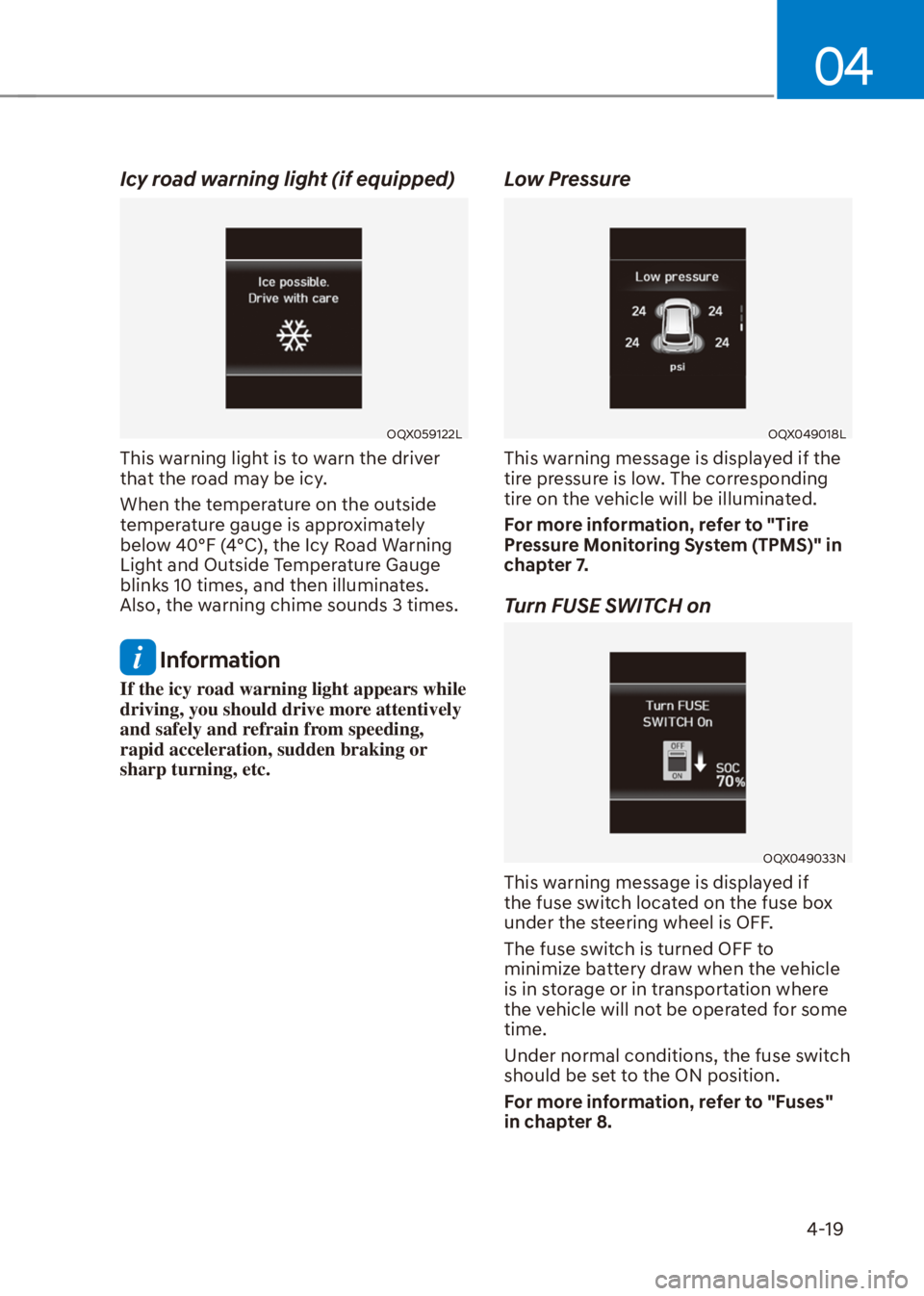

Icy road warning light (if equipped)
OQX059122L
This warning light is to warn the driver
that the road may be icy.
When the temperature on the outside
temperature gauge is approximately
below 40°F (4°C), the Icy Road Warning
Light and Outside Temperature Gauge
blinks 10 times, and then illuminates.
Also, the warning chime sounds 3 times.
Information
If the icy road warning light appears while
driving, you should drive more attentively
and safely and refrain from speeding,
rapid acceleration, sudden braking or
sharp turning, etc.
Low Pressure
OQX049018L
This warning message is displayed if the
tire pressure is low. The corresponding
tire on the vehicle will be illuminated.
For more information, refer to "Tire
Pressure Monitoring System (TPMS)" in
chapter 7.
Turn FUSE SWITCH on
OQX049033N
This warning message is displayed if
the fuse switch located on the fuse box
under the steering wheel is OFF.
The fuse switch is turned OFF to
minimize battery draw when the vehicle
is in storage or in transportation where
the vehicle will not be operated for some
time.
Under normal conditions, the fuse switch
should be set to the ON position.
For more information, refer to "Fuses"
in chapter 8.

Instrument Cluster
4-20

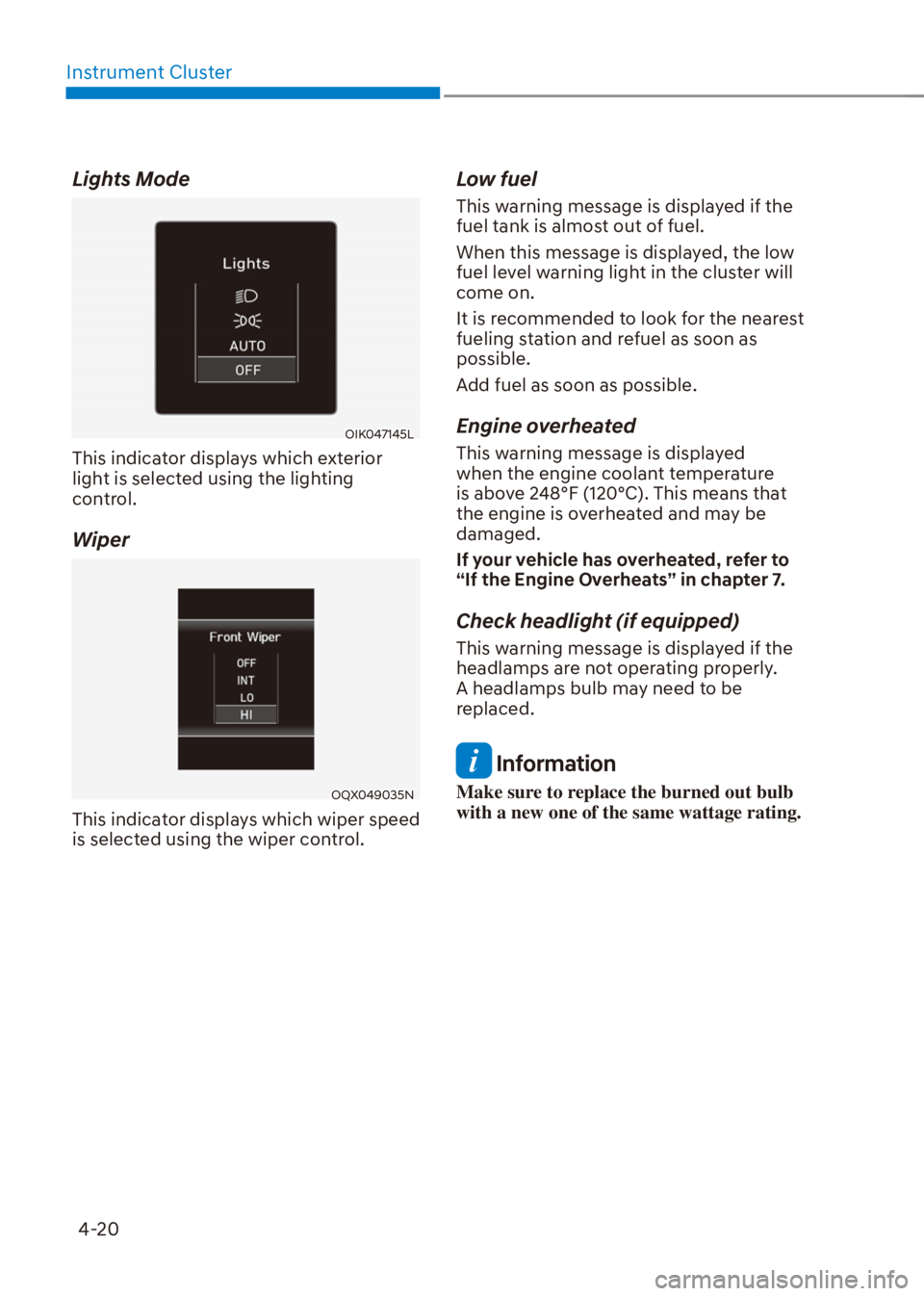

Lights Mode
OIK047145L
This indicator displays which exterior
light is selected using the lighting
control.
Wiper
OQX049035N
This indicator displays which wiper speed
is selected using the wiper control.
Low fuel
This warning message is displayed if the
fuel tank is almost out of fuel.
When this message is displayed, the low
fuel level warning light in the cluster will
come on.
It is recommended to look for the nearest
fueling station and refuel as soon as
possible.
Add fuel as soon as possible.
Engine overheated
This warning message is displayed
when the engine coolant temperature
is above 248°F (120°C). This means that
the engine is overheated and may be
damaged.
If your vehicle has overheated, refer to
“If the Engine Overheats” in chapter 7.
Check headlight (if equipped)
This warning message is displayed if the
headlamps are not operating properly.
A headlamps bulb may need to be
replaced.
Information
Make sure to replace the burned out bulb
with a new one of the same wattage rating.

04
4-21

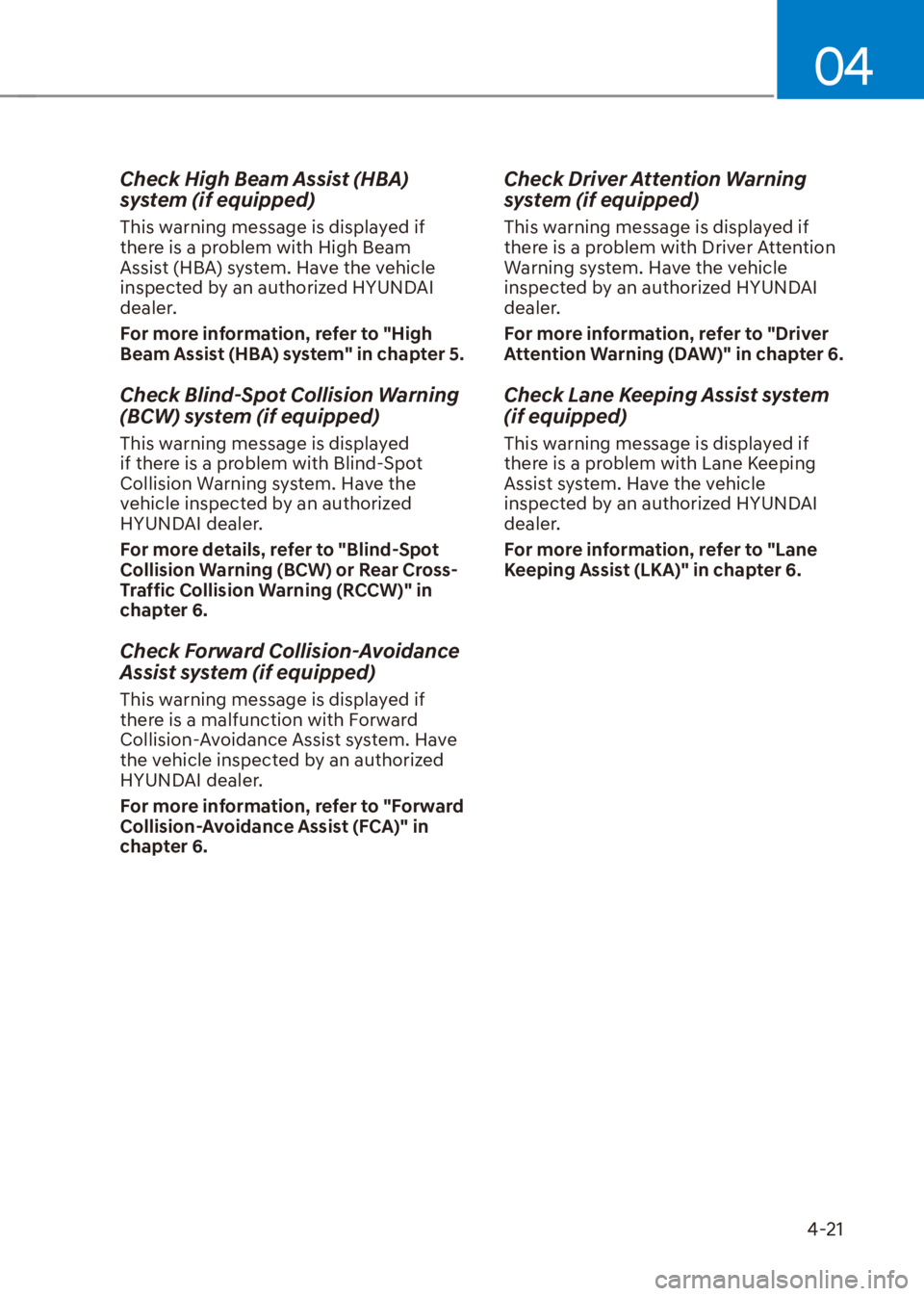

Check High Beam Assist (HBA)
system (if equipped)
This warning message is displayed if
there is a problem with High Beam
Assist (HBA) system. Have the vehicle
inspected by an authorized HYUNDAI
dealer.
For more information, refer to "High
Beam Assist (HBA) system" in chapter 5.
Check Blind-Spot Collision Warning
(BCW) system (if equipped)
This warning message is displayed
if there is a problem with Blind-Spot
Collision Warning system. Have the
vehicle inspected by an authorized
HYUNDAI dealer.
For more details, refer to "Blind-Spot
Collision Warning (BCW) or Rear Cross-
Traffic Collision Warning (RCCW)" in
chapter 6.
Check Forward Collision-Avoidance
Assist system (if equipped)
This warning message is displayed if
there is a malfunction with Forward
Collision-Avoidance Assist system. Have
the vehicle inspected by an authorized
HYUNDAI dealer.
For more information, refer to "Forward
Collision-Avoidance Assist (FCA)" in
chapter 6.
Check Driver Attention Warning
system (if equipped)
This warning message is displayed if
there is a problem with Driver Attention
Warning system. Have the vehicle
inspected by an authorized HYUNDAI
dealer.
For more information, refer to "Driver
Attention Warning (DAW)" in chapter 6.
Check Lane Keeping Assist system
(if equipped)
This warning message is displayed if
there is a problem with Lane Keeping
Assist system. Have the vehicle
inspected by an authorized HYUNDAI
dealer.
For more information, refer to "Lane
Keeping Assist (LKA)" in chapter 6.

4-22
Instrument Cluster

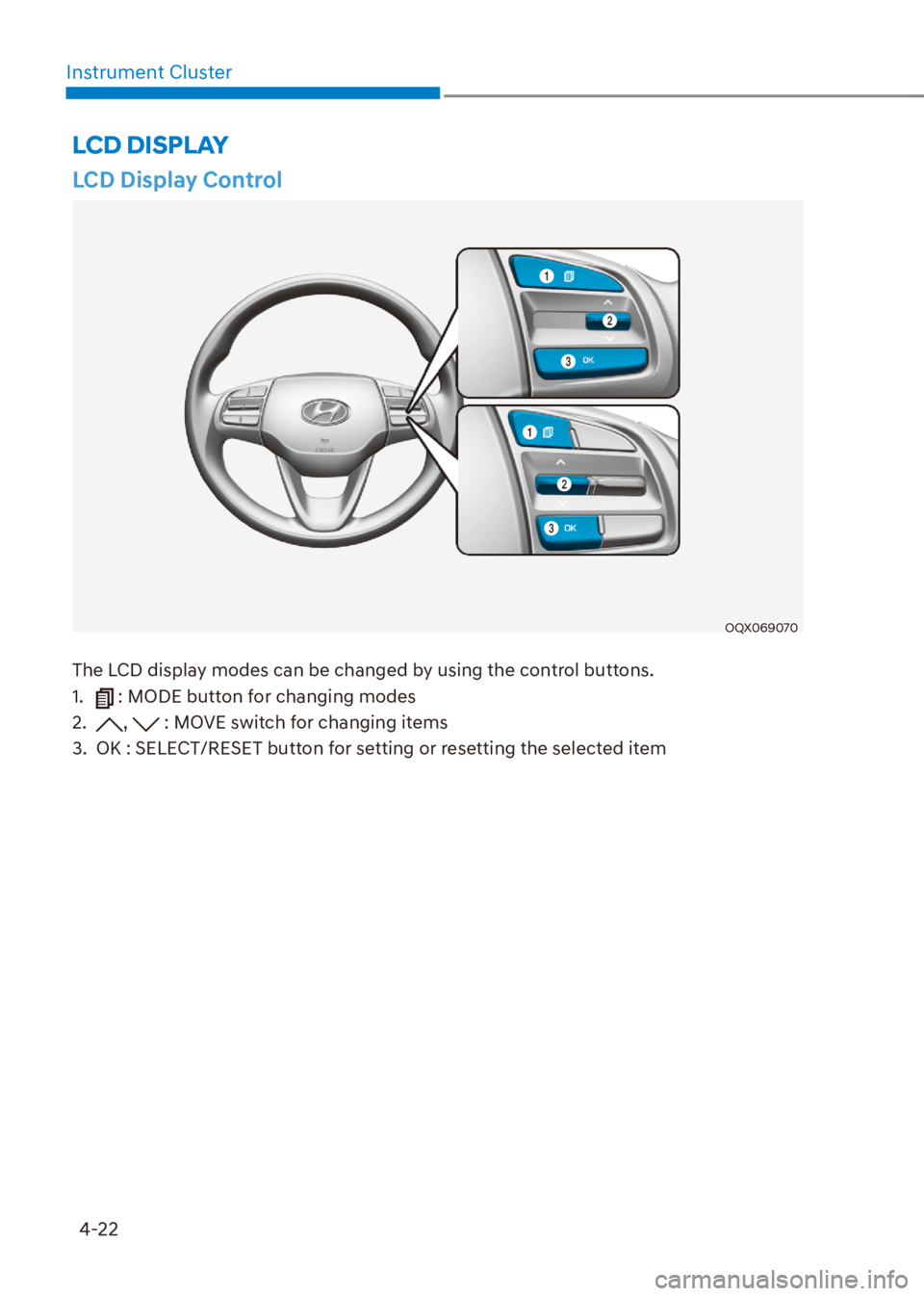

LCD Display Control
OQX069070
The LCD display modes can be changed by using the control buttons.
1.
: MODE button for changing modes
2.
, : MOVE switch for changing items
3. OK : SELECT/RESET button for setting or resetting the selected item
LCD DISPLAY

04
4-23

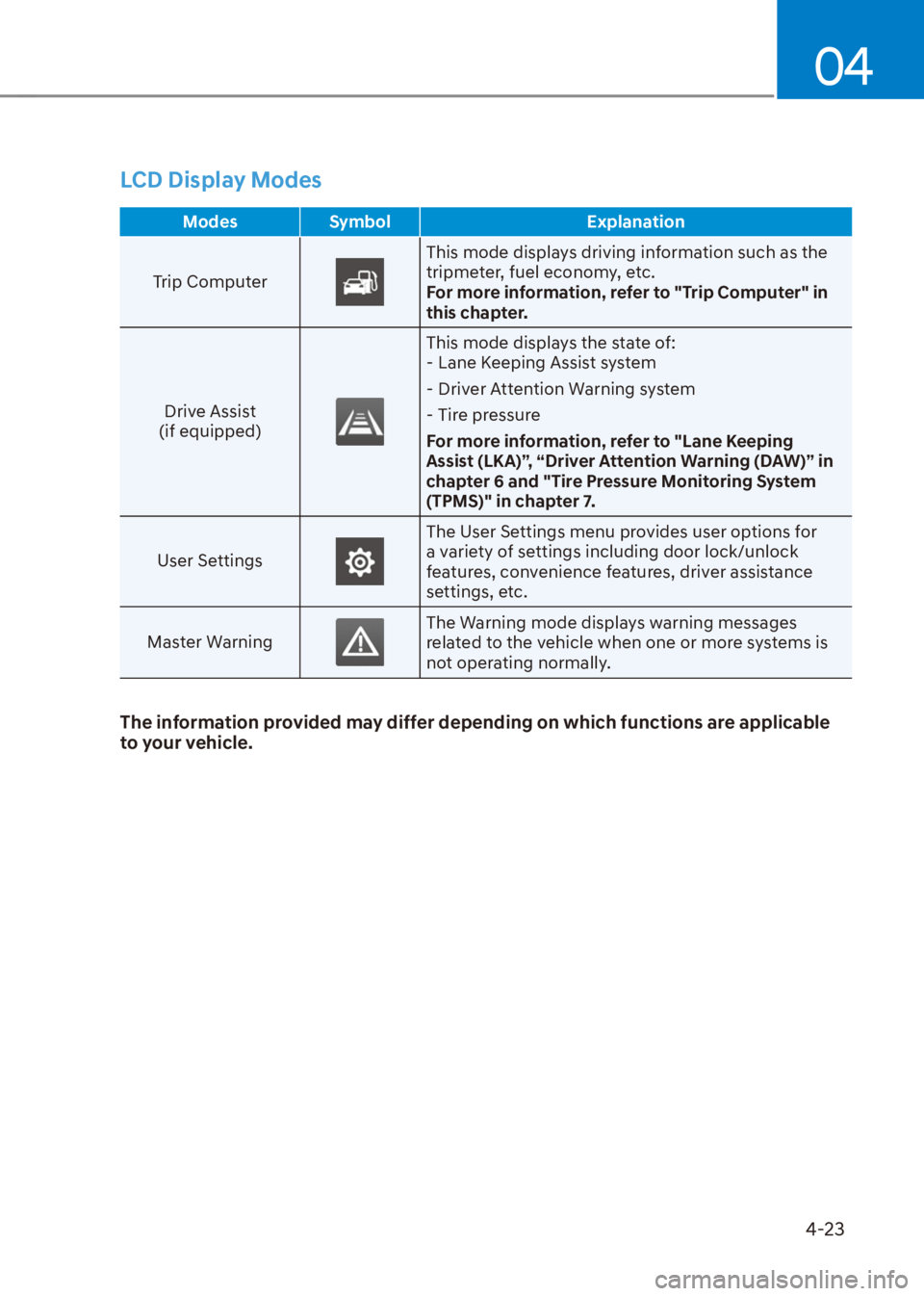

LCD Display Modes
Modes Symbol Explanation
Trip Computer
This mode displays driving information such as the
tripmeter, fuel economy, etc.
For more information, refer to "Trip Computer" in
this chapter.
Drive Assist
(if equipped)
This mode displays the state of:
- Lane Keeping Assist system
- Driver Attention Warning system
- Tire pressure
For more information, refer to "Lane Keeping
Assist (LKA)”, “Driver Attention Warning (DAW)” in
chapter 6 and "Tire Pressure Monitoring System
(TPMS)" in chapter 7.
User Settings
The User Settings menu provides user options for
a variety of settings including door lock/unlock
features, convenience features, driver assistance
settings, etc.
Master Warning
The Warning mode displays warning messages
related to the vehicle when one or more systems is
not operating normally.
The information provided may differ depending on which functions are applicable
to your vehicle.

Instrument Cluster
4-24

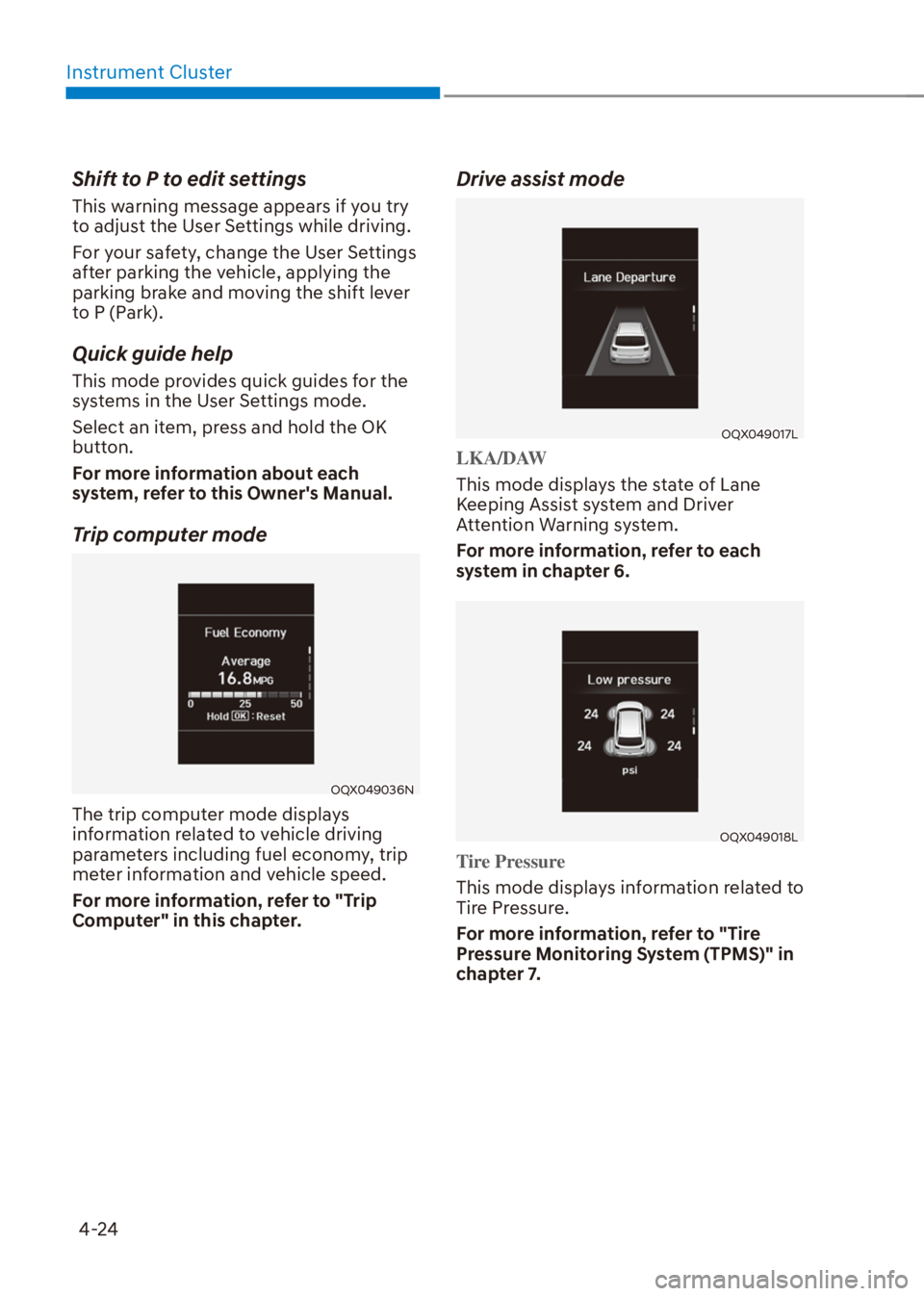

Shift to P to edit settings
This warning message appears if you try
to adjust the User Settings while driving.
For your safety, change the User Settings
after parking the vehicle, applying the
parking brake and moving the shift lever
to P (Park).
Quick guide help
This mode provides quick guides for the
systems in the User Settings mode.
Select an item, press and hold the OK
button.
For more information about each
system, refer to this Owner's Manual.
Trip computer mode
OQX049036N
The trip computer mode displays
information related to vehicle driving
parameters including fuel economy, trip
meter information and vehicle speed.
For more information, refer to "Trip
Computer" in this chapter.
Drive assist mode
OQX049017L
LKA/DAW
This mode displays the state of Lane
Keeping Assist system and Driver
Attention Warning system.
For more information, refer to each
system in chapter 6.
OQX049018L
Tire Pressure
This mode displays information related to
Tire Pressure.
For more information, refer to "Tire
Pressure Monitoring System (TPMS)" in
chapter 7.

04
4-25

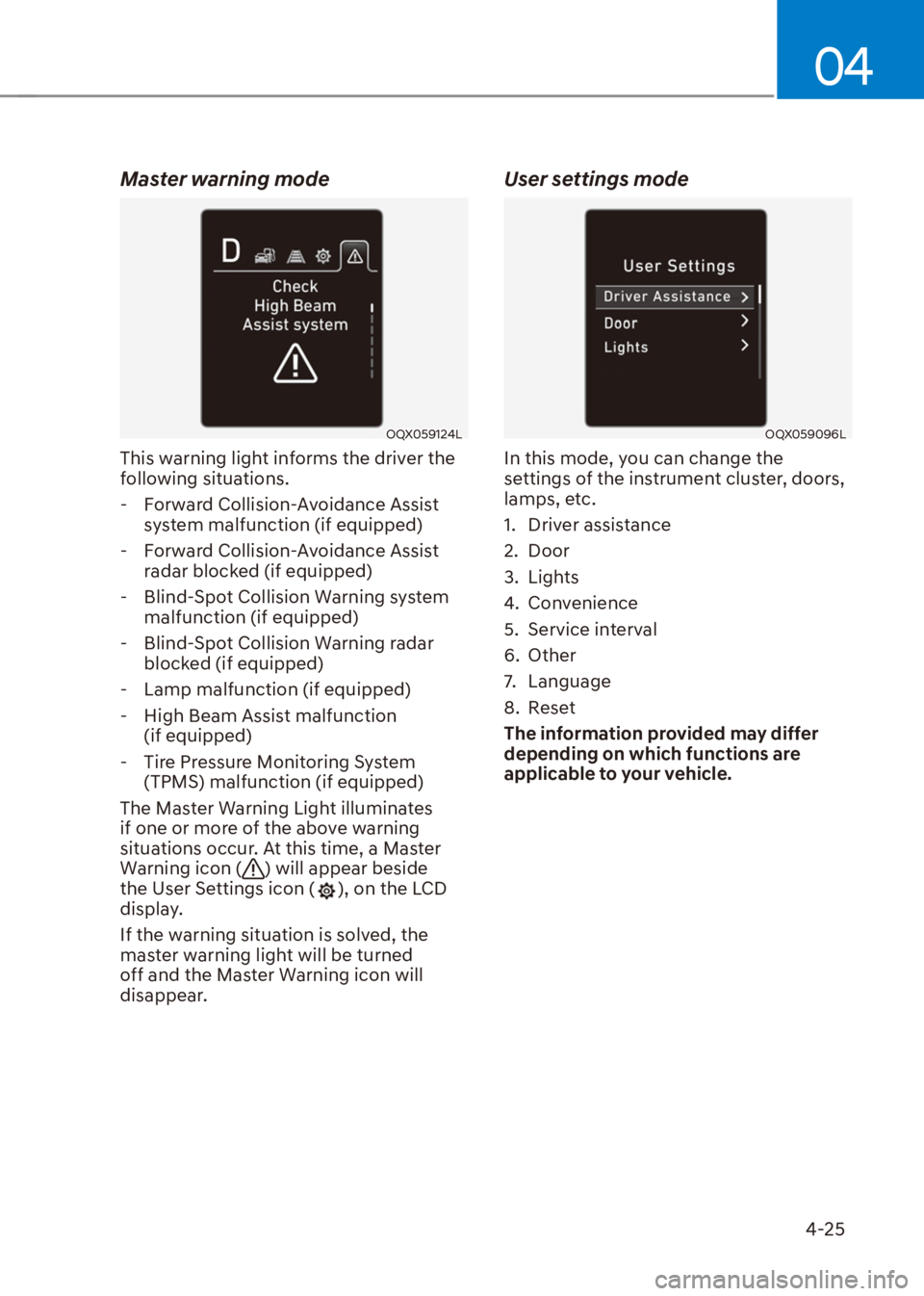

Master warning mode
OQX059124L
This warning light informs the driver the
following situations.
- Forward Collision-Avoidance Assist
system malfunction (if equipped)
- Forward Collision-Avoidance Assist
radar blocked (if equipped)
- Blind-Spot Collision Warning system
malfunction (if equipped)
- Blind-Spot Collision Warning radar
blocked (if equipped)
- Lamp malfunction (if equipped)
- High Beam Assist malfunction
(if equipped)
- Tire Pressure Monitoring System
(TPMS) malfunction (if equipped)
The Master Warning Light illuminates
if one or more of the above warning
situations occur. At this time, a Master
Warning icon (
) will appear beside
the User Settings icon (), on the LCD
display.
If the warning situation is solved, the
master warning light will be turned
off and the Master Warning icon will
disappear.
User settings mode
OQX059096L
In this mode, you can change the
settings of the instrument cluster, doors,
lamps, etc.
1. Driver assistance
2. Door
3. Lights
4. Convenience
5. Service interval
6. Other
7. Language
8. Reset
The information provided may differ
depending on which functions are
applicable to your vehicle.

Instrument Cluster
4-26

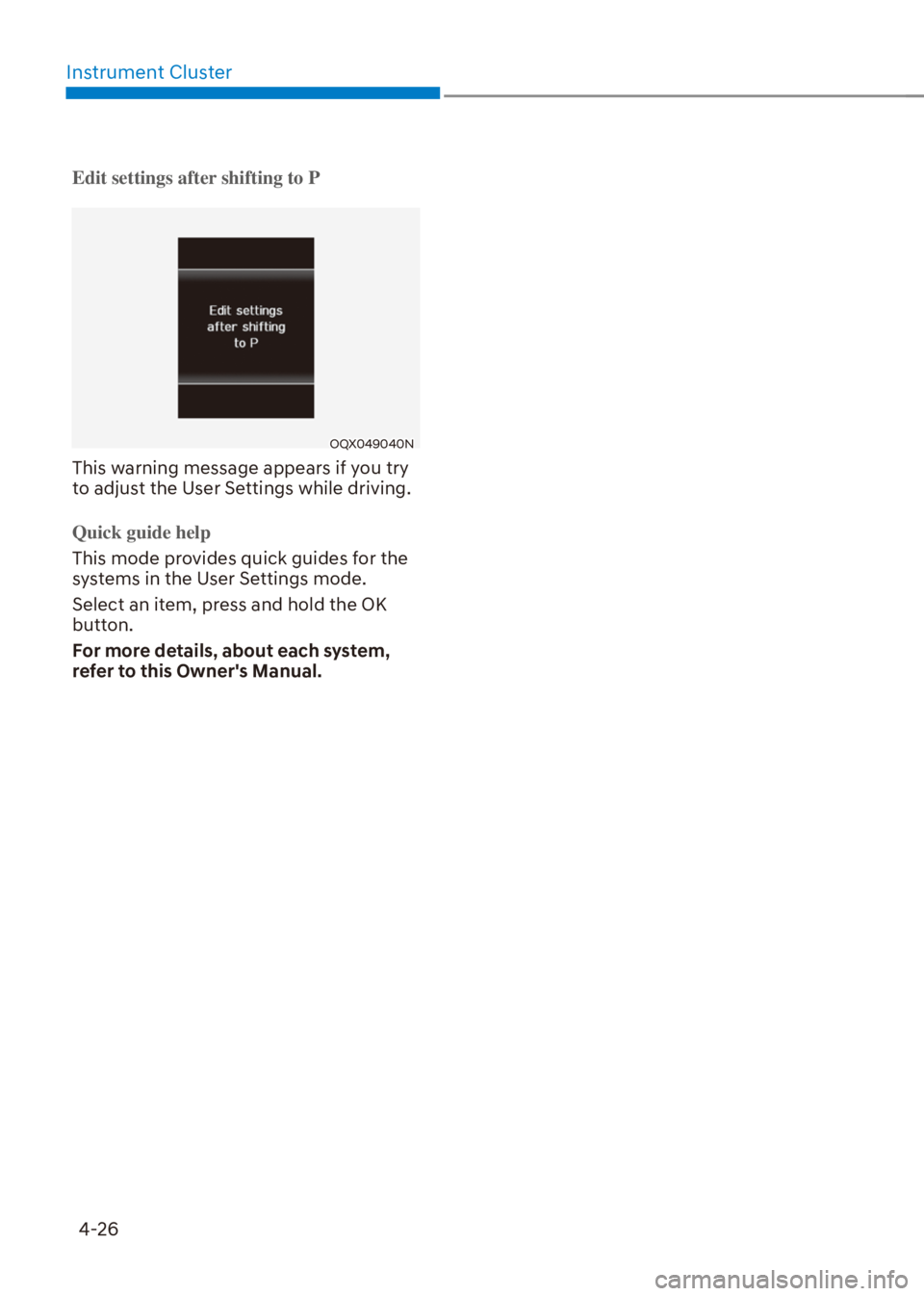

Edit settings after shifting to P
OQX049040N
This warning message appears if you try
to adjust the User Settings while driving.
Quick guide help
This mode provides quick guides for the
systems in the User Settings mode.
Select an item, press and hold the OK
button.
For more details, about each system,
refer to this Owner's Manual.
