2021 HYUNDAI VENUE Owners Manual

Page 209 of 392

HYUNDAI VENUE 2021  Owners Manual 06
6-21

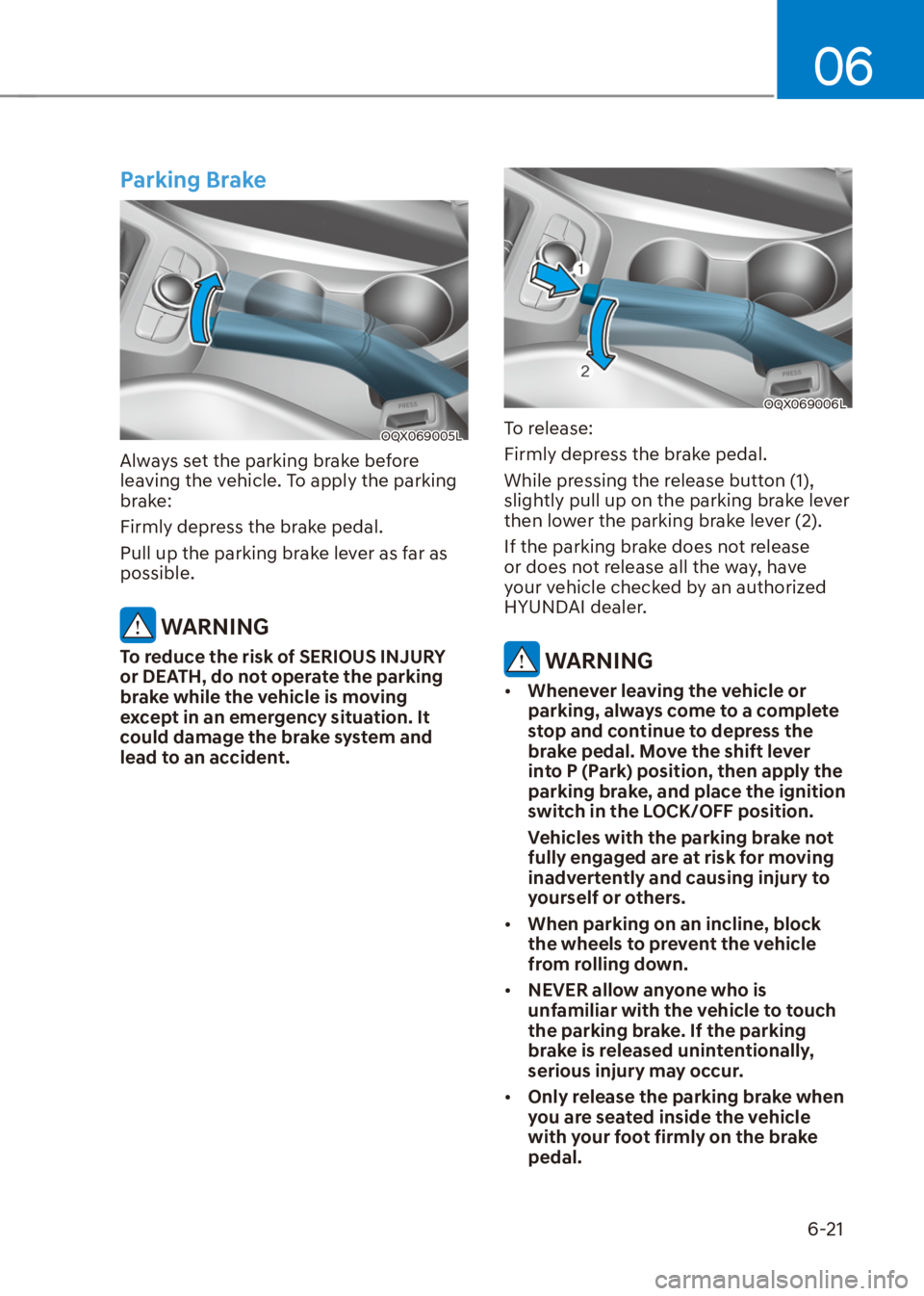

Parking Brake
OQX069005L
Always set the parking brake before
leaving the vehicle. To apply the parking
brake:
Firmly depress the brake pedal.
Pull up the parking brake lever as far as
possi

Page 210 of 392

HYUNDAI VENUE 2021  Owners Manual While Driving
6-22

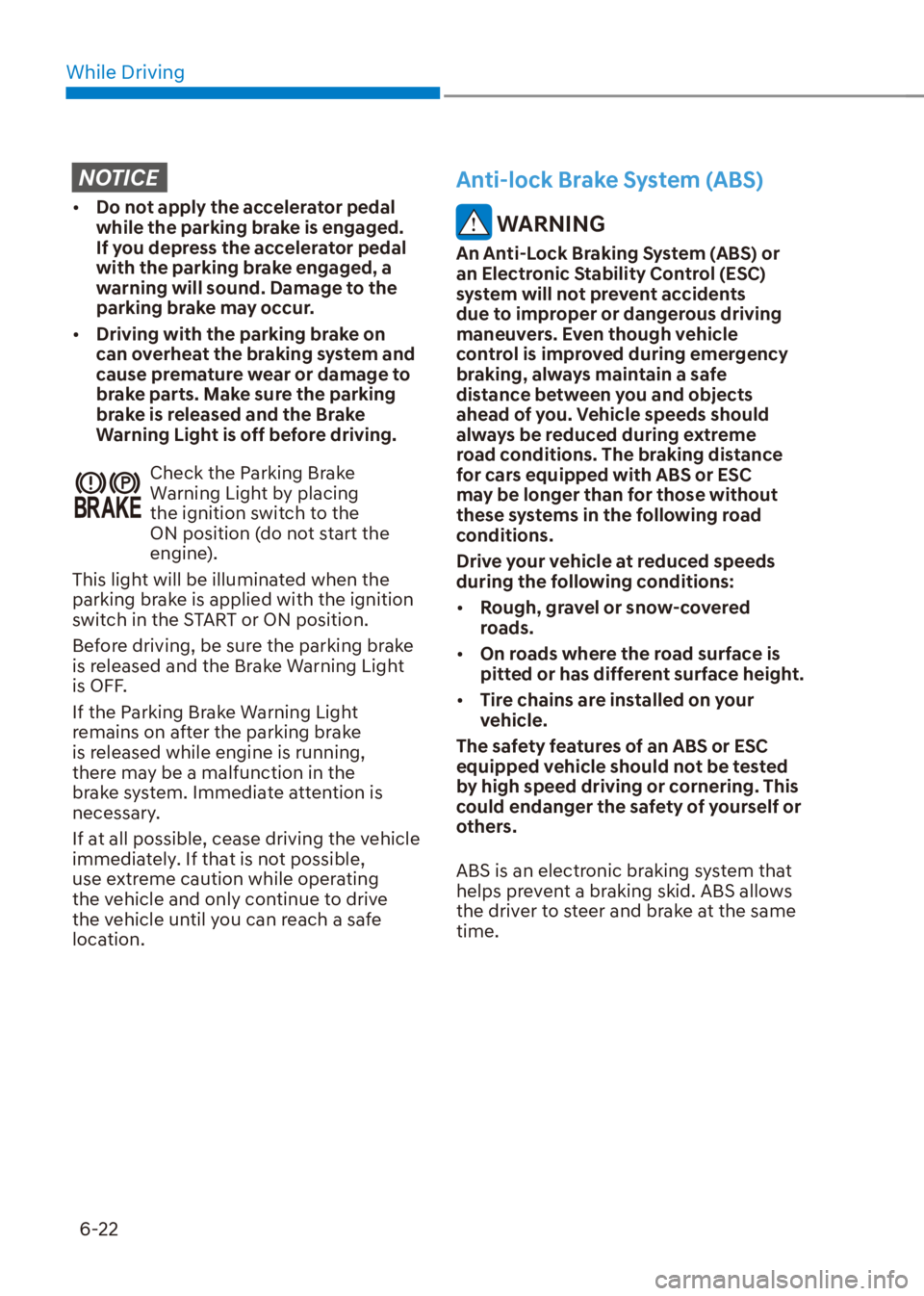

NOTICE
[�Do not apply the accelerator pedal
while the parking brake is engaged.
If you depress the accelerator pedal
with the parking brake engaged, a
warning will sound. Dama

Page 211 of 392

HYUNDAI VENUE 2021  Owners Manual 06
6-23

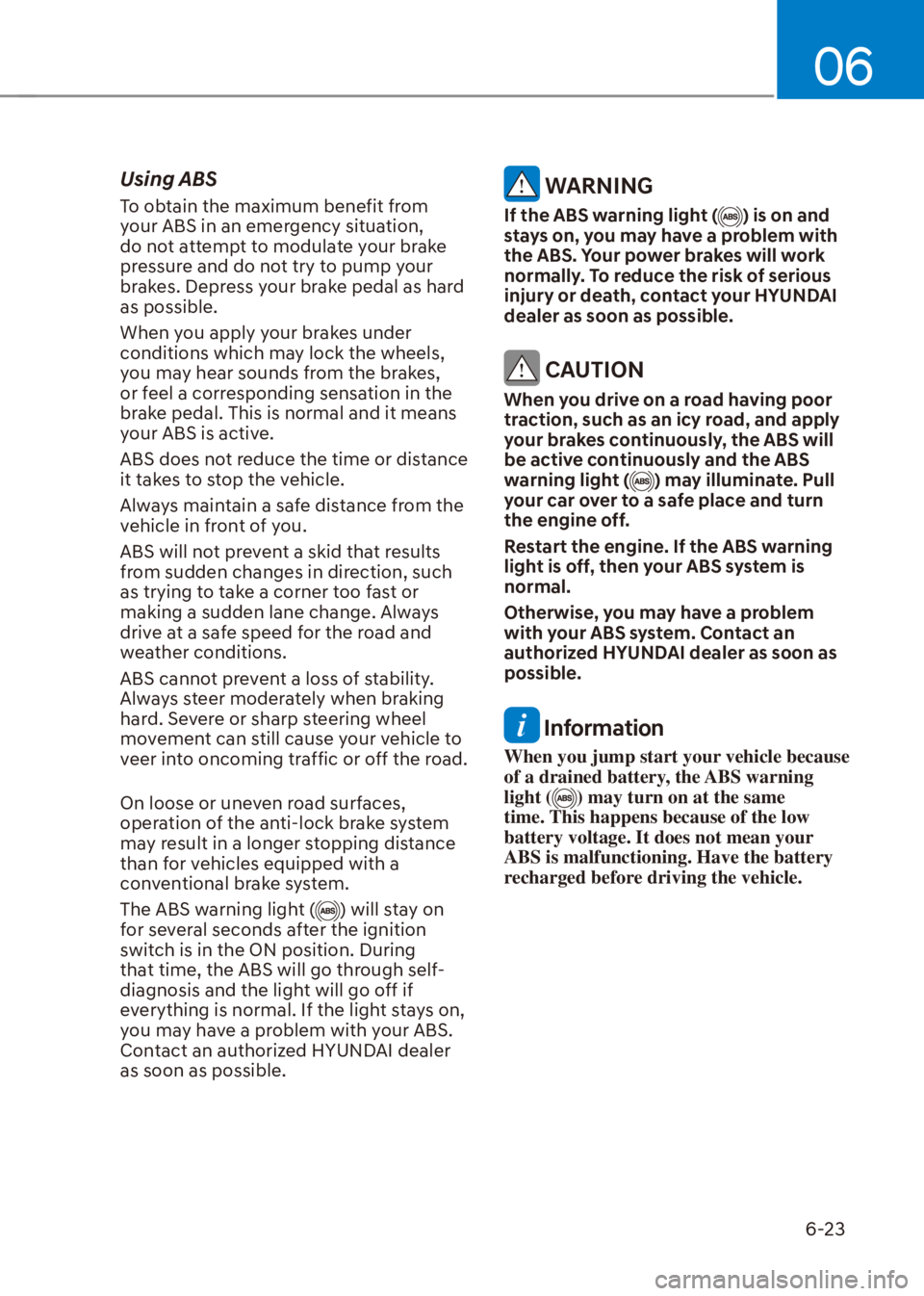

Using ABS
To obtain the maximum benefit from
your ABS in an emergency situation,
do not attempt to modulate your brake
pressure and do not try to pump your
brakes. Depress your brake pedal

Page 212 of 392

HYUNDAI VENUE 2021  Owners Manual While Driving
6-24

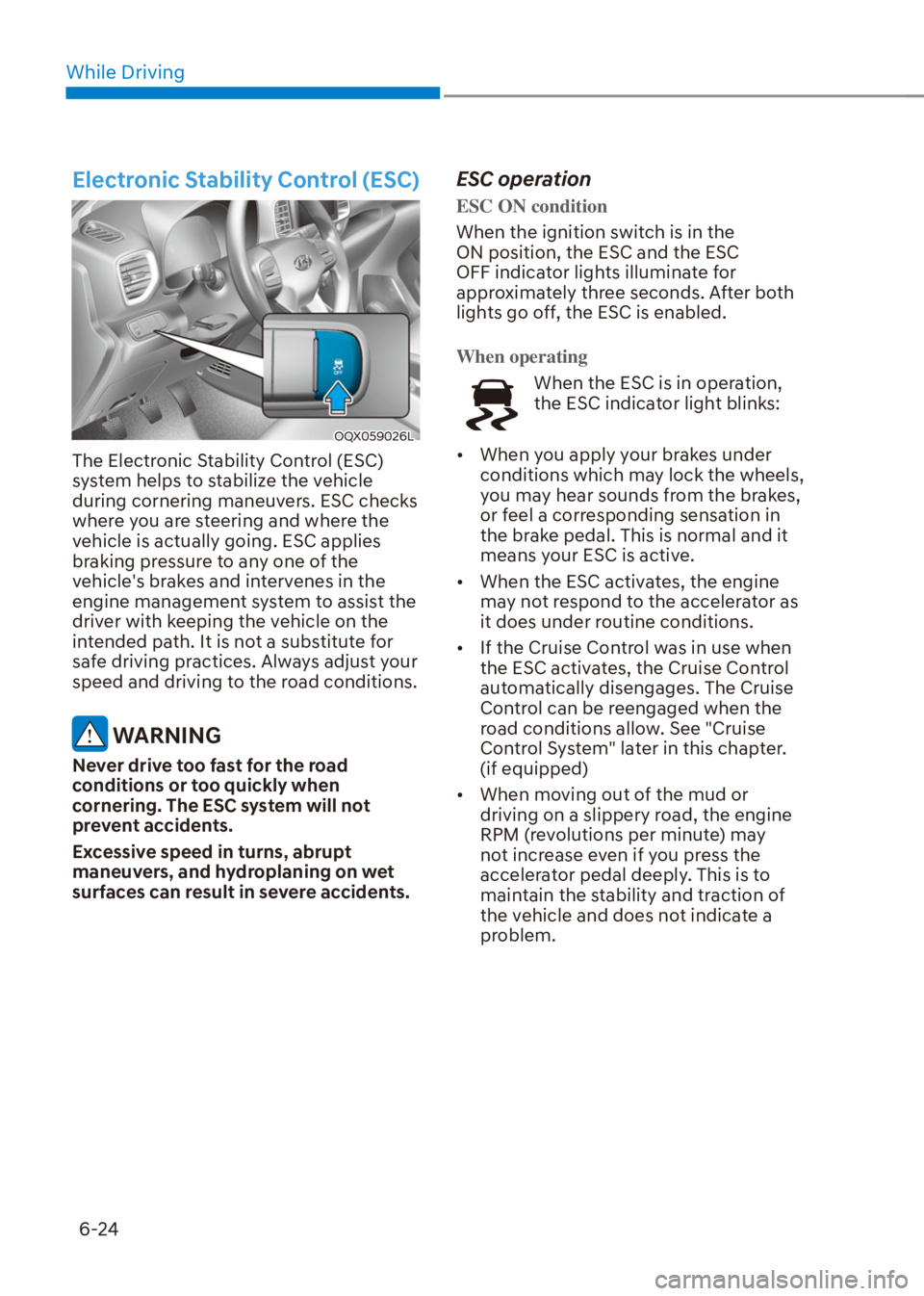

Electronic Stability Control (ESC)
OQX059026L
The Electronic Stability Control (ESC)
system helps to stabilize the vehicle
during cornering maneuvers. ESC checks
where you are st

Page 213 of 392

HYUNDAI VENUE 2021  Owners Manual 06
6-25

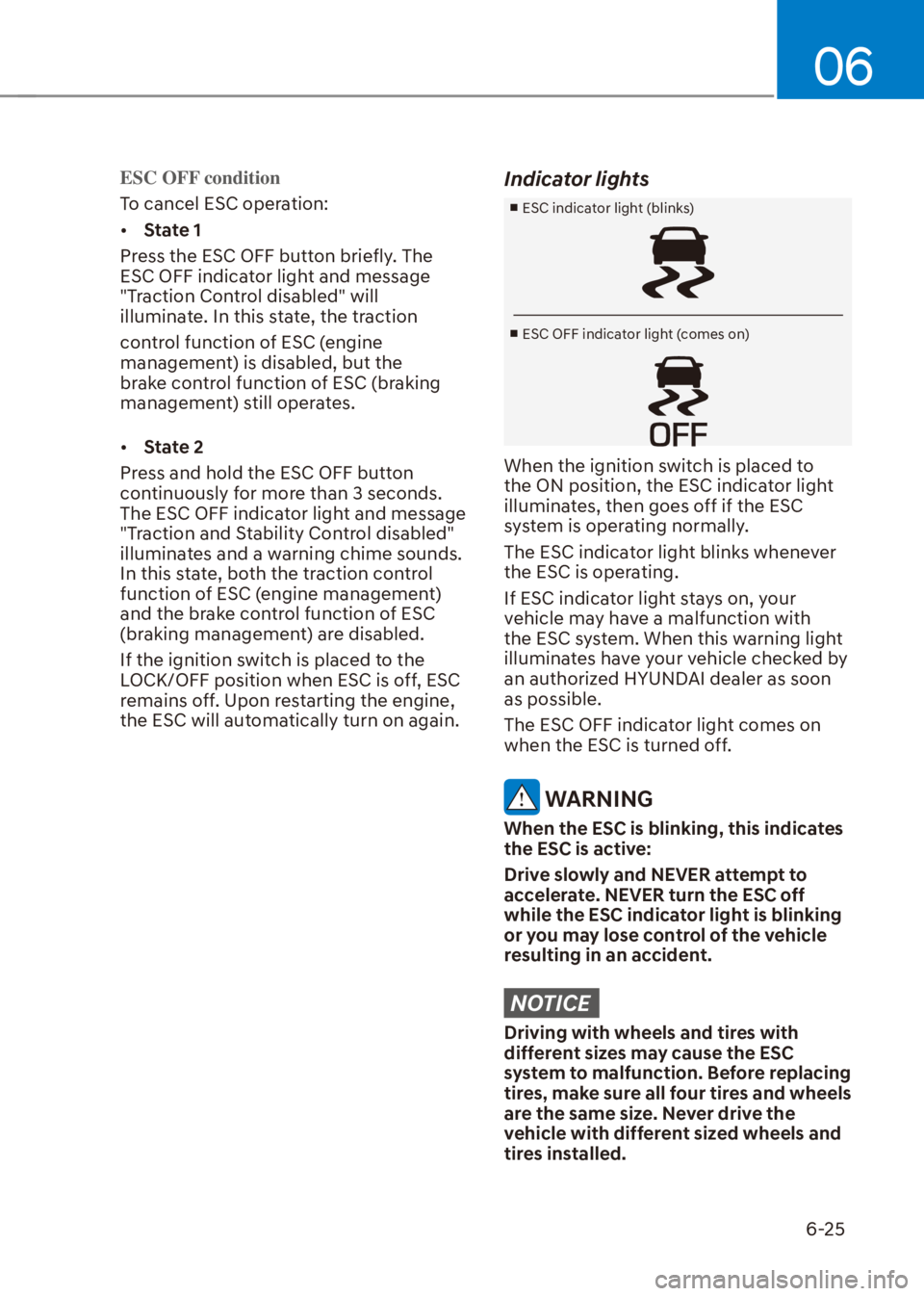

ESC OFF condition
To cancel ESC operation:
[�State 1
Press the ESC OFF button briefly. The
ESC OFF indicator light and message
"Traction Control disabled" will
illuminate. In this state,

Page 214 of 392

HYUNDAI VENUE 2021  Owners Manual While Driving
6-26

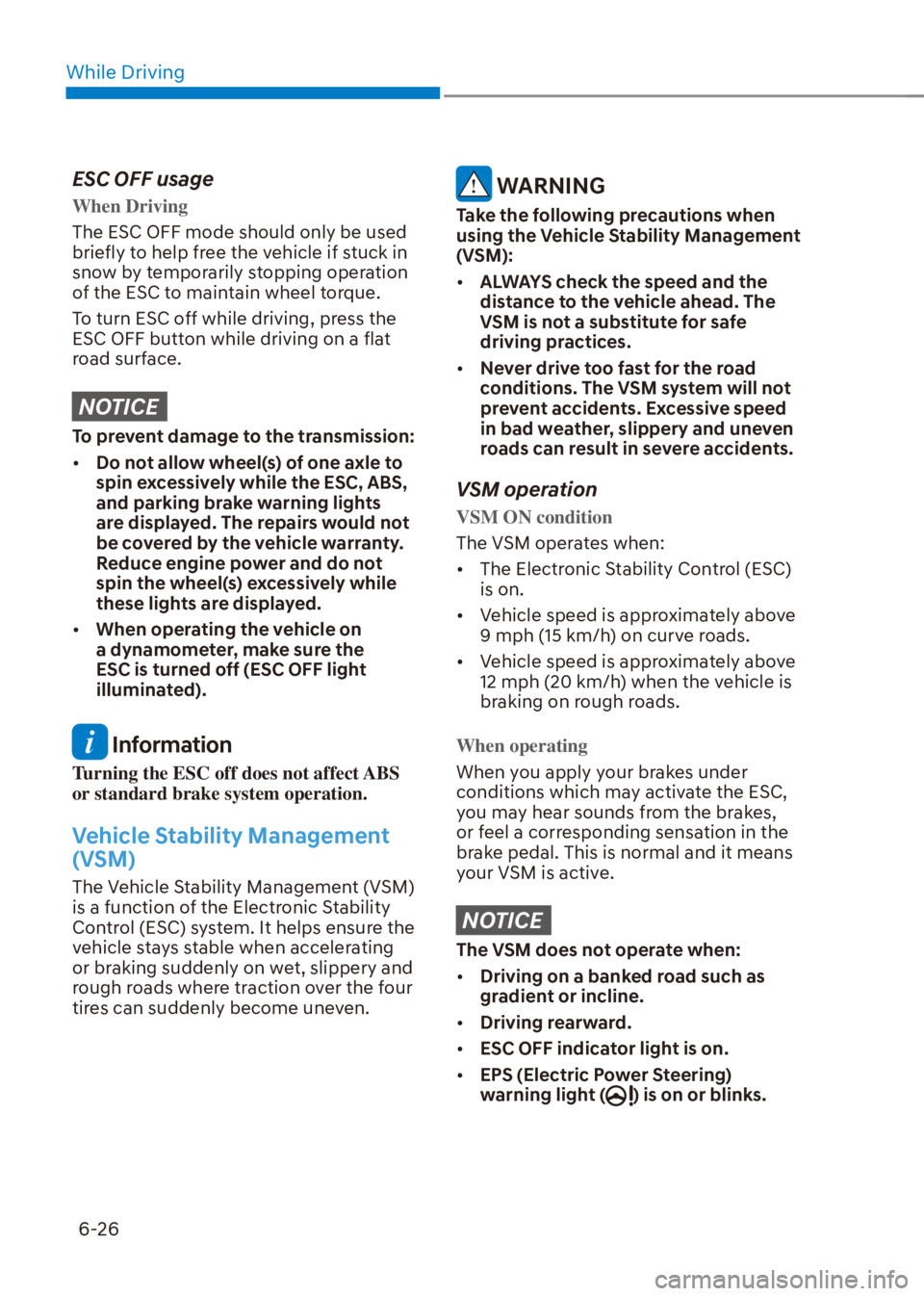

ESC OFF usage
When Driving
The ESC OFF mode should only be used
briefly to help free the vehicle if stuck in
snow by temporarily stopping operation
of the ESC to maintain wheel t

Page 215 of 392

HYUNDAI VENUE 2021  Owners Manual 06
6-27

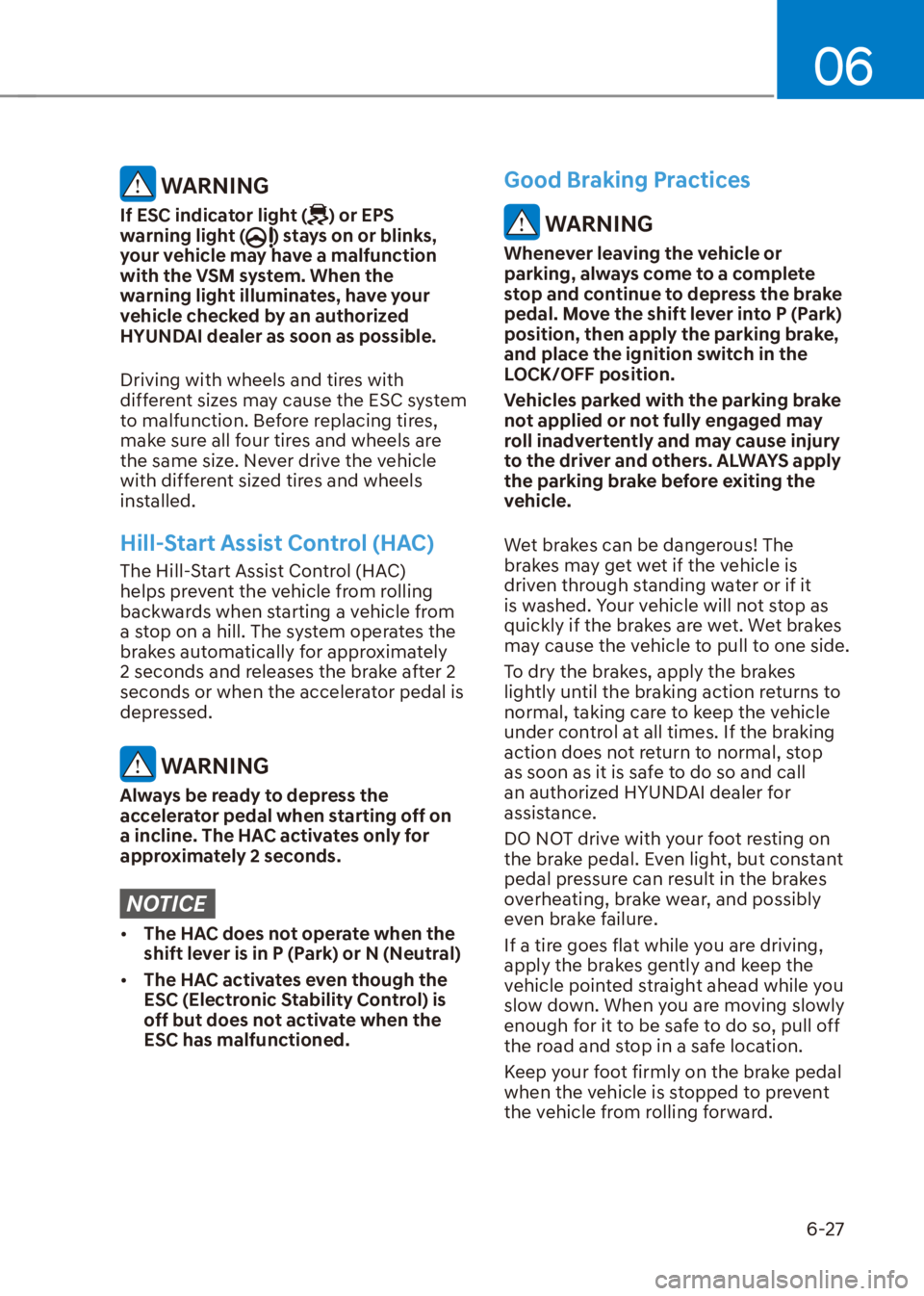

 WARNING
If ESC indicator light () or EPS
warning light () stays on or blinks,
your vehicle may have a malfunction
with the VSM system. When the
warning light illuminates, have your
vehic

Page 216 of 392

HYUNDAI VENUE 2021  Owners Manual While Driving
6-28

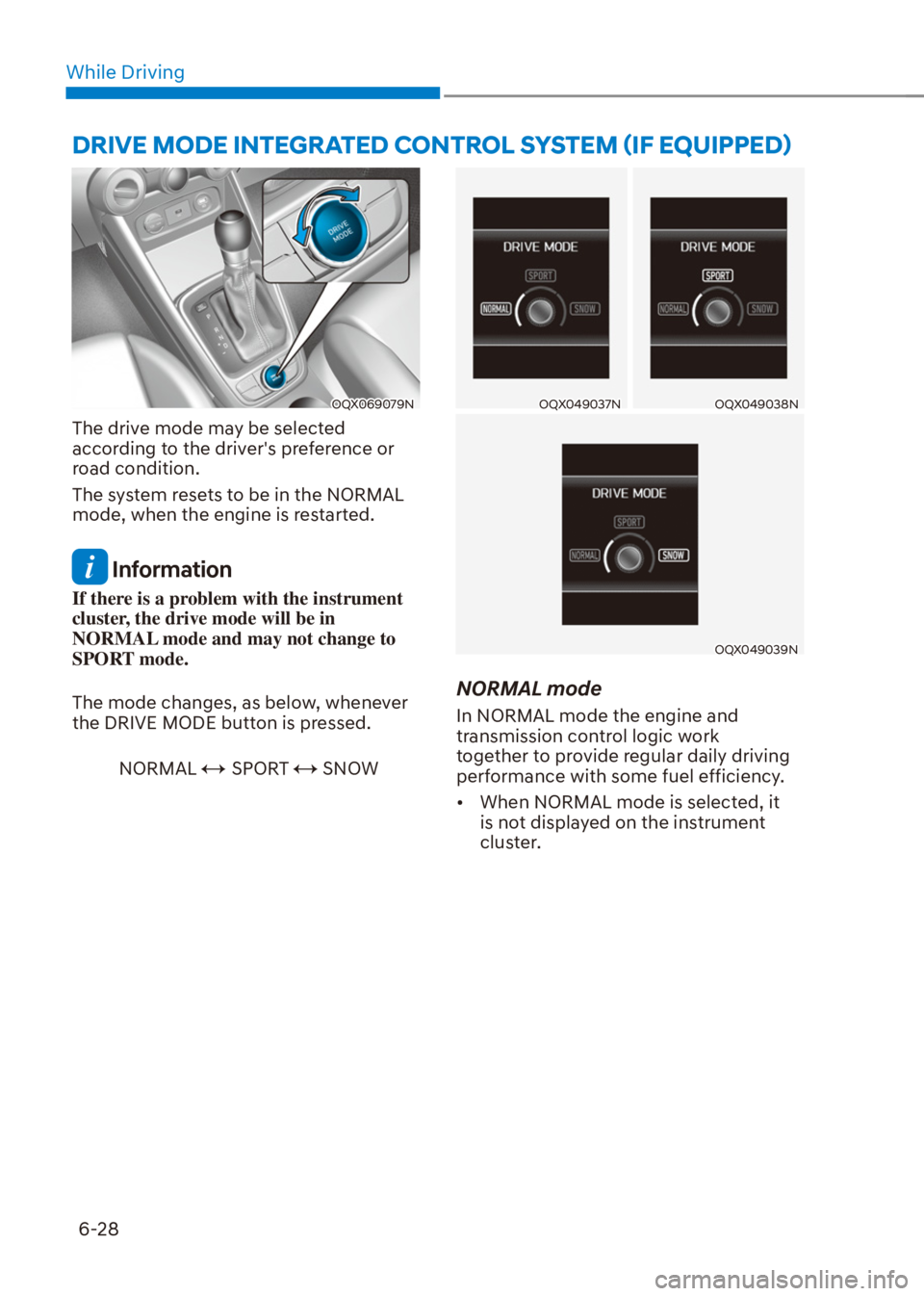

OQX069079N
The drive mode may be selected
according to the drivers preference or
road condition.
The system resets to be in the NORMAL
mode, when the engine is restarted.
 Info
