2019 YAMAHA TMAX Owners Manual

Smart key system
3-2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
NOTICE
ECA15764
The smart key system uses weak ra-
dio waves. The smart key system
may not work in the following situa-
tions.
The smart key is placed in a lo-
cation exposed to strong radio
waves or other electromagnetic
noise
There are facilities nearby that
are emitting strong radio waves
(TV or radio towers, power
plants, broadcasting stations,
airports, etc.)
You are carrying or using com-
munication equipment such as
radios or mobile phones in
close proximity of the smart key
The smart key is in contact with
or covered by a metallic object
Other vehicles equipped with a
smart key system are nearby
In such situations, move the smart
key to another location and perform
the operation again. If it still does
not work, use the mechanical key to
carry out the operation in emergen-
cy mode. (See page 8-37.)
EAU77213
Operating range of the smart
key system
The operating range of the smart key
system is about 80 cm (31.5 in) from
the center of the handlebars.
TIP
As the smart key system uses
weak radio waves, the operating
range may be affected by the sur-
rounding environment.
When the battery of the smart key
is discharged, the smart key may
not work or its operating range be-
come very small.
If the smart key is turned off, the
vehicle will not recognize the smart
key even if it is within operating
range.
If the “ON/ ” switch, “OFF/LOCK”
switch, or “ / ” switch are re-
peatedly pressed when the smart
key is out of range or cannot com-
1. “ / ” switch
2. “OFF/LOCK” switch
12
BV1-9-E2.book 2 ページ ２０１８年８月２８日　火曜日　午後５時２８分

Smart key system
3-3
1
2
3
4
5
6
7
8
9
10
11
12
13
14 municate with the vehicle, all
switches will be temporarily dis-
abled.
Placing the smart key in the front
or rear storage compartment may
block communication between the
smart key and the vehicle. If the
rear trunk or front storage com-
partment is locked with the smart
key inside, the smart key system
may be disabled. The smart key
should always carried on your per-
son.
WARNING
EWA17952
The smart key should be carried
with you. Do not store it on the
vehicle.
When the smart key is within op-
erating range, exercise due care
because other people not carry-
ing the smart key can start the
engine and operate the vehicle.
EAU61646
Handling of the smart key and
mechanical key
Included with the vehicle is one smart
key (with a built-in mechanical key) and
one spare mechanical key with an iden-
tification card. Keep the spare mechan-
ical key and card separate from the
smart key. Should you lose or damage
the smart key, or when its battery is dis-
charged, the mechanical key will serve
as a back up. The seat can be opened,
the smart key system identification
number can be manually input, and
then the vehicle can be operated. (See
page 8-37.) We recommend that you
note down the identification number
in case of emergency.
If the smart key and identification card
of the mechanical key are both lost or
damaged, and there is no record of the
identification number, the entire smart
key system will need to be replaced.
TIP
The identification number can also be
found on the smart key itself.
1. Smart key
2. Mechanical key
3. Identification number card
1234
56
123
BV1-9-E2.book 3 ページ ２０１８年８月２８日　火曜日　午後５時２８分

Smart key system
3-4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
NOTICE
ECA21573
The smart key has precision elec-
tronic components. Observe the fol-
lowing precautions to prevent
possible malfunction or damage.
Do not place or store the smart
key in a storage compartment.
The smart key may be damaged
from road vibrations or exces-
sive heat.
Do not drop, bend, or subject
the smart key to strong impacts.
Do not submerge the smart key
in water or other liquids.
Do not place heavy items or ex-
cessive stress on the smart key.
Do not leave the smart key in a
place exposed to direct sun-
light, high temperature or high
humidity.
Do not grind or attempt to mod-
ify the smart key.
Keep the smart key away from
strong magnetic fields and mag-
netic objects such as key hold-
ers, TVs, and computers.
Keep the smart key away from
electric medical equipment.
Do not allow oils, polishing
agents, fuel, or any strong chemicals to come in contact
with the smart key. The smart
key body may become discol-
ored or cracked.
TIP
The smart key battery life is ap-
proximately two years, but this
may vary according to operating
conditions.
The smart key battery may be-
come discharged even if it is away
from the vehicle and not being
used.
If the smart key continually re-
ceives radio waves, the smart key
battery will discharge quickly. (For
example, when placed in the vicin-
ity of electrical products such as
televisions, radios, or computers.)
Replace the smart key battery when
the smart key system indicator light
flashes for about 20 seconds when the
vehicle is first power on, or when the
smart key indicator light does not come
on when the “ON/OFF” switch is
pushed. (See page 3-6.) After changing
the smart key battery, if the smart key
system still does not operate, have a
Yamaha dealer check the vehicle.
TIP
You can register up to six smart
keys for the same vehicle. See a
Yamaha dealer regarding spare
smart keys.
If a smart key is lost, contact a
Yamaha dealer immediately to
prevent the vehicle from being sto-
len.
1. Identification number
1
BV1-9-E2.book 4 ページ ２０１８年８月２８日　火曜日　午後５時２８分

Smart key system
3-5
1
2
3
4
5
6
7
8
9
10
11
12
13
14
EAU77223
Smart key
When the smart key is turned on and
brought within range, the smart key
system allows you to operate the vehi-
cle without inserting a mechanical key.
If the smart key is turned off, the vehicle
cannot be operated even if the smart
key is within operating range of the ve-
hicle.
The current status of the key can be
checked by briefly pressing the
“ON/OFF” switch.
Short flash: the key is on
Long flash: the key is off
To turn the smart key on or off
To turn the smart key on or off, press
the “ON/OFF” switch for one second.
The smart key indicator light will flash. If
the key does a short flash, the key is on.
If the key does a long flash, the key is
off.
TIP
To preserve the vehicle battery power,
the smart key system will turn off auto-
matically about a week after the vehicle
is last used. In this case, press the
“ON/ ” switch once to turn on the smart key system, and then once more
to turn on the vehicle power.
To use the mechanical key
Pull out the mechanical key from the
smart key body. After using the me-
chanical key, insert it back into the
smart key.

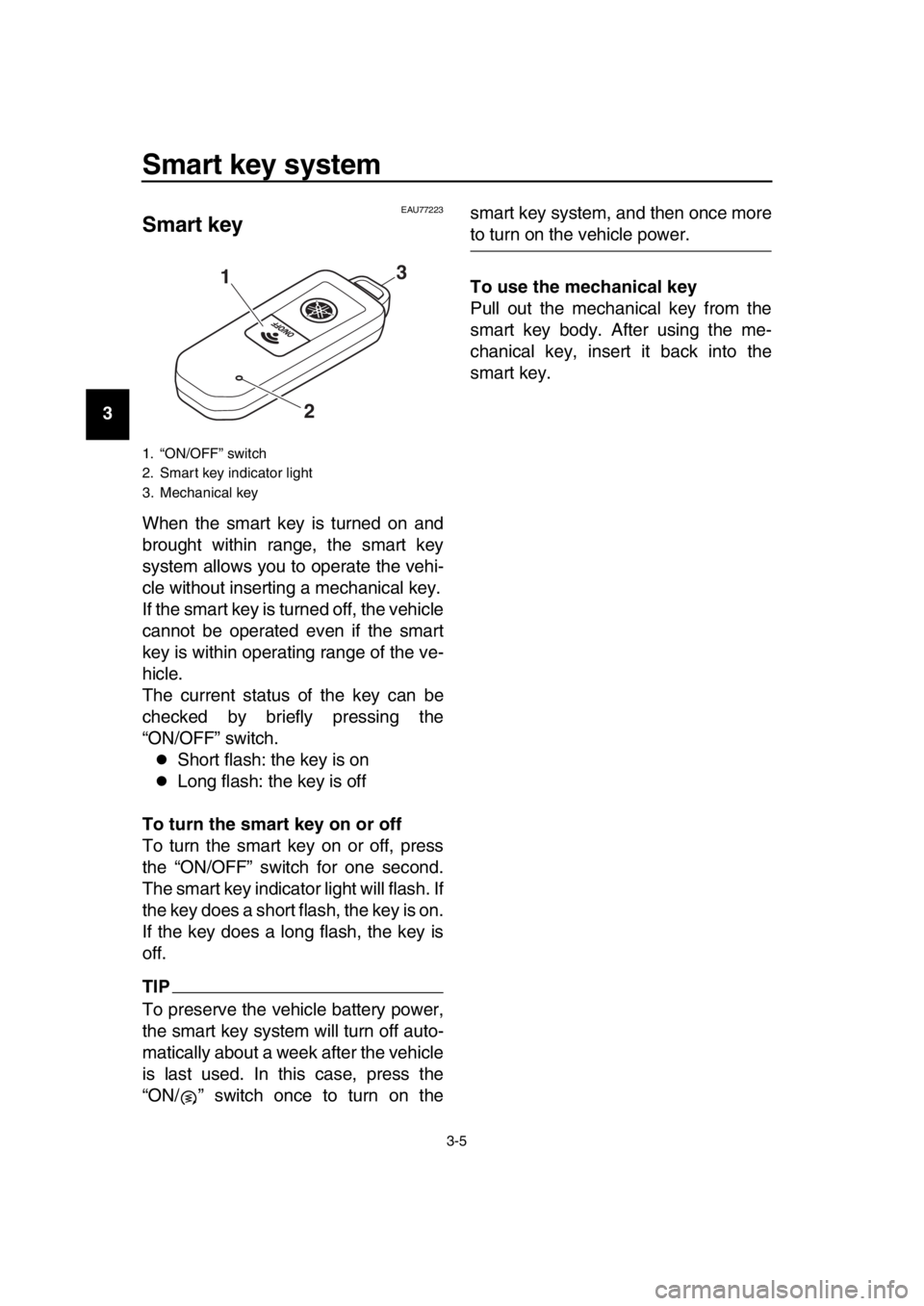

1. “ON/OFF” switch
2. Smart key indicator light
3. Mechanical key
1
2
3
BV1-9-E2.book 5 ページ ２０１８年８月２８日　火曜日　午後５時２８分

Smart key system
3-6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
EAU79071
Replacing the smart key
battery
Replace the battery in the following sit-
uations.
The smart key system indicator
light flashes for about 20 seconds
when the power of the vehicle is
turned on.
When the smart key indicator light
does not come on when the
“ON/OFF” switch is pushed.
WARNING
EWA20630
The smart key contains a button cell
battery.
Keep new and used batteries
away from children.
If the battery compartment does
not close securely, stop using
the smart key and keep it away
from children.
Explosion Hazard - do not mishan-
dle the battery.
Danger of explosion if battery is
incorrectly replaced.
Replace only with the same or
equivalent type.
Do not expose smart key to ex-
cessive heat, such as sunshine or fire.
Chemical Burn Hazard - do not in-
gest the battery.
If the battery is swallowed, it can
cause severe internal burns in
just 2 hours and can lead to
death.
If you think batteries might have
been swallowed or placed in-
side any part of the body, seek
immediate medical attention.
NOTICE
ECA24010
Do not apply excessive force to
the smart key when replacing
the battery.
Do not use a screwdriver or oth-
er hard object to force open the
key.
Take precautions to prevent the
waterproof seal from being
damaged or contaminated by
dirt.
Do not touch the internal cir-
cuits and terminals. This may
cause malfunctions.
Make sure the battery is in-
stalled correctly. Confirm the di-
rection of the positive/“+” side
of the battery.
To replace the smart key battery 1. Gently pry open the smart key case.
1. Smart key system indicator light “ ”
1
BV1-9-E2.book 6 ページ ２０１８年８月２８日　火曜日　午後５時２８分

Smart key system
3-7
1
2
3
4
5
6
7
8
9
10
11
12
13
14 2. Remove the battery cover and O-
ring.
3. Remove the battery.
TIP
Dispose of the removed battery in ac-
cordance with local regulations. 4. Install a new battery as shown. Note the polarity of the battery. 5. Install the O-ring and battery cov-
er.
6. Gently snap the smart key case closed.
1. Battery cover
2. O-ring
Specified battery:CR2025
1
2
1. Battery
2. O-ring
3. Battery cover
1
2
3
BV1-9-E2.book 7 ページ ２０１８年８月２８日　火曜日　午後５時２８分

Smart key system
3-8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
EAU77232
Powering on the vehicle
1. With the smart key on and in oper- ating range, briefly press the
“ON/ ” switch.
2. Upon authentication of the smart key, the beeper will sound twice
and the smart key system indicator
light will come on briefly. All locks
will release automatically.
TIP
The smart key system indicator
light will flash if the steering lock
cannot automatically release itself.
Try moving the handlebars gently
to the left or right and then press
the “ON/ ” switch one more time.
If the steering continues to be
locked and will not release, the
smart key system indicator light
will flash 16 times and the steering
lock release operation will stop
midway. Move the handlebar gen-
tly to the left and right to help re-
lease the steering lock and then
press the “ON/ ” switch again.
The smart key system indicator
light will flash if the centerstand
lock cannot automatically release
itself. Gently rock the vehicle for-
ward or backward and then press the “ON/ ” switch one more time.
If the centerstand continues to be
locked and will not release, the
smart key system indicator light
will flash 16 times and the center-
stand lock release operation will
stop midway. Rock the vehicle for-
ward and backward to help release
the centerstand lock and then
press the “ON/ ” switch again.
NOTICE
ECA15826
If the steering lock or centerstand
lock will not release and the smart
key system indicator light is flash-
ing, have a Yamaha dealer check the
smart key system.
3. The power of the vehicle is turned on when all locks have been re-
leased. The multi-function display
will come on.
4. The engine can now be started. (See page 7-2.)
TIP
See page 8-37 for information about
emergency mode and how to turn the
vehicle power on without the smart key.
1. “ON/ ” switch
MODE
1
BV1-9-E2.book 8 ページ ２０１８年８月２８日　火曜日　午後５時２８分

Smart key system
3-9
1
2
3
4
5
6
7
8
9
10
11
12
13
14
EAU78031
Powering off the vehicle
To turn the vehicle power off and stop
the engine if it is running, press the
“OFF/LOCK” switch.
Upon authentification of the smart key,
the beeper will sound once to confirm
that the vehicle power has been suc-
cessfully turned off and the storage
compartment and fuel tank cap lid locks
will be released.
TIP
The rider must turn off the power of
the vehicle manually.
The power of the vehicle will not
turn off automatically even if the
smart key is moved out of operat-
ing range of the smart key system.
The power of the vehicle cannot be
turned off via the “OFF/LOCK”
switch when the vehicle is moving.
If the smart key is not within operating
range or cannot communicate with the
vehicle when you press the
“OFF/LOCK” switch, the vehicle will not
be turned off and the beeper will sound
for three seconds (the smart key sys-
tem indicator light will also flash) to alert
you that the power was not successfully
turned off. Confirm the location and
condition of the smart key and try pow- ering off the vehicle again.
TIP
Without the smart key, the vehicle pow-
er can be turned off by pressing the
“OFF/LOCK” switch again while the
smart key system indicator light is
flashing.
Auto lock function
After the engine is stopped via the
“OFF/LOCK” switch, (or whenever the
vehicle power is turned from on to off),
all storage compartment locks (if
equipped) and the fuel tank cap lid lock
are released and these compartments
can be accessed temporarily. When 60
seconds have passed, all compart-
ments will automatically lock.
When the compartment locks are re-
leased via the “ / ” switch, the com-
partments will automatically lock after
10 seconds have passed.
1. “OFF/LOCK” switch
1
BV1-9-E2.book 9 ページ ２０１８年８月２８日　火曜日　午後５時２８分
