2019 YAMAHA TMAX Owners Manual

TMAX ABS
MOTORCYCLE
BV1-28199-E2
OWNER’S MANUAL
Read this manual carefully before oper-
ating this vehicle.
XP530-A
XP530D-A
BV1-28199-E2_Hyoshi.indd 12018/09/04 15:31:48

EAU81560
Read this manual carefully before operating this vehicle. This manual
should stay with this vehicle if it is sold.
EAU85650
For Europe
Declaration of Conformity:
Hereby, MITSUBISHI ELECTRIC CORPORATION, HIMEJI WORKS declares
that the radio equipment type, Smart Keyless System, SKEA7B-01 (Smart Unit)
and SKEA7B-03 (Hand Unit) is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of confo rmity is available at the following internet
address:
http://www.mitsubishielectric.com/bu/automotive/doc/re.html
REMOTE CONT. UNIT (Smart Unit)
Frequency band: 125 kHz
The maximum radio frequency power: 107 dBµV/m at. 10 meters
XMTR COMP. (Hand Unit)
Frequency band: 433.92 MHz
The maximum radio frequency power: 10 mW
Manufacturer:
MITSUBISHI ELECTRIC CORPORATION, HIMEJI WORKS
840, Chiyoda-machi, Himeji, Hyogo 670-8677, Japan
Importer:
YAMAHA MOTOR EUROPE N.V.
Koolhovenlaan 101, 1119 NC Schiphol-Rijk, 1117 ZN, Schiphol, the Netherlands
For South Africa
BV1-28199-E2_Hyoshi.indd 22018/09/04 15:31:48

EAU79574
For Europe
TIP
This model is equipped with My TMAX Connect GPS system. This system must be
activated before it can be used. Please refer to the Vodafone Customer Portal User
Guide for instructions on how to register and activate the system.
www.my-tmax-connect.eu
BV1-9-E2.book 1 ページ ２０１８年８月２８日　火曜日　午後５時２８分

Introduction
EAU10114
Welcome to the Yamaha world of motorcycling!
As the owner of the XP530-A/XP530D-A, you are benefiting from Yamaha’s vast
experience and newest technology regarding the design and manufacture of high-
quality products, which have earned Yamaha a reputation for dependability.
Please take the time to read this manual thoroughly, so as to enjoy all advantages
of your XP530-A/XP530D-A. The Owner’s Manual does not only instruct you in
how to operate, inspect and maintain your scooter, but also in how to safeguard
yourself and others from trouble and injury.
In addition, the many tips given in this manual will help keep your scooter in the
best possible condition. If you have any further questions, do not hesitate to con-
tact your Yamaha dealer.
The Yamaha team wishes you many safe and pleasant rides. So, remember to put
safety first!
Yamaha continually seeks advancements in product design and quality. There-
fore, while this manual contains the mo st current product information available at
the time of printing, there may be minor discrepancies between your scooter and
this manual. If there is any question c oncerning this manual, please consult a
Yamaha dealer.
WARNING
EWA12412
Please read this manual carefully and completely before operating this
scooter.
BV1-9-E2.book 1 ページ ２０１８年８月２８日　火曜日　午後５時２８分

Important manual information
EAU63350
Particularly important information is distinguished in this manual by the following
notations:
*Product and specifications are subject to change without notice.
EAU10201
This is the safety alert symbol. It is used to
alert you to potential personal injury hazards.
Obey all safety messages that follow this
symbol to avoid possible injury or death.
A WARNING indicates a hazardous situation
which, if not avoided, could result in death or
serious injury.
A NOTICE indicates special precautions that
must be taken to avoid damage to the vehicle
or other property.
A TIP provides key information to make proce-
dures easier or clearer.
XP530-A/XP530D-A
OWNER’S MANUAL
©2019 by Yamaha Motor Co., Ltd. 1st edition, August 2018All rights reserved.
Any reprinting or unauthorized use without the written permission of Yamaha Motor Co., Ltd.
is expressly prohibited. Printed in Japan.
WARNING
NOTICE
TIP
BV1-9-E2.book 1 ページ ２０１８年８月２８日　火曜日　午後５時２８分

Table of contents
Safety information............................1-1
Further safe-riding points.................1-5
Description ........................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instrume nts.................2-3
Smart key system ............................3-1
Smart key system ....... .....................3-1
Operating range of the smart key system ....... ............................ .......3-2
Handling of the smart key and
mechanical key ............................3-3
Smart key ........................................3-5
Replacing the smart key battery ......3-6
Powering on the vehi cle ..................3-8
Powering off the vehi cle ..................3-9
How to lock the steering ................3-10
How to lock the centerstand ..........3-10
Storage compartment and fuel
tank access ................................3-11
Parking mode ................................3-13
Special features ................................4-1
Cruise control system (XP530D-A) ..................................4-1
D-mode (drive mode).......................4-3
Traction control system ...................4-4
Instrument and co ntrol functions....5-1
Handlebar switches .........................5-1
Indicator lights and warning lights ...5-2
Speedometer ...................................5-4
Tachometer .....................................5-4
Multi-function display .......................5-5
Front brake lever ...........................5-17
Rear brake lever ............................5-17
Rear brake lock lever.....................5-18
Anti-lock brake system (ABS) ........5-18
Fuel tank cap .................................5-19
Fuel................................................5-20
Fuel tank overflow hose.................5-22
Catalytic converter .........................5-22
Storage compartments ..................5-23
Windshield (XP530-A) ...................5-24 Rear view mirrors .......................... 5-26
Shock absorber assembly ............. 5-26
Auxiliary DC jack ........................... 5-28
Sidestand ...................................... 5-29
Ignition circuit cut-
off system ......... 5-29
For your safety – pre-operation
checks ............................................... 6-1
Operation and important riding
points ................................................. 7-1
Starting the engine .......................... 7-2
Starting off ....................................... 7-3
Acceleration and deceleration ......... 7-3
Braking ............................................ 7-4
Tips for reducing fuel
consumption ................................ 7-5
Engine break-in ............................... 7-5
Parking ............................................ 7-6
Periodic maintenance and
adjustment ........................................ 8-1
Tool kit............................................. 8-2
Periodic maintenance charts ........... 8-3
Periodic maintenance chart for the emission control syst em .............. 8-3
General maintenance and
lubrication chart ........................... 8-4
Removing and installing panels ...... 8-7
Checking the spark plugs ................ 8-9
Canister ......................................... 8-10
Engine oil and oil filter cartridge .... 8-10
Why Yamalube .............................. 8-13
Coolant .......................................... 8-13
Engine air filter element ................ 8-15
Checking the engine idling
speed ......................................... 8-16
Checking the throttle grip free play ............................................ 8-17
Valve clearance............................. 8-17
Tires .............................................. 8-18
Cast wheels................................... 8-20
Checking the front and rear brake lever free play ............................ 8-20
Adjusting the rear brake lock
cable .......................................... 8-21
BV1-9-E2.book 1 ページ ２０１８年８月２８日　火曜日　午後５時２８分

Table of contents
Checking the rear brake lock......... 8-21
Checking the front and rear brake pads ........................................... 8-22
Checking the brake fluid level ....... 8-22
Changing the brake fluid ............... 8-23
Drive belt slack .............................. 8-24
Checking and lubricating the
cables......................................... 8-24
Checking and lubricating the throttle grip and cable ................ 8-25
Lubricating the front and rear brake levers ............................... 8-25
Checking and lubricating the
centerstand and sidestand ......... 8-26
Checking the front fork .................. 8-26
Checking the steering.................... 8-27
Checking the wheel bearings ........ 8-27
Battery ........................................... 8-28
Replacing the fuses ....................... 8-29
Vehicle lights ................................. 8-31
Replacing a front turn signal light
bulb ............................................ 8-32
Replacing the license plate light bulb ............................................ 8-32
Troubleshooting............................. 8-33

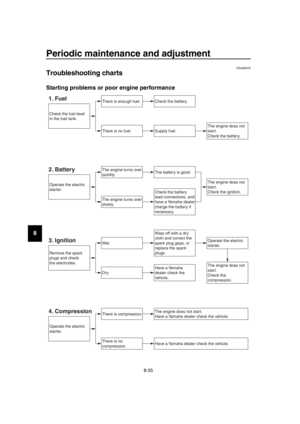

Troubleshooting charts .................. 8-35
Emergency mode .......................... 8-37
Scooter care and storage ................. 9-1
Matte color caution .......................... 9-1
Care................................................. 9-1
Storage ............................................ 9-4
Specifications ................................. 10-1
Consumer information ................... 11-1
Identification numbers ................... 11-1
Diagnostic connector ..................... 11-2
Vehicle data recording................... 11-2
Index ................................................ 12-1
BV1-9-E2.book 2 ページ ２０１８年８月２８日　火曜日　午後５時２８分

1-1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Safety information
EAU1026B
Be a Responsible Owner
As the vehicle’s owner, you are respon-
sible for the safe and proper operation
of your scooter.
Scooters are single-track vehicles.
Their safe use and operation are de-
pendent upon the use of proper riding
techniques as well as the expertise of
the operator. Every operator should
know the following requirements before
riding this scooter.
He or she should:
Obtain thorough instructions from
a competent source on all aspects
of scooter operation.
Observe the warnings and mainte-
nance requirements in this Own-
er’s Manual.
Obtain qualified training in safe
and proper riding techniques.
Obtain professional technical ser-
vice as indicated in this Owner’s
Manual and/or when made neces-
sary by mechanical conditions.
Never operate a scooter without
proper training or instruction. Take
a training course. Beginners
should receive training from a cer-
tified instructor. Contact an autho-
rized scooter dealer to find out
about the training courses nearest
you.
Safe Riding
Perform the pre-operation checks each
time you use the vehicle to make sure it
is in safe operating condition. Failure to
inspect or maintain the vehicle properly
increases the possibility of an accident
or equipment damage. See page 6-1 for a list of pre-operation checks.
This scooter is designed to carry
the operator and a passenger.
The failure of motorists to detect
and recognize scooters in traffic is
the predominating cause of auto-
mobile/scooter accidents. Many
accidents have been caused by an
automobile driver who did not see
the scooter. Making yourself con-
spicuous appears to be very effec-
tive in reducing the chance of this
type of accident.
Therefore:
Wear a brightly colored jacket.
Use extra caution when you are approaching and passing
through intersections, since in-
tersections are the most likely
places for scooter accidents to
occur.
Ride where other motorists can see you. Avoid riding in another
motorist’s blind spot.
Never maintain a scooter with- out proper knowledge. Contact
an authorized scooter dealer to
inform you on basic scooter
maintenance. Certain mainte-
nance can only be carried out by
certified staff.
Many accidents involve inexperi-
enced operators. In fact, many op-
erators who have been involved in
accidents do not even have a cur-
rent driver’s license. Make sure that you are qualified and that you only lend your
scooter to other qualified opera-
tors.
Know your skills and limits. Staying within your limits may
BV1-9-E2.book 1 ページ ２０１８年８月２８日　火曜日　午後５時２８分
