Page 665 of 695

SPECIFICATIONS
}}
663
Vehicle Emission Control Information. USmodels. Your Volvo is designed to meet all appli-cable emission standards, as evidenced by thecertification label on the underside of the hood.For further information regarding these regula-tions, please consult your Volvo retailer.
Vehicle Emission Control Information.Canadian models. Your Volvo is designed tomeet all applicable emission standards, as evi-denced by the certification label on the undersideof the hood. For further information regardingthese regulations, please consult your Volvoretailer.
Vehicle Identification Number (VIN). TheVIN plate is located on the top left surface of thedashboard. The Vehicle Identification Number(VIN) should always be quoted in all correspond-ence concerning your vehicle with the retailer andwhen ordering parts.
Tire inflation pressures. This label indicatesthe correct inflation pressures for the tires thatwere on the vehicle when it left the factory.
Federal Motor Vehicle Safety Standards(FMVSS) specifications (USA) and Ministry ofTransport (CMVSS) standards (Canada). YourVolvo is designed to meet all applicable safetystandards, as evidenced by the certification labelon the driver's side B-pillar (the structural mem-ber at the side of the vehicle, at the rear of thedriver's door opening). This label also includescodes for paint color, etc. For further informationregarding these regulations, please consult yourVolvo retailer. U.S. models have the upper decal;Canadian models have the lower one.
Page 666 of 695
||
SPECIFICATIONS
664
Engine oil. This label contains the recom-mended engine oil specifications.
Decal A/C. Refrigerant R134a.
NOTE
The decals shown in the Owner's Manual donot claim to be exact reproductions of thosefound in the vehicle. The purpose is to showapproximately how they look and about wherethey are located on the vehicle. The informa-tion that applies for your vehicle in particularis found on the decal on the vehicle.
Related information
Air conditioning specifications (p. 672)
Page 667 of 695
SPECIFICATIONS
}}
665
Dimensions
The vehicle's length, height, etc. are shown inthe table.
Dimensionsmminches
AGround clearanceA2118,3
B Wheelbase2865 112.8
C Length4688 184.6
D Load length, floor,folded backrest1746 68.7
E Load length, floor 960 37.8
FHeightB1658 65.3
Dimensionsmminches
GLoad height776 30.6
H Wheel track, front1653C
1649D
1655E
1668F
65.1C
64.9D
65.2E
65.7F
Dimensionsmminches
IWheel track, rear1657C
1653D
1659E
1673F
65.2C
65.1D
65.3E
65.9F
J Load width, floor 1010 39.8
K Width1902 74.9
Page 668 of 695
||
SPECIFICATIONS
666
Dimensionsmminches
LWidth incl. rearviewmirrors2117 83.3
M Width incl. folded rear-view mirrors1999 78.7
AFor curb weight + 1 person. (Varies slightly depending on tiredimension, chassis alternative, etc.).BIncluding roof antenna, at curb weight.CVehicles with 17/19-inch wheels.DVehicles with 20-inch wheels.EVehicles with 21-inch wheels.FVehicles with 22-inch wheels.
Related information
Weights (p. 667)
Page 669 of 695
SPECIFICATIONS
667

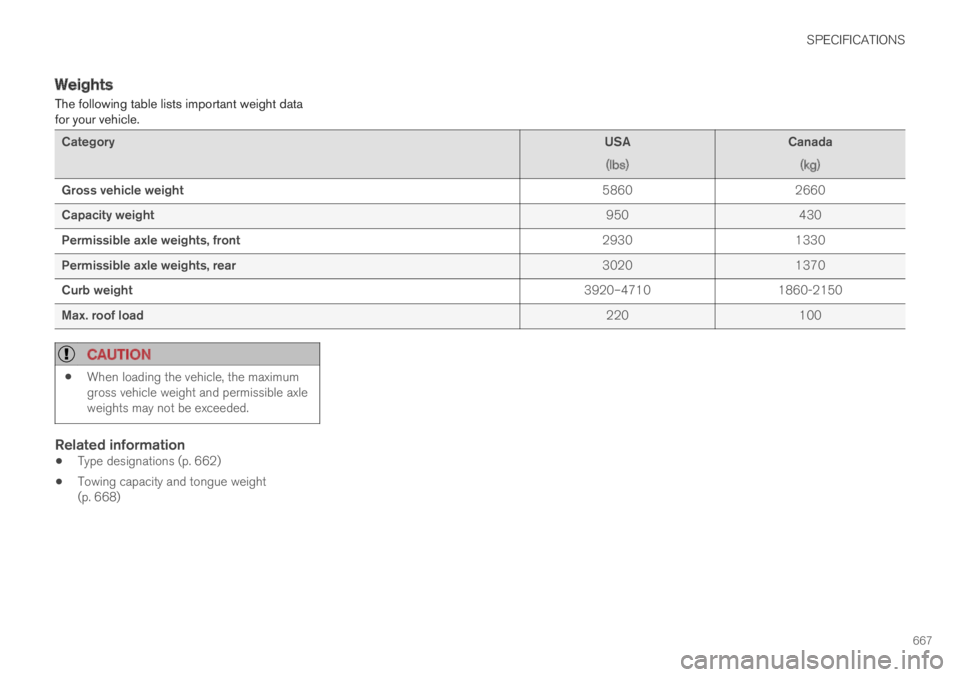

Weights
The following table lists important weight datafor your vehicle.
CategoryUSA
(lbs)
Canada
(kg)
Gross vehicle weight58602660
Capacity weight950430
Permissible axle weights, front29301330
Permissible axle weights, rear30201370
Curb weight3920–47101860-2150
Max. roof load220100
CAUTION
When loading the vehicle, the maximumgross vehicle weight and permissible axleweights may not be exceeded.
Related information
Type designations (p. 662)
Towing capacity and tongue weight(p. 668)
Page 670 of 695
SPECIFICATIONS
* Option/accessory.668

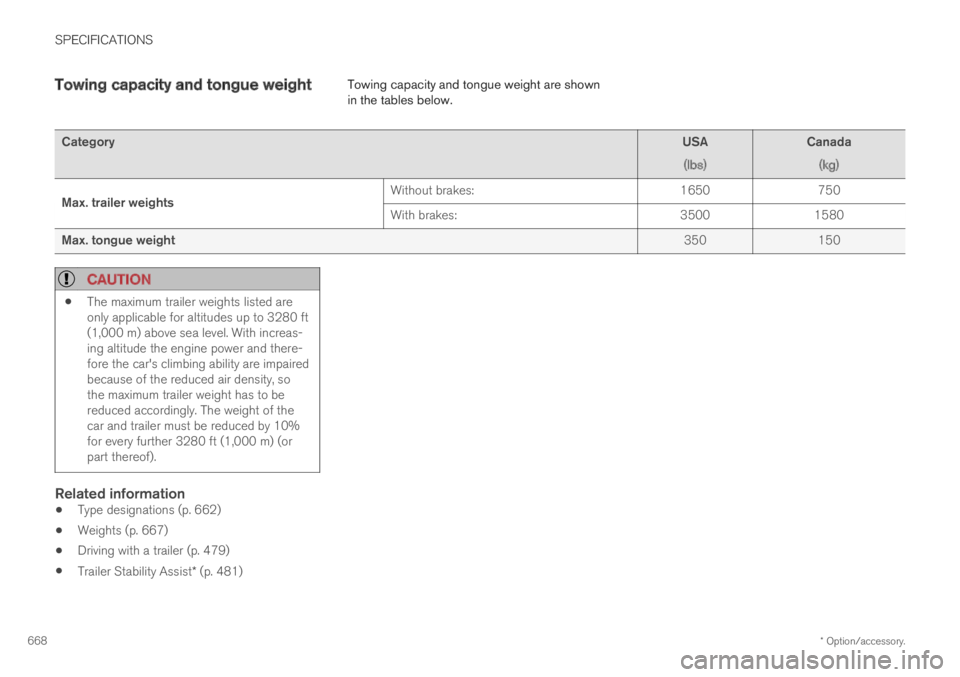

Towing capacity and tongue weightTowing capacity and tongue weight are shownin the tables below.
CategoryUSA
(lbs)
Canada
(kg)
Max. trailer weightsWithout brakes:1650750
With brakes:35001580
Max. tongue weight350150
CAUTION
The maximum trailer weights listed areonly applicable for altitudes up to 3280 ft(1,000 m) above sea level. With increas-ing altitude the engine power and there-fore the car's climbing ability are impairedbecause of the reduced air density, sothe maximum trailer weight has to bereduced accordingly. The weight of thecar and trailer must be reduced by 10%for every further 3280 ft (1,000 m) (orpart thereof).
Related information
Type designations (p. 662)
Weights (p. 667)
Driving with a trailer (p. 479)
Trailer Stability Assist* (p. 481)
Page 671 of 695
SPECIFICATIONS
669

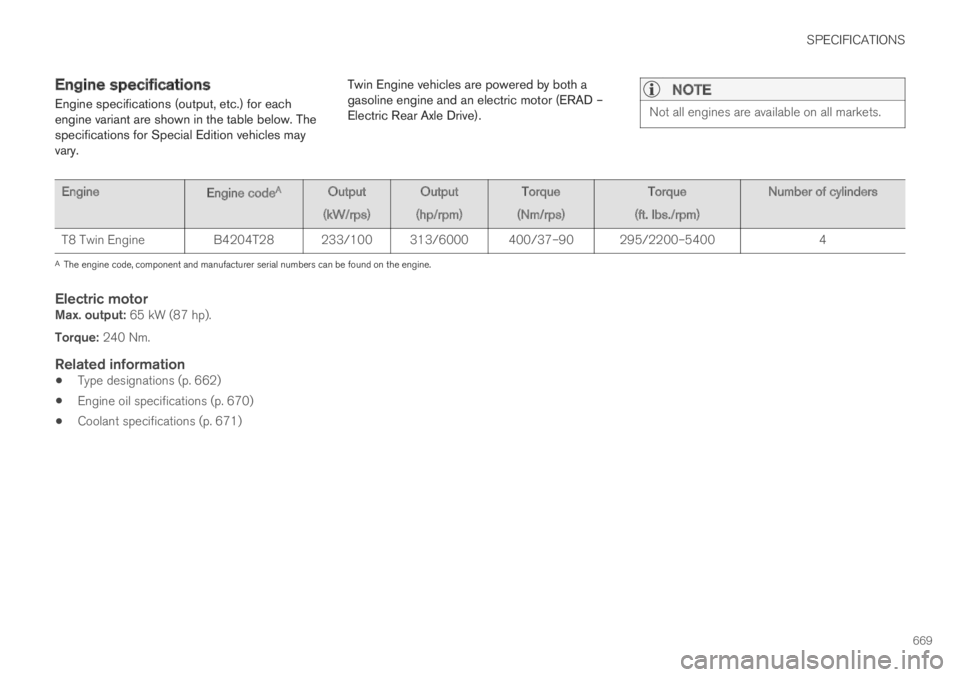

Engine specifications
Engine specifications (output, etc.) for eachengine variant are shown in the table below. Thespecifications for Special Edition vehicles mayvary.
Twin Engine vehicles are powered by both agasoline engine and an electric motor (ERAD –Electric Rear Axle Drive).
NOTE
Not all engines are available on all markets.
EngineEngine codeAOutput
(kW/rps)
Output
(hp/rpm)
Torque
(Nm/rps)
Torque
(ft. lbs./rpm)
Number of cylinders
T8 Twin EngineB4204T28 233/100 313/6000 400/37–90 295/2200–54004
AThe engine code, component and manufacturer serial numbers can be found on the engine.
Electric motor
Max. output: 65 kW (87 hp).
Torque: 240 Nm.
Related information
Type designations (p. 662)
Engine oil specifications (p. 670)
Coolant specifications (p. 671)
Page 672 of 695
SPECIFICATIONS
670
Engine oil specifications
Fully synthetic engine oil of at leastACEA A5/B5 must be used. Lower oil gradesmay not offer the same fuel economy, engineperformance or engine protection.
Volvo recommends:
General
See the Service and warranty booklet for infor-mation about oil change intervals.
NOTE
This vehicle is delivered from the factory withsynthetic oil.
Do not use oil additives.
Oil viscosity
The wrong oil viscosity can shorten engine serv-ice life during normal use. SAE 5W-30 providesgood fuel economy and engine protection. Seethe viscosity chart.
Viscosity chart
Extreme driving conditions
Volvo's VCC RBS0-2AE/SAE 0W20 oil is recom-mended for extreme conditions.
Oil volume
The oil volume for the engine is:
Liter (approx)5.6
US qts (approx)5.9
Related information
Type designations (p. 662)
Checking and filling engine oil (p. 622)
Engine oil (p. 621)
