DRIVER SUPPORT
* Option/accessory.303

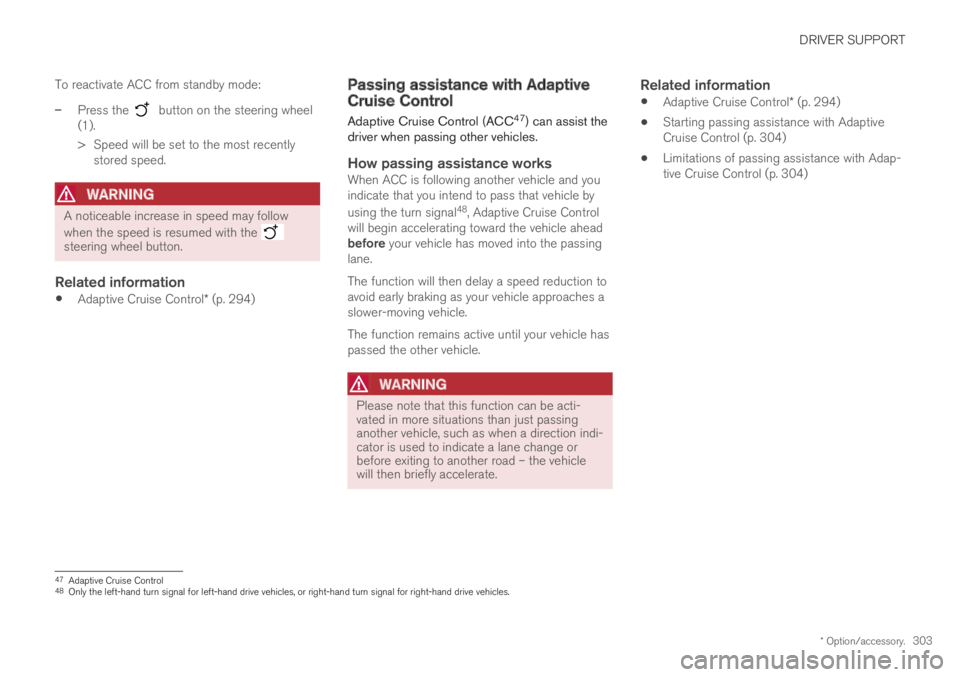

To reactivate ACC from standby mode:
–Press the button on the steering wheel(1).
>Speed will be set to the most recentlystored speed.

WARNING
A noticeable increase in speed may follow
when the speed is resumed with the steering wheel button.

Related information
Adaptive Cruise Control* (p. 294)
Passing assistance with AdaptiveCruise Control
Adaptive Cruise Control (ACC47) can assist thedriver when passing other vehicles.
How passing assistance works
When ACC is following another vehicle and youindicate that you intend to pass that vehicle by
using the turn signal48, Adaptive Cruise Controlwill begin accelerating toward the vehicle aheadbefore your vehicle has moved into the passinglane.
The function will then delay a speed reduction toavoid early braking as your vehicle approaches aslower-moving vehicle.
The function remains active until your vehicle haspassed the other vehicle.

WARNING
Please note that this function can be acti-vated in more situations than just passinganother vehicle, such as when a direction indi-cator is used to indicate a lane change orbefore exiting to another road – the vehiclewill then briefly accelerate.
Related information
Adaptive Cruise Control* (p. 294)
Starting passing assistance with AdaptiveCruise Control (p. 304)
Limitations of passing assistance with Adap-tive Cruise Control (p. 304)
47Adaptive Cruise Control48Only the left-hand turn signal for left-hand drive vehicles, or right-hand turn signal for right-hand drive vehicles.

DRIVER SUPPORT
* Option/accessory.304
Starting passing assistance withAdaptive Cruise Control
Several conditions must be met for passingassistance to be possible.

Requirements for passing assistance
In order to activate passing assistance:
your vehicle must be following a vehicleahead (target vehicle)
your vehicle's current speed must beat least 70 km/h (43 mph)
the set speed for ACC must be highenough to safely pass another vehicle.

Starting parking assistance
To start passing assistance:
–Turn on the left turn signal.
>Passing assistance will start.

Related information
Adaptive Cruise Control* (p. 294)
Passing assistance with Adaptive CruiseControl (p. 303)
Limitations of passing assistancewith Adaptive Cruise Control
Passing assistance functionality may be reducedin certain situations.
WARNING
The driver should be aware that if conditionssuddenly change when using Parking Assis-tance, the function may implement an unde-sired acceleration in certain conditions.
Some situations should be avoided, e.g. if:
the vehicle is approaching an exit in thesame direction as passing would normallyoccur
the vehicle ahead slows before your vehi-cle has had time to switch to the passinglane
traffic in the passing lane slows down
a vehicle for right-hand traffic is driven ina country with left-hand traffic (or viceversa).
Situations of this type can be avoided by tempo-
rarily putting ACC49 in standby mode.

Related information
Adaptive Cruise Control* (p. 294)
Passing assistance with Adaptive CruiseControl (p. 303)
Switching target vehicles withAdaptive Cruise Control
At certain speeds, models with automatic trans-
missions and Adaptive Cruise Control (ACC50)can switch target vehicles.
Switching target vehicles
If the target vehicle ahead turns suddenly, there may bestationary traffic ahead.
When Adaptive Cruise Control is actively follow-ing another vehicle at speeds under 30 km/h(20 mph) and switches targets from a movingvehicle to a stationary vehicle, Adaptive CruiseControl will brake for the stationary vehicle.
49Adaptive Cruise Control

DRIVER SUPPORT
}}
* Option/accessory.305

WARNING
When Adaptive Cruise Control follows anothervehicle at speeds over approx. 30 km/h(20 mph) and changes target vehicle – from amoving vehicle to a stationary one – AdaptiveCruise Control will ignore the stationary vehi-cle and instead accelerate to the storedspeed.
The driver must then intervene and applythe brakes.

Automatic standby mode when switching
targets
Adaptive Cruise Control will be disabled and gointo standby mode:
if your vehicle's speed goes below 5 km/h(3 mph) and Adaptive Cruise Control cannotdetermine if the target object is a stationaryvehicle or another object, e.g. a speed bump.
if your vehicle's speed goes under 5 km/h(3 mph) and the vehicle ahead turns so thatAdaptive Cruise Control no longer has a vehi-cle to follow.

Related information
Adaptive Cruise Control* (p. 294)
Automatic braking with AdaptiveCruise Control
The Adaptive cruise control (ACC51) has a spe-cial brake function in slow traffic and while sta-tionary.
Braking function in slow traffic and at a
standstill
In slow-moving, stop-and-go traffic or when stop-ped at a traffic light, driving will resume automati-cally if the vehicle is stopped for less thanapprox. 3 seconds. If it takes more than 3 sec-onds for the vehicle ahead to begin moving again,Adaptive Cruise Control will go into standbymode and the Auto-hold brake function will acti-vate.
–Adaptive Cruise Control can be reactivated inone of the following ways:
Pressing the button on the steeringwheel keypad.
Pressing the accelerator pedal.
>Adaptive Cruise Control will resume fol-lowing the vehicle ahead if it begins tomove within approx. 6 seconds.
NOTE
ACC can keep the vehicle stationary for nomore than 5 minutes – after that time theparking brake is applied and Adaptive CruiseControl is deactivated.
The parking brake must be released beforeAdaptive Cruise Control can be reactivated.

Deactivation of the Auto-hold brake function
In certain situations, Auto-hold will be deactivatedwhen the vehicle is at a standstill and AdaptiveCruise Control will go into standby mode. Thismeans that the brakes will be released and thevehicle could begin to roll. The driver mustactively apply the brakes to keep the vehicle sta-tionary.
This can occur if:
the driver depresses the brake pedal
the parking brake is applied
the gear selector is moved to the P, N or Rpositions
the driver puts Adaptive Cruise Control instandby mode.

Auto Activate Parking Brake
In certain situations, the parking brake will beapplied to keep the vehicle at a standstill.
50Adaptive Cruise Control51Adaptive Cruise Control

||
DRIVER SUPPORT
* Option/accessory.306
This occurs if Adaptive Cruise Control is keepingthe vehicle stationary using the brakes and:
the driver opens the door or unbuckleshis/her seat belt
ACC has kept the vehicle at a standstill formore than approx. 5 minutes
the brakes overheat
the driver switches off the engine manually.

Related information
Adaptive Cruise Control* (p. 294)
Adaptive Cruise Control limitations
Adaptive Cruise Control (ACC52) may have lim-ited functionality in certain situations.
Steep roads and/or heavy loads
Adaptive Cruise Control is primarily intended tobe driven on flat roads. The function may not beable to maintain the correct time interval to thevehicle ahead when driving down steep hills. Thedriver should be extra attentive and prepared toapply the brakes.
Do not use Adaptive Cruise Control if thevehicle is carrying a heavy load or towing atrailer.

Other limitations
The Off Road drive mode cannot beselected if Adaptive Cruise Control is acti-vated.

NOTE
The function uses the vehicle's combinedcamera and radar unit, which has certain gen-eral limitations; see sections "Camera limita-tions" and "Radar sensor limitations".

Related information
Adaptive Cruise Control* (p. 294)
Camera limitations (p. 332)
Radar sensor limitations (p. 327)
52Adaptive Cruise Control

DRIVER SUPPORT
* Option/accessory.307
Switching between Cruise Controland Adaptive Cruise Control
In vehicles equipped with Adaptive Cruise Con-trol (ACC), the driver can switch between CruiseControl (CC) and ACC.
A symbol in the instrument panel indicates whichcruise control system is active
CCACC
AA
Cruise controlAdaptive Cruise Control
AWHITE symbol: The function is active. GRAY symbol: Standbymode

Switching from ACC to CC
To do so:
1.Press the button on the steering wheelkeypad to put Adaptive Cruise Control instandby mode.
2.Tap the Cruise Control button in the centerdisplay's Function view. The button's indica-tor will change from GRAY to GREEN.
>The symbol in the instrument panel will
change from ACC to CC, indicating that Adaptive Cruise Con-trol is off and Cruise Control is in standbymode.
3.Pressing the button on the steeringwheel keypad.
>Cruise Control will start and the vehicle'scurrent speed will be set.
WARNING
Switching from ACC to CC means that thevehicle:
will no longer maintain a preset timeinterval to the vehicle ahead.
will only follow the stored speed and thedriver must therefore apply the brakeswhen necessary.
If CC is active when the engine is turned off, ACCwill be automatically activated the next time theengine is started.

Switching from CC to ACC
To do so:
1.Press the button on the steering wheelkeypad to put Cruise Control in standbymode.
2.Tap the Cruise Control button in Functionview. The button's indicator will change fromGREEN to GRAY.
>The symbols in the instrument panel will
switch from CC to ACCto indicate that Adaptive Cruise Control isin standby mode.
3.Pressing the button on the steeringwheel keypad.
>Adaptive Cruise Control will go into activemode and set the vehicle's current speedand the selected time interval to the vehi-cle ahead.
Related information
Adaptive Cruise Control* (p. 294)
Cruise control (p. 285)

DRIVER SUPPORT
* Option/accessory.308
Symbols and messages forAdaptive Cruise Control
A number of symbols and messages relating to
Adaptive Cruise Control (ACC53) may be dis-played in the instrument panel and/or the head-up display*.
Several examples54 are provided below.
The previous illustration55 shows that AdaptiveCruise Control is set to maintain a speed of110 km/h (68 mph) and that there is no targetvehicle ahead to follow.
The previous illustration55 shows that AdaptiveCruise Control is set to maintain a speed of110 km/h (68 mph) and is following a targetvehicle ahead, which is traveling at the samespeed.
53Adaptive Cruise Control54In the following illustration, Road Sign Information (RSI) indicates that the maximum permitted speed is 130 km/h (80 mph).55Note: This illustration is general and details may vary depending on model.

DRIVER SUPPORT
* Option/accessory.309
SymbolMessageMeaning
The symbol is WHITE.The vehicle is maintaining the set speed.
Adaptive Cruise Contr.
Unavailable
The symbol is GRAY.
Adaptive Cruise Control is in standby mode.
Adaptive Cruise Contr.
Service required
The symbol is GRAY.
The system is not functioning as intended. Contact a workshop ‒ an authorized Volvo workshop isrecommended.
Windscreen sensor
Sensor blocked, see Owner's manual
Clean the windshield in front of the camera and radar sensors.
A text message can be erased by briefly pressing
the button in the center of the right-sidesteering wheel keypad.
If the message persists: Contact a workshop ‒ anauthorized Volvo workshop is recommended.

Related information
Adaptive Cruise Control* (p. 294)

DRIVER SUPPORT
310
Pilot Assist
Pilot Assist helps the driver keep the vehicle inthe current traffic lane by providing steeringassistance and maintaining an even speed and aset time interval to the vehicle ahead.

How Pilot Assist works
The Pilot Assist function is primarily intended foruse on highways and other major roads where itcan help provide a more comfortable and relaxingdriving experience.
The camera/radar sensor monitors the distance to thevehicle ahead and detects lane markings56.
Camera and radar sensor
Distance monitor
Lane marker line monitors
The driver sets the desired speed and distance tothe vehicle ahead. Pilot Assist monitors the dis-tance to the vehicle ahead and the traffic lane'sside markers using the camera and radar sensor.The system maintains the set time interval to thevehicle ahead by automatically adjusting yourvehicle's speed and keeps your vehicle in its laneby providing steering assistance.
Pilot Assist's steering assistance is based onmonitoring the direction of the vehicle ahead andthe traffic lane's side marker lines. The driver canoverride Pilot Assist's steering recommendationsat any time and steer in another direction, e.g. tochange lanes or avoid obstacles on the road.
If the camera/radar sensor cannot detect thelane's side marker lines or if Pilot Assist is unablefor some other reason to clearly interpret thelane, Pilot Assist will temporarily deactivate steer-ing assistance until it can once again interpretthe lane markings. However, the speed and dis-tance warnings will remain active.

WARNING
Pilot Assist is deactivated automatically andresumes working without prior notice.
The color of the steering wheelsymbol indicates the currentstatus of steering assistance:
• GREEN indicates that steer-ing assistance is active
• GRAY (as shown in illustra-tion) indicates that steering assistance is deacti-vated.
