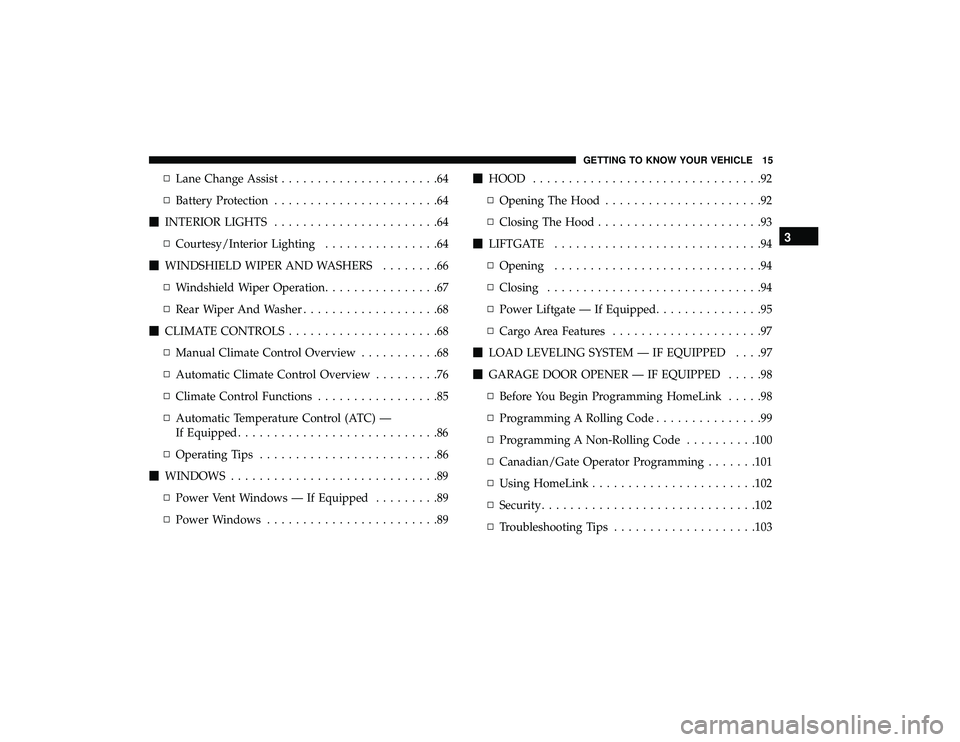

2019 DODGE GRAND CARAVAN Owners Manual

▫Lane Change Assist ......................64
▫ Battery Protection .......................64
 INTERIOR LIGHTS .......................64
▫ Courtesy/Interior Lighting ................64
 WINDSHIELD WIPER AND WASHERS ........66
▫ Windshield Wiper Operation ................67
▫ Rear Wiper And Washer ...................68
 CLIMATE CONTROLS .....................68
▫ Manual Climate Control Overview ...........68
▫ Automatic Climate Control Overview .........76
▫ Climate Control Functions .................85
▫ Automatic Temperature Control (ATC) —
If Equipped ............................86
▫ Operating Tips .........................86
 WINDOWS .............................89
▫ Power Vent Windows — If Equipped .........89
▫ Power Windows ........................89
HOOD ................................92
▫ Opening The Hood ......................92
▫ Closing The Hood .......................93
 LIFTGATE .............................94
▫ Opening .............................94
▫ Closing ..............................94
▫ Power Liftgate — If Equipped ...............95
▫ Cargo Area Features .....................97
 LOAD LEVELING SYSTEM — IF EQUIPPED ....97
 GARAGE DOOR OPENER — IF EQUIPPED .....98
▫ Before You Begin Programming HomeLink .....98
▫ Programming A Rolling Code ...............99
▫ Programming A Non-Rolling Code ..........100
▫ Canadian/Gate Operator Programming .......101
▫ Using HomeLink ...................... .102
▫ Security ............................. .102
▫ T
roubleshooting Tips ................... .103
3
GETTING TO KNOW YOUR VEHICLE 15

▫General Information .................... .104
 INTERNAL EQUIPMENT ..................104
▫ Storage ............................. .104
▫ Cupholders ...........................113
▫ Sun Screens — If Equipped ................115
▫ Electrical Power Outlets — If Equipped .......115▫
Power Inverter — If Equipped .............119
▫ Smoker’s Package Kit — If Equipped ........120
▫ Sunglass Storage Bin — If Equipped .........120
 ROOF LUGGAGE RACK — IF EQUIPPED ......122
▫ Deploying The Crossbars .................123
▫ Stowing The Crossbars .................. .126
16 GETTING TO KNOW YOUR VEHICLE

KEYS
Key Fobs
Your vehicle uses a keyless ignition system. This system
consists of a Remote Keyless Entry (RKE) key fob and a
Wireless Ignition Node (WIN) with integral ignition. You
can insert the key fob into the ignition switch with either
side up. It also contains an emergency key, which stores in
the rear of the key fob.
NOTE:The key fob may not be found if it is located next to
a mobile phone, laptop or other electronic device; these
devices may block the key fob’s wireless signal.
The emergency key allows for entry into the vehicle should
the battery in the vehicle or the key fob go dead. You can
keep the emergency key with you when valet parking.
To remove the emergency key, slide the mechanical latch at
the top of the key fob sideways with your thumb and then
pull the key out with your other hand. NOTE:
When using the emergency key to gain access to
your vehicle, be aware that the security alarm may be
triggered. Insert the key into the ignition and place the
ignition in the ON/RUN mode to disarm the security
system.
Key Fob
3
GETTING TO KNOW YOUR VEHICLE 17

To Unlock The Doors And Liftgate
Push and release the unlock button on the key fob once to
unlock the doors. Push and release the unlock button a
second time within 5 seconds to unlock the liftgate. The
turn signal lights will flash to acknowledge the unlock
signal.
To Lock The Doors And Liftgate
Push and release the lock button on the key fob once to lock
the doors. The turn signal lights will flash to acknowledge
the lock signal.
Replacing The Battery In The Key Fob With Remote
Control
The replacement battery is one CR2032 battery.
NOTE:
•Perchlorate Material — special handling may apply. See
www.dtsc.ca.gov/hazardouswaste/perchlorate
• Do not replace coin battery unless the cluster display
indicates a message “Key Fob Low Battery”
• Do not touch the battery terminals that are on the back
housing or the printed circuit board.
1. Remove the emergency key by sliding the mechanical latch on the back of the key fob sideways with your
thumb and then pull the key out with your other hand.
Emergency Key Removal
18 GETTING TO KNOW YOUR VEHICLE

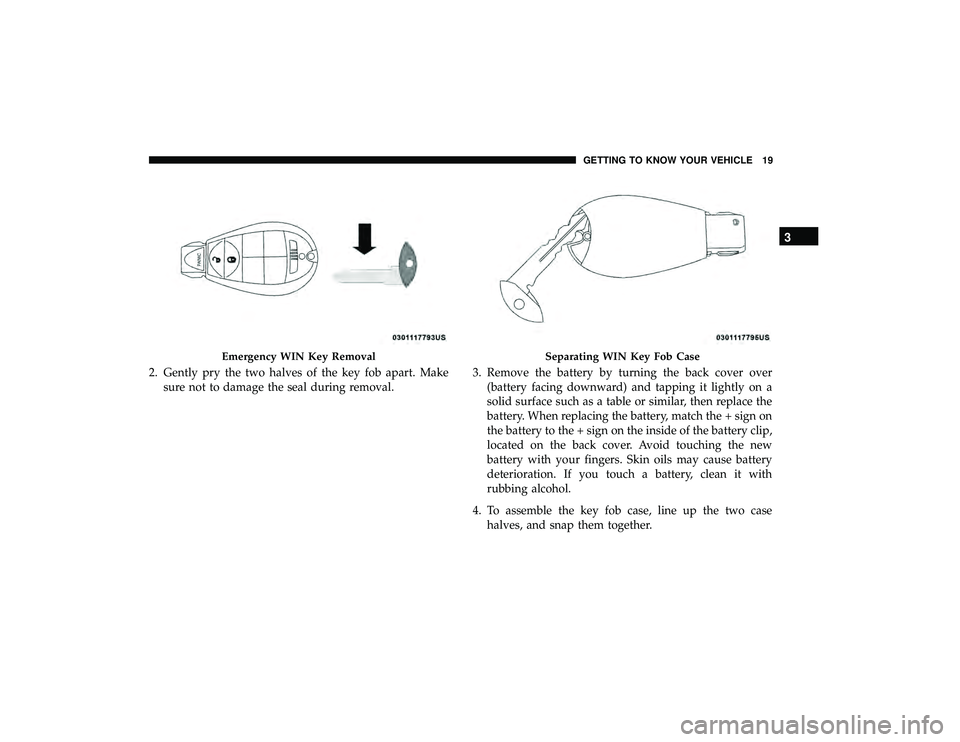

2. Gently pry the two halves of the key fob apart. Makesure not to damage the seal during removal. 3. Remove the battery by turning the back cover over
(battery facing downward) and tapping it lightly on a
solid surface such as a table or similar, then replace the
battery. When replacing the battery, match the + sign on
the battery to the + sign on the inside of the battery clip,
located on the back cover. Avoid touching the new
battery with your fingers. Skin oils may cause battery
deterioration. If you touch a battery, clean it with
rubbing alcohol.
4. To assemble the key fob case, line up the two case halves, and snap them together.
Emergency WIN Key RemovalSeparating WIN Key Fob Case
3
GETTING TO KNOW YOUR VEHICLE 19

Programming Additional Key Fobs
Programming the key fob may be performed by an autho-
rized dealer.
NOTE:Once a key fob is programmed to a vehicle, it
cannot be repurposed and reprogrammed to another ve-
hicle.
General Information
The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, in- cluding interference that may cause undesired opera-
tion.
NOTE: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment.
IGNITION SWITCH
Wireless Ignition Node (WIN) — If Equipped
The Wireless Ignition Node (WIN) operates similar to an
ignition switch. It has four operating positions, three with
detents and one that is spring-loaded. The detent positions
are OFF, ACC, and ON/RUN. The START position is a
spring-loaded momentary contact position. When released
from the START position, the switch automatically returns
to the ON/RUN position.
20 GETTING TO KNOW YOUR VEHICLE

REMOTE START — IF EQUIPPED
How To Use Remote Start
All of the following conditions must be met before the
engine will remote start:
•Gear selector in PARK
• Doors closed •
Hood closed
• Liftgate closed
• HAZARD switch off
• BRAKE switch inactive (brake pedal not pushed)
• Battery at an acceptable charge level
• System not disabled from previous remote start event
• Vehicle security alarm not active
• Ignition in OFF position
WARNING!
•Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains Carbon Monox-
ide (CO) which is odorless and colorless. Carbon
Monoxide is poisonous and can cause serious injury
or death when inhaled.
• Keep key fobs away from children. Operation of the
Remote Start System, windows, door locks or other
controls could cause serious injury or death.
Wireless Ignition Switch
1 — OFF
2 — ACC (Accessory)
3 — ON/RUN
4 — START
3
GETTING TO KNOW YOUR VEHICLE 21

Remote Start Abort Messages
The following messages will display in the instrument
cluster display if the vehicle fails to remote start or exits
remote start prematurely:
•Remote Start Aborted — Door Ajar
• Remote Start Aborted — Hood Ajar
• Remote Start Aborted — Fuel Low
• Remote Start Aborted — L/Gate Ajar
• Remote Start Disabled — Start Vehicle To Reset
The instrument cluster display message stays active until
the ignition is turned to the ON/RUN position.
To Enter Remote Start Mode
Push and release the Remote Start button on the key fob
twice within five seconds. The vehicle doors will lock, the
turn signals will flash twice, and the horn will chirp twice.
Then the engine will start, and the vehicle will remain in
the Remote Start mode for a 15-minute cycle. NOTE:
•
If an engine fault is present or fuel level is low, the
vehicle will start and then shut down in 10 seconds.
• The park lamps will turn on and remain on during
Remote Start mode.
• For security, power window operation is disabled when
the vehicle is in the Remote Start mode.
• The engine can be started two consecutive times (two
15-minute cycles) with the key fob. However, the igni-
tion must be placed in the ON/RUN position before you
can repeat the start sequence for a third cycle.
To Exit Remote Start Mode Without Driving The
Vehicle
Push and release the Remote Start button one time or allow
the remote start cycle to complete the entire 15-minute
cycle.
NOTE: To avoid unintentional shutdowns, the system will
disable the one time push of the Remote Start button for
two seconds after receiving a valid Remote Start request.
