2019 DODGE GRAND CARAVAN Owners Manual

CAUTION!
•Mixing of engine coolant (antifreeze) other than
specified Organic Additive Technology (OAT) en-
gine coolant (antifreeze), may result in engine dam-
age and may decrease corrosion protection. Organic
Additive Technology (OAT) engine coolant is differ-
ent and should not be mixed with Hybrid Organic
Additive Technology (HOAT) engine coolant (anti-
freeze) or any “globally compatible” coolant (anti-
freeze). If a non-OAT engine coolant (antifreeze) is
introduced into the cooling system in an emergency,
the cooling system will need to be drained, flushed,
and refilled with fresh OAT coolant (conforming to
MS.90032), by an authorized dealer as soon as pos-
sible.
• Do not use water alone or alcohol-based engine
coolant (antifreeze) products. Do not use additional
rust inhibitors or antirust products, as they may not
be compatible with the radiator engine coolant and
may plug the radiator.
• This vehicle has not been designed for use with
propylene glycol-based engine coolant (antifreeze).
Use of propylene glycol-based engine coolant (anti-
freeze) is not recommended.
9
TECHNICAL SPECIFICATIONS 399

Chassis
ComponentFluid, Lubricant, Or Genuine Part
Automatic Transmission Use only ATF+4 Automatic Transmission Fluid meeting the
requirements of FCA Material Standard MS-9602. Failure to
use ATF+4 fluid may affect the function or performance of
your transmission. We recommend Mopar ATF+4 Fluid.
Brake Master Cylinder We recommend you use Mopar DOT 3 meeting the require-
ments of FCA Material Standard MS.90039.
Power Steering Reservoir We recommend you use Mopar Power Steering Fluid +4,
Mopar ATF+4 Automatic Transmission Fluid meeting the
requirements of FCA Material Standard MS-9602.
400 TECHNICAL SPECIFICATIONS

MULTIMEDIA
CONTENTS
CYBERSECURITY ...................... .403
 RADIO 430/430N CD/DVD/HDD/NAV —
IF EQUIPPED ......................... .404
▫ Operating Instructions (Voice Command System) —
If Equipped .......................... .404
▫ Operating Instructions (Uconnect Phone) —
If Equipped .......................... .404
▫ Accessibility — If Equipped ...............404
 STEERING WHEEL AUDIO CONTROLS —
IF EQUIPPED ......................... .405
▫ Radio Operation ....................... .405
▫ CD Player ........................... .405
 IPOD/USB/MP3 CONTROL — IF EQUIPPED . . .406
▫ Connecting The iPod Or External USB Device . . .406
▫ Using This Feature ..................... .407▫
Controlling The iPod Or External USB Device
Using Radio Buttons .................... .407
▫ Play Mode ........................... .407
▫ List Or Browse Mode ................... .408
▫ Bluetooth Streaming Audio (BTSA) ..........410
 UCONNECT MULTIMEDIA — VIDEO
ENTERTAINMENT SYSTEM (VES) —
IF EQUIPPED ..........................411
▫ Getting Started ........................411
▫ Play Video Games ..................... .412
▫ Play A DVD Using The Touchscreen Radio .....413
▫ Play A DVD Using The VES Player —
If Equipped .......................... .414
▫ VES Remote Control — If Equipped .........416
▫ Remote Control Storage ..................418
10

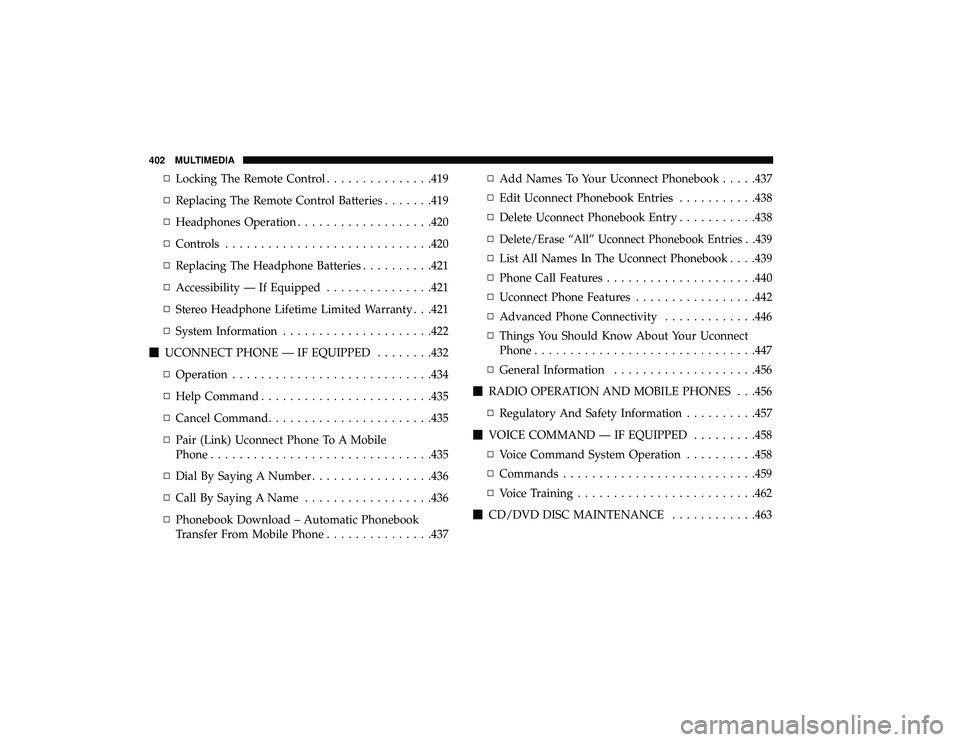

▫Locking The Remote Control ...............419
▫ Replacing The Remote Control Batteries .......419
▫ Headphones Operation .................. .420
▫ Controls ............................ .420
▫ Replacing The Headphone Batteries ..........421
▫ Accessibility — If Equipped ...............421
▫ Stereo Headphone Lifetime Limited Warranty . . .421
▫ System Information .................... .422
 UCONNECT PHONE — IF EQUIPPED ........432
▫ Operation ........................... .434
▫ Help Command ....................... .435
▫ Cancel Command ...................... .435
▫ Pair (Link) Uconnect Phone To A Mobile
Phone .............................. .435
▫ Dial By Saying A Number .................436
▫ Call By Saying A Name ..................436
▫ Phonebook Download – Automatic Phonebook
Transfer From Mobile Phone ...............437 ▫
Add Names To Your Uconnect Phonebook .....437
▫ Edit Uconnect Phonebook Entries ...........438
▫ Delete Uconnect Phonebook Entry ...........438
▫
Delete/Erase “All” Uconnect Phonebook Entries . .439
▫ List All Names In The Uconnect Phonebook . . . .439
▫ Phone Call Features .................... .440
▫ Uconnect Phone Features .................442
▫ Advanced Phone Connectivity .............446
▫ Things You Should Know About Your Uconnect
Phone .............................. .447
▫ General Information ................... .456
 RADIO OPERATION AND MOBILE PHONES . . .456
▫ Regulatory And Safety Information ..........457
 VOICE COMMAND — IF EQUIPPED .........458
▫ Voice Command System Operation ..........458
▫ Commands .......................... .459
▫ Voice Training ........................ .462
 CD/DVD DISC MAINTENANCE ............463
402 MULTIMEDIA

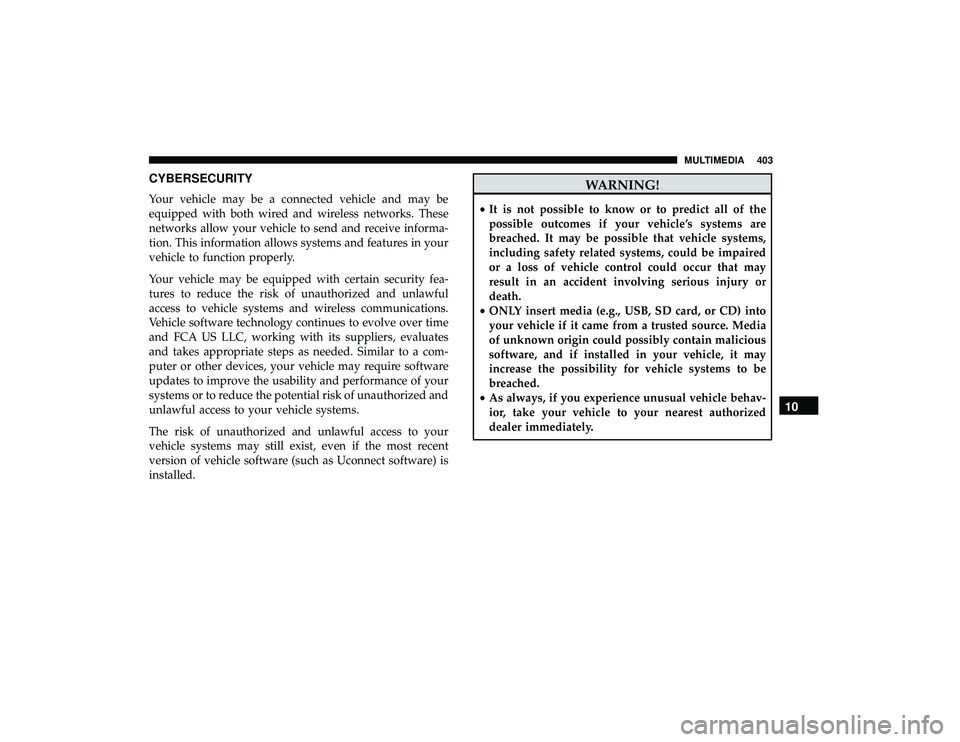

CYBERSECURITY
Your vehicle may be a connected vehicle and may be
equipped with both wired and wireless networks. These
networks allow your vehicle to send and receive informa-
tion. This information allows systems and features in your
vehicle to function properly.
Your vehicle may be equipped with certain security fea-
tures to reduce the risk of unauthorized and unlawful
access to vehicle systems and wireless communications.
Vehicle software technology continues to evolve over time
and FCA US LLC, working with its suppliers, evaluates
and takes appropriate steps as needed. Similar to a com-
puter or other devices, your vehicle may require software
updates to improve the usability and performance of your
systems or to reduce the potential risk of unauthorized and
unlawful access to your vehicle systems.
The risk of unauthorized and unlawful access to your
vehicle systems may still exist, even if the most recent
version of vehicle software (such as Uconnect software) is
installed.
WARNING!
•It is not possible to know or to predict all of the
possible outcomes if your vehicle’s systems are
breached. It may be possible that vehicle systems,
including safety related systems, could be impaired
or a loss of vehicle control could occur that may
result in an accident involving serious injury or
death.
• ONLY insert media (e.g., USB, SD card, or CD) into
your vehicle if it came from a trusted source. Media
of unknown origin could possibly contain malicious
software, and if installed in your vehicle, it may
increase the possibility for vehicle systems to be
breached.
• As always, if you experience unusual vehicle behav-
ior, take your vehicle to your nearest authorized
dealer immediately.
10
MULTIMEDIA 403

NOTE:
•FCA or your dealer may contact you directly regarding
software updates.
• To help further improve vehicle security and minimize
the potential risk of a security breach, vehicle owners
should:
• Routinely check www.driveuconnect.com/support/
software-update.html (U.S. Residents) or
www.driveuconnect.ca (Canadian Residents) to learn
about available Uconnect software updates.
• Only connect and use trusted media devices (e.g.
personal mobile phones, USBs, CDs).
Privacy of any wireless and wired communications cannot
be assured. Third parties may unlawfully intercept infor-
mation and private communications without your consent.
For further information, refer to “Onboard Diagnostic
System (OBD II) Cybersecurity” in “Getting To Know Your
Instrument Panel”.RADIO 430/430N CD/DVD/HDD/NAV — IF
EQUIPPED
Refer to your Uconnect Owner ’s Manual Supplement for
detailed operating instructions.
Operating Instructions (Voice Command System)
— If Equipped
Refer to “Voice Command” in “Multimedia” for further
details.
Operating Instructions (Uconnect Phone) — If
Equipped
Refer to “Uconnect Phone” in “Multimedia” for further
details.
Accessibility — If Equipped
The accessibility feature announces DVD functions prior to
performing them. For example, when activated, the acces-
sibility feature will announce that the “Play” button was
pressed the first time the “Play” button is pressed, and the
second time the “Play” button is pressed it will perform the
“Play” function. The accessibility feature can be turned on
and off in the settings of the radio.
404 MULTIMEDIA

STEERING WHEEL AUDIO CONTROLS — IF
EQUIPPED
The remote sound system controls are located on the rear
surface of the steering wheel, at the three and nine o’clock
positions.
The right-hand rocker switch has a push-button in the
center, and controls the volume and mode of the sound
system. Pushing the top of the rocker switch will increase
the volume. Pushing the bottom of the rocker switch will
decrease the volume. Pushing the center button changes
the operation of the radio from AM to FM, or to CD mode,
depending on which radio is in the vehicle.The left-hand rocker switch has a push-button in the center.
The function of the left-hand switch is different, depending
on which mode you are in.
The following describes the left-hand rocker switch opera-
tion in each mode.
Radio Operation
Pushing the top of the switch will SEEK up for the next
listenable station, and pushing the bottom of the switch
will SEEK down for the next listenable station.
The button located in the center of the left-hand switch will
tune to the next preset station that you have programmed
in the radio preset push-button.
CD Player
Pushing the top of the switch once will go to the next track
on the CD. Pushing the bottom of the switch once will go
to the beginning of the current track, or to the beginning of
the previous track if it is within one second after the
current track begins to play.
If you push the switch up or down twice it plays the
second track; three times, it will play the third, etc.
The button in the center of the left-hand switch has no
function in this mode.
Remote Sound System Controls (Back View Of Steering Wheel)
10
MULTIMEDIA 405

IPOD/USB/MP3 CONTROL — IF EQUIPPED
This feature allows an iPod or external USB device to be
plugged into the USB port, located in the glove compart-
ment. If equipped, there may also be two USB ports located
on the lower trim piece right behind the driver ’s sliding
door that are for charging devices only.
iPod control supports Mini, 4G, Photo, Nano, 5G iPod and
iPhone devices. Some iPod software versions may not fully
support the iPod control features. Please visit Apple’s
website for software updates.
NOTE:
•If the radio has a USB port, refer to the appropriate
Uconnect Owner ’s Manual Supplement for iPod or
external USB device support capability.
• Connecting an iPod or consumer electronic audio device
to the AUX port located in the radio faceplate, plays
media, but does not use the iPod / MP3 control feature
to control the connected device.
Connecting The iPod Or External USB Device
Use the connection cable to connect an iPod or external
USB device to the vehicle’s USB connector port which is
located in the glove compartment. NOTE:
The glove compartment will have a position where
the iPod or consumer electronic audio device cable can be
routed through without damaging the cable when closing
the lid. This allows routing of the cable without damaging
it while closing the lid. If a cut out is not available in the
glove compartment, route the cable away from the lid latch
and in a place that will allow the lid to close without
damaging the cable.
USB Port
406 MULTIMEDIA
