2019 DODGE GRAND CARAVAN snow chains

Service Tpm System
The TPMS Warning Light will flash on and off for 75
seconds, and remain on solid when a system fault is
detected. The system fault will also sound a chime. If the
ignition switch is cycled, this sequence will repeat, provid-
ing the system fault still exists. The TPMS Warning Light
will turn off when the fault condition no longer exists. A
system fault can occur with any of the following scenarios:
•Jamming due to electronic devices or driving next to
facilities emitting the same radio frequencies as the
TPMS sensors.
• Installing some form of aftermarket window tinting that
affects radio wave signals.
• Accumulation of excessive snow and/or ice around the
wheels or wheel housings.
• Using tire chains on the vehicle.
• Using wheels/tires not equipped with TPMS sensors.
Vehicles With Compact Spare
• The compact spare tire (if equipped) does not have a
TPMS sensor. Therefore the TPMS will not monitor the
pressure in the compact spare tire. •
If you install the compact spare tire in place of a road tire
that has a pressure below the low-pressure warning
limit, upon the next ignition switch cycle, a chime will
sound, a “LOW TIRE PRESSURE” message will be
displayed and the TPMS Warning Light will turn on.
• After driving for up to 20 minutes above 15 mph
(24 km/h), the TPMS Warning Light will flash on and off
for 75 seconds and then remain on solid.
• For each subsequent ignition switch cycle, a chime will
sound, the TPMS Warning Light will flash on and off for
75 seconds and then remain on solid.
• Once you repair or replace the original road tire and
reinstall it on the vehicle in place of the compact spare
tire, the TPMS will automatically update, and the TPMS
Warning Light will turn off as long as no tire pressure is
below the low-pressure warning limit in any of the four
active road tires.
TPMS Deactivation — If Equipped
The TPMS can be deactivated if replacing all four wheel
and tire assemblies (road tires) with wheel and tire assem-
blies that do not have TPMS Sensors, such as when
installing winter wheel and tire assemblies on your vehicle.
178 SAFETY

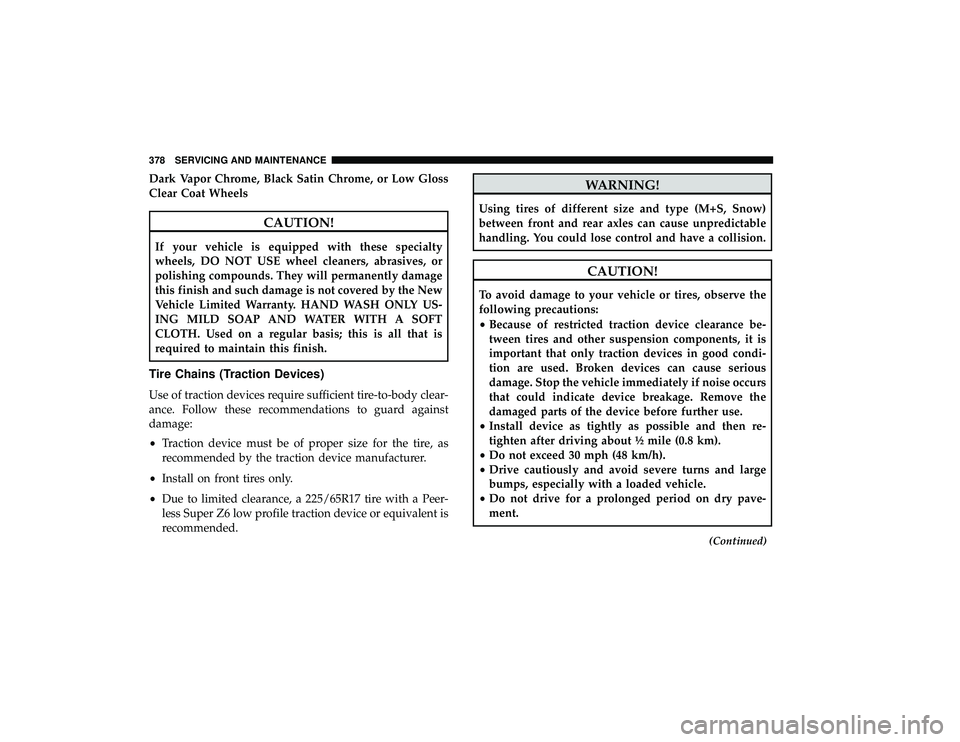

Dark Vapor Chrome, Black Satin Chrome, or Low Gloss
Clear Coat Wheels
CAUTION!
If your vehicle is equipped with these specialty
wheels, DO NOT USE wheel cleaners, abrasives, or
polishing compounds. They will permanently damage
this finish and such damage is not covered by the New
Vehicle Limited Warranty. HAND WASH ONLY US-
ING MILD SOAP AND WATER WITH A SOFT
CLOTH. Used on a regular basis; this is all that is
required to maintain this finish.
Tire Chains (Traction Devices)
Use of traction devices require sufficient tire-to-body clear-
ance. Follow these recommendations to guard against
damage:
•Traction device must be of proper size for the tire, as
recommended by the traction device manufacturer.
• Install on front tires only.
• Due to limited clearance, a 225/65R17 tire with a Peer-
less Super Z6 low profile traction device or equivalent is
recommended.
WARNING!
Using tires of different size and type (M+S, Snow)
between front and rear axles can cause unpredictable
handling. You could lose control and have a collision.
CAUTION!
To avoid damage to your vehicle or tires, observe the
following precautions:
• Because of restricted traction device clearance be-
tween tires and other suspension components, it is
important that only traction devices in good condi-
tion are used. Broken devices can cause serious
damage. Stop the vehicle immediately if noise occurs
that could indicate device breakage. Remove the
damaged parts of the device before further use.
• Install device as tightly as possible and then re-
tighten after driving about ½ mile (0.8 km).
• Do not exceed 30 mph (48 km/h).
• Drive cautiously and avoid severe turns and large
bumps, especially with a loaded vehicle.
• Do not drive for a prolonged period on dry pave-
ment.
(Continued)
378 SERVICING AND MAINTENANCE

Seats.............................. .32, 46, 48
Adjustment ....................... .32, 33, 46
Heated .................................48
Power .................................45
Rear Folding .............................32
Reclining ...............................34
Seatback Release ..........................33
Stow ‘n Go (Fold in Floor) ...................35
Tilting .............................. .32, 33
Security Alarm ........................... .148
Arm The System ..........................25
Disarm The System ........................25
Selection Of Coolant (Antifreeze) ...............398
Sentry Key Key Programming .........................24
Sentry Key (Immobilizer) ......................23
Sentry Key Replacement ......................24
Service Assistance ......................... .466
Service Contract .......................... .468
Service Manuals .......................... .470
Settings Personal .............................. .139
Shift Lever Override ....................... .328
Shoulder Belts ............................ .182
Side View Mirror Adjustment ...................56 Signals, Turn
.................... .61, 152, 237, 289
Snow Chains (Tire Chains) ....................378
Snow Tires .............................. .374
Spare Tires .................... .301, 374, 375, 376
Spark Plugs ............................. .398
Specifications Fuel (Gasoline) ......................... .398
Oil.................................. .398
Speed Control Accel/Decel ........................... .257
Cancel ............................... .258
Resume .............................. .258
Speed Control (Cruise Control) .................255
Starting ................................ .241
Button .................................20
Cold Weather .......................... .241
Engine Fails To Start ..................... .242
Starting
And Operating ..................... .241
Starting Procedures ........................ .241
Steering Power ............................... .254
Tilt Column .............................55
Wheel, Heated ...........................55
Wheel, Tilt ..............................55
Steering Wheel Audio Controls .................405
12
INDEX 483

Steering Wheel Mounted Sound System Controls . . . .405
Storage................................. .104
Storage Bin .............................. .104
Storage, Vehicle ........................ .87, 381
Storing Your Vehicle ....................... .381
Stow ‘n Go (Fold In Floor) Seats .................35
Stuck, Freeing ............................ .329
Sunglasses Storage ......................... .120
Supplemental Restraint System – Air Bag ..........198
Sway Control, Trailer ....................... .167
Synthetic Engine Oil ....................... .343
Telescoping Steering Column ...................55
Tilt Steering Column .........................55
Time Delay Headlight ...............................61
Tire And Loading Information Placard ............363
Tire Markings ............................ .358
Tires......................... .237, 367, 374, 379
Aging (Life Of Tires) ..................... .371
Air Pressure ........................... .367
Chains ............................... .378
Changing .......................... .297, 357
Compact Spare ......................... .375
General Information .................. .367, 374High Speed
............................ .369
Inflation Pressure ....................... .368
Jacking ........................ .297, 303, 357
Life Of Tires ........................... .371
Load Capacity ...................... .363, 364
Pressure Monitoring System (TPMS) ........150, 174
Quality Grading ........................ .379
Radial ............................... .369
Replacement ........................... .372
Rotation .............................. .379
Safety ............................ .357, 367
Sizes ................................ .359
Snow Tires ............................ .374
Spar

e Tires ..................... .301, 374, 376
Spinning .............................. .370
Trailer Towing .......................... .277
Tread Wear Indicators .................... .370
Wheel Nut Torque ....................... .389
Tire Safety Information ...................... .357
Tire Service Kit ........................... .313
Tongue Weight/Trailer Weight .................275
To Open Hood .............................92
Torque Converter Clutch .................... .253
Towing ................................. .270
24-Hour Towing Assistance .................444
484 INDEX
