2019 CHRYSLER PACIFICA HYBRID Owners Manual

4. The crossbar will nest fully within the side rail.5. Once the driver ’s side crossbar is in place, tighten the
thumb screws completely.
6. Repeat the procedure to stow the second crossbar on the opposite side.
Crossbar To Side Rail
Tightening Crossbar
3
GETTING TO KNOW YOUR VEHICLE 159

NOTE:
•To help control wind noise, stow the crossbars in the side
rails when they are not in use.
• If any metallic object is placed over the satellite radio
antenna (if equipped), you may experience interruption
of satellite radio reception.
WARNING!
Cargo must be securely tied down before driving your
vehicle. Improperly secured loads can fly off the ve-
hicle, particularly at high speeds, resulting in personal
injury or property damage. Follow the roof rack cau-
tions when carrying cargo on your roof rack.
CAUTION!
• To prevent damage to the roof of your vehicle, DO
NOT carry any loads on the roof rack without the
crossbars deployed. The load should be secured and
placed on top of the crossbars, not directly on the
roof. If it is necessary to place the load on the roof,
place a blanket or other protective layer between the
load and the roof surface.
• To avoid damage to the roof rack and vehicle, do not
exceed the maximum roof rack load capacity of 150 lb
(68 kg). Always distribute heavy loads as evenly as
possible and secure the load appropriately.
(Continued)
Stowed Crossbars
160 GETTING TO KNOW YOUR VEHICLE

CAUTION!(Continued)
•Load should always be secured to cross bars first,
with tie down loops used as additional securing
points if needed. Tie loops are intended as supple-
mentary tie down points only. Do not use ratcheting
mechanisms with the tie loops. Check the straps and
thumb wheels frequently to be sure that the load
remains securely attached.
• Long loads that extend over the windshield, such as
wood panels or surfboards, or loads with large
frontal area should be secured to both the front and
rear of the vehicle.
• Travel at reduced speeds and turn corners carefully
when carrying large or heavy loads on the roof rack.
Wind forces, due to natural causes or nearby truck
traffic, can add sudden upward lift to a load. This is
especially true on large flat loads and may result in
damage to the cargo or your vehicle.
3
GETTING TO KNOW YOUR VEHICLE 161

GETTING TO KNOW YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT CLUSTER ..................164
▫ Instrument Cluster Descriptions ............165
 INSTRUMENT CLUSTER DISPLAY ...........166
▫ Instrument Cluster Display Location And
Controls ............................ .166
▫ Oil Life Reset ........................ .167
▫ Fuel And Oil Refresh Mode ................168
▫ KeySense Cluster Messages — If Equipped .....169
▫ Instrument Cluster Display Menu Items .......170
▫ Battery Saver On/Battery Saver Mode
Message — Electrical Load Reduction
Actions — If Equipped ..................176
 WARNING LIGHTS AND MESSAGES .........178▫
Red Warning Lights .................... .178
▫ Yellow Warning Lights .................. .183
▫ Yellow Indicator Lights .................. .188
▫ Green Indicator Lights .................. .188
▫ White Indicator Lights .................. .190
▫ Blue Indicator Lights ................... .190
 ONBOARD DIAGNOSTIC SYSTEM — OBD II . . .190
▫ Onboard Diagnostic System (OBD II)
Cybersecurity ........................ .191
 EMISSIONS INSPECTION AND
MAINTENANCE PROGRAMS ..............1914

INSTRUMENT CLUSTER
Instrument Cluster
164 GETTING TO KNOW YOUR INSTRUMENT PANEL

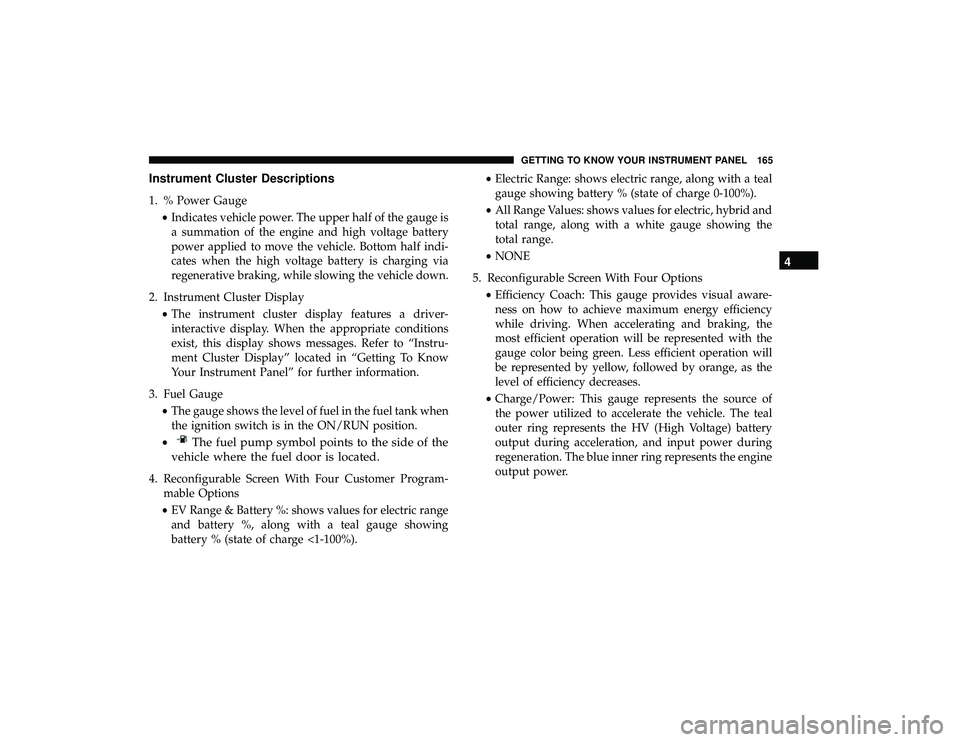

Instrument Cluster Descriptions
1. % Power Gauge•Indicates vehicle power. The upper half of the gauge is
a summation of the engine and high voltage battery
power applied to move the vehicle. Bottom half indi-
cates when the high voltage battery is charging via
regenerative braking, while slowing the vehicle down.
2. Instrument Cluster Display •The instrument cluster display features a driver-
interactive display. When the appropriate conditions
exist, this display shows messages. Refer to “Instru-
ment Cluster Display” located in “Getting To Know
Your Instrument Panel” for further information.
3. Fuel Gauge •The gauge shows the level of fuel in the fuel tank when
the ignition switch is in the ON/RUN position.
•
The fuel pump symbol points to the side of the
vehicle where the fuel door is located.
4. Reconfigurable Screen With Four Customer Program- mable Options
• EV Range & Battery %: shows values for electric range
and battery %, along with a teal gauge showing
battery % (state of charge <1-100%). •
Electric Range: shows electric range, along with a teal
gauge showing battery % (state of charge 0-100%).
• All Range Values: shows values for electric, hybrid and
total range, along with a white gauge showing the
total range.
• NONE
5. Reconfigurable Screen With Four Options •Efficiency Coach: This gauge provides visual aware-
ness on how to achieve maximum energy efficiency
while driving. When accelerating and braking, the
most efficient operation will be represented with the
gauge color being green. Less efficient operation will
be represented by yellow, followed by orange, as the
level of efficiency decreases.
• Charge/Power: This gauge represents the source of
the power utilized to accelerate the vehicle. The teal
outer ring represents the HV (High Voltage) battery
output during acceleration, and input power during
regeneration. The blue inner ring represents the engine
output power.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 165

•Energy Economy: this gauge represents the combined
MPG (km/L, L/100km) obtained through engine use
and MPG (km/L, L/100km) equivalent obtained
through HV battery use. The outer ring represents
current energy economy. The white inner ring repre-
sents average energy economy.
• NONE
INSTRUMENT CLUSTER DISPLAY
Your vehicle is equipped with an instrument cluster dis-
play, which offers useful information to the driver. With the
ignition in the STOP/OFF mode, opening/closing of a
door will activate the display for viewing, and display the
total miles or kilometers in the odometer. Your instrument
cluster display is designed to display important informa-
tion about your vehicle’s systems and features. Using a
driver interactive display located on the instrument panel,
your instrument cluster display can show you how sys-
tems are working and give you warnings when they are
not. The steering wheel mounted controls allow you to
scroll through and enter the main menus and submenus.
You can access the specific information you want and make
selections and adjustments.
Instrument Cluster Display Location And Controls
The Instrument Cluster Display is located in the center of
the instrument cluster.
The Main Menu items consists of the following:
• Speedometer
• Vehicle Info
• Driver Assist
• Hybrid Info
• Trip (Trip A/Trip B)
• Audio
• Messages
• Screen Setup
166 GETTING TO KNOW YOUR INSTRUMENT PANEL
