2019 Acura TLX Navigation Manual

47
uuPersonal Information uCategory History
System Setup

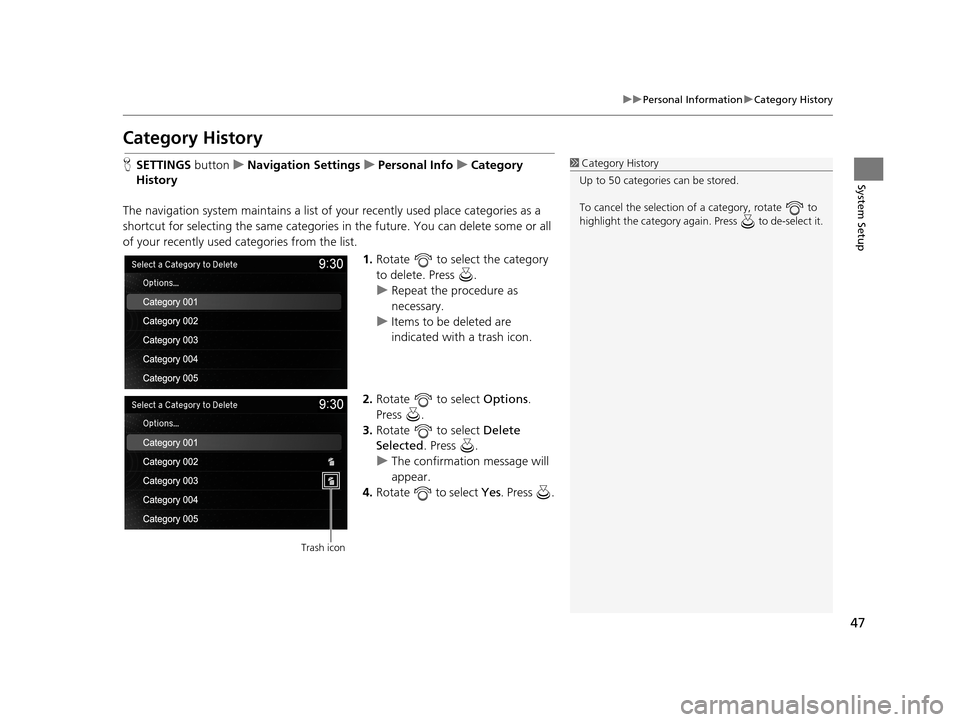

Category History
H SETTINGS buttonuNavigation Settings uPersonal Info uCategory
History
The navigation system maintains a list of your recently used place categories as a
shortcut for selecting the same categories in the future. You can delete some or all
of your recently used categories from the list.
1.Rotate to select the category
to delete. Press .
u Repeat the procedure as
necessary.
u Items to be deleted are
indicated with a trash icon.
2. Rotate to select Options.
Press .
3. Rotate to select Delete
Selected . Press .
u The confirmation message will
appear.
4. Rotate to select Yes . Press .1Category History
Up to 50 categories can be stored.
To cancel the selection of a category, rotate to
highlight the category again. Press to de-select it.
Trash icon
19 ACURA TLX NAVI-31TZ38400.book 47 ページ ２０１８年３月７日　水曜日　午後４時２３分

48
uuPersonal Information uDownload POI
System Setup
Download POI
Import custom Points of Interest (POI) into the navigation system and set the POI as
a destination. You can also add, edit, and delete POIs.
H ENTER/MENU button (on map) uDestination uDownload POI
1. Connect a USB fl ash drive with
stored POI data to the USB
connector.
2. Rotate to select Options.
Press .
3. Rotate to select Import from
USB . Press .
4. Rotate to select a category to
import. Press .
H SETTINGS buttonuNavigation Settings uPersonal Info uDownload POI
1. Rotate to select the downloaded POI category to edit. Press .
2. Rotate to select an item. Press .
The following items are available:
• Alert Setting : Alerts you when you approach the places/landmarks in the
category.
On : Beeps and displays a message when your vehicle gets near the places/
landmarks in the category.
Off (factory default): Disables the feature.
• Delete Category : Deletes all places/landmarks a nd icon in the selected category.
• Edit Icon : Changes the category icon.
■Importing POI Categories1
Importing POI Categories
For more information about connecting a USB flash
drive. 2 Connecting a USB Flash Drive P. 243
POI data in csv and kml formats can be imported.
You can download POI data from various POI
websites.
If you select From AcuraLink , you can download POI
data from the AcuraLink ® server.
2 AcuraLink ® P. 308
■ Editing POI Categories1
Editing POI Categories
If you select From AcuraLink, you can edit Alert
only.
19 ACURA TLX NAVI-31TZ38400.book 48 ページ ２０１８年３月７日　水曜日　午後４時２３分

49
System Setup
Routing
HSETTINGS buttonuNavigation Settings uRouting
Choose various settings that determine the navigation system functionality during
route calculation. Rotate to select an item. Press .
The following items are available:
• Default: Restores the factory default settings.
• Route Preference : Changes the route preferen ces (calculating method).
2Route Preference P. 50
•Unverified Routing : Sets whether you use the ro ute guidance in unverified
areas.
2 Unverified Routing P. 52
•Traffic Rerouting : Sets whether you use automati c recalculation based on traffic
information.
2 Traffic Rerouting P. 54
•Edit POI Search Radius Along Route : Sets the distance from the route to find
waypoints.
2 Edit POI Search Radius Along Route P. 55
•Avoided Area : Specifies areas to avoid when calculating a route.
2Avoided Area P. 56
1Routing
The navigation setti ngs can also be selected from the
navigation menu. Press from the map screen.
Move or to select Destination or Map/
Route . Rotate to select Navigation Settings.
19 ACURA TLX NAVI-31TZ38400.book 49 ページ ２０１８年３月７日　水曜日　午後４時２３分

50
uuRouting uRoute Preference
System Setup
Route Preference
H SETTINGS buttonuNavigation Settings uRouting uRoute Preference
Change the route preference by select ing minimum or maximum driving methods.
1.Rotate to select an item. Press
.
2. Rotate to select Max or Min.
Press .
u Repeat step 1 and 2 as
necessary.1Route Preference
The calculated route may be the shortest route or the
route you would choose. For safety reasons, the
system generally a pplies the following rules to your
route:
•Shortcuts through residential areas are avoided.
•Right turns are favored over left turns or U-turns.
•Time-restricted turns (tur ns prohibited at certain
times of the day) are not used.
Check the ferry schedule when the calculated route
includes ferry route.
ETC is short for the Electronic Toll Collection system.
Server Route
*
•You can view three r outes distributed from
AcuraLink ®.
2 Viewing the Routes P. 141
•Set to On and select Optimal route to select your
desired route.
2 Optimal Routes
* P. 51
* Not available on all models
19 ACURA TLX NAVI-31TZ38400.book 50 ページ ２０１８年３月７日　水曜日　午後４時２３分

51
uuRouting uRoute Preference
System SetupH SETTINGS buttonuNavigation Settings uRouting uRoute Preference
You can select desired routes by sorting th e route list. The three top routes can be
displayed on the Select a route screen.
2Viewing the Routes P. 141
1.Rotate to select Optimal
Routes. Press .
2. Rotate to select a route type.
Press .
3. Rotate to change the order of
the selected route type. Press .
■Optimal Routes*1
Optimal Routes*
Optimal Routes is a subscription service. For more
information, contact an Acura dealer or visit
www.acura.ca/owners/acuralink .
* Not available on all models
19 ACURA TLX NAVI-31TZ38400.book 51 ページ ２０１８年３月７日　水曜日　午後４時２３分

52
uuRouting uUnverified Routing
System Setup
Unverified Routing
H SETTINGS buttonuNavigation Settings uRouting uUnverified Routing
Receive turn-by-turn map and voice guidance in unverified areas.
Rotate to select On or Off . Press
.1 Unverified Routing
Unverified roads are found in rural areas, and
typically include residentia l streets away from the
center of a town. They ma y not be accurate and can
contain errors in locati on, naming, and address
range.
Unverified roads are shown only when viewing the
map in the 1/20, 1/8, 1/4, 1/2, 1 and 2 (mile) / 80,
200, 400, 800 (m), 1.6 and 3.2 (km) map scales.
Differences Off On (factory default)
On or Off? The driver wishes to manually
navigate using the navigation
map and choose the streets that
lead to the destination.The driver chooses to let the
navigation system suggest
possible routing, knowing that
the guidance may not be
accurate.
Route
calculation Route is usually longer, using
verified roads whenever
possible. Route is shorter, but uses
unverified (purple) streets that
may not be accurate.
19 ACURA TLX NAVI-31TZ38400.book 52 ページ ２０１８年３月７日　水曜日　午後４時２３分

53
uuRouting uUnverified Routing
System SetupDifferences Off On (factory default)
Route lineThe route line uses verified
streets only (when possible).
If Straight Line Guide is set to
On , a pink vector line is
displayed on the map that
continually points to your
destination.
2 Straight Line Guide P. 74
A blue-pink route line highlights
suggested unverified streets on
the map while traveling to your
destination.
Cautionary
messages Cautionary pop-up screens and
voice announcements remind
you to obey all traffic
restrictions when
starting route
guidance, approaching an
unverified area, and entering an
unverified street. Cautionary pop-up screens and
voice announcements remind
you to obey all traffic
restrictions when entering an
unverified street.
Guidance
(map/voice)There is no turn-by-turn map or
voice guidance.Voice guidance commands end
with the phrase “if possible” to
remind you to verify all traffic
restrictions.
Directions list A direction list is typically not available. However, depending
on your route, directions are
provided to help you reach the
first available verified road. A direction list is provided
showing street names and turn
symbols in pink.
19 ACURA TLX NAVI-31TZ38400.book 53 ページ ２０１８年３月７日　水曜日　午後４時２３分

54
uuRouting uTraffic Rerouting
System Setup
Traffic Rerouting
H SETTINGS buttonuNavigation Settings uRouting uTraffic Rerouting
A faster route can be calculated based on continuously updated traffic information.
2Traffic ReroutingTM P. 159
Rotate to select an option. Press
.
The following options are available:
• On : The system reroutes automati cally based on traffic information.
• Off (factory default): Disables the feature.
1Traffic Rerouting
You must be in or near a traffic-enabled city to
receive coverage for that area. Traffic information is
available in certain areas in the lower 48 states,
Hawaii, and some cities in Canada. 2 Traffic Information P. 370
Traffic Rerouting requires an AcuraLink Real-Time
Traffic
TM subscription.
2 AcuraLink ® P. 308
Automatic traffic rerouting may not provide a detour
route depending on circumstances.
Canadian models
19 ACURA TLX NAVI-31TZ38400.book 54 ページ ２０１８年３月７日　水曜日　午後４時２３分
