2019 Acura TLX Navigation Manual

87
uuCustomized Features u
Continued
System Setup■List of customizable options
Setup
Group Customizable Features Desc
ription Selectable Settings
Navigation
Settings
DefaultCancels/Resets all customized items in the
Navigation Settings group as default.Yes/No
Personal
Info
Address BookStores new addresses or edits your address book.—
Edit Go HomeSets or edits your home address.—
PIN NumberSets or changes your PIN.—
Previous DestinationDeletes the destination history.—
Category HistoryDeletes the place categories you recently used.—
Download POIEdits and deletes the Imported POI categories.—
Navigation Screen
19 ACURA TLX NAVI-31TZ38400.book 87 ページ ２０１８年３月７日　水曜日　午後４時２３分

88
uuCustomized Features u
System Setup
*1: Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Navigation
SettingsRouting
Route
Preference
Optimal
Routes*
You can select desired routes by sorting the route
list.
2Optimal Routes * P. 51
—
Freeways/
Highways
Change the route preference by selecting
minimum or maximum driving methods.
Max*1/Min
Toll RoadsMax*1/Min
ETC RoadsMax /Min*1
FerriesMax*1/Min
U-TurnMax /Min*1
Server Route*View three routes dis tributed from AcuraLink ®.On /Off*1
Unverified RoutingSets whether you use the route guidance in
unverified areas.On*1/Off
Traffic ReroutingSets whether you use automatic recalculation
based on traffic information.On /Off*1
Edit POI
Search
Radius
Along
RouteOn Freeways/
Highways
Sets the distance from the route to find waypoints.
mile: 1, 2*1, 5, 10mi
km: 1.6, 3*1, 8 , 16km
On Surface
Streetsmile: 1/2*1, 1, 2, 5mi
km: 0.8*1, 1.6 , 3, 8km
Avoided AreaSpecifies areas to avoid when calculating a route.—
* Not available on all models
19 ACURA TLX NAVI-31TZ38400.book 88 ページ ２０１８年３月７日　水曜日　午後４時２３分

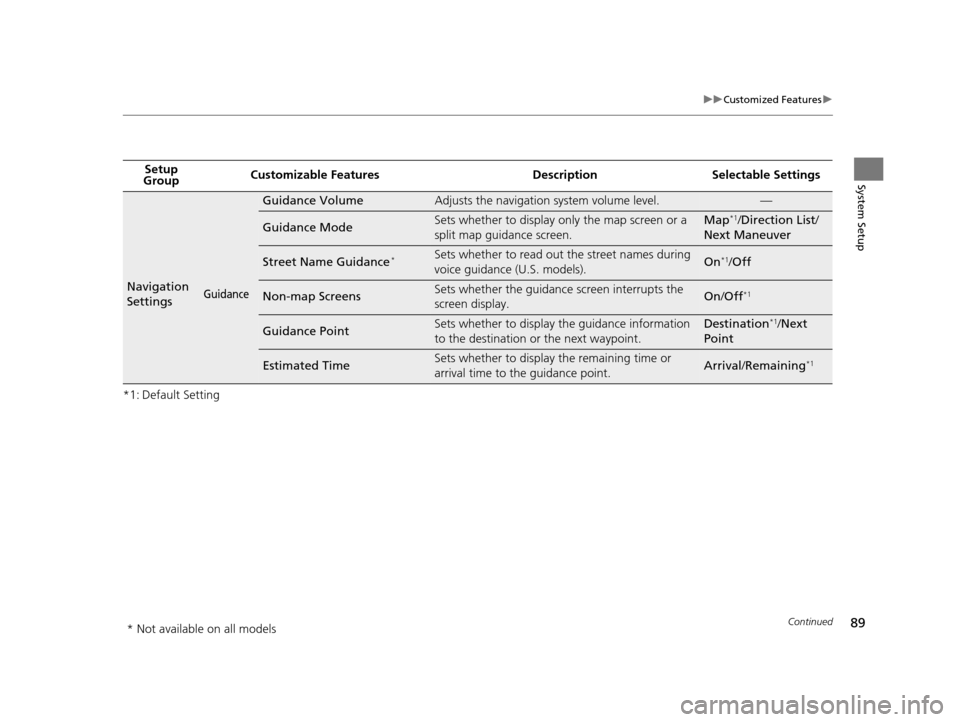

89
uuCustomized Features u
Continued
System Setup
*1: Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Navigation
SettingsGuidance
Guidance VolumeAdjusts the navigation system volume level.—
Guidance ModeSets whether to display only the map screen or a
split map guidance screen.Map*1/Direction List /
Next Maneuver
Street Name Guidance*Sets whether to read out the street names during
voice guidance (U.S. models).On*1/ Off
Non-map ScreensSets whether the guidance screen interrupts the
screen display.On /Off*1
Guidance PointSets whether to display the guidance information
to the destination or the next waypoint.Destination*1/Next
Point
Estimated TimeSets whether to display the remaining time or
arrival time to the guidance point.Arrival /Remaining*1
* Not available on all models
19 ACURA TLX NAVI-31TZ38400.book 89 ページ ２０１８年３月７日　水曜日　午後４時２３分

90
uuCustomized Features u
System Setup
*1: Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Navigation
SettingsMap
Show Icon on MapSelects the icons to display on the map.—
Color (Day)Selects the color of the map for the Day mode.White/Beige*1/Blue /
Black
Color (Night)Selects the color of the map for the Night mode.White /Beige /Blue*1/
Black
ViewSelects the map orientation.North-up*1/ Heading-
up /3D Map
3D Angle AdjustmentAdjusts the viewing angle for the 3D map.—
Straight Line GuideSets whether to display a s traight guideline to the
destination or waypoint.On*1/ Off
Display TrackingSets whether to display the tracking dots on the
map.On /Off*1
Delete TrackingDeletes the tracking dots on the map.—
Correct Vehicle PositionAdjusts the position of the vehicle on the map.—
System Device InformationDisplays database, software, device, and vehicle
identification information.—
Map Data UpdateProvides the status of map database updates.—
19 ACURA TLX NAVI-31TZ38400.book 90 ページ ２０１８年３月７日　水曜日　午後４時２３分

91
uuCustomized Features u
Continued
System Setup
*1: Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Bluetooth/
Phone
Settings Default
Cancels/Resets all customized items in the
Bluetooth/Phone Settings
group as default.Yes
/No
Bluetooth
Bluetooth Turns the Bluetooth® on and off. On*1/Off
Bluetooth Device List Pairs a new phone to HFL, edits or deletes a paired
phone, or creates a security PIN.
2
Pairing a Phone P. 267
—
Edit Pairing Code Changes a pairing code.
2
Changing the Pass-Key P. 270Random /Fixed*1
Phone Edit Speed Dial
Edits, adds or deletes a speed dial entry.
2
Setting Up Speed Dialing P. 274—
Auto Transfer Sets calls to automatically transfer from your
phone to HFL when you enter the vehicle.
On
*1/
Off
Auto Answer Sets whether to automatica
lly answer an incoming
call after about four seconds. On
/Off
*1
Ring Tone Selects the ring tone. Fixed/Mobile Phone*1/
Off
Automatic Phone Sync Sets a phonebook data to be automatically
imported when a phone is paired to HFL.
On
/Off
Use Contact Photo Displays a caller’s picture on an incoming call
screen.
On
*1/
Off
19 ACURA TLX NAVI-31TZ38400.book 91 ページ ２０１８年３月７日　水曜日　午後４時２３分

92
uuCustomized Features u
System Setup
*1: Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Bluetooth/
Phone
Settings Text/
EmailEnable Text/Email
Turns the text/e-mail message function on and off. On
*1/Off
Select Account Selects a mail or text message account. —
New Text/Email Alert Selects whether a pop-up alert comes on the
screen when HFL receives a new text message/
E-mail.
—
19 ACURA TLX NAVI-31TZ38400.book 92 ページ ２０１８年３月７日　水曜日　午後４時２３分

93
uuCustomized Features u
Continued
System Setup
*1: Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Camera
Settings
Rear
Camera*
DefaultCancels/Resets all customized items in the Rear
Camera group as default.Yes/No
Fixed GuidelineSelects whether the fixed guidelines come on the
rear camera monitor.On*1/Off
Dynamic GuidelineSelects whether the dynami c guidelines come on
the rear camera monitor.On*1/ Off
Surround
View
Camera
*
DefaultCancels/Resets all customized items in the
Surround View Camera group as default.Yes/No
Fixed GuidelineSets whether to turn on the reference line display.On*1/Off
Dynamic GuidelineSets whether to turn on th e projection line display.On*1/Off
Auto Show Camera After
ReverseSets the rear view to be automatically switched to
the front view when the g ear position is out of .On/Off*1
Default Camera Mode in
ForwardSets which screen to display when the surround
view camera system is turned on while the vehicle
is moving forward.Front Ground View*1/
Last Used /Front Blind
View /Side View
Default Camera Mode in
ReverseSets which screen to display when the surround
view camera system is turned on while the vehicle
is reversing.Rear Ground View*1/
Last Used /Rear View /
Rear Wide View
* Not available on all models
19 ACURA TLX NAVI-31TZ38400.book 93 ページ ２０１８年３月７日　水曜日　午後４時２３分

94
uuCustomized Features u
System Setup
*1: Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Camera
Settings
Surround
View
Camera
*
Show Camera When
DeceleratingSets the screen to automatically return to the
camera view at vehicle speeds of 7 mph (12 km/h)
or lower.
On /Off*1
Clear Parking Guidance
AutomaticallyTurns the parking guide lines on and off.On*1/Off
Cross
Traffic
Monitor
Cross Traffic MonitorTurns the cross traffic monitor feature on and off.
See the owner’s manual.On /Off
* Not available on all models
19 ACURA TLX NAVI-31TZ38400.book 94 ページ ２０１８年３月７日　水曜日　午後４時２３分
