2019 Acura TLX Navigation Manual

303Continued
Bluetooth® HandsFreeLink ®
HFL Menus
The power mode must be in ACCESSORY or ON to use HFL.
■Bluetooth/Phone Settings screen
1.Press the SETTINGS button.
2. Select Bluetooth/Phone
Settings .1HFL Menus
To use HFL, you must first pair your Bluetooth®-
compatible mobile phone to the system while the
vehicle is parked.
Some functions are limited while driving. A message
appears on the screen when the vehicle is moving
and the operation is canceled.
BluetoothDefault
Bluetooth
Device List
Connect Both
Connect to Phone
Connect to Audio
Add Bluetooth Device
Edit Device Name
Edit PIN
Replace This Device(Existing entry list)
Delete This Device
Edit the user name of a paired phone.
Create a security PIN for a paired phone.
Replace a previously paired phone
with a new phone.
Delete a previously paired phone.Connect a phone to use the HFL.
Connect a phone to use the
Bluetooth®
audio and smartphone function.
Connect the device to use the all
functions of Bluetooth ® connection.
Pair a phone to the system.
Disconnect
Cancel/Reset all customized items in the Bluetooth/Phone Settings group as default.
Disconnect a paired phone from the
system.
Edit Pairing
CodeChange the pass-key.
BluetoothTurn the Bluetooth ® on and off.
19 ACURA TLX NAVI-31TZ38400.book 303 ページ ２０１８年３月７日　水曜日　午後４時２３分

304
uuHFL Menus u
Bluetooth® HandsFreeLink ®
Text/
Email*1
Import from Phonebook
Manual InputEnter a phone number to store as a
speed dial number.
Select a phone number from the
phonebook to store as a speed dial
number.
Select a phone number from the call
history to store as a speed dial
number.
Edit a previously stored speed dial.
Change a number.
Create or delete a voice tag.
Delete a previously stored speed dial
number.
Delete
Set calls to automatically transfer from your phone to HFL when you enter the vehicle. Delete all the previously stored speed dial numbers.
Edit Speed Dial
Auto Transfer
Auto Answer
Automatic Phone Sync
Use Contact Photo
Enable Text/Email
Select Account
New Text/Email Alert
Ring Tone
Delete All
New Entry
(Existing entry list)
Import from Call
History
Edit
Set whether to automatically answer an incoming call after about four seconds.
Select the ring tone.
Set phonebook data to be automatically imported when a phone is paired to HFL.
Display a caller’s picture on an incoming call screen.
Turn the text/e-mail message function on and off.
Select a text or e-mail message account.
Select whether a pop-up alert comes on the screen when HFL receives a new text/e-mail message.
*1: Appears only when a phone is connected to HFL.
Phone
19 ACURA TLX NAVI-31TZ38400.book 304 ページ ２０１８年３月７日　水曜日　午後４時２３分

305
uuHFL Menus u
Continued
Bluetooth® HandsFreeLink ®
■Phone Menu screen
Press the PHONE button to display
the menu items.
Phonebook*1
Speed Dial*1
(Existing entry list)
More Speed Dials
Import from Phonebook
Display the paired phone’s phonebook. Enter a phone number to store as a speed dial number.
Manual Input
Import from Call
History
New EntrySelect a phone number from the phonebook to store as
a speed dial number.
Select a phone number from the call history to store as
a speed dial number.
Dial the selected number in the speed dial list.
Display another paired phone’s speed dial list.
*1: Appears only when a phone is connected to HFL. Call History
*1
All
Dialed
Received
Missed
Display the last 20 outgoing, incoming and missed calls.
Display the last 20 outgoing calls.
Display the last 20 incoming calls.
Display the last 20 missed calls.
19 ACURA TLX NAVI-31TZ38400.book 305 ページ ２０１８年３月７日　水曜日　午後４時２３分

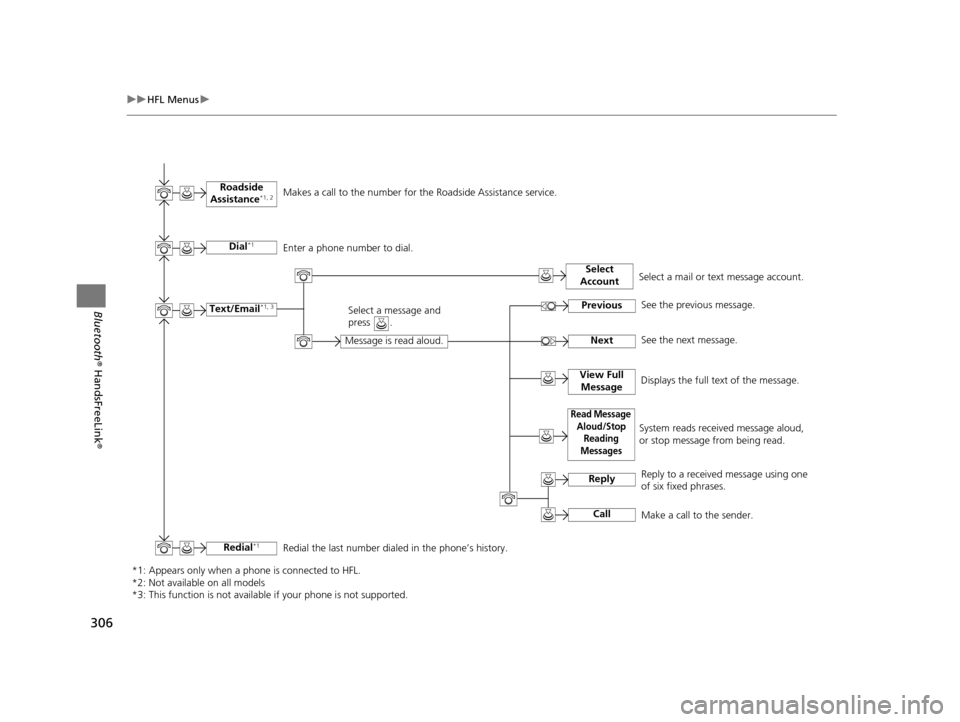

306
uuHFL Menus u
Bluetooth® HandsFreeLink ®
*1: Appears only when a phone is connected to HFL.
*2: Not available on all models
*3: This function is not available if your phone is not supported.
Redial*1Redial the last number dialed in the phone’s history.
Roadside
Assistance
*1, 2
Text/Email*1, 3
Read Message Aloud/Stop Reading
Messages
Previous
Next
Reply
Call
Select
Account
Makes a call to the number for the Roadside Assistance service.
Message is read aloud.
Select a message and
press .
System reads received message aloud,
or stop message from being read. See the previous message.
See the next message.
Reply to a received message using one
of six fixed phrases.
Make a call to the sender.
Select a mail or text message account.
Dial
*1Enter a phone number to dial.
View Full Message
Displays the full text of the message.
19 ACURA TLX NAVI-31TZ38400.book 306 ページ ２０１８年３月７日　水曜日　午後４時２３分

307
AcuraLink® Messages
This section describes how Acura directly communicates important information to you
regarding your vehicle.
AcuraLink®............................................. 308
In Case of Emergency........................... 308
Security Features .................................. 311
Operator Assistance ............................. 312
AcuraLink ® Message ............................ 313
AcuraLink ® Subscription Status ............. 317
19 ACURA TLX NAVI-31TZ38400.book 307 ページ ２０１８年３月７日　水曜日　午後４時２３分

308
AcuraLink® Messages
AcuraLink®
A subscription-based service that provides convenient features such as voice
communication in case of emergency, online security, one-on-one operator
assistance, and the transmission of important messages regarding your vehicle’s
status.
For information on traffic rerouting and traffi c information updates, provided by the
AcuraLink ® server.
In Case of Emergency
Your vehicle may not be able to connect to the operator if the battery level is low,
the line is disconnected or you do not have adequate mobile coverage.
You cannot use emergency services when:
• You travel outside the AcuraLink ® service coverage areas.
• There is a problem with the connecting devices, such as the ASSIST button,
microphone, speakers, or the unit itself.
• You are not subscribed to the service or your subscription is no longer valid.
1 AcuraLink ®
AcuraLink ® also provides services you can operate
from the Internet or your smartphone.
To subscribe to AcuraLink ®, or to get more
information about all of its features, contact an Acura
dealer or visit owners.acura.com (U.S.) or
www.acura.ca/owners/acuralink (Canada).
Canadian models
1In Case of Emergency
You cannot operate othe r navigation or phone-
related functions using the screens while talking to
the operator.
Only the operator can terminate the connection to
your vehicle.
19 ACURA TLX NAVI-31TZ38400.book 308 ページ ２０１８年３月７日　水曜日　午後４時２３分

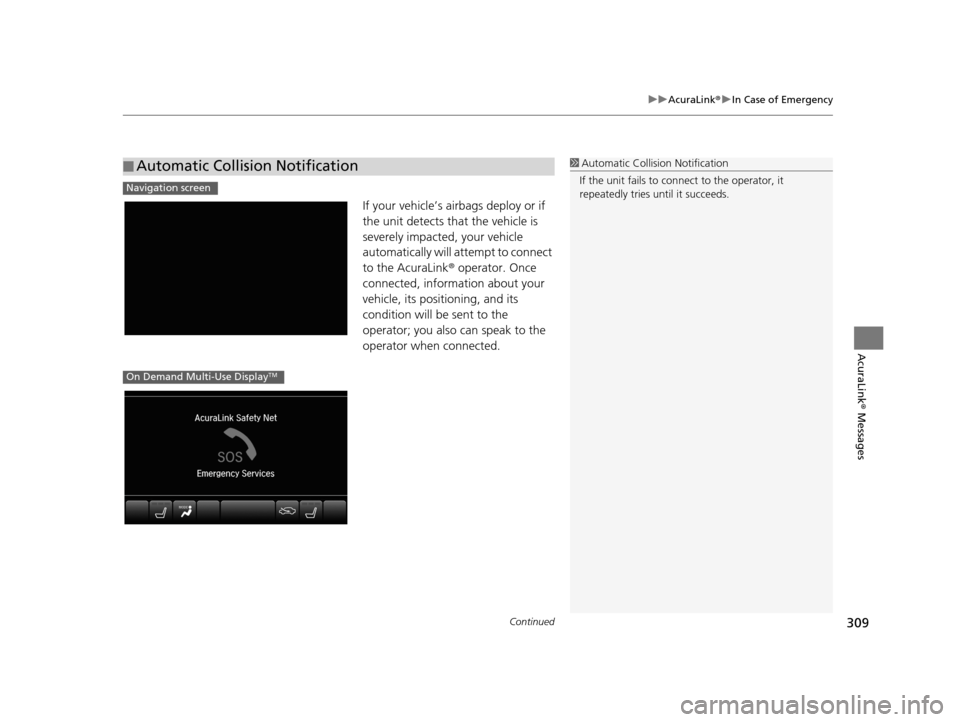

Continued309
uuAcuraLink ®u In Case of Emergency
AcuraLink® Messages
If your vehicle’s airbags deploy or if
the unit detects that the vehicle is
severely impacted, your vehicle
automatically will attempt to connect
to the AcuraLink ® operator. Once
connected, information about your
vehicle, its positioning, and its
condition will be sent to the
operator; you also can speak to the
operator when connected.
■ Automatic Collision Notification1
Automatic Collision Notification
If the unit fails to connect to the operator, it
repeatedly tries until it succeeds.
Navigation screen
On Demand Multi-Use DisplayTM
19 ACURA TLX NAVI-31TZ38400.book 309 ページ ２０１８年３月７日　水曜日　午後４時２３分

uuAcuraLink ®u In Case of Emergency
310
AcuraLink® Messages
If you need to talk to the AcuraLink®
operator in an emer gency situation,
you can manually connect to them by
pressing the ASSIST button with the
power mode in ACCESSORY or ON.
1. Open the cover attached to the
ceiling console.
2. Press the ASSIST button.
u You are connected to the
AcuraLink ® operator.
■ Manual Operator Connection1
Manual Operator Connection
Do not press the button while driving. When you
need to contact the operato r, park the vehicle in a
safe place.
If the unit fails to connect to the operator, it
automatically cancels the action after three minutes.
In an emergency, the cover can be broken through to
press the ASSIST button.
ASSIST
Button
