2019 Acura TLX Navigation Manual

287
uuBluetooth ® HandsFreeLink ®u Making a Call
Continued
Bluetooth ® HandsFreeLink ®
Making a Call
You can make calls by inputting any phone number, or by using the imported
phonebook, call history, speed dial entries, or redial.1Making a Call
Any voice-tagged speed di al entry, phonebook name,
or number can be dialed by voice from most screens.
Press the button and say ” Call“ and the voice tag
name, ”Call by name “ and the phonebook name, or
”Call “ and the phone number.
The maximum range be tween your phone and
vehicles is 30 ft (10 m).
Once a call is connected, you can hear the voice of
the person you are call ing through the audio
speakers.
While there is an active connection with Apple
CarPlay ®, phone calls cannot be made with
HandsFreeLink ® and are only made from Apple
CarPlay ®.
19 ACURA TLX NAVI-31TZ38400.book 287 ページ ２０１８年３月７日　水曜日　午後４時２３分

uuBluetooth ® HandsFreeLink ®u Making a Call
288
Bluetooth ® HandsFreeLink ®
HPHONE button uPhonebook
1.The phonebook is stored
alphabetically.
u You can use the keyboard on
the touchscreen for an
alphabetical search.
2. Rotate to select a number.
Press .
u Dialing starts automatically.
■Using the Phonebook1
Using the Phonebook
This function is disabled while the vehicle is moving.
However, you can call a stored voice-tagged speed
dial number, phonebook name, or number using
voice commands. 2 Setting Up Speed Dialing P. 274
You can use the keyboard on the On Demand Multi-
Use Display
TM for an alphabetical search.
19 ACURA TLX NAVI-31TZ38400.book 288 ページ ２０１８年３月７日　水曜日　午後４時２３分

Continued289
uuBluetooth ® HandsFreeLink ®u Making a Call
Bluetooth ® HandsFreeLink ®
HPHONE button uDial
1.Use the keyboard on the On
Demand Multi-Use Display
TM to
input numbers.
2. Select .
■Entering a Phone Number1
Entering a Phone Number
This function is disabled while the vehicle is moving.
However, you can call a stored voice-tagged speed
dial number, phonebook name, or number using
voice commands. 2 Limitations for Manual Operation P. 266
2 Setting Up Speed Dialing P. 274
19 ACURA TLX NAVI-31TZ38400.book 289 ページ ２０１８年３月７日　水曜日　午後４時２３分

290
uuBluetooth ® HandsFreeLink ®u Making a Call
Bluetooth ® HandsFreeLink ®
HPHONE button uRedial
You can display a caller’s pict ure on an incoming call screen.
Dialing starts automatically.
■Using Redial
19 ACURA TLX NAVI-31TZ38400.book 290 ページ ２０１８年３月７日　水曜日　午後４時２３分

Continued291
uuBluetooth ® HandsFreeLink ®u Making a Call
Bluetooth ® HandsFreeLink ®
HPHONE button uCall History
Call history is stored by All, Dialed , Received , and Missed .
1. Move or to select All,
Dialed , Received , or Missed .
2. Rotate to select a number.
Press .
u Dialing starts automatically.
1. Press the button.
2. Move the left selector wheel right
to select Call History.
3. Roll the left selector wheel to
select a number.
4. Push the left selector wheel or the
button.
u Dialing starts automatically.
■Using Call History1
Using Call History
The call history disp lays the last 20 dialed, received, or
missed calls.
(Appears only when a phone is connected to HFL.)
These icons next to th e number indicate the
following:
•: Dialed calls•: Received calls
•: Missed calls
The call history disp lays the last 12 dialed, received, or
missed calls.
Steering switchesSteering switches
19 ACURA TLX NAVI-31TZ38400.book 291 ページ ２０１８年３月７日　水曜日　午後４時２３分

uuBluetooth ® HandsFreeLink ®u Making a Call
292
Bluetooth ® HandsFreeLink ®
HPHONE button uSpeed Dial
Rotate to select a number. Press .
u Dialing starts automatically.
1. Press the button.
2. Move the left selector wheel left to
select Speed Dial .
3. Roll the left selector wheel to
select a number.
4. Push the left selector wheel or the
button.
u Dialing starts automatically.
■Using Speed Dial1
Using Speed Dial
Rotate to select More Speed Dials to view
another paired phone’s spee d dial list. You can make
a call from that list using the currently connected
phone.
When a voice tag is stored, press the button to
call the number using the voice tag. 2 Setting Up Speed Dialing P. 274
Any voice-tagged speed di al entry, phonebook name
or number can be dialed by voice from any screen.
Press the button and follow the prompts.
The speed dial displays the 20 speed dial entries.
Steering switchesSteering switches
19 ACURA TLX NAVI-31TZ38400.book 292 ページ ２０１８年３月７日　水曜日　午後４時２３分

293
uuBluetooth ® HandsFreeLink ®u Receiving a Call
Bluetooth ® HandsFreeLink ®

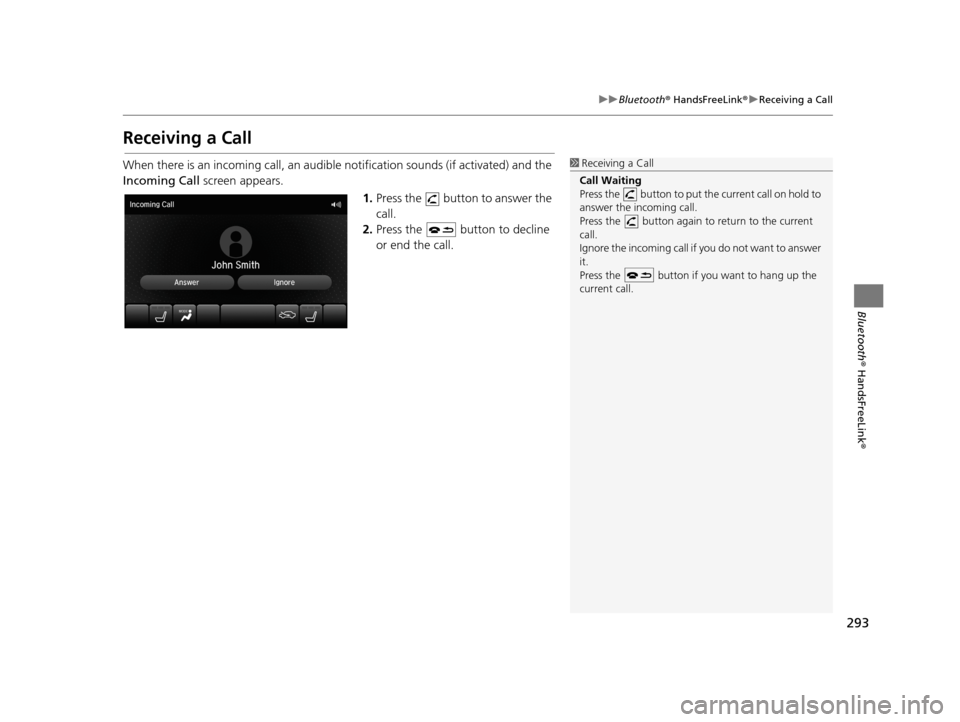

Receiving a Call
When there is an incoming call, an audible notification sounds (if activated) and the
Incoming Call screen appears.
1.Press the button to answer the
call.
2. Press the button to decline
or end the call.1Receiving a Call
Call Waiting
Press the button to put the current call on hold to
answer the incoming call.
Press the button again to return to the current
call.
Ignore the incoming call if you do not want to answer
it.
Press the button if you want to hang up the
current call.
19 ACURA TLX NAVI-31TZ38400.book 293 ページ ２０１８年３月７日　水曜日　午後４時２３分

294
uuBluetooth ® HandsFreeLink ®u Options During a Call
Bluetooth ® HandsFreeLink ®
Options During a Call
The available options are shown on the On Demand Multi-Use DisplayTM.
Select the option.
u The mute icon appears when
Mute is selected. Select Mute
again to turn it off.
The following options are available during a call:
• Phone Call Active - Transfer to Mobile : Transfer a call from HFL to your phone.
• Mute : Mute your voice.
• Transfer to Mobile : Transfer a call from HFL to your phone.
• Touch Tones : Send numbers during a call. This is useful when you call a menu-
driven phone system.
• End Call : End the call.1Options During a Call
•Touch Tones : Available on some phones.
Navigation Screen
On Demand Multi-Use DisplayTM
19 ACURA TLX NAVI-31TZ38400.book 294 ページ ２０１８年３月７日　水曜日　午後４時２３分
