2018 PEUGEOT EXPERT Owners Manual

167
The Top Tether secures the upper strap of child
seats that have them. In case of frontal impact,
this device limits the tilting of the child seat
forward.
This ISOFIX mounting system provides fast,
reliable and safe fitting of the child seat in your
vehicle.
The ISOFIX child seats are fitted with two
latches which are secured on the two front
rings A.
Some also have an upper strap which is
attached to the rear ring B .
To secure the child seat to the Top Tether:
-

r
emove and stow the head restraint before
installing a child seat on this seat (refit it
once the child seat has been removed),
-

r
un the strap of the child seat behind the top
of the seat backrest, centring it between the
holes for the head restraint rods,
-

f
ix the hook of the upper strap to the rear
ring B ,
-

t
ighten the upper strap. The incorrect installation of a child seat in
a vehicle compromises the protection of
the child in the event of an accident.
Strictly follow the fitting instructions
provided in the user guide supplied with
the child seat.
For information on the possibilities for
installing ISOFIX child seats in your
vehicle, refer to the locations table.
5
Safety

168
ISOFIX child seats
recommended by
PEUGEOT
PEUGEOT offers a range of ISOFIX child
seats listed and type approved for your
vehicle.
Also consult the installation notes of the
child seat’s manufacturer to find out how
to install and remove the seat.
"RÖMER Baby- Safe Plus and its ISOFIX base "
(size category: E )
Group 0+: from bir th to 13 kg
I
nstalled "rearward facing" using an ISOFIX base which is attached to rings A .
The base has a height-adjustable support leg which rests on the vehicle's floor.
This child seat can also be secured with a
seat belt. In this case, only the shell is used and must be attached to the vehicle seat using the three-point seat belt. "
ISOFIX RÖMER Duo Plus "
(size category: B1 )
Group 1: 9-18 kg
Installed only in the "forward facing" position. Is attached to rings A and upper ring B ,
referred to as TOP TETHER, using an upper strap.
Three seat body angles: sitting, reclining, lying down.
This child seat can also be used on seats
not equipped with ISOFIX mountings. In this
case, it must be secured to the vehicle's seat by the three-point seat belt. Adjust the front
seat of the vehicle so that the child's feet do not touch the backrest.
Safety

169
Locations for ISOFIX child seats
In line with European regulations, this table indicates the options for installing ISOFIX child seats on the vehicle seats fitted with ISOFIX mountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A to G, is indicated on the child
seat next to the ISOFIX logo.
Weight of the child and indicative age
Under 10 kg (group 0)
Up to about 6 months Under 10 kg
(group 0)
Under 13 kg (group 0+)
Up to about 1 year 9-18 kg (group 1)
From about 1 to 3 years
Type of ISOFIX child seat Carr y- cotrearward facing rearward facing forward facing
ISOFIX size categor y F G C D E C D A B B1
Row 1 2-seat bench seat
Not ISOFIX
Individual seat Not ISOFIX
Row 2
with 2-seat
bench seat in row 1 Left outer seat
XIUF
Centre seat Not ISOFIX
Right outer seat XIUF
Row 2 with individual seats in row 1 Left outer seat
IL IL (4)IL IL (4)IL IUF
Centre seat Not ISOFIX
Right outer seat IL IL (4)IL IL (4)IL IUF
5
Safety

170
Weight of the child and indicative age
Under 10

kg
(group 0)
Up to about 6

months Under 10
kg
(group 0)
Under 13
kg
(group 0+)
Up to about 1
year 9-18
kg (group 1)
From about 1
to 3 years
Type of ISOFIX child seat Carr y- cot (1)rearward facing rearward
facing forward facing
ISOFIX size categor y F G C D E C D A B B1
Row 1

(a) Individual passenger
seat or 2-seat bench seat with passenger
airbag deactivated "OFF " Not ISOFIX
with passenger
airbag activated "ON " Not ISOFIX
Row 2 Left outer seat
XIL (3) IL (2) IL IL (2) I U F, I L
Centre seat (b) XIL (3) IL (2) IL IL (2) I U F, I L
Right outer seat XIL (3) IL (2) IL IL (2) I U F, I L
Safety

171
Weight of the child and indicative age
Under 10

kg
(group 0)
Up to about 6

months Under 10
kg
(group 0)
Under 13
kg
(group 0+)
Up to about 1
year 9-18
kg (group 1)
From about 1
to 3 years
Type of ISOFIX child seat Carr y- cot (1)rearward facing rearward
facing forward facing
ISOFIX size categor y F G C D E C D A B B1
Row 3 Fixed rear seat and
bench seat Left outer seat
XXXI U F, I L
Centre seat (b) XXXI U F, I L
Right outer seat XXXI U F, I L
Fixed one-piece bench seat Left outer seat
XXX X
Centre seat (b) XX XX
Right outer seat XX XX
5
Safety

172
(a)Refer to the legislation in force in your
country before carrying your child in this
seating position.
(b) The seat can be installed centrally in the
vehicle; it then prevents the use of the
outer seats.
IUF Seat suitable for installing an I sofix
U niversal seat, " For ward facing", secured
using the upper strap.
IL Seat suitable for an I sofix semi-universaL
child seat which is either:
-

"
rear ward facing" fitted with an upper
strap or a support leg,
-

"
for ward facing" fitted with a support
leg,
-

a c
arry-cot seat fitted with an upper
strap or a support leg.
X Seat unsuitable for the installation of an
ISOFIX seat or cot of the weight group
indicated.
(1) The installation of a cot on this seat may
prevent the use of one or more of the
other seats in this row.
(2) Installation possible only behind the
driver's seat. For more information on the ISOFIX
mountings
and in particular the upper
strap, refer to the corresponding section.
Remove and stow the head restraint
before installing a child seat on a
passenger seat.
Refit the head restraint when the child
seat is removed.
Key(3) Installation possible only behind the
driver's seat with individual passenger
seat.
(4) The front seat must be adjusted so that
there is no contact between the child in
row 2 and the seat immediately in front
(with the front seat adjusted to 2 notches
ahead of the centre of the slide).
Safety

173

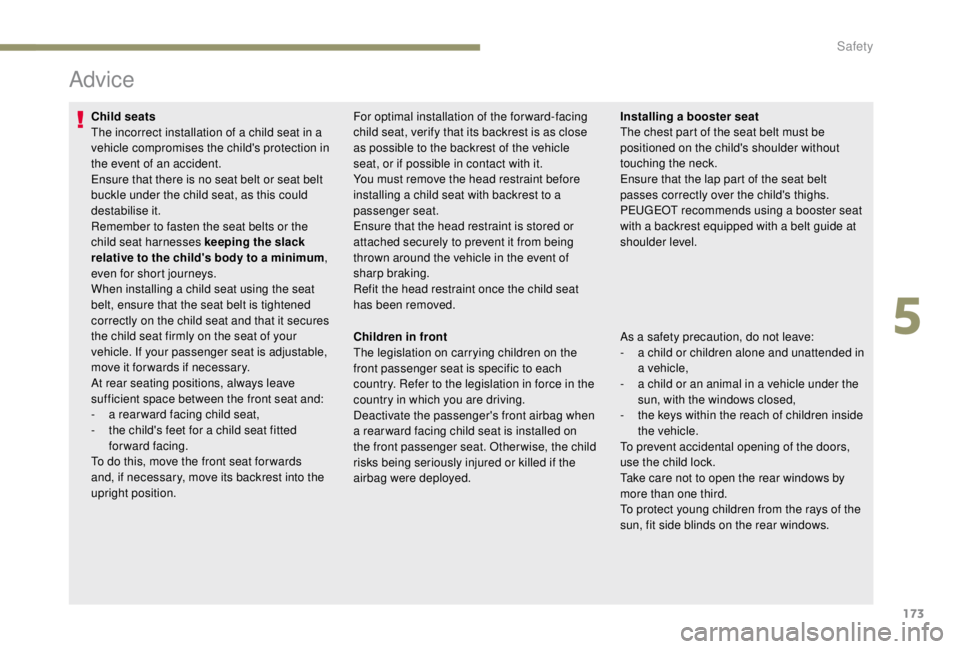

Advice
Child seats
The incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Ensure that there is no seat belt or seat belt
buckle under the child seat, as this could
destabilise it.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack
relative to the child's body to a minimum,
even for short journeys.
When installing a child seat using the seat
belt, ensure that the seat belt is tightened
correctly on the child seat and that it secures
the child seat firmly on the seat of your
vehicle. If your passenger seat is adjustable,
move it for wards if necessary.
At rear seating positions, always leave
sufficient space between the front seat and:
-

a r
ear ward facing child seat,
-

t
he child's feet for a child seat fitted
forward facing.
To do this, move the front seat for wards
and, if necessary, move its backrest into the
upright position. For optimal installation of the forward-facing
child seat, verify that its backrest is as close
as possible to the backrest of the vehicle
seat, or if possible in contact with it.
You must remove the head restraint before
installing a child seat with backrest to a
passenger seat.
Ensure that the head restraint is stored or
attached securely to prevent it from being
thrown around the vehicle in the event of
sharp braking.
Refit the head restraint once the child seat
has been removed.
Children in front
The legislation on carrying children on the
front passenger seat is specific to each
country. Refer to the legislation in force in the
country in which you are driving.
Deactivate the passenger's front airbag when
a rear ward facing child seat is installed on
the front passenger seat. Otherwise, the child
risks being seriously injured or killed if the
airbag were deployed.
Installing a booster seat
The chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
PEUGEOT recommends using a booster seat
with a backrest equipped with a belt guide at
shoulder level.
As a safety precaution, do not leave:
-

a c
hild or children alone and unattended in
a vehicle,
-

a c
hild or an animal in a vehicle under the
sun, with the windows closed,
-

t
he keys within the reach of children inside
the vehicle.
To prevent accidental opening of the doors,
use the child lock.
Take care not to open the rear windows by
more than one third.
To protect young children from the rays of the
sun, fit side blinds on the rear windows.
5
Safety

174
Manual child lock
Mechanical system to prevent opening of the
sliding side door using its interior lever.
Electric child lock
Remote control system to
prevent opening of the rear doors
(sliding side door(s), side-hinged
rear doors or tailgate) using their
interior controls.
Remote control system to
prevent opening of the electric
sliding side door(s) using their
interior controls.
Activation
F With the ignition on, press this button.
Deactivation
F With the ignition on, press this button again.
The indicator lamp in the button comes on,
accompanied by a message confirming
activation.
This indicator lamp remains on the whole time
that the child lock is activated.
It is still possible to open the doors from the
outside. The indicator lamp in the button goes off,
accompanied by a message to confirm
deactivation.
This indicator lamp remains off while the child
lock is switched off.
In the event of a serious impact, the
electric child lock is deactivated (child lock
off) automatically.
Any other state of the indicator lamp
indicates a fault with the electric child
locks.
Have it checked by a PEUGEOT dealer or
a qualified workshop.
This system is independent and in no
circumstances does it take the place of
the central locking control.
Do not drive with the sliding side door
open.
Check the status of the child locks each
time you switch on the ignition.
Always remove the key from the ignition
when leaving the vehicle, even for a short
time.
Locking
Turn the control on the edge of the
side door upwards.
Unlocking
Turn the control on the edge of the
side door downwards.
Safety
