95
Removable flap
Removing the flap
F While holding the flap with one hand, turn the control at the top of the flap with the
other hand to release it.
F

L
ower the flap to remove it from its housing. F

S
tow it behind the driver’s seat, clipping it
into the attachment lugs.
F
T
urn the control at the top of the flap to
release it.
Repositioning
F Tilt the flap, yellow hinges pointing downwards.
F

P
ut the hinges in their housing then press
back and down (to avoid vibrations).
3
Ease of use and comfort

96
Folding seat cushion
Raising the seat cushion
F With one hand, give a firm for ward pull on the strap to release the seat cushion. Never put your hand
underneath the seat
cushion to guide it
upwards, you could get
your fingers trapped.
Always use the strap.
F
A r
am lifts the seat against the backrest.
F

W
ith one hand, lift the flap to close it again,
then with the other hand turn the control at
the top of the flap to lock it. When the side seat
is up and the flap is
removed, you must
install the anti-slip
net.
Refer to the Anti-slip
net
section.
Lowering the seat cushion
F Remove the anti-slip net.
F
T o fit the seat cushion back into place,
press firmly on the top of the seat with one
hand to lower the seat cushion until it locks
into the seat position.
Ease of use and comfort

97

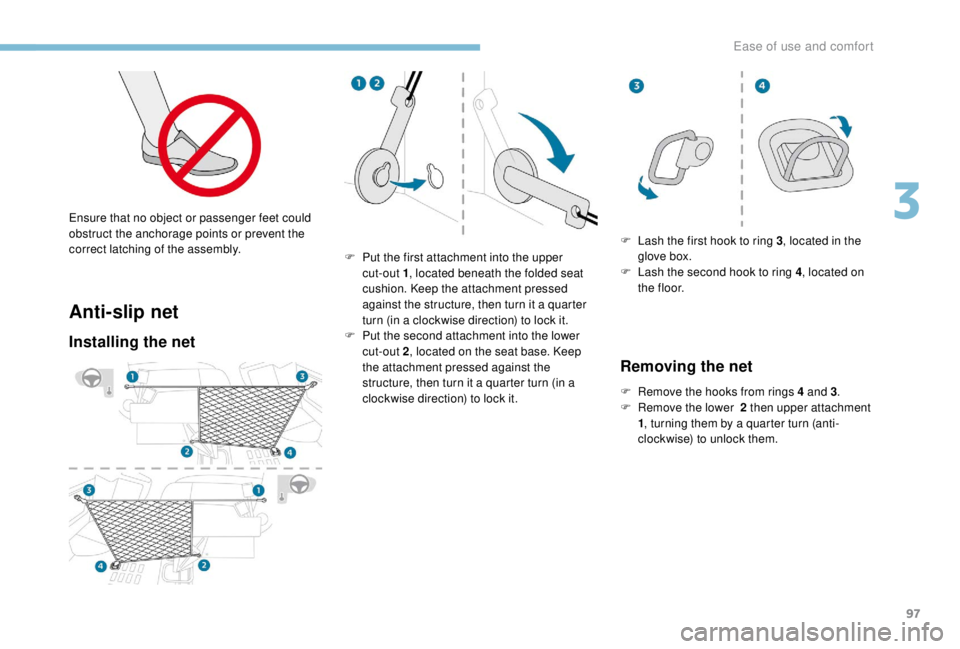

Anti-slip net
Installing the net
F Put the first attachment into the upper cut-out 1 , located beneath the folded seat
cushion. Keep the attachment pressed
against the structure, then turn it a quarter
turn (in a clockwise direction) to lock it.
F

P
ut the second attachment into the lower
cut-out 2 , located on the seat base. Keep
the attachment pressed against the
structure, then turn it a quarter turn (in a
clockwise direction) to lock it.
Ensure that no object or passenger feet could
obstruct the anchorage points or prevent the
correct latching of the assembly.
F
L
ash the first hook to ring 3
, located in the
glove box.
F L ash the second hook to ring 4, located on
t h e f l o o r.
Removing the net
F Remove the hooks from rings 4 and 3.
F R emove the lower 2 then upper attachment
1 , turning them by a quarter turn (anti-
clockwise) to unlock them.
3
Ease of use and comfort

98

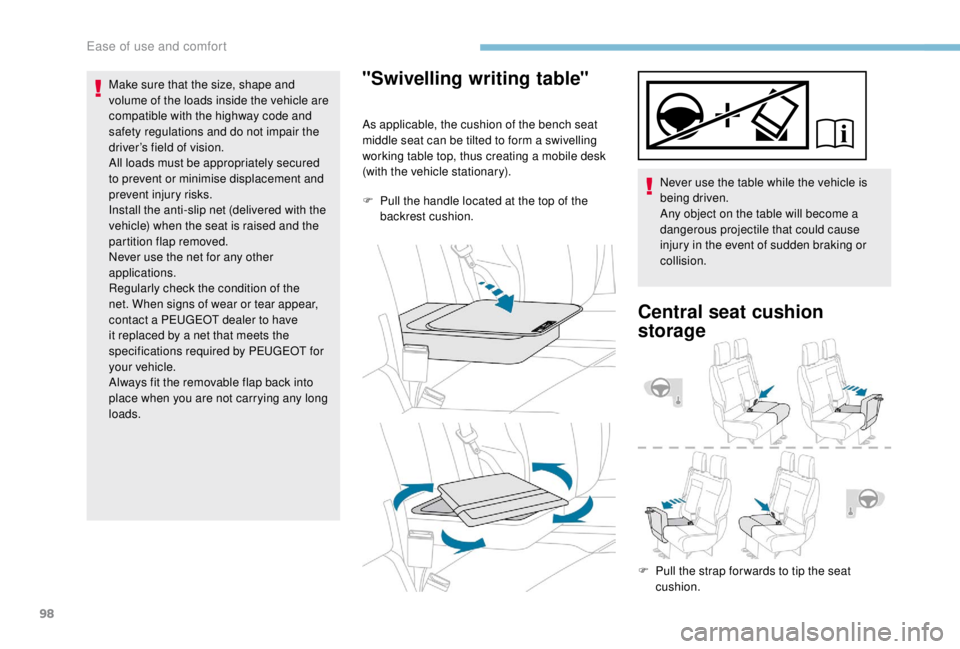

Make sure that the size, shape and
volume of the loads inside the vehicle are
compatible with the highway code and
safety regulations and do not impair the
driver’s field of vision.
All loads must be appropriately secured
to prevent or minimise displacement and
prevent injury risks.
Install the anti-slip net (delivered with the
vehicle) when the seat is raised and the
partition flap removed.
Never use the net for any other
applications.
Regularly check the condition of the
net. When signs of wear or tear appear,
contact a PEUGEOT dealer to have
it replaced by a net that meets the
specifications required by PEUGEOT for
your vehicle.
Always fit the removable flap back into
place when you are not carrying any long
loads."Swivelling writing table"
As applicable, the cushion of the bench seat
middle seat can be tilted to form a swivelling
working table top, thus creating a mobile desk
(with the vehicle stationary).
F
P
ull the handle located at the top of the
backrest cushion. Never use the table while the vehicle is
being driven.
Any object on the table will become a
dangerous projectile that could cause
injury in the event of sudden braking or
collision.
Central seat cushion
storage
F Pull the strap for wards to tip the seat
cushion.
Ease of use and comfort

99
Fixed one-piece bench seat
The different levels of equipment and
adjustments described hereafter vary
according to the version and the configuration
of your vehicle.For more information on the Seat belts
,
refer to the corresponding section.
Angled head restraints
F To raise a head restraint, pull it up until it engages in its notches.
F

T
o remove the head restraint, press lug A
and pull the head restraint upward.
F

T
o put it back in place, engage the head
restraint rods in the apertures keeping them
in line with the seat backrest.
F

T
o lower it, press on lug A and on the head
restraint at the same time.
The bench seat has a one-piece backrest that
may be fixed or foldable (table position).
Access to row 3
F Using the handle, release the rear feet then
tip the bench seat for ward.
F

T
o return it, tip the bench seat towards the
rear until the feet lock into place.
It is not necessary to fold the backrest
(table position) to tip the bench seat for
access to row 3.
3
Ease of use and comfort

100
Folding the backrest to the
table position
F Put the head restraints into the low position.
F
F
rom the rear, lower the handle to release
the backrest.
F

F
rom the front, raise the handle to release
the backrest.
F

F
old the backrest onto the cushion.
F

T
o return the backrest to its normal position,
raise the handle and pull the backrest up. Do not leave objects (such as a bag or
toys) on the cushion when folding the
backrest.
Tilting
F If your vehicle has the facility, place the
backrest in the table position.
F

U
sing the handle, release the rear feet then
tip the bench seat for ward.
F

T
o return the seat, tip the bench seat
towards the rear until the feet lock into
place. F

R
elease the front feet using the handles.
F

D
isengage the bench seat from its
anchorages.
F

R
emove the bench seat.
If removing and storing a bench seat out
of the vehicle, ensure that it is placed in a
clean area, so as to avoid introducing any
foreign bodies into the mechanisms.
Removing a seat
F If your vehicle has the facility, place the backrest in the table position.
F

T
ip the bench seat for ward.
Ease of use and comfort

101
The bench seat is not designed for any
other purpose than on-board the vehicle.
It has mechanisms and may not operate
correctly if used inappropriately or
dropped.
Refitting
F Check that there is no object obstructing the anchorages and preventing the feet locking
into place.
F

E
ngage the front feet in the anchorages on
the floor (as shown above). F

L
ock the front feet using the handles.
F
T
ip the bench seat toward the rear until the
rear feet lock into place.
Be aware of the feet of passengers when
refitting a seat.
F
I
f your vehicle has the facility, pull the
control and raise the backrest (from the
rear, lower the handle).
Check that the seat has correctly engaged
in its anchorages on the floor when
returned to the seating position. Ensure that no object, or the feet of a
passenger seated at the rear, could
obstruct the anchorage points or prevent
the correct latching of the assembly.
3
Ease of use and comfort

102
Fixed rear seat and bench
seat
The different levels of equipment and
adjustments described hereafter vary
according to the version and the configuration
of your vehicle.
The seat has a backrest that may be fixed or
foldable (table position).
The bench seat has a one-piece backrest that
may be fixed or foldable (table position). For more information on the Seat belts
,
refer to the corresponding section.
Angled head restraints
F To raise a head restraint, pull it up until it engages in its notches.
F

T
o remove the head restraint, press lug A
and pull the head restraint upward.
F

T
o put it back in place, engage the head
restraint rods in the apertures keeping them
in line with the seat backrest.
F

T
o lower it, press on lug A and on the head
restraint at the same time.
Access to row 3
(example of an individual seat)
F

U
sing the handle, release the rear feet then
tip the seat for ward.
F

T
o return the seat to the normal position, tip
the seat backwards until it engages in its
anchorages.
It is not necessary to fold the backrest
(table position) to tip the bench seat for
access to row 3.
