2018 MITSUBISHI L200 Owner's Manual (in English)

Force limiter system
E00406001280
In the event of a collision, each force limiter
system will effectively absorb the load ap- plied to the seat belt so as to minimize the
impact to the passenger.Child restraint
E00406403552
When transporting children in your vehicle,some type of child restraint system should al-
ways be used according to the size of the child. This is required by law in most coun-
tries.
The regulations concerning driving with chil- dren in the front seat may differ from country
to country. You are advised to comply with the relevant regulations.
WARNINGl When possible, put children in the rear
seat. Accident statistics indicate that chil- dren of all sizes and ages are safer when
properly restrained in the rear seat rather than in the front seat.
l Holding a child in your arms is no substi-
tute for a restraint system. Failure to use
a proper restraint system can result in se- vere or fatal injury to the child.
l Each child restraint device or fixing is to
be used only by one child.WARNINGl When attaching a child restraint system
to the rear seat, adjust the front seat to
prevent the front seatbacks from touching the child’s feet and child restraint system.
Otherwise, the child could be seriously in-
jured in the event of hard braking or a
collision.Caution for installing the child
restraint on vehicles with a front passenger airbag
E00406501810
The label shown here is attached on vehicles with a front passenger airbag.
WARNINGl Extreme Hazard!
NEVER use a rearward facing child re- straint on a seat protected by an ACTIVEAIRBAG in front of it, DEATH or SERI- OUS INJURY to the CHILD can occur.NOTEl The labels may be in different positions de-
pending on the vehicle model.
Use rearward facing child restraints in the
rear seat or turn off the front passenger’s air- bag ON-OFF switch. (Club cab and Double
cab, refer to “To turn an airbag off (Club cab and Double cab)” on page 4-27)
Child restraint
4-11OKTE18E1Seat and seat belts4 Front passenger's airbag ON

WARNINGlA REARWARD FACING CHILD RE-
STRAINT must NOT be used in the front passenger seat if the front passenger’s air-
bag has not been deactivated. The force of an inflating airbag could kill or cause se-
rious injuries to the child. A rearward facing child restraint should be used in
the rear seat.
l A FORWARD FACING CHILD RE-
STRAINT should be used in the rear seat
whenever possible; if it must be used in the front passenger seat, turn off the front
passenger’s airbag ON-OFF switch. Fail- ure to do so could kill or cause serious in-
juries to the child.Infants and small children
E00406602339
When transporting infants and small children
in your vehicle, follow the instruction given below.
Instruction:
l For small infants, an infant carrier
should be used. For small children whose height when seated allows the shoulder belt to lie in contact with the
face or the throat, a child seat should be used.
l The child restraint system should be ap-
propriate for the child’s weight and
height and properly fit in the vehicle. For a higher degree of safety: THE
CHILD RESTRAINT SYSTEM
SHOULD BE INSTALLED IN THE REAR SEAT.
l Before purchasing a child restraint sys-
tem, try installing it in the seat to make sure there is a good fit. Because of the location of the seat belt buckles and the
shape of the seat cushion, it may be dif-
ficult to securely install some manufac- turer’s child restraint systems.
If the child restraint system can be
pulled forward or to either side easily on
the seat cushion after the seat belt has
been tightened, choose another manufac- turer’s child restraint system.
WARNINGl When installing a child restraint system,
refer to the instructions provided by themanufacturer of the restraint system.Failure to do so can result in severe or fa-tal injury to the child.
l After installation, push and pull the child
restraint system back and forth, and side to side, to see that it is properly secured.
If the child restraint system is not instal-
led securely, it may cause injury to the
child or other occupants in the case of ac- cident or sudden stops.
l When the child restraint system is not in
use, keep your child restraint system fixed
firmly or remove it from the vehicle in or- der to prevent it from being thrown around inside the vehicle during an acci-
dent.NOTEl Depending on the seating position in the ve-
hicle and the child restraint system that you have, the child restraint can be attached us-
ing one of the following two locations:
• Using the lower anchorage in the rear seat
ONLY if the child restraint has ISOFIX mountings (Double cab, See page 4-21).
• Using the seat belt (See page 4-21).
Child restraint
4-12OKTE18E1Seat and seat belts4

Older children
E00406701418
Children who have outgrown the child re-
straint system should be seated in the seat
and wear combination lap shoulder belt.
The lap portion of the belt should be snug
and positioned low on the abdomen so that it is below the top of the hip-bone. Otherwise,the belt could intrude into the child’s abdo-
men during an accident and cause injury.
Child restraint
4-13OKTE18E1Seat and seat belts4

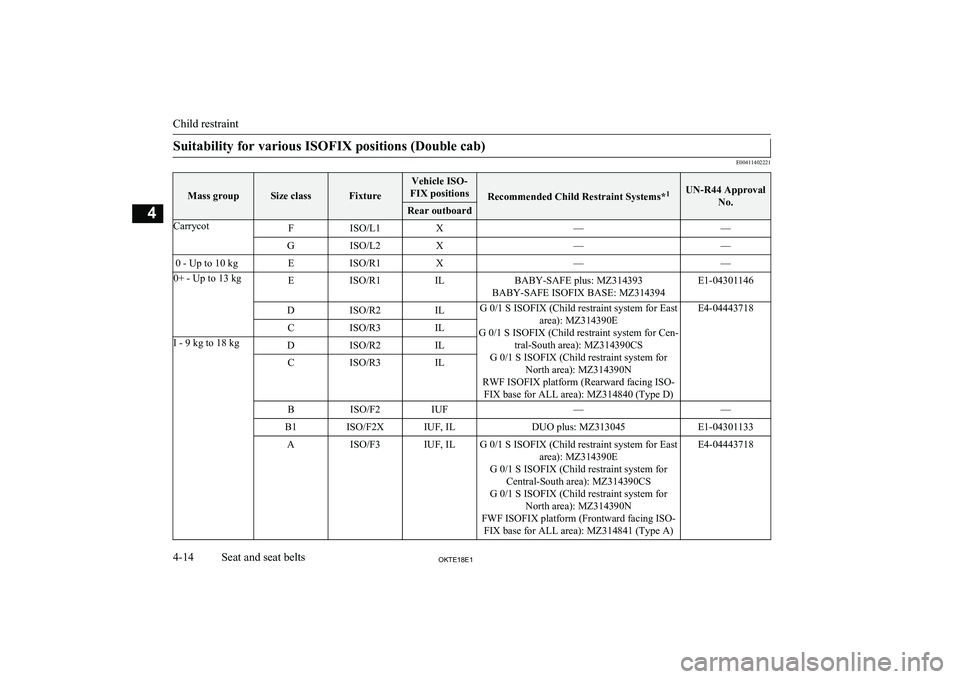

Suitability for various ISOFIX positions (Double cab)
E00411402221Mass groupSize classFixture
Vehicle ISO-
FIX positions
Recommended Child Restraint Systems* 1UN-R44 Approval
No.Rear outboardCarrycotFISO/L1X——GISO/L2X——0 - Up to 10 kgEISO/R1X——0+ - Up to 13 kgEISO/R1ILBABY-SAFE plus: MZ314393
BABY-SAFE ISOFIX BASE: MZ314394E1-04301146DISO/R2ILG 0/1 S ISOFIX (Child restraint system for East area): MZ314390E
G 0/1 S ISOFIX (Child restraint system for Cen- tral-South area): MZ314390CS
G 0/1 S ISOFIX (Child restraint system for North area): MZ314390N
RWF ISOFIX platform (Rearward facing ISO- FIX base for ALL area): MZ314840 (Type D)E4-04443718CISO/R3ILI - 9 kg to 18 kgDISO/R2ILCISO/R3ILBISO/F2IUF——B1ISO/F2XIUF, ILDUO plus: MZ313045E1-04301133AISO/F3IUF, ILG 0/1 S ISOFIX (Child restraint system for East area): MZ314390E
G 0/1 S ISOFIX (Child restraint system for Central-South area): MZ314390CS
G 0/1 S ISOFIX (Child restraint system for North area): MZ314390N
FWF ISOFIX platform (Frontward facing ISO- FIX base for ALL area): MZ314841 (Type A)E4-04443718
Child restraint
4-14OKTE18E1Seat and seat belts4

Mass groupSize classFixture
Vehicle ISO-
FIX positions
Recommended Child Restraint Systems* 1UN-R44 Approval
No.Rear outboardII & III - 15 kg to
36 kg ILKIDFIX XP: MZ315025E1-04301304
* 1
: MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For detailed information, consult your MITSUBISHI MOTORS Authorized Service Point.
CAUTIONl When installing a child restraint system, remove the head restraint from the seat.
l When attaching a child restraint system to the rear seat, adjust the front seat to prevent the front seatbacks from touching the child’s feet and child restraint
system.Definition of characters to be inserted in the table above:
l IUF- Suitable for ISOFIX forward child restraints systems of universal category approved for use in the mass group.
l IL- Suitable for particular ISOFIX child restraint systems. See the above table of “Recommended Child Restraint Systems”.
l X- ISOFIX position not suitable for ISOFIX child restraint systems in this mass group.

i-Size child restraint system
E00464700053
Seating positionSecond Outboard *1i-Size child restraint systemi-U*1
: Vehicles with i-size marking. (Refer to “Lower anchorage location” on page 4-21)
Child restraint
4-15OKTE18E1Seat and seat belts4

Definition of characters to be inserted in the table above:
li-U- Suitable for i-Size “universal” child restraint system forward and rearward facing.

Suitability for various seating positions
E00406803022
Single cabMass groupSeating positionRecommended Child Restraint Systems *1UN-R44
Approval No.Front passenger0 - Up to 10 kgX——0+ - Up to 13 kgX——
I -9 kg to 18 kgUF, L
G 0/1 S ISOFIX (Child restraint system for East area): MZ314390E
G 0/1 S ISOFIX (Child restraint system for Central-South area): MZ314390CS
G 0/1 S ISOFIX (Child restraint system for North area): MZ314390N
E4-03443416
DUO plus: MZ313045E1-04301133II & III -15 kg to
36 kgUF, LKIDFIX XP: MZ315025E1-04301304*1 : MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For detailed information, consult your MITSUBISHI MOTORS Authorized Service Point.CAUTIONl When installing a child restraint system, remove the head restraint from the seat.
l When installing a child restraint system on the front passenger seat, please move the seatback position 1 step rearward from the upright position.
Child restraint
4-16OKTE18E1Seat and seat belts4

Definition of characters to be inserted in the table above:
lUF- Suitable for front-facing “universal” category restraints approved for use in this mass group.
l L- Suitable for particular child restraints. See the above table of “Recommended Child Restraint Systems”.
l X- Seat position not suitable for children in this mass group.
Club cab
Mass group
Seating position
Recommended Child Restraint Systems *1UN-R44
Approval No.
Front passengerRear Out- boardActivated air- bagDeactivated
Airbag *20 - Up to 10 kgXUX——0+ - Up to 13 kgXU, LXBABY-SAFE plus: MZ314393E1-04301146
I -9 kg to 18 kgXU, LX
G 0/1 S ISOFIX (Child restraint system for East
area): MZ314390E
G 0/1 S ISOFIX (Child restraint system for Central-South area): MZ314390CS
G 0/1 S ISOFIX (Child restraint system for North area): MZ314390N
E4-03443416
DUO plus: MZ313045E1-04301133II & III -15 kg to
36 kgXU, LXKIDFIX XP: MZ315025E1-04301304*1 : MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
*2 : With the front passenger’s airbag deactivated by means of the front passenger’s airbag ON-OFF switch.
For detailed information, consult your MITSUBISHI MOTORS Authorized Service Point.
Child restraint
4-17OKTE18E1Seat and seat belts4

CAUTIONlWhen installing a child restraint system, remove the head restraint from the seat.
l When installing a child restraint system (Mass group II & III) on the front passenger seat, please move the seatbacks position to 2 steps rearward from
upright position.Definition of characters to be inserted in the table above:
l U- Suitable for “universal” category restraints approved for use in this mass group.
l L- Suitable for particular child restraints. See the above table of “Recommended Child Restraint Systems”.
l X- Seat position not suitable for children in this mass group.
Double cab
Mass group
Seating position
Recommended Child Re-
straint Systems *1UN-R44
Approval No.
Front passengerRear Out- boardRear centreActivated air- bagDeactivated
Airbag *20 -Up to 10 kgXUUU——0+ - Up to 13 kgXU, LU, LU, LBABY-SAFE plus:
MZ314393E1-04301146*1: MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
*2 : With the front passenger’s airbag deactivated by means of the front passenger’s airbag ON-OFF switch.
For detailed information, consult your MITSUBISHI MOTORS Authorized Service Point.
Child restraint
4-18OKTE18E1Seat and seat belts4
