2018 MITSUBISHI L200 Owner's Manual (in English)

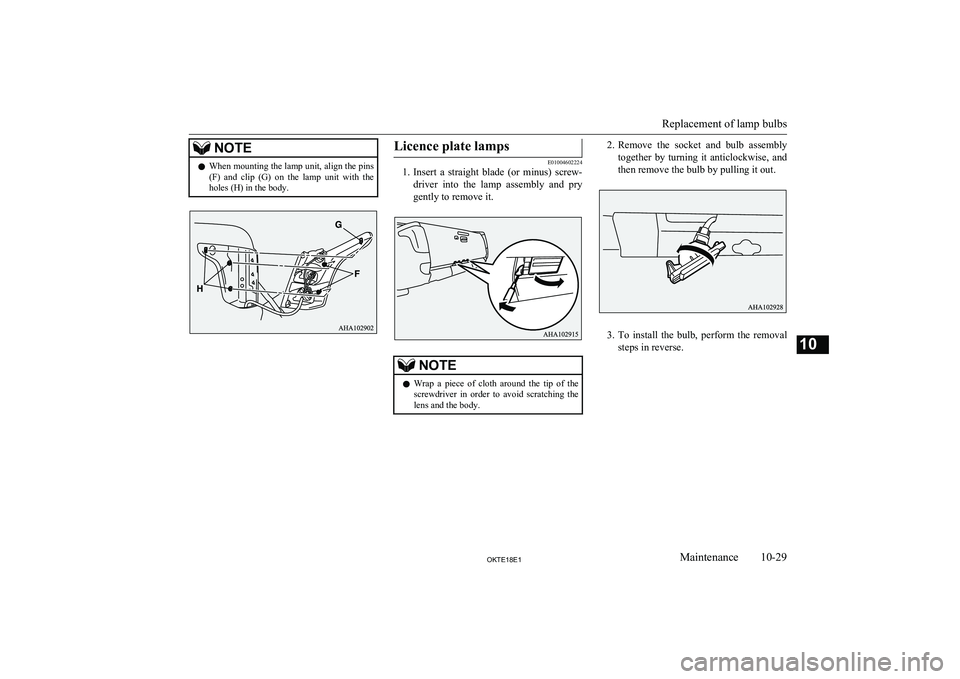

NOTElWhen mounting the lamp unit, align the pins
(F) and clip (G) on the lamp unit with the
holes (H) in the body.Licence plate lamps
E01004602224
1. Insert a straight blade (or minus) screw-
driver into the lamp assembly and pry
gently to remove it.
NOTEl Wrap a piece of cloth around the tip of the
screwdriver in order to avoid scratching the
lens and the body.2. Remove the socket and bulb assembly
together by turning it anticlockwise, and then remove the bulb by pulling it out.
3. To install the bulb, perform the removal
steps in reverse.
Replacement of lamp bulbs
10-29OKTE18E1Maintenance10

NOTElWhen mounting the lamp unit, put the hook
(A) on the right side of the lamp unit into thebody first.Front room & map lamps*
E01010501074
1. Insert a straight blade (or minus) screw-
driver into the notch of the lens and pry
gently to remove it.
Remove the bulb from the lamp holder.
NOTEl Wrap a piece of cloth around the tip of the
screwdriver in order to avoid scratching the
lens.
2. To install the bulb, perform the removal
steps in reverse.
NOTEl When installing the lens, align the 2 tabs on
the lens with the holes on the vehicle side.Rear room lamp
E01004901464
Type 1
1. Insert a straight blade (or minus) screw-
driver into the notch of the lens and pry
gently to remove it. Remove the bulb
from the lamp holder.NOTEl Wrap a piece of cloth around the tip of the
screwdriver in order to avoid scratching the
lens.
2. To install the bulb, perform the removal
steps in reverse.
NOTEl When installing the lens, align the 2 tabs on
the lens with the holes on the vehicle side.
Replacement of lamp bulbs
10-30OKTE18E1Maintenance10

NOTElWhen installing the lens, fit the two tabs on
one side of the lens into the holes on the ve-hicle side before fitting the two tabs on the opposite side of the lens into the holes on the
vehicle side.
Type 2
1. Insert a straight blade (or minus) screw-
driver into the notch of the lens and pry
gently to remove it. Remove the bulb
from the lamp holder.NOTEl Wrap a piece of cloth around the tip of the
screwdriver in order to avoid scratching the
lens.
2. To install the bulb, perform the removal
steps in reverse.
NOTEl When installing the lens, fit the two tabs on
one side of the lens into the holes on the ve-hicle side before fitting the two tabs on the opposite side of the lens into the holes on the
vehicle side.Glove box lamp
E01006101516
Have the glove box lamp bulb replaced at a
MITSUBISHI MOTORS Authorized Service
Point.
Masking the headlamps
E01011601085
When entering a country in which vehiclesare driven on the opposite side of the road to the country in which your vehicles is sup-plied, necessary measures have to be taken to
avoid dazzling oncoming traffic.
Masking the headlamps
10-31OKTE18E1Maintenance10

High intensity discharge head-lamp type
Do not need any adjustment.
Halogen headlamp type
Mask the headlamps according to the next
procedure. 1. Turn the headlamp off and wait until the
headlamps got cold.
2. According to the illustrations, prepare
the sticker (A) to stick the headlamp sur-
face of right and left.
NOTEl Use a sticker with a light blocking effect
enough.
Using of a sticker without a light blocking
effect will not acquire a blocking effect.
3. Seeing from the headlamp front, position
(C) of the sticker and the central mark
(B) of the headlamp and stick a sticker along the vertical dotted line.
NOTEl Align the vertical dotted line with the line of
the reflector in the headlamp.
Masking the headlamps
10-32OKTE18E1Maintenance10 LHDLeft lens
Right lens
115mm105mm
37mm
50mm RHDLeft lens
Right lens
105mm
37mm
50mm
115mm

Vehicle labeling................................................................................ 11-02
Vehicle dimensions........................................................................... 11-04
Vehicle performance......................................................................... 11-10 Vehicle weight.................................................................................. 11-10
Engine specifications........................................................................ 11-14
Electrical system............................................................................... 11-15
Tyres and wheels...............................................................................11-15
Fuel consumption.............................................................................. 11-16
Capacity............................................................................................ 11-17Specifications
OKTE18E111

Vehicle labelingE01100105005
Vehicle Identification Number: (VIN)
The vehicle identification number is stamped as shown in the illustration.
Vehicle identification number
plate (RHD vehicles only)
The vehicle identification number is stamped on the plate riveted to the left front corner of the vehicle body. It is visible from outside of
the vehicle through the windscreen.
Vehicle information code plate
E01102200034
The vehicle information code plate is located
as shown in the illustration.
The plate shows model code, engine model,
transmission model and body colour code, etc.
Please use this number when ordering re-
placement parts.
Vehicle labeling
11-02OKTE18E1Specifications11

1- Model code
2- Engine model code
3- Transmission model code
4- Final gear ratio
5- Body colour code
6- Interior code
7- Option codeEngine model/number
E01102500125
The engine model and number are stamped on the engine cylinder block as shown in the
illustrations.
Vehicle labeling
11-03OKTE18E1Specifications11

Vehicle dimensionsE01100204692
Vehicle dimensions
11-04OKTE18E1Specifications11Single cab
