NOTE When a Universal ISOFIX child
restraint system is used, only ECE R44
"ISOFIX Universal” (R44/03 or further
upgrades) type-approved child restraint
systems can be used (see fig. 95 ).
The other weight groups are covered by
specific ISOFIX child restraint systems,
which can be used only if specifically
tested for this vehicle (see list of vehicles
provided with the child restraint system).
127

SUITABILITY OF PASSENGER SEATS FOR ISOFIX CHILD RESTRAINT SYSTEM USE
The table below shows the various installation possibilities for ISOFIX child restraint systems on seats fitted with the specific
anchorages in accordance with European standard ECE 16.
ISOFIX POSITIONS ON THE VEHICLE
Weight categories Size category Device Front passengerRear side
passengersRear central
passenger
Group 0 (up to 10 kg) E ISO/R1XILX
Group 0+ (up to
13 kg)E ISO/R1
XILX
D ISO/R2XILX
C ISO/R3X IL (*) X
X ISOFIX position not suitable for ISOFIX child protection systems for this weight and/or size category.
IL Suitable for ISOFIX child restraint systems of the "Specific for the vehicle", "Restricted", or "Semiuniversal" categories, approved for this
type of vehicle.
IL (*) The ISOFIX child restraint system can be installed by adjusting the front seat.
128
SAFETY

ISOFIX POSITIONS ON THE VEHICLE
Weight categories Size category Device Front passengerRear side
passengersRear central
passenger
Group 1 (from 9 up to
18 kg)D ISO/R2
XILX
C ISO/R3X IL (*) X
B ISO/F2XIUF–ILX
B1 ISO/F2XXIUF–ILX
A ISO/F3XIUF–ILX
X ISOFIX position not suitable for ISOFIX child protection systems for this weight and/or size category.
IL Suitable for ISOFIX child restraint systems of the "Specific for the vehicle", "Restricted", or "Semiuniversal" categories, approved for this
type of vehicle.
IL (*) The ISOFIX child restraint system can be installed by adjusting the front seat.
IUF Suitable for forward facing ISOFIX child restraint systems in the Universal category and type-approved for the use in the weight group.
129

SUITABILITY OF PASSENGER
SEATS FOR i-Size CHILD
RESTRAINT SYSTEM USE
The rear side seats of the vehicle are
type-approved to house the
state-of-the-art i-Size child restraint
systems.
These child restraint systems, built and
type-approved according to the i-Size
(ECE R129) standard, ensure better
safety conditions to carry children on
board a vehicle:
the child must be transported rearward
facing until 15 months;
child restraint system protection is
increased in the event of a side collision;
the use of the ISOFIX system is
promoted to avoid faulty installation of
the child restraint system;
efficiency in the choice of the child
restraint system, which isn't made
according to weight anymore but
according to the child's height, is
increased;
compatibility between the vehicle
seats and the child restraint systems is
better: the i-Size child restraint systems
can be considered as "Super ISOFIX",
this means that they can be perfectly
fitted in the type-approved i-Size seats,
but can also be fitted in the ISOFIX (ECE
R44) type-approved seats.NOTE The vehicle seats, i-Size
type-approved, are marked by the symbol
shown in fig. 96.
96J0A0450C
130
SAFETY

The following table, according to European legislation ECE 129, indicates the possibility to install i-Size child restraint systems.
i-Size POSITIONS ON THE VEHICLE
Device Front passenger Rear side passengersRear central
passenger
i-Size child restraint systemsISO/R2 X i-U X
ISO/F2 X i-U X
i-U: suitable for Universal i-Size child restraint systems, both rearward facing and forward facing.
X: seat not suitable for Universal i-Size child restraint systems.
131

Weight group Child restraint system Type of child restraint system Child restraint system installation
Group 0+: from
birth to 13 kg
Britax Baby Safe plus
Approval number:
E1 04301146
Jeep order code: 71806415
Universal/ISOFIX child restraint
system.
It must be installed facing rearwards,
using the vehicle seat belts only, or
the dedicated ISOFIX base (which can
be purchased separately) and the
vehicle ISOFIX anchorages.
It must be fitted on the rear outer
seats. ++
Britax Baby Safe ISOFIX base
Jeep order code: 71806416
132
SAFETY
CHILD RESTRAINT SYSTEMS RECOMMENDED BY FCA FOR YOUR RENEGADE
Lineaccessori MOPAR
®includes a complete range of child restraint systems to be fixed using the seat belt with three anchorage
points or the ISOFIX anchorages.

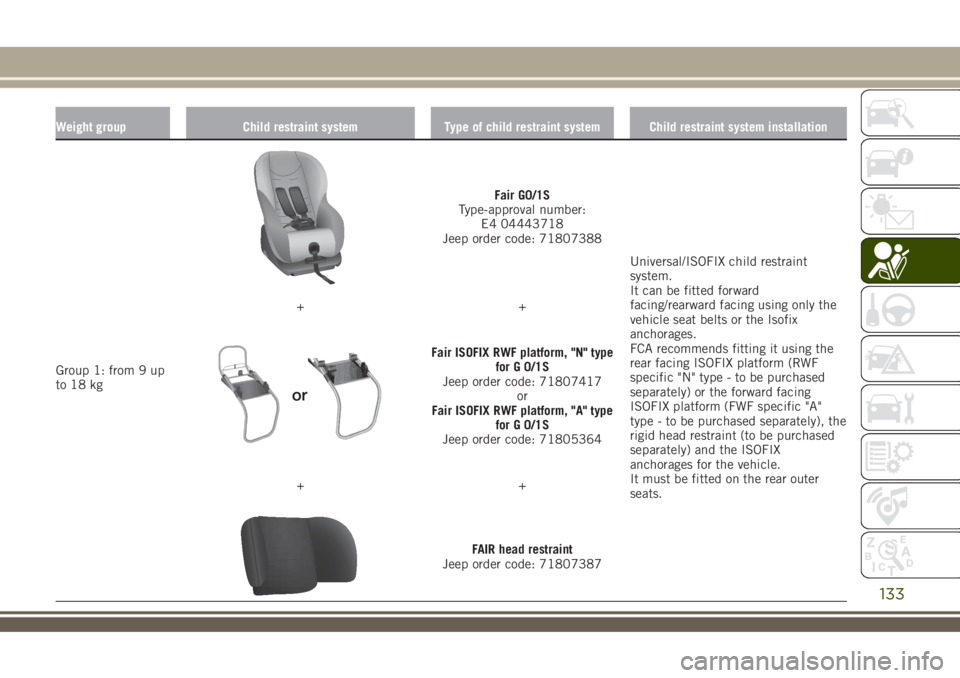

Weight group Child restraint system Type of child restraint system Child restraint system installation
Group 1: from 9 up
to 18 kg
Fair G0/1S
Type-approval number:
E4 04443718
Jeep order code: 71807388
Universal/ISOFIX child restraint
system.
It can be fitted forward
facing/rearward facing using only the
vehicle seat belts or the Isofix
anchorages.
FCA recommends fitting it using the
rear facing ISOFIX platform (RWF
specific "N" type - to be purchased
separately) or the forward facing
ISOFIX platform (FWF specific "A"
type - to be purchased separately), the
rigid head restraint (to be purchased
separately) and the ISOFIX
anchorages for the vehicle.
It must be fitted on the rear outer
seats. ++
Fair ISOFIX RWF platform, "N" type
for G 0/1S
Jeep order code: 71807417
or
Fair ISOFIX RWF platform, "A" type
for G 0/1S
Jeep order code: 71805364
++
FAIR head restraint
Jeep order code: 71807387
133

Weight group Child restraint system Type of child restraint system Child restraint system installation
Group 1: from 9 up
to 18 kg
Britax Safefix TT
Approval number:
E1 04301199
Jeep order code: 71805956It must be fitted facing forwards only,
using the ISOFIX attachments and the
upper strap, provided with the child
restraint system.
It must be fitted on the rear outer
seats.
Britax Roemer Duo Plus
Type-approval number:
E1 04301133
Jeep order code: 71803161It must be fitted facing forwards only,
using the ISOFIX attachments and the
upper strap, provided with the child
restraint system.
It must be fitted on the rear outer
seats.
134
