MINIMUM GROUND CLEARANCE/TYPICAL ANGLES
"Minimum ground clearance" (reference A)
The clearance value is measured next to the lower edge of the differential. This value also defines those for the "Approach angle" the
"Departure angle" and the "Breakover angle".
Dimensions are expressed in mm and refer to the car equipped with its original tyres.
Front wheel drive (FWD) versions: 171 mm
Four-wheel drive (4WD) versions: 201 mm
Trailhawk versions with four wheel drive (4WD LOW): 225 mm
"Approach angle" (reference B )
The approach angle is determined by the horizontal line of the road surface and by the tangent line passing between the front wheel
and the most projecting low point of the car.
210J0A0242C
271

The wider the angle, the lower the chance to hit an obstacle with the body or chassis, climbing a steep slope or overcoming an
obstacle.
Front wheel drive (FWD) versions: 17.9°
Four-wheel drive (4WD) versions: 21°
Trailhawk versions with four wheel drive (4WD LOW): 30.5°
"Departure angle" (reference C)
The departure angle is determined by the same lines of the "Approach angle", and refers to the rear part of the car.
Front wheel drive (FWD) versions: 29.7°
Four-wheel drive (4WD) versions: 32.1°
Trailhawk versions with four wheel drive (4WD LOW): 34.3°
"Breakover angle" (reference D)
The value of the "Breakover angle" is linked to the ground clearance of the car and indicates the attitude of the car to overcome a
wedge, more or less steep, preventing the car from resting on the ground with the body or chassis after touching the wedge with its
lowest and most projecting parts (usually the underbody), because this would highly reduce wheel grip.
The wheels, without a suitable grip to the ground, will not have sufficient hold to move the car, and will surge.
The higher the ground clearance, the wider the breakover angle. Always bear in mind that the higher the ground clearance, the lower
the stability, due to a higher centre of gravity which reduces the side rollover angle.
Front wheel drive (FWD) versions: 21.2°
Four-wheel drive (4WD) versions: 24°
Trailhawk versions with four wheel drive (4WD LOW): 25.7°
272
TECHNICAL DATA

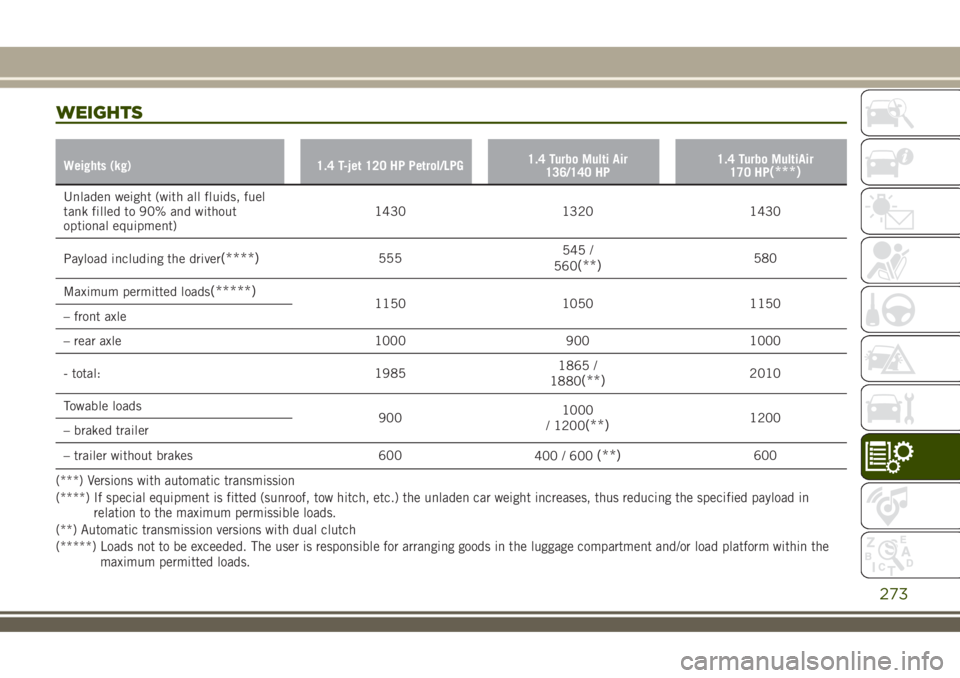

WEIGHTS
Weights (kg) 1.4 T-jet 120 HP Petrol/LPG1.4 Turbo Multi Air
136/140 HP1.4 Turbo MultiAir
170 HP(***)
Unladen weight (with all fluids, fuel
tank filled to 90% and without
optional equipment)1430 1320 1430
Payload including the driver
(****)555545 /
560(**)580
Maximum permitted loads
(*****)1150 1050 1150
– front axle
– rear axle 1000 900 1000
- total: 19851865 /
1880
(**)2010
Towable loads
9001000
/ 1200
(**)1200
– braked trailer
– trailer without brakes 600
400 / 600
(**)600
(***) Versions with automatic transmission
(****) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in
relation to the maximum permissible loads.
(**) Automatic transmission versions with dual clutch
(*****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the
maximum permitted loads.
273

Weights (kg) 1.4 T-jet 120 HP Petrol/LPG1.4 Turbo Multi Air
136/140 HP1.4 Turbo MultiAir
170 HP(***)
Maximum load on the roof (versions
with roof rack bars)70 70 70
Maximum load on tow hitch (trailer
with brakes)60 60 60
(***) Versions with automatic transmission
WARNING Petrol/LPG versions: for some versions/markets, trailers cannot be towed so there are no provisions for fitting a tow hook.
274
TECHNICAL DATA

Weights (kg) 1.6 E.Torq 2.4 Tigershark(*)
Unladen weight (with all fluids, fuel
tank filled to 90% and without
optional equipment)1320 1575
Payload including the driver
(***)545 505
Maximum permitted loads
(****)1050 1150
– front axle
– rear axle 900 1000
- total: 1865 2080
Towable loads
800 905
– braked trailer
– trailer without brakes 600 400
Maximum load on the roof (versions
with roof rack bars)70 70
Maximum load on tow hitch (trailer
with brakes)60 60
(*) Where fitted
(***) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in
relation to the maximum permissible loads.
(****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the
maximum permitted loads.
275

Weights (kg) 1.6 16V MultiJet
Unladen weight (with all fluids, fuel
tank filled to 90% and without
optional equipment)1390 / 1415(**)
Payload including the driver(***)515
Maximum permitted loads
(****)1050
– front axle
– rear axle900
- total:
1905 / 1930
(**)
Towable loads
1000 / 900(**)– braked trailer
– trailer without brakes 400
Maximum load on the roof (versions
with roof rack bars)70
Maximum load on tow hitch (trailer
with brakes)60
(**) Automatic transmission versions with dual clutch
(***) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in
relation to the maximum permissible loads.
(****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the
maximum permitted loads.
276
TECHNICAL DATA

Weights (kg) 2.0 16V Multijet 120/140 HP 2.0 16V MultiJet 140/170 HP(*)
Unladen weight (with all fluids, fuel tank filled
to 90% and without optional equipment)14301530(**)/ 1535(***)/ 1540(******)
Payload including the driver(****)580550(**)/ 545(***)/ 540(******)
Maximum permitted loads(*****)1150 1150
– front axle
– rear axle 1000 1000
- total: 2010 2080
Towable loads
1500 1500
– braked trailer
– trailer without brakes 600 600
(*) Versions with automatic transmission
(**) 2.0 16V Multijet 140CV versions
(***) 2.0 16V Multijet 170CV versions
(******) Automatic transmission versions for specific markets
(****) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in
relation to the maximum permissible loads.
(*****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the
maximum permitted loads.
277

Weights (kg) 2.0 16V Multijet 120/140 HP 2.0 16V MultiJet 140/170 HP(*)
Maximum load on the roof (versions with roof
rack bars)70 70
Maximum load on tow hitch (trailer with
brakes)60 60
(*) Versions with automatic transmission
278
