2018 JEEP RENEGADE Owner handbook (in English)

remove the rear light group,
unscrewing towards the outside as shown
in fig. 153;
undo the four fixing screws D
fig. 154 and remove the bulb holder
unit;
replace the bulb involved (fig. 155:
E/G = brake lights, F = directional
indicators) (bulbs E and G always light
up at the same time);
fit the new bulb, making sure it is
correctly locked;
correctly remount the bulb holder
group for the rear light group, screwing
the four attaching crews tightly;
reposition the rear light cluster on the
car;
screw the attachment device for the
rear light group tightly and reconnect the
electrical connections;
refit flap A fig. 151, ensuring that it
locks correctly;
finally, close the tailgate.
152J0A0296C
153J0A0316C
154J0A0268C
155J0A0270C
199

Rear lower light cluster
These contain the rear fog light bulbs
(left side) and reversing light bulbs (right
side).
To replace the bulbs, proceed as follows:
using the screwdriver, unscrew screws
A fig. 156 and B and remove flap C;
upper screw A is easy to access,
whereas for lower screw B it is necessary
to incline the blade of the screwdriver
appropriately as illustrated in fig. 157;
turn bulb holder D
fig. 158 anticlockwise and replace the
bulb concerned;
fit the new bulb, making sure it is
correctly locked;
refit the bulb holder in its housing and
turn it clockwise, making sure that it
locks correctly;
refit flap C correctly, completely
tightening the screws.
3
rdbrake lights
The 3rdbrake lights are LED-based. To
replace them, contact a Jeep Dealership.
Number plate lights
To replace the bulbs, proceed as follows:
remove lenses A fig. 159;turn the bulb holder clockwise and
remove the bulb;
156J0A0212C157J0A0213C
158J0A0302C
200
IN AN EMERGENCY

insert the new bulb, making sure it is
properly blocked in the holder;
finally, refit the lenses.
WARNING
150)Before replacing the bulb, wait for
the exhaust ducts to cool down: DANGER
OF SCALDING!
151)Modifications or repairs to the
electric system that are not carried out
properly or do not take the system
technical specifications into account can
cause malfunctions leading to the risk of
fire.
152)Halogen bulbs contain pressurised
gas, in the case of breakage they may
burst causing glass fragments to be
projected outwards.
IMPORTANT
76)Halogen bulbs must be handled
holding the metallic part only. Touching
the transparent part of the bulb with your
fingers may reduce the intensity of the
emitted light and even reduce the lifespan
of the bulb. In the event of accidental
contact, wipe the bulb with a cloth
moistened with alcohol and let the bulb
dry.
159J0A0444C
201
153)Only replace the light bulbs when the
engine is off and in a position that does
not interfere with traffic and lets you
safely replace them (see the description in
the “Replacement” paragraph). Also
ensure that the engine is cold, to prevent
the risk of burns.

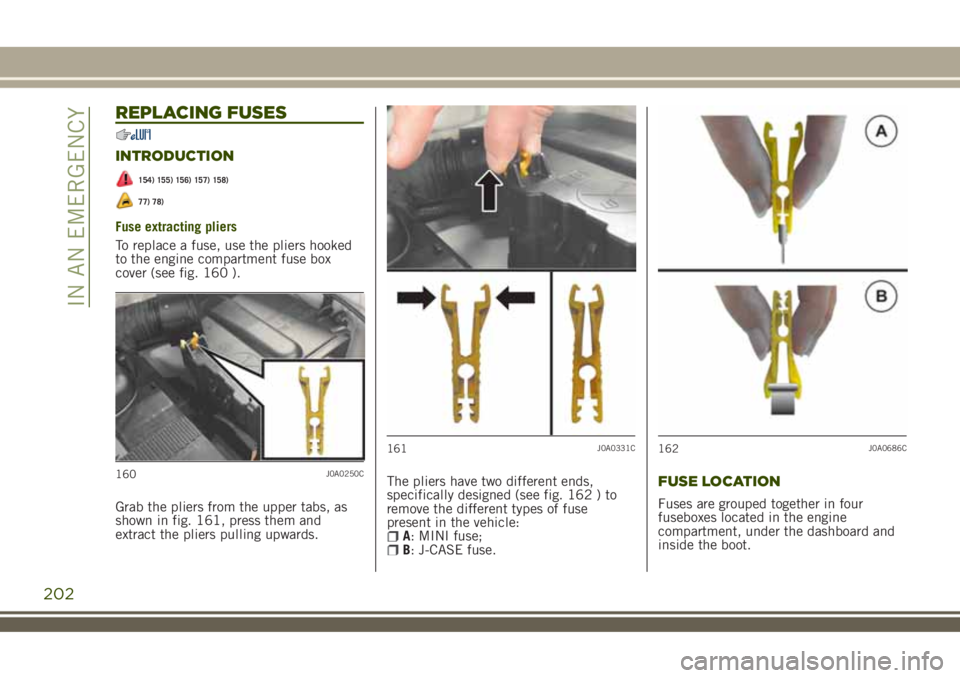

REPLACING FUSES
INTRODUCTION
154) 155) 156) 157) 158)
77) 78)
Fuse extracting pliers
To replace a fuse, use the pliers hooked
to the engine compartment fuse box
cover (see fig. 160 ).
Grab the pliers from the upper tabs, as
shown in fig. 161, press them and
extract the pliers pulling upwards.The pliers have two different ends,
specifically designed (see fig. 162 ) to
remove the different types of fuse
present in the vehicle:
A: MINI fuse;B: J-CASE fuse.
FUSE LOCATION
Fuses are grouped together in four
fuseboxes located in the engine
compartment, under the dashboard and
inside the boot.
160J0A0250C
161J0A0331C162J0A0686C
202
IN AN EMERGENCY

LPG versions
The LPG system components are
protected by specific fuses. Contact a
Jeep Dealership for replacement.
ENGINE COMPARTMENT FUSE
BOX
The fuse box is located by the side of the
battery fig. 163.
Releasing fixing screw and removing fuse
box cover
Proceed as follows:
fully tighten screw A fig. 164, usingthe dedicated screwdriver provided;
slowly rotate the screw anticlockwise,
until resistance is encountered (do not
overtighten);
slowly release the screw;opening is indicated by the entire
screw head coming out of its housing;
remove cover B fig. 164, sliding it
completely upwards, as indicated in the
figure.
The number identifying the electrical
component corresponding to each fuse is
shown on the cover. After replacing a
fuse, make sure that you have closed
cover B correctly.
163J0A0117C
164J0A0116C
203

Fitting fuse box cover and locking screw
Proceed as follows:
fix cover B fig. 164 to the box
correctly, sliding it down completely from
the top;
fully tighten screw A fig. 164, using
the dedicated screwdriver provided;
slowly rotate the screw clockwise,
until resistance is encountered (do not
overtighten);
slowly release the screw;closure is indicated by the securing of
the entire screw head in its housing.
DASHBOARD FUSE BOX
The fuse box fig. 165 is located near the
left side of the steering column and the
fuses can be accessed easily from the
lower part of the dashboard.
For fuse replacement, contact a Jeep
Dealership.LUGGAGE COMPARTMENT FUSE
BOX
To access the fuses use device A
fig. 166 and subsequently remove flap B.
165J0A0114C
166J0A0295C
204
IN AN EMERGENCY

Depending on the car fittings, there could be control unit A and/or control unit B (see fig. 167).
A: fuse holder central unit no.1
B: fuse holder control unit no.2
167J0A0324C
205

ENGINE COMPARTMENT FUSE BOXfig. 163
DEVICESFUSE AMPERE
HornF10 15
Luggage compartment power socket supply F18 20
AvailableF30 –
Heated door mirrors F88 7,5
Heated rear window F89 30
