2018 CHRYSLER PACIFICA HYBRID Owners Manual

Page 81 of 614

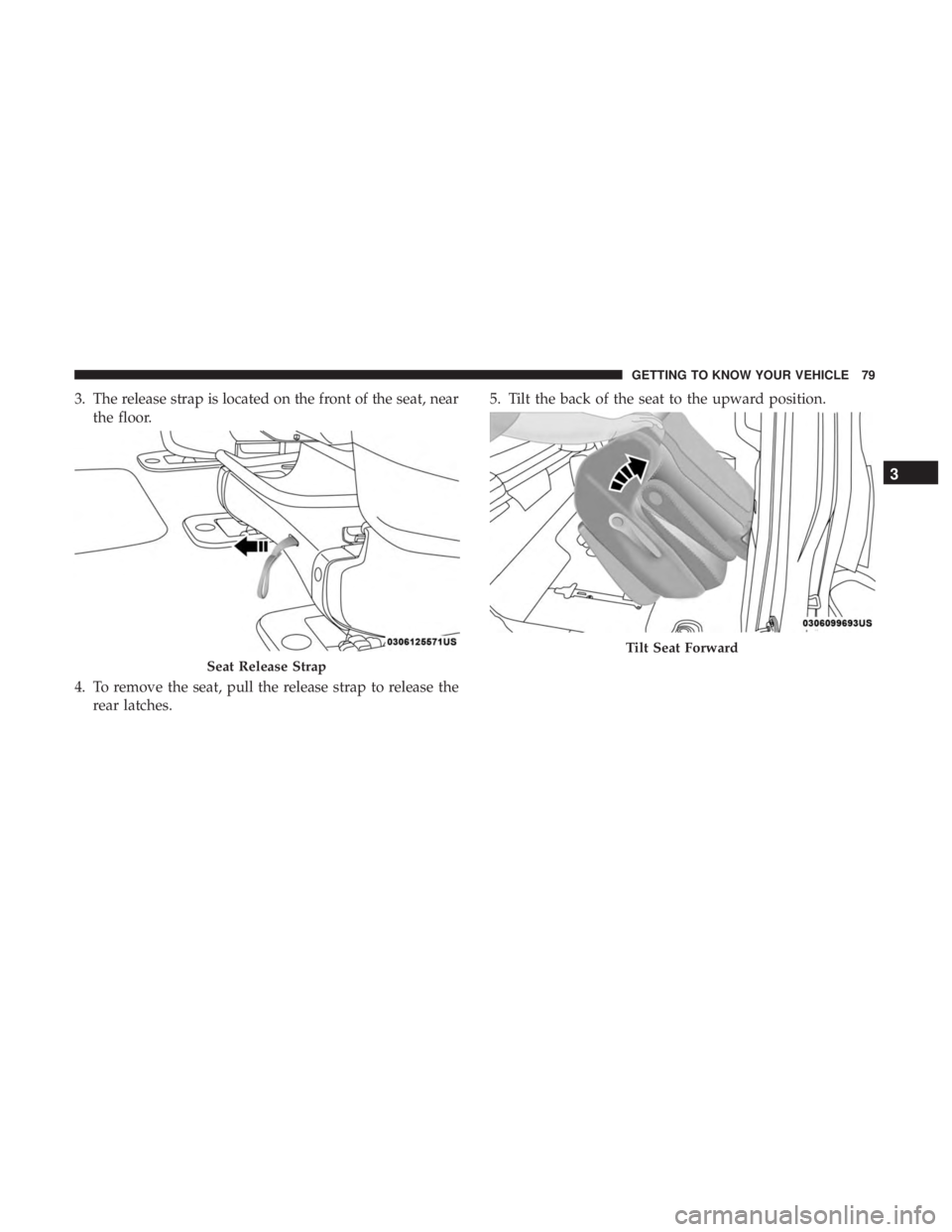

CHRYSLER PACIFICA HYBRID 2018  Owners Manual 3. The release strap is located on the front of the seat, nearthe floor.
4. To remove the seat, pull the release strap to release the rear latches. 5. Tilt the back of the seat to the upward position.

Page 82 of 614

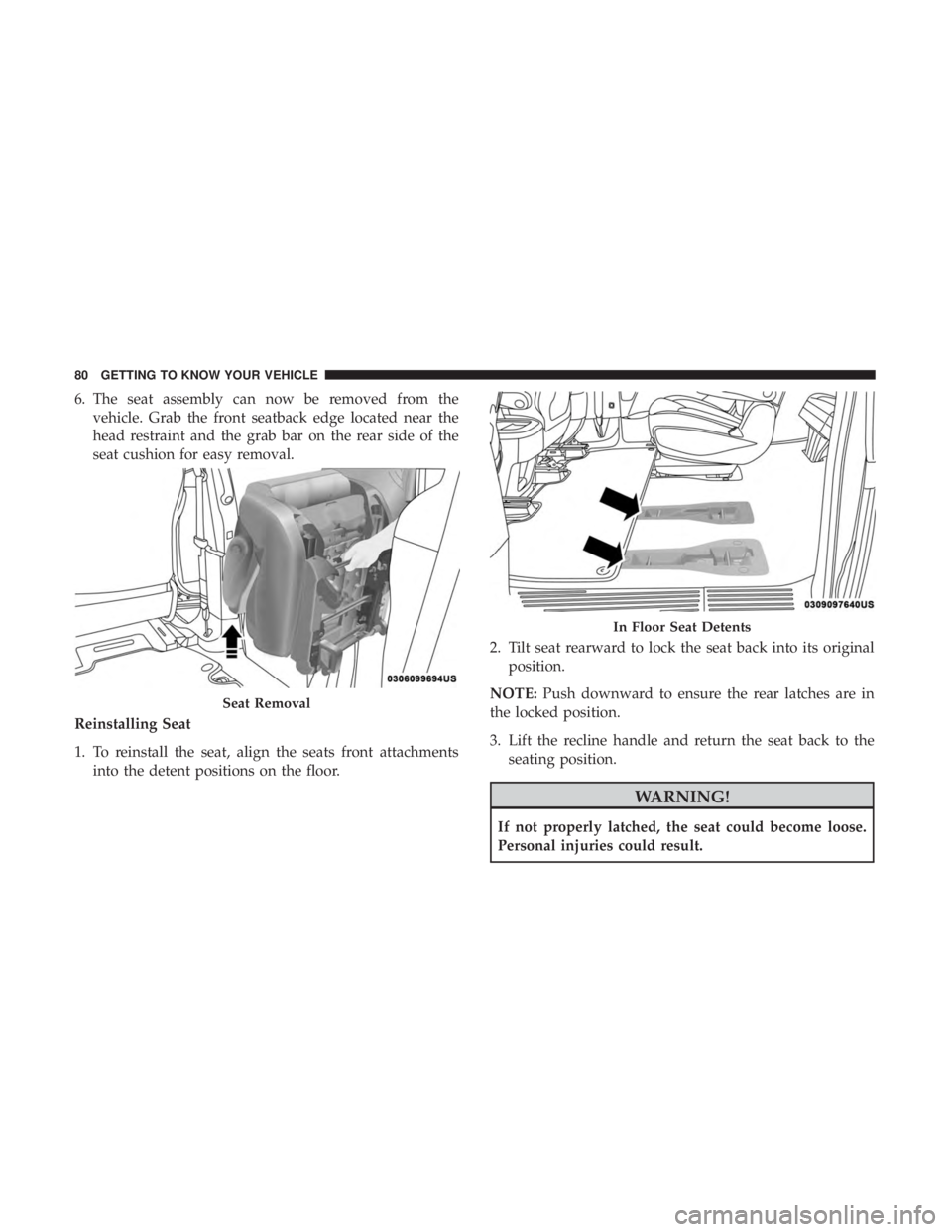

CHRYSLER PACIFICA HYBRID 2018  Owners Manual 6. The seat assembly can now be removed from thevehicle. Grab the front seatback edge located near the
head restraint and the grab bar on the rear side of the
seat cushion for easy removal.
Reinstalli

Page 83 of 614

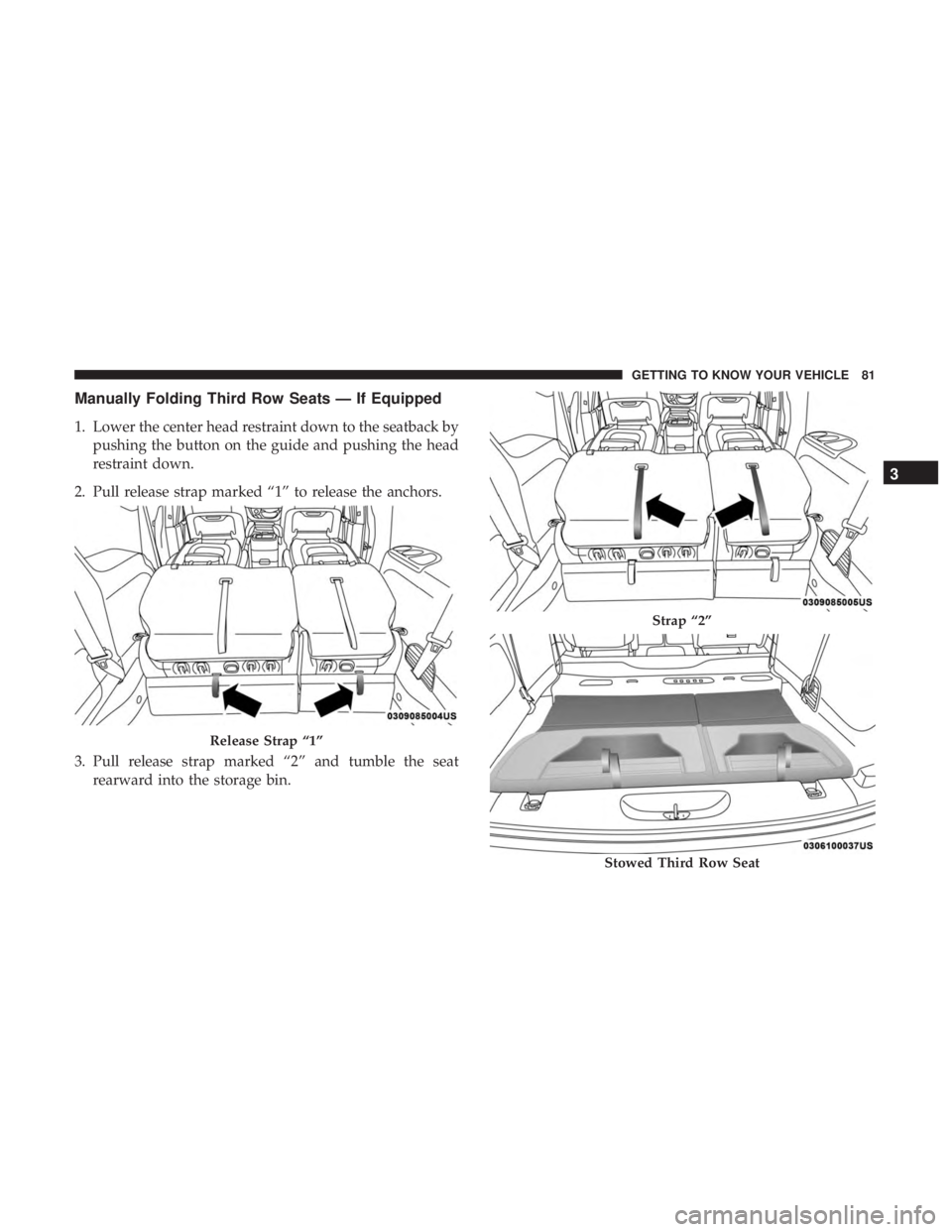

CHRYSLER PACIFICA HYBRID 2018  Owners Manual Manually Folding Third Row Seats — If Equipped
1. Lower the center head restraint down to the seatback bypushing the button on the guide and pushing the head
restraint down.
2. Pull release strap ma

Page 84 of 614

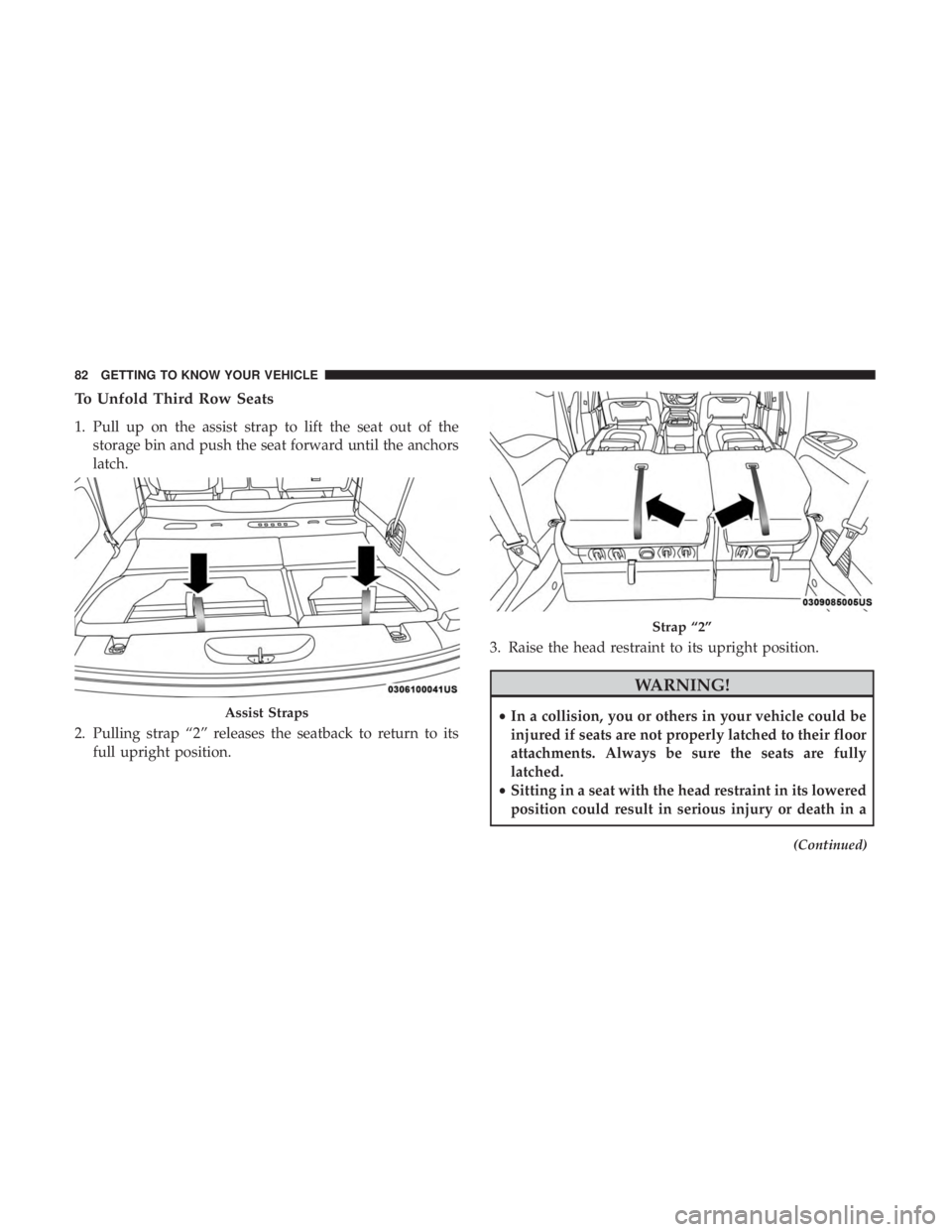

CHRYSLER PACIFICA HYBRID 2018  Owners Manual To Unfold Third Row Seats
1. Pull up on the assist strap to lift the seat out of thestorage bin and push the seat forward until the anchors
latch.
2. Pulling strap “2” releases the seatback to ret

Page 85 of 614

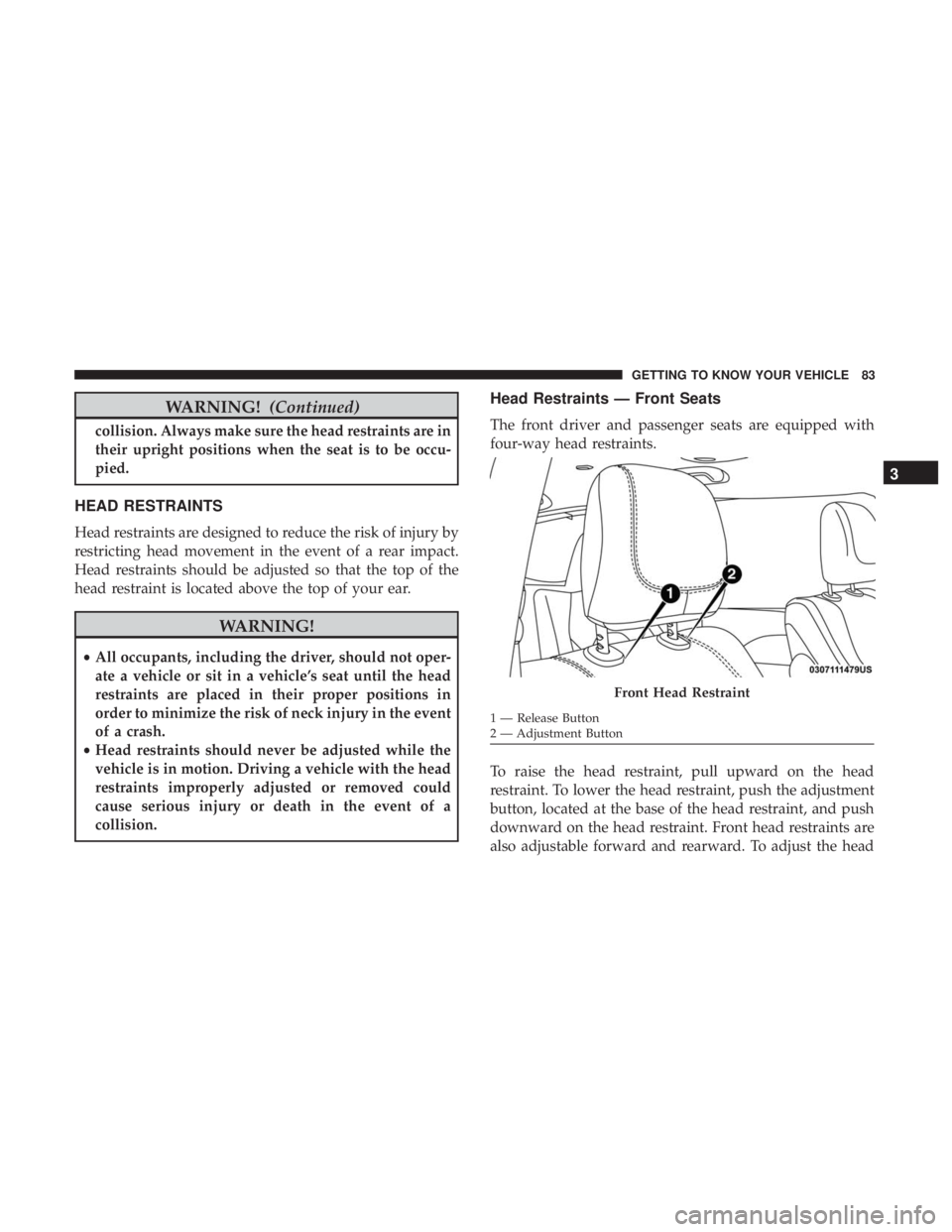

CHRYSLER PACIFICA HYBRID 2018  Owners Manual WARNING!(Continued)
collision. Always make sure the head restraints are in
their upright positions when the seat is to be occu-
pied.
HEAD RESTRAINTS
Head restraints are designed to reduce the risk of

Page 86 of 614

CHRYSLER PACIFICA HYBRID 2018  Owners Manual restraint forward, pull forward on the top of the head
restraint to desired position. To adjust the head restraint
rearward, pull forward on the head restraint to furthest
forward position and head re

Page 87 of 614

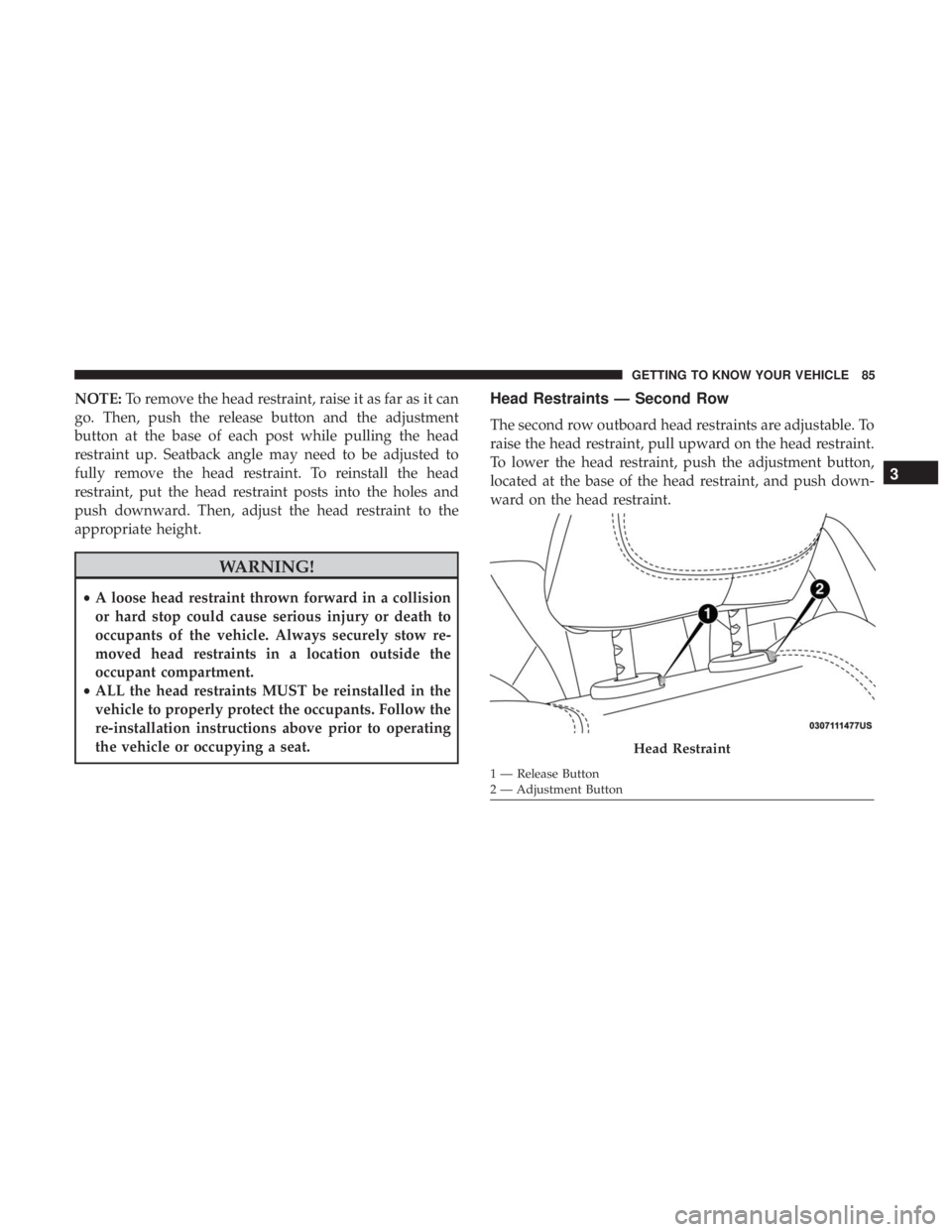

CHRYSLER PACIFICA HYBRID 2018  Owners Manual NOTE:To remove the head restraint, raise it as far as it can
go. Then, push the release button and the adjustment
button at the base of each post while pulling the head
restraint up. Seatback angle ma

Page 88 of 614

CHRYSLER PACIFICA HYBRID 2018  Owners Manual NOTE:To remove the head restraint, raise it as far as it can
go then push the release button and the adjustment button
at the base of each post while pulling the head restraint up.
Seatback angle may
