HIGH VOLTAGE BATTERY
Your vehicle is equipped with a Lithium-ion high voltage
battery that is used to power the electric powertrain
systems and the 12 volt vehicle electrical system.
The high voltage battery is located under the middle
section of the vehicle, below and in front of the second row
seating. The high voltage battery is maintenance free and
designed to last for the life of the vehicle.
Lithium-ion batteries provide the following benefits:
•Lithium-ion batteries are much lighter than other types
of rechargeable batteries of the same size.
• Lithium-ion batteries hold their charge; they only lose
approximately 3 percent of their charge per month.
• Lithium-ion batteries have no memory, which means
that you do not have to completely discharge them
before recharging, as with some other batteries.
• Lithium-ion batteries can be recharged and discharged
thousands of times. High Voltage Battery Service Disconnect
The High Voltage Battery Service Disconnect is located
under the access panel, in front of the second row passen-
ger seating.
If your vehicle requires high voltage battery service, see
your authorized dealer.
WARNING!
Never try to remove the high voltage service discon-
nect. The high voltage service disconnect is used when
your vehicle requires service by a trained technician at
an authorized dealer. Failure to follow this warning
can cause severe burns or electrical shock that may
result in serious injury or death.
Disposal of the High Voltage Battery
Your vehicle’s high voltage battery is designed to last the
life of your vehicle. See your authorized dealer for infor-
mation on the disposal of the battery if it should require
replacement.
18 GETTING TO KNOW YOUR VEHICLE

General Information
The vehicle is also equipped with a Battery Management
System that is designed to:
•Ensure safe operation
• Maximize driving range
• Maximize the life expectancy of the high voltage battery
NOTE:
• During vehicle start up and shut down a clicking noise
may be heard from within the vehicle. When the ignition
is in the ON position, the high voltage battery contactors
inside the battery are closed to make the stored electric-
ity inside available for vehicle use. The clicking noise
heard is the sound of these contactors as they open and
close during normal operation.
• In extreme temperatures, high or low, the High Voltage
Battery may need to be conditioned and therefore may
require the vehicle to be plugged-in. When the vehicle is
not plugged-in, the following message, “Plug In Vehicle
for Battery Conditioning” might appear in the instru-
ment cluster display. When the High Voltage Battery is
not ready to crank the vehicle at start up, due to
conditions including extreme temperatures, the message
“Battery Conditioning Leave Ignition In Run” will be displayed in the instrument cluster display. Keep the
ignition in the ON/RUN position for the battery to
recover. Switch the ignition back to the OFF position
when the message disappears, and then start the vehicle.
When the “Battery Conditioning Leave Ignition in Run”
message is displayed on the instrument cluster display,
do not operate any air conditioning controls.
• Under cold or hot temperatures, while the vehicle is
plugged-in and the ignition is in the OFF position, the
vehicle may wake-up to pre-condition the high voltage
battery for usage.

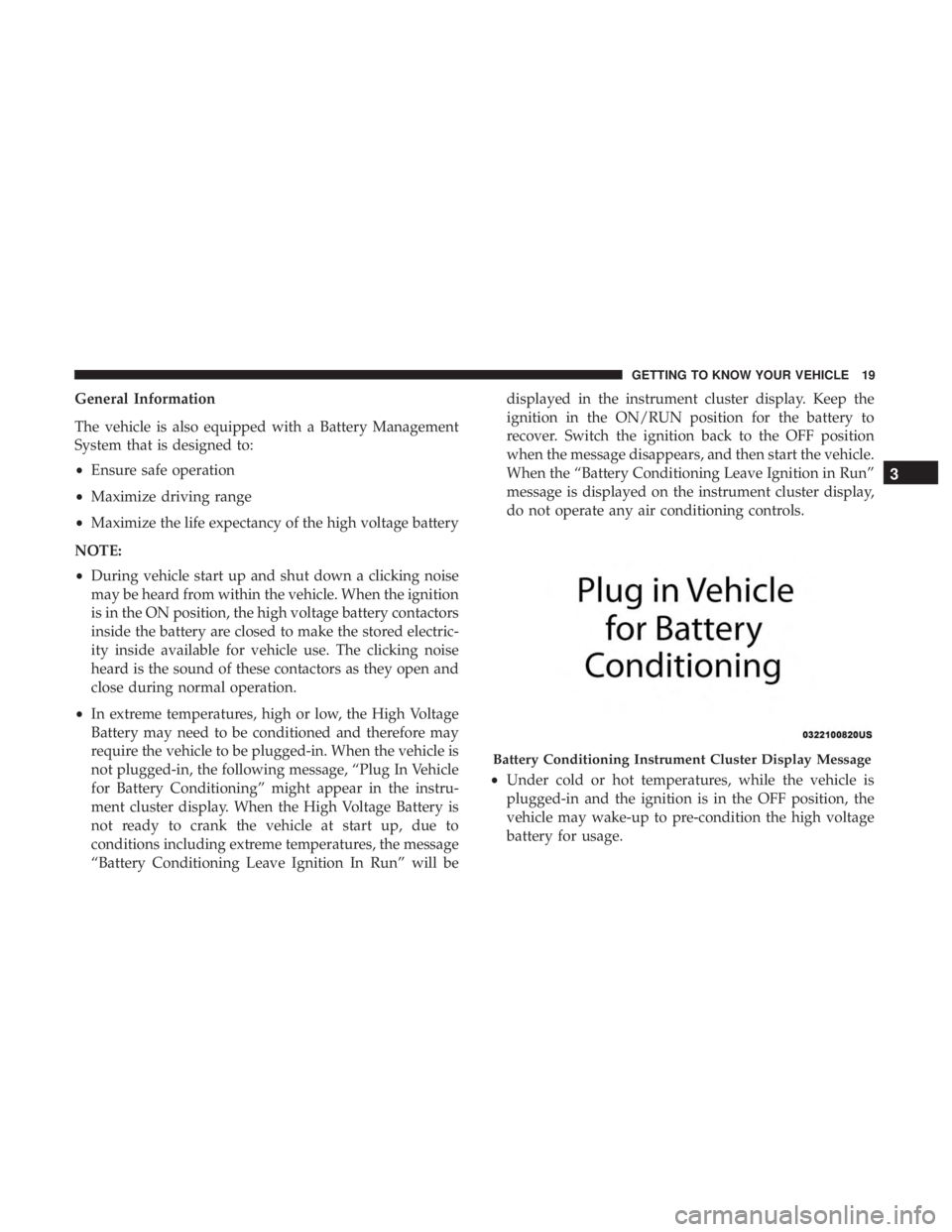

Battery Conditioning Instrument Cluster Display Message
3
GETTING TO KNOW YOUR VEHICLE 19

•It is recommended that the vehicle be plugged-in over
night where possible to maximize the electric range of
the vehicle.
The message will only be displayed when the ignition is in
the RUN position, or if there was a failed attempt to
achieve PSA (Propulsion System Available) when the High
Voltage Battery cell temperatures are either too cold, or too
hot.HIGH VOLTAGE CHARGING OPERATION
SAE J1772 Charging Inlet
Your vehicle uses an industry standard SAE J1772 charge
inlet (vehicle charge inlet) for both AC Level 1 (120V) and
AC Level 2 (240V) charging.

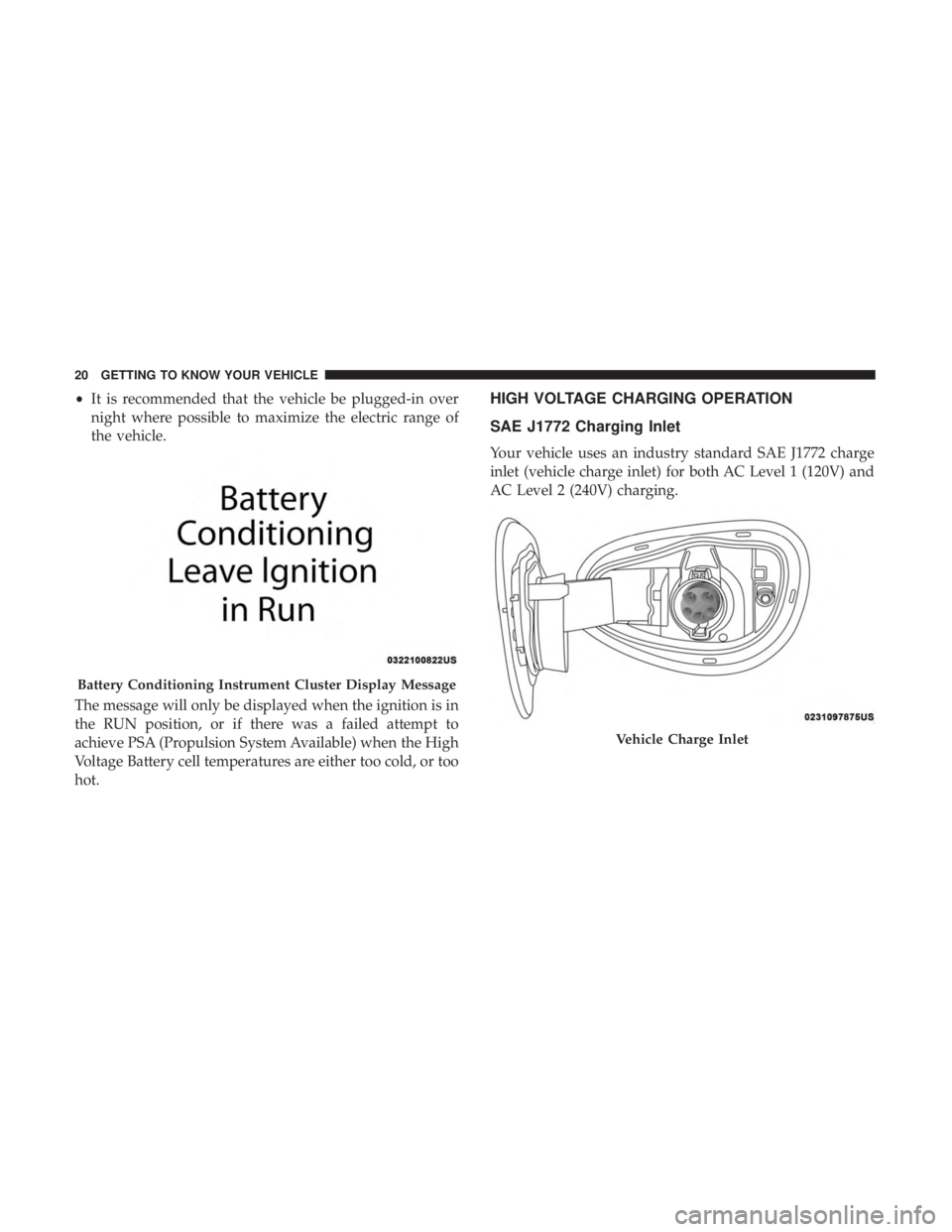

Battery Conditioning Instrument Cluster Display Message
Vehicle Charge Inlet
20 GETTING TO KNOW YOUR VEHICLE

AC Level 1 Charging (120V, 15 Amp)
Your vehicle is equipped with a 120 Volt AC, SAE J1772
Level 1 Electric Vehicle Supply Equipment (EVSE), also
referred to as a charging cord set. AC Level 1 charging
requires a conventional NEMA 5-15 120 Volt AC grounded
wall receptacle along with the portable charging cord set
provided with the vehicle.
WARNING!
Shock, fire, property damage, or personal injury may
occur if the Portable EVSE Cordset is not used prop-
erly. There are no serviceable parts contained in the
Portable EVSE Cordset. Any attempt to service it may
result in shock, fire, property damage, or personal
injury.
To access the portable charging cord set, open the door of
the cargo area storage bin, on the driver ’s side, and remove
the charging cord set from the storage bag.
NOTE: After use, the EVSE should be placed in the carrier
bag and put back to the cargo area storage bin.

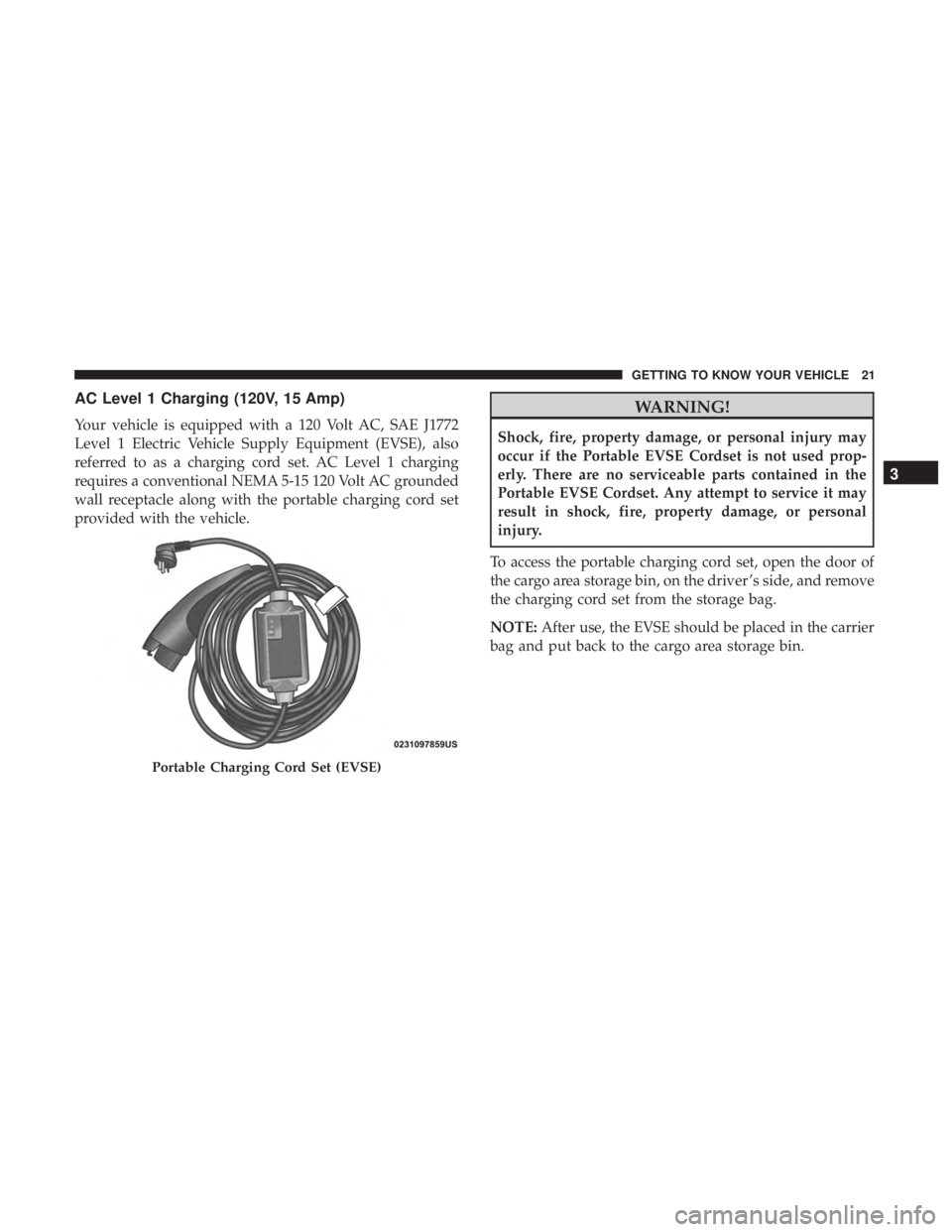

Portable Charging Cord Set (EVSE)
3
GETTING TO KNOW YOUR VEHICLE 21

NOTE:The portable charging cord set is used for AC
Level 1 charging only.
WARNING!
• Read all the instructions before using this product.
• Do not put fingers or objects into the Charge Con-
nector.
• Do not use this product if the flexible power cord or
Electric Vehicle (EV) Cable is frayed, broken, has
cracked insulation or any other signs of damage.
(Continued)
WARNING! (Continued)
•Do not use this product if the enclosure or the
Charge Connector is broken, cracked, open, or shows
any other indication of damage.
• Do not use Portable EVSE Cordset with an extension
cord. Use of an extension cord may cause burns, fire,
or other damage or injury.
• This device may attempt to reset and run after an
interruption.
• There are no user serviceable parts inside the AC
Mode 2 Charging cord set. Do not attempt to repair or
service the charging cord set yourself – personal
injury may result.
• When using a charging station with the charging
cable attached, ensure the cable is not visibly dam-
aged before plugging into the vehicle.
• Do not allow children to operate this device. Adult
supervision is mandatory when children are in prox-
imity to a charge station that is in use.
• Do not use a charge station or vehicle receptacle that
is work or damaged with the AC Mode 3 charging
cable. Plugging into worn or damaged receptacles
may cause damage to the EVSE and vehicle.
(Continued)
Cargo Area Storage Bin
