2018 Acura RLX Navigation Manual

2018
NAVIGATION MANUAL

The information and specifications included in this publication were in effect at the time of approval for printing. Honda Motor Co., Ltd., reserves the right,
however, to discontinue or change specif ications or design at any time without notice and without incurring any obligation.
Accessories Precautions
The GPS antenna is located in the roof. Trees, tall buildings, fr eeway/highway overpasses, tunnels, or overhead electrical power wires can easily interrupt or
interfere with GPS reception.
Signal noise from devices such as radar detectors, vehicle tracking devices, remote starters, and additional amplifiers can dis rupt the navigation system. If you
install any such item, install it away from the navigation display and antenna.
Important Safety Information
Avoid focusing on the screen or manually operating the system controls while driving.
Enter information before you begin driving or when stopped. As y ou drive, listen to the audible instructions and use voice commands when possible. Pull to the
side of the road if you need more time to look at the screen or operate the controls.
Route guidance may conflict with street closures, road construction, detours, and out-of-date map data.
The system itself may also have limitations. Verify route information by carefully observing roads, signs, and signals. Always use your own judgment and obey
traffic laws. 2
System Limitations P. 140
NOTICEThis vehicle’s navigation system display, if so equipped, includes mercury-containing components. Upon removal, please reuse, r ecycle, or dispose of as hazardous
waste. Clean the screen with a soft, damp cloth. You may use a mild cleaner intended for use on the audio/information screen an d On Demand Multi-Use DisplayTM.
3 WARNING
Using the navigation system while driving can take your
attention away from the road, causing a crash in which you
could be seriously injured or killed.
Only operate system controls when the conditions permit you
to safely do so.
18 ACURA RLX NAVI FF HYBRID-31TY28500.book 0 ページ ２０１７年６月２６日　月曜日　午後５時１３分 0
0X31-TY2-8500 2018 RLX Navigation Manual NM-05519

Contents
2System Setup P. 19Start-up 20 Voice Control System 22 Personal Information 24 Routing 37
Guidance 46 Map 53
2Navigation P. 73Entering a Destination 74 Calculating the Route 99 Driving to Your Destination 101 Map Menu 107
Changing Your Route 115 Changing Your Destination 124 Resuming Your Trip 127
2 Troubleshooting P. 129Troubleshooting 130 Error Messages 136
2Reference Information P. 137System Initialization 138 System Limitations 140 Client Assistance 142Legal Information 145
2Voice Commands P. 151Voice Commands 152
Quick Reference GuideP. 2
System SetupP. 19
NavigationP. 73
TroubleshootingP. 129
Reference InformationP. 137
Voice CommandsP. 151
IndexP. 154
18 ACURA RLX NAVI FF HYBRID-31TY28500.book 1 ページ ２０１７年６月２６日　月曜日　午後５時１３分

2
Quick Reference Guide
Quick Reference Guide
Overview—Functions at a Glance
NavigationYou can select any place/landmark as a destination by using voice control or the Interface Dial. The navigation
system gives you turn-by-turn driving directions to your destination.
Store home address (P30)
Register
1 home address.
Track route (P101)
Follow your route in real-time with voice guidance.
AcuraLink Real-Time Traffic
TM (P113)
Bypass congestion and traffic incidents.
Subscription service
Store contacts (P25)
Store up to
200 contacts in 2 address books.
Enter destination (P74)
Select your destination using
13 methods.
Select route (P100)
Set route preferences and select one of
3 routes.
Avoid certain areas (P44)
Set streets and areas to detour around.
Add waypoints (P117)
Add up to
4 “pit stops” along your route.
18 ACURA RLX NAVI FF HYBRID-31TY28500.book 2 ページ ２０１７年６月２６日　月曜日　午後５時１３分

3
Quick Reference Guide
AcuraLink® (P13)
AcuraLink® provides you with important information and messages between your vehicle and Acura.
Voice Control (P22)
Use voice commands for safer system control while dr iving. You can operate all key functions of the
navigation system.
Audio, Bluetooth ® HandsFreeLink ® (HFL), multi-view rear camera,
surround view camera system, and power distribution monitor can
be operated on this navigation system. See the Owner’s Manual
for information on those systems.
18 ACURA RLX NAVI FF HYBRID-31TY28500.book 3 ページ ２０１７年６月２６日　月曜日　午後５時１３分

4
Quick Reference GuideSystem Controls
Volume Knob Audio/Information Screen
NavigationVoice Control
7 Microphone
(P22)
6 Interface Dial/ENTER
Button
(P6)
2 BACK Button
8 (Pick-Up) Button
4 MENU Button (P74)
5 SETTINGS Button
1
NAV Button
(P20)
9 (Hang-Up/Back)
Button
la (Talk) Button (P5)
3 (Display Mode)
Button
(P58)
(Power) Button
See the Owner’s Manual for other buttons.
18 ACURA RLX NAVI FF HYBRID-31TY28500.book 4 ページ ２０１７年６月２６日　月曜日　午後５時１３分

5
Quick Reference GuideVoice Control Operation
Voice Portal Screen
aPress and release the (Talk) button
on the top screen of any mode.
The system prompts you to say a voice
command and gives examples. Press
and release the (Talk) button
again to bypass this prompt.
 The system beeps when ready for a
command. Press the (Hang-Up/
Back) button to cancel.
 Available voice commands are
highlighted on the screen.
b Say a voice command (e.g., Address).
After that follow the voice prompt
and say a voice command.
The audio system is muted during voice
control mode.
 You can use other voice commands on
the Voice Portal screen.
The system recognizes only certain
commands.
Available navigation voice commands
(P152)
 Say “Voice Help ” to enter supported
commands for the current screen. A
voice help tutorial is also available.
Voice Help (P14)
 During the voice control mode, press
and hold the (Hang-Up/Back)
button to return to the Voice Portal
screen.
 Set Voice Prompt to Off to bypass the
voice prompt. See your Owner’s Manual.
 Carefully read the usage note for the
voice control.
Voice Control System (P22)
18 ACURA RLX NAVI FF HYBRID-31TY28500.book 5 ページ ２０１７年６月２６日　月曜日　午後５時１３分

6

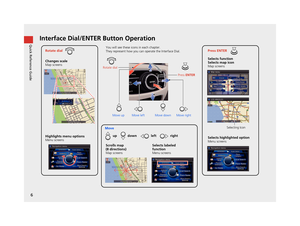

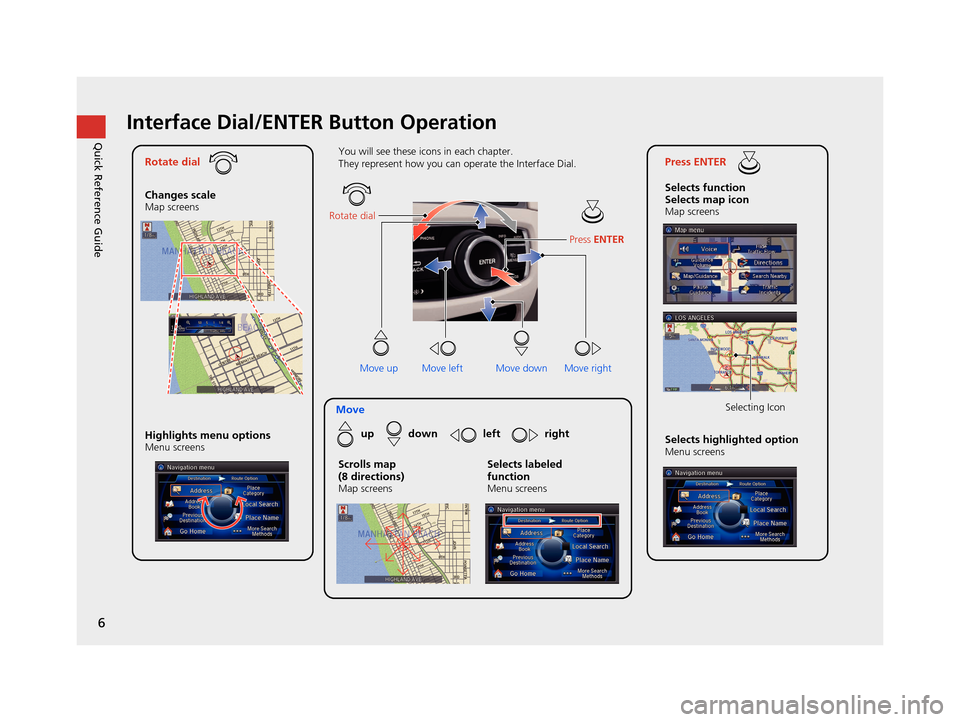

Quick Reference GuideInterface Dial/ENTER Button Operation
Rotate dial
Changes scale
Map screens
Press ENTER
Selects function
Selects map icon
Map screens
Moveup down left right
Highlights menu options
Menu screensSelects highlighted optionMenu screens Selecting Icon
You will see these icons in each chapter.
They represent how you can operate the Interface Dial.
Move up Move left Move rightScrolls map
(8 directions)
Map screens
Selects labeled
function
Menu screens
Rotate dial
Press ENTER
Move down
