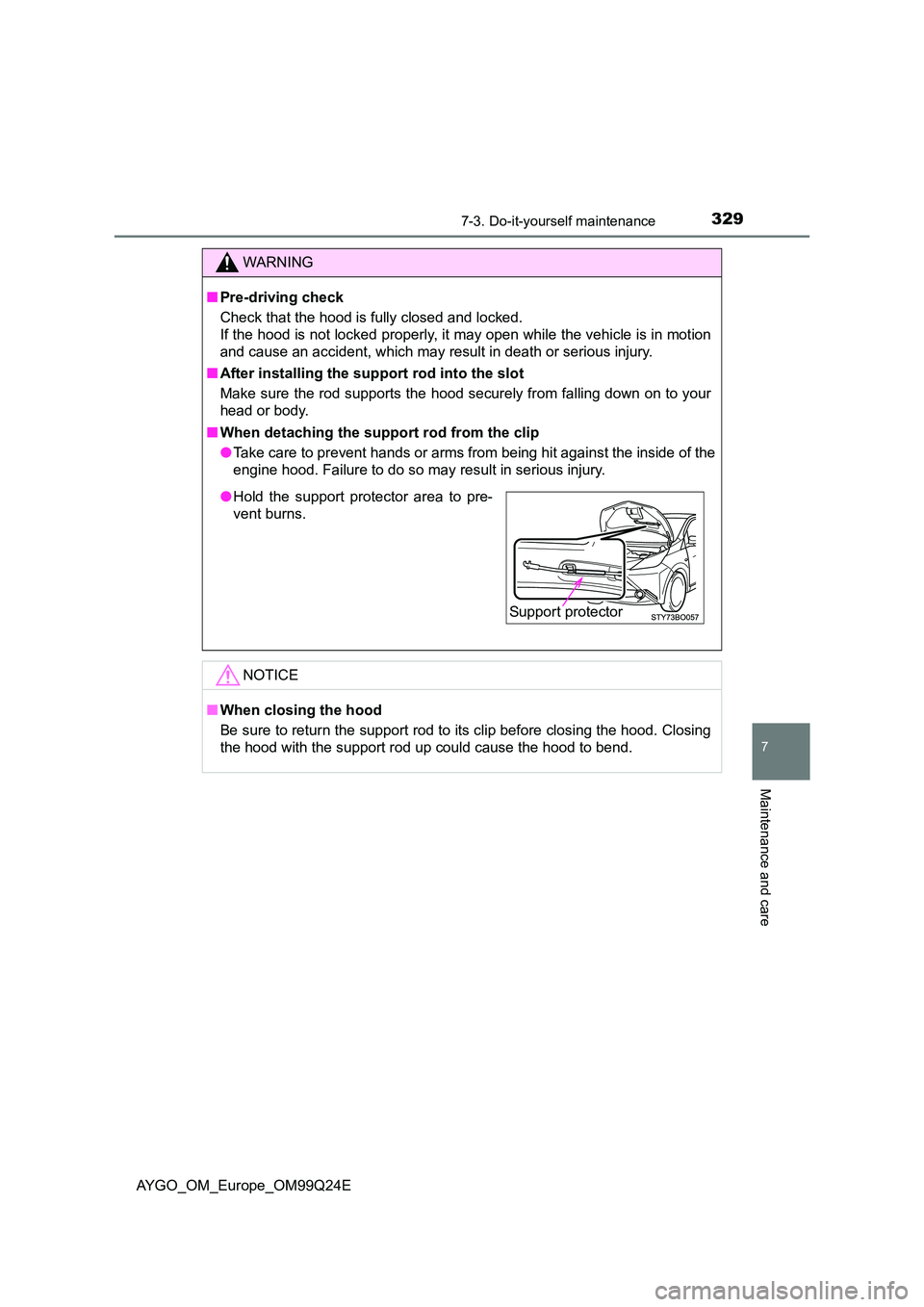

3297-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_OM_Europe_OM99Q24E
WARNING
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
■ After installing the support rod into the slot
Make sure the rod supports the hood securely from falling down on to your
head or body.
■ When detaching the support rod from the clip
● Take care to prevent hands or arms from being hit against the inside of the
engine hood. Failure to do so may result in serious injury.
NOTICE
■ When closing the hood
Be sure to return the support rod to its clip before closing the hood. Closing
the hood with the support rod up could cause the hood to bend.
● Hold the support protector area to pre-
vent burns.
Support protector

3307-3. Do-it-yourself maintenance
AYGO_OM_Europe_OM99Q24E
Positioning a floor jack
◆Front
◆Rear
When using a floor jack, follow the instructions in the manual
provided with the jack and perform the operation safely.
When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehicle or cause
injury.

3317-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_OM_Europe_OM99Q24E
Engine compartment
1KR engine
Engine oil filler cap
( P. 334)
Fuse box ( P. 357)
Battery ( P. 338)
Engine coolant reservoir
( P. 336)
Radiator ( P. 338)
Electric cooling fan
Condenser ( P. 338)
Engine oil level dipstick
( P. 333)
Washer fluid tank ( P. 342)
1
2
3
4
5
6
7
8
9

3327-3. Do-it-yourself maintenance
AYGO_OM_Europe_OM99Q24E
HM01 engine
Engine coolant reservoir
( P. 336)
Engine oil filler cap
( P. 334)
Fuse box ( P. 357)
Battery ( P. 338)
Radiator ( P. 338)
Electric cooling fan
Condenser ( P. 338)
Engine oil level dipstick
( P. 333)
Washer fluid tank ( P. 342)
1
2
3
4
5
6
7
8
9

3337-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_OM_Europe_OM99Q24E
With the engine at operating temperature and turned off, check the oil
level on the dipstick.
■Checking the engine oil
Park the vehicle on level ground. After warming up the engine
and turning it off, wait more than 5 minutes for the oil to drain
back into the bottom of the engine.
Holding a rag under the end, pull the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Engine oil
1KR engineHM01 engine

3347-3. Do-it-yourself maintenance
AYGO_OM_Europe_OM99Q24E
Holding a rag under the end, pull the dipstick out and check the
oil level.
Low
Normal
Excessive
The shape of the dipstick may differ depending on the type of
vehicle or engine.
Wipe the dipstick and reinsert it fully.
■Adding engine oil
If the oil level is below or near the low level mark, add engine oil of
the same type as that already in the engine.
Make sure to check the oil type and prepare the items needed
before adding oil.
1
2
3
1KR engineHM01 engine
1KR engineHM01 engine

3357-3. Do-it-yourself maintenance
7
Maintenance and care
AYGO_OM_Europe_OM99Q24E

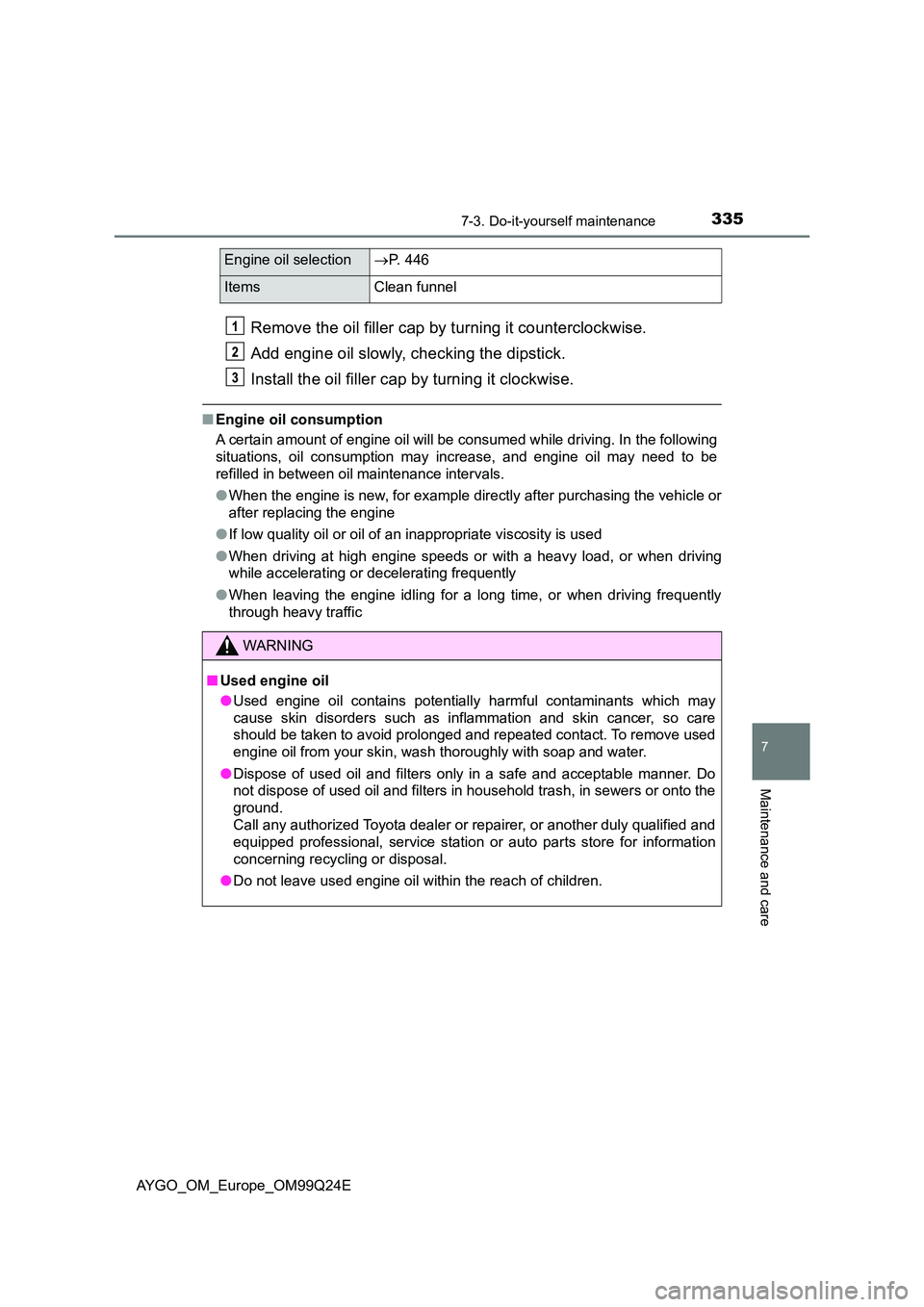

Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
■ Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the following
situations, oil consumption may increase, and engine oil may need to be
refilled in between oil maintenance intervals.
● When the engine is new, for example directly after purchasing the vehicle or
after replacing the engine
● If low quality oil or oil of an inappropriate viscosity is used
● When driving at high engine speeds or with a heavy load, or when driving
while accelerating or decelerating frequently
● When leaving the engine idling for a long time, or when driving frequently
through heavy traffic
Engine oil selection P. 446
Items Clean funnel
WARNING
■Used engine oil
● Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation and skin cancer, so care
should be taken to avoid prolonged and repeated contact. To remove used
engine oil from your skin, wash thoroughly with soap and water.
● Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground.
Call any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional, service station or auto parts store for information
concerning recycling or disposal.
● Do not leave used engine oil within the reach of children.

3367-3. Do-it-yourself maintenance
AYGO_OM_Europe_OM99Q24E
The coolant level is satisfactory if it is between the “FULL”, “F” or
“MAX” and “LOW” or “MIN” lines on the reservoir when the engine is
cold.
1KR engine (type A)
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to the
“FULL” line.
1KR engine (type B)
Reservoir cap
“F” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to the
“F” line.
NOTICE
■ To prevent serious engine damage
Check the oil level on a regular basis.
■ When replacing the engine oil
● Be careful not to spill engine oil on the vehicle components.
● Avoid overfilling, or the engine could be damaged.
● Check the oil level on the dipstick every time you refill the vehicle.
● Be sure the engine oil filler cap is properly tightened.
Engine coolant
1
2
3
1
2
3
