2017 TOYOTA AYGO Owners Manual (in English)

129
3
3-3. Adjusting the seats
Operation of each component
AYGO_OM_Europe_OM99Q24E
Rear seats
Stow the seat belts using the seat belt hangers.
Insert the tab of the rear seat belt as shown in the illustration.
Lower the head restraints to the
lowest position.
Vehicles with a non-split rear seat
Pull both seatback lock release
straps at the same time and
fold the seatback down.
The seatbacks of the rear seats can be folded down.
Folding down the rear seatbacks
3-door models5-door models

1303-3. Adjusting the seats
AYGO_OM_Europe_OM99Q24E
Vehicles with a split rear seats
Pull the seatback lock release
strap and fold the seatback
down.
Each seatback may be folded sep-
arately.
■ After returning the rear seatback
Remove the rear seat belts from the seat belt hangers.
WARNING
■ When folding the rear seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Do not fold the seatbacks down while driving.
● Stop the vehicle on level ground, set the parking brake and shift the shift
lever to E, M or R (multi-mode manual transmission) or N (manual trans-
mission).
● Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
● Do not allow children to enter the luggage compartment.
● Be careful not to get your hands caught when folding the rear seatbacks.
● Adjust the position of the front seat before folding down the rear seatbacks
so that the front seat does not interf ere with the rear seatbacks when fold-
ing down the rear seatbacks.
■ After returning the rear seatback to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Make sure the seatback is securely locked by pushing it forward and rear-
ward on the top.
● Check that the seat belts are not twisted or caught in the seatback.
NOTICE
■Stowing the seat belts
The seat belts must be stowed before you fold down the rear seatback.

131
3
3-3. Adjusting the seats
Operation of each component
AYGO_OM_Europe_OM99Q24E
Head restraints
Rear head restraints
Up
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
■ Removing the rear head restraints
■ Adjusting the rear seat head restraints
Always raise the head restraint one level from the stowed position when
using.
■ Front head restraints
The front head restraints do not have adjusted function.
Head restraints are provided for all seats.
Lock release
button
1
2
Pull the head restraint up while pressing
the lock release button.
WARNING
■ Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
● Use the head restraints designed for each respective seat.
● Adjust the head restraints to the correct position at all times.
● After adjusting the head restraints, push down on them and make sure
they are locked in position.
● Do not drive with the head restraints removed.
Lock release button

1323-4. Adjusting the steering wheel and mirrors
AYGO_OM_Europe_OM99Q24E

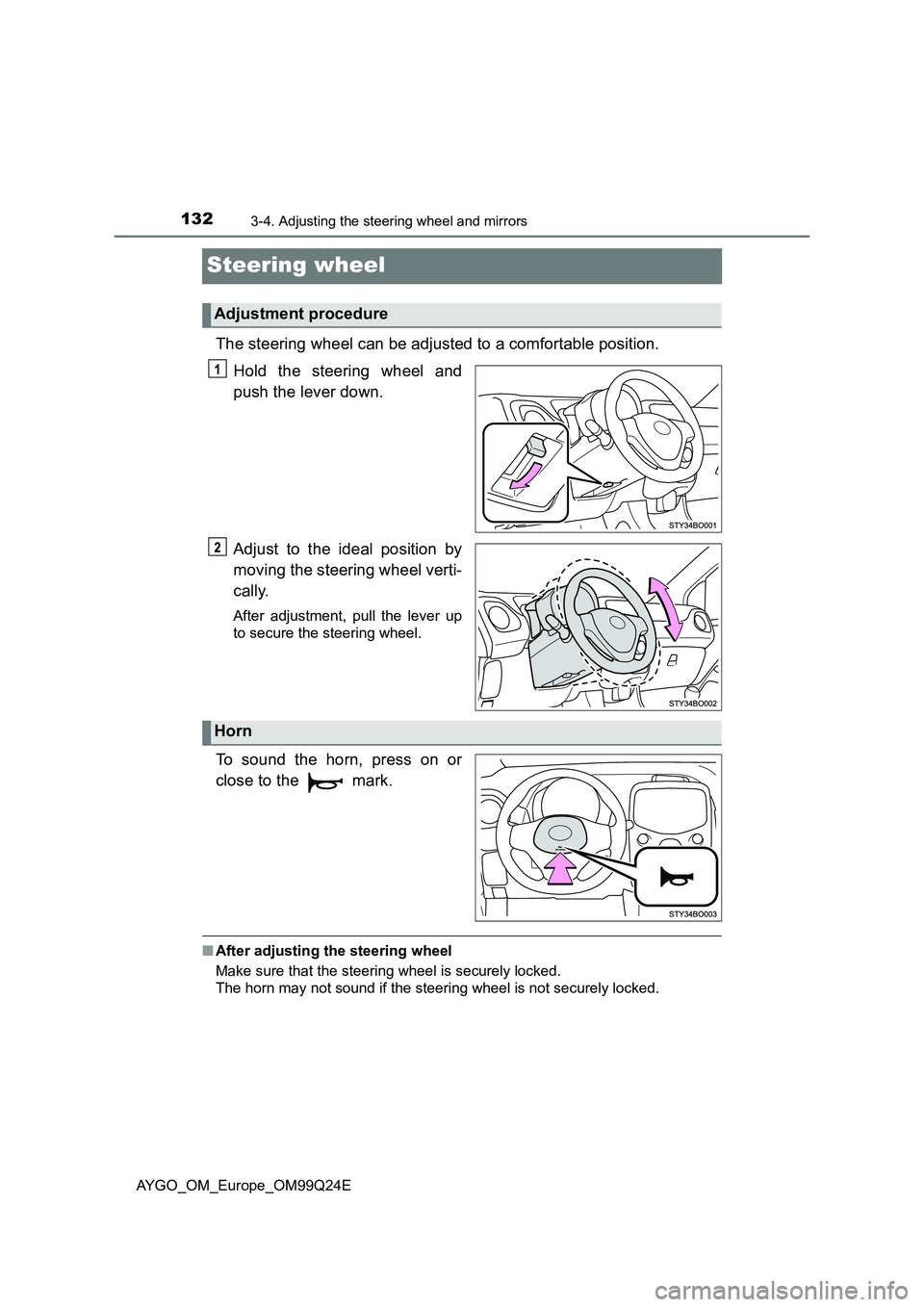

Steering wheel
The steering wheel can be adjusted to a comfortable position.
Hold the steering wheel and
push the lever down.
Adjust to the ideal position by
moving the steering wheel verti-
cally.
After adjustment, pull the lever up
to secure the steering wheel.
To sound the horn, press on or
close to the mark.
■ After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
Adjustment procedure
Horn

1333-4. Adjusting the steering wheel and mirrors
3
Operation of each component
AYGO_OM_Europe_OM99Q24E
WARNING
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an acci-
dent, resulting in death or serious injury.
■ After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident and resulting in death or serious injury.

1343-4. Adjusting the steering wheel and mirrors
AYGO_OM_Europe_OM99Q24E
Inside rear view mirror
The height of the rear view mirror can be adjusted to suit your driving
posture.
Adjust the height of the rear view
mirror by moving it up and down.
Reflected light from the headlights of vehicles behind can be reduced
by operating the lever.
Normal position
Anti-glare position
The rear view mirror’s position can be adjusted to enable suffi-
cient confirmation of the rear view.
Adjusting the height of rear view mirror (if equipped)
Anti-glare function
1
2
WARNING
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.

135
3
3-4. Adjusting the steering wheel and mirrors
Operation of each component
AYGO_OM_Europe_OM99Q24E
Outside rear view mirrors
Manual-adjustable type
Adjust the mirror up, down, in or
out using the lever.
Power-adjustable type
To select a mirror to adjust,
press the switch.
Left
Right
To adjust the mirror, press the
switch.
Up
Right
Down
Left
Adjustment procedure
1
2
1
2
3
4

1363-4. Adjusting the steering wheel and mirrors
AYGO_OM_Europe_OM99Q24E
Push the mirror back in the direc-
tion of the vehicle’s rear.
■ Mirror angle can be adjusted when (power-adjustable type)
Vehicles without a smart entry & start system
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart entry & start system
The engine switch is in ACCESSORY or IGNITION ON mode.
■ When the mirrors are fogged up (power-adjustable type)
The outside rear view mirrors can be cleared using the mirror defoggers. Turn
on the rear window defogger to turn on the outside rear view mirror defog-
gers. ( P. 292, 298)
Folding the mirrors
WARNING
■Important points while driving
Observe the following precautions while driving.
Failure to do so may result in loss of control of the vehicle and cause an
accident, resulting in death or serious injury.
● Do not adjust the mirrors while driving.
● Do not drive with the mirrors folded.
● Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■ When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
■ When the mirror defoggers are operating (power-adjustable type)
Do not touch the rear view mirror surfaces, as they can become very hot
and burn you.
