2017 TOYOTA AYGO Owners Manual (in English)

1614-2. Driving procedures
4
Driving
AYGO_OM_Europe_OM99Q24E
■ Steering lock
After turning the engine switch off and opening and closing the doors, the
steering wheel will be locked due to the steering lock function. Operating the
engine switch again automatically cancels the steering lock.
■ When the steering lock cannot be released
■ Steering lock motor overheating prevention
To prevent the steering lock motor from overheating, the motor may be sus-
pended if the engine is turned on and off repeatedly in a short period of time.
In this case, refrain from running the engine. After about 10 seconds, the
steering lock motor will resume functioning.
■ If the system is malfunctioning
 P. 393
■ If the electronic key battery is depleted
 P. 354
■ Operation of the engine switch
● When operating the engine switch, one short, firm press is enough. If the
switch is pressed improperly, the engine may not start or the engine switch
mode may not change. It is not necessary to press and hold the switch.
● If attempting to restart the engine immediately after turning the engine
switch off, the engine may not start in some cases. After turning the engine
switch off, please wait a few seconds before restarting the engine.
● The buzzer sound when the following occurs
• When the engine switch is pressed while the vehicle is running
Other than cases of emergency, do not press the engine switch while the
vehicle is running.
• When the engine is stopped by emergency shutdown operation
( P. 379)
The buzzer will sound continuously until the engine is restarted, or the
vehicle is completely stopped and the engine switch is turned to IGNI-
TION ON mode.
■ If the smart entry & start system has been deactivated in a customized
setting
 P. 429
The smart entry & start system indicator
light (green) will flash quickly.
Press the engine switch while turning the
steering wheel left and right.

1624-2. Driving procedures
AYGO_OM_Europe_OM99Q24E
WARNING
■When starting the engine
Always start the engine while sitting in the driver’s seat. Do not depress the
accelerator pedal while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
■ Caution while driving
If engine failure occurs while the vehicle is moving, do not lock or open the
doors until the vehicle reaches a safe and complete stop. Activation of the
steering lock in this circumstance may lead to an accident, resulting in
death or serious injury.
■ Stopping the engine in an emergency
If you want to stop the engine in an emergency while driving the vehicle,
press and hold the engine switch for more than 2 seconds, or press it briefly
3 times or more in succession. ( P. 379)
However, do not touch the engine switch while driving except in an emer-
gency. Turning the engine off while driving will not cause loss of steering or
braking control, but the power assist to these systems will be lost. This will
make it more difficult to steer and brake, so you should pull over and stop
the vehicle as soon as it is safe to do so.
NOTICE
■ To prevent battery discharge
● Do not leave the engine switch in ACCESSORY or IGNITION ON mode
for long periods of time without the engine running.
● If the smart entry & start system indicator light (green) is illuminated, the
engine switch is not off. When exiting the vehicle, always check that the
engine switch is off.
■ When starting the engine
● Do not race a cold engine.
● If the engine becomes difficult to start or stalls frequently, have your vehi-
cle checked immediately.
■ Symptoms indicating a malfunction with the engine switch
If the engine switch seems to be operating somewhat differently than usual,
such as the switch sticking slightly, there may be a malfunction. Contact any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional immediately.

163
4
4-2. Driving procedures
Driving
AYGO_OM_Europe_OM99Q24E

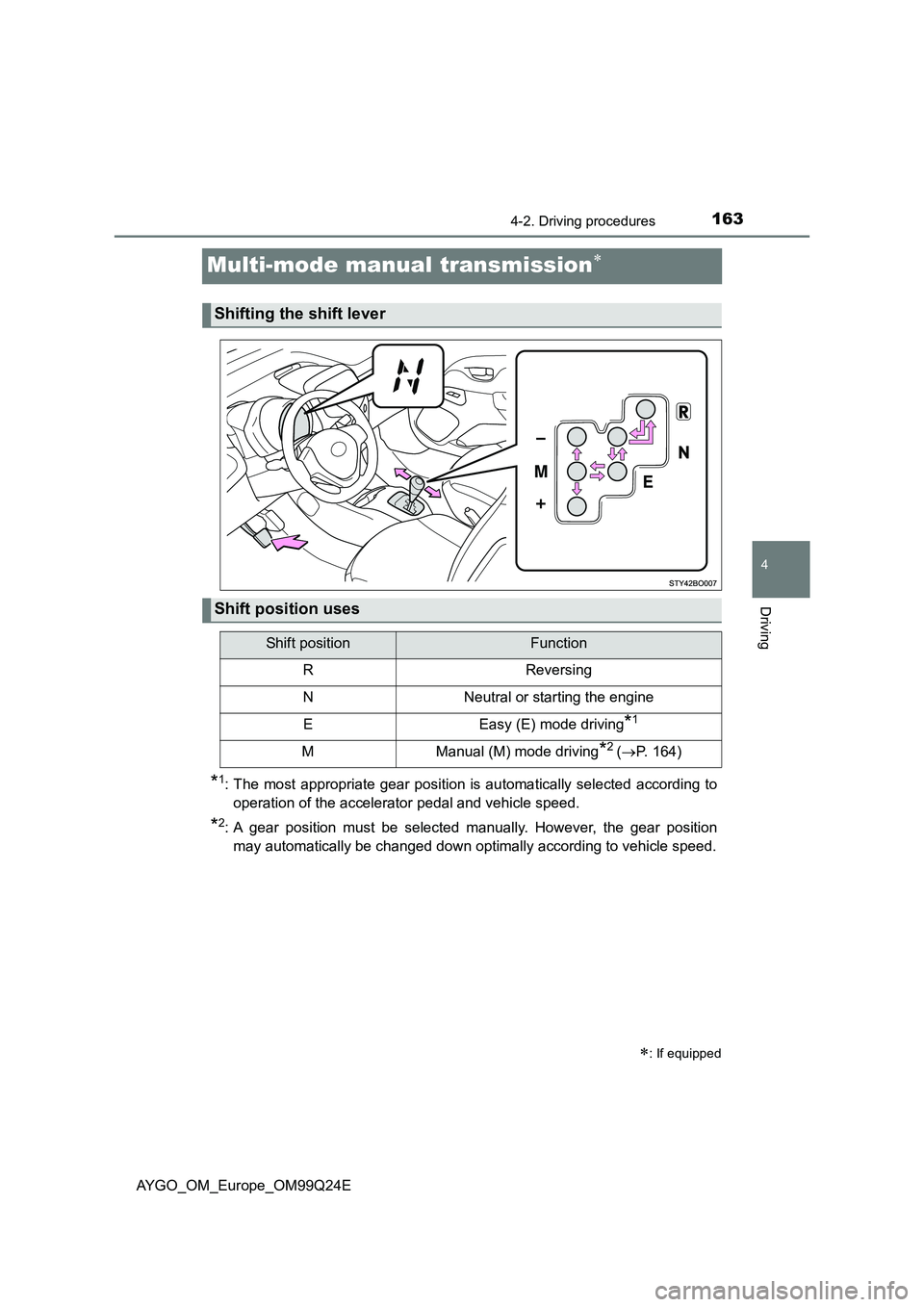

Multi-mode manual transmission
*1: The most appropriate gear position is automatically selected according to
operation of the accelerator pedal and vehicle speed.
*2: A gear position must be selected manually. However, the gear position
may automatically be changed down optimally according to vehicle speed.
: If equipped
Shifting the shift lever
Shift position uses
Shift positionFunction
RReversing
NNeutral or starting the engine
EEasy (E) mode driving*1
MManual (M) mode driving*2 ( P. 164)

1644-2. Driving procedures
AYGO_OM_Europe_OM99Q24E
Shift the shift lever to M and operate the shift lever or paddle shift
switch.
Upshifting
Downshifting
When the accelerator pedal is
depressed further, while driving,
downshifting will be performed.
Shifting operation may be
restricted depending on the vehicle
speed.
When the shift position is in E, the paddle shift switches can be used
to select a gear position temporarily. When a gear position is selected,
the gear position will be displayed.
Upshifting
Downshifting
Changing gear positions in M mode
1
2
Changing gear positions in E mode
1
2

1654-2. Driving procedures
4
Driving
AYGO_OM_Europe_OM99Q24E
The Gear Shift Indicator is a guide to help the driver achieve improved
fuel economy and reduced exhaust emissions within limits of engine
performance.
Upshifting
Downshifting
Gear Shift Indicator operates only
M mode.
■ Maximum allowable speeds
Observe the following maximum allowable speeds in each gear when maxi-
mum acceleration is necessary.
km/h (mph)
■ Downshifting restrictions warning buzzer (in E mode [when the paddle
shift switch is operated] or M mode)
To help ensure safety and driving per formance, downshifting operation may
sometimes be restricted. In some circumstances, downshifting may not be
possible even when the shift lever or paddle shift switch is operated. (The
warning buzzer will sound twice.)
■ Reverse warning buzzer
When shifting into R, a buzzer will sound to inform the driver that the shift
lever is in R.
Gear Shift Indicator
1
2
Gear positionMaximum speed
143 (27)
280 (50)
3133 (83)
4158 (98)
5—

1664-2. Driving procedures
AYGO_OM_Europe_OM99Q24E
■ If the shift lever cannot be shifted
● With the shift lever in N
Depress the brake pedal to shift the shift lever. If the shift lever cannot be
shifted with your foot on the brake, there may be a problem with the shift
lock system. ( P. 428)
● With the shift lever in a position other than N
 P. 428
■ If the driver’s door is opened when the shift lever is in a position other
than N and the engine is running
A buzzer will sound. Close the driver’s door.
■ If the parking brake is set when the shift lever is in a position other than
N with engine running
● When the driver’s door is opened
A buzzer will sound and the gear position will automatically change to N in
10 seconds.
● When the driver’s door is closed
A buzzer will sound and the gear position will automatically change to N in
90 seconds.
■ If the M indicator does not come on even after shifting the shift lever to M
This may indicate a malfunction in the multi-mode manual transmission sys-
tem. Have the vehicle inspected by any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional immediately.
(In this situation, the vehicle will operate as if the shift lever is in E.)
■ If the N indicator is flashing
● When shifting the shift lever:
Shift the shift lever to N. Wait a few seconds and shift the shift lever to the
desired position.
● When the engine is turned off:
Vehicles without a smart entry & start system:
Turn the engine switch to the “ON” position and shift the shift lever to N, and
then to the desired position.
Vehicles with a smart entry & start system:
Turn the engine switch to IGNITION ON mode and shift the shift lever to N,
and then to the desired position.
If the indicator still blinks after the above operations, shift the shift lever to N
and start the engine. Then, shift the shift lever to the desired position.
■ If the N indicator is flashing and the warning buzzer is beeping
Shift the shift lever to N, and then to E, M or R.

1674-2. Driving procedures
4
Driving
AYGO_OM_Europe_OM99Q24E
WARNING
■Gear Shift Indicator display
For safety, the driver should not look onl y a the display. Refer to the display
when it is safe to do so while considering actual traffic and road conditions.
Failure to do so may lead to an accident.

1684-2. Driving procedures
AYGO_OM_Europe_OM99Q24E
Manual transmission
Fully depress the clutch pedal before operating the shift lever, and
then release it slowly.
If it is difficult to shift in reverse, shift the shift lever to N, release the clutch
pedal momentarily, and then try again.
The Gear Shift Indicator is a guide to help the driver achieve improved
fuel economy and reduced exhaust emissions within limits of engine
performance.
Upshifting
Downshifting
: If equipped
Shifting the shift lever
Gear Shift Indicator
1
2
