983-1. Key information
AYGO_OM_Europe_OM99Q24E
Keys
The following keys are provided with the vehicle.
Ty pe A
Keys
Key number plate
Ty pe B
Key (with wireless remote con-
trol function)
Operating the wireless remote con-
trol function
Key (without wireless remote
control function)
Key number plate
Ty pe C
Electronic keys
• Operating the smart entry &
start system ( P. 119)
• Operating the wireless remote
control function
Mechanical keys
Key number plate
The keys
1
2
1
2
3
1
2
3

1083-2. Opening, closing and locking the doors
AYGO_OM_Europe_OM99Q24E
Side doors
◆Key
Vehicles without a power door lock system
Locks the door
Unlocks the door
Vehicles with a power door lock system
Locks all the doors
Unlocks all the doors
Vehicles with a smart entry & start system
The doors can also be locked and unlocked with the mechanical
key. ( P. 429)
The vehicle can be locked and unlocked using the key, wireless
remote control or smart entry & start system.
Unlocking and locking the doors from the outside
1
2
1
2

1093-2. Opening, closing and locking the doors
3
Operation of each component
AYGO_OM_Europe_OM99Q24E
◆Wireless remote control (if equipped)
Vehicles without a smart entry & start system
Locks all the doors
Check that the door is securely
locked.
Unlocks all the doors
Vehicles with a smart entry & start system
Locks all the doors
Check that the door is securely
locked.
Unlocks all the doors
◆Smart entry & start system (if equipped)
Carry the electronic key to enable this function.
Press the button to lock/unlock
the doors.
Press the button to be certain.
Check that the door is securely
locked.
1
2
1
2

1103-2. Opening, closing and locking the doors
AYGO_OM_Europe_OM99Q24E
■Operation signals (vehicles with a wireless remote control system or
smart entry & start system)
The emergency flashers flash to indicate that the doors have been locked/
unlocked. (Locked: once; Unlocked: twice)
■ Security feature (vehicles with a smart entry & start system)
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■ Door lock buzzer (vehicles with a smart entry & start system)
If an attempt to lock the doors is made when a door is not fully closed, a
buzzer sounds continuously for 5 seconds. Fully close the door to stop the
buzzer, and lock the vehicle once more.
■ If the smart entry & start system does not operate properly (if equipped)
● Use the mechanical key to lock and unlock the doors. (P. 429)
● Replace the battery with a new one if it is depleted. (P. 354)
◆Inside lock buttons
Vehicles without a power door lock system
Locks the door
Unlocks the door
The front doors can be opened
by pulling the inside handle
even if the lock button is in the
lock position.
Vehicles with a power door lock system
Driver’s side:
Locks all the doors
Passenger’s side:
Locks the door
Driver’s side:
Unlocks all the doors
Passenger’s side:
Unlocks the door
The front doors can be opened by pulling the inside handle even if the
lock button is in the lock position.
Unlocking and locking the doors from the inside
1
2
1
2

1123-2. Opening, closing and locking the doors
AYGO_OM_Europe_OM99Q24E
■Conditions affecting operation of the wireless remote control (if
equipped)
The wireless remote control function may not operate normally in the follow-
ing situations.
● When the wireless key battery is depleted
● Near a TV tower, radio station, electric power plant, airport or other facility
that generates strong radio waves
● When carrying a portable radio, cellular phone or other wireless communi-
cation device
● When multiple wireless keys are in the vicinity
● When the wireless key has come into contact with, or is covered by a metal-
lic object
● When a wireless key (that emits radio waves) is being used nearby
● When the wireless key has been left near an electrical appliance such as a
personal computer
● If window tint with a metallic content or metallic objects are attached to the
rear window
■ Conditions affecting operation of the smart entry & start system (if
equipped)
 P. 121
WARNING
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant throwing out
of the vehicle, resulting in death or serious injury.
● Ensure that all doors are properly closed.
● Do not pull the inside handle of the doors while driving.
Be especially careful for the front doors, as the doors may be opened even
if the inside lock buttons are in locked position.
● 5-door models: Set the rear door child-protector locks when children are
seated in the rear seats.

113
3
3-2. Opening, closing and locking the doors
Operation of each component
AYGO_OM_Europe_OM99Q24E

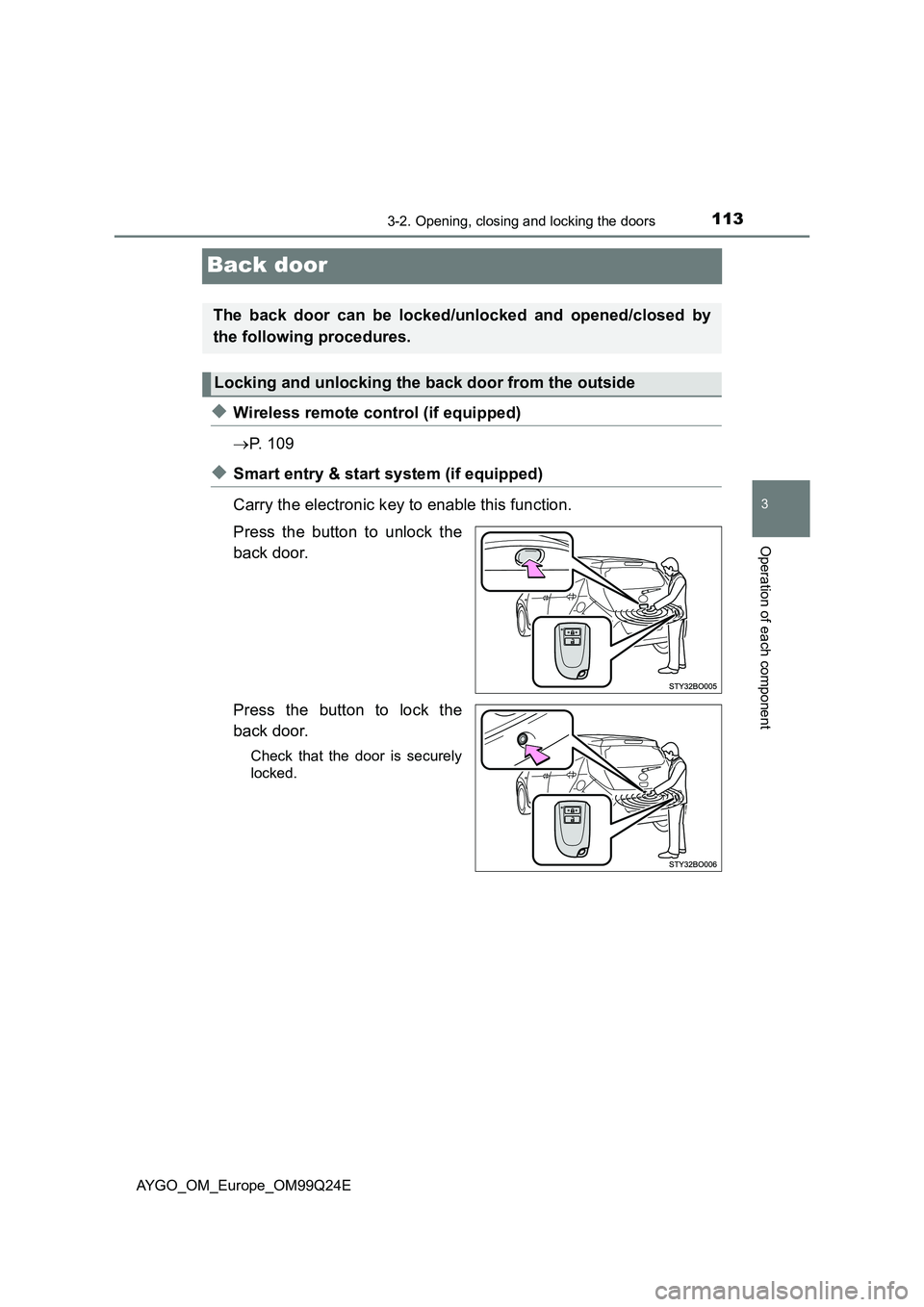

Back door
◆Wireless remote control (if equipped)
 P. 1 0 9
◆Smart entry & start system (if equipped)
Carry the electronic key to enable this function.
Press the button to unlock the
back door.
Press the button to lock the
back door.
Check that the door is securely
locked.
The back door can be locked/unlocked and opened/closed by
the following procedures.
Locking and unlocking the back door from the outside

1143-2. Opening, closing and locking the doors
AYGO_OM_Europe_OM99Q24E
◆Key (vehicles without a power door lock system)
Turning the key clockwise then
raise the back door.
◆Wireless remote control (if equipped)
Pressing the button and raise
the back door.
◆Smart entry & start system (if equipped)
Raise the back door while
pushing up the back door
opener switch.
The back door cannot be closed
immediately after the back door
opener switch is pushed.
Opening the back door from outside the vehicle

1213-2. Opening, closing and locking the doors
3
Operation of each component
AYGO_OM_Europe_OM99Q24E
■ Electronic key battery-saving function
When battery-saving mode is set, battery depletion is minimized by stopping
the electronic key from receiving radio waves.
■ Conditions affecting operation
The smart entry & start system uses weak radio waves. In the following situa-
tions, the communication between the el ectronic key and the vehicle may be
affected, preventing the smart entry & start system, wireless remote control
and engine immobilizer system from operating properly.
(Ways of coping: P. 429)
● When the electronic key battery is depleted
● Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise
● When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
● When other wireless keys (that emit radio waves) are being used nearby
● When carrying the electronic key together with the following devices that
emit radio waves
• Portable radio, cellular phone, cordless phone or other wireless commu-
nication device
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or pers onal digital assistants (PDAs)
• Digital audio players
• Portable game systems
● If window tint with a metallic content or metallic objects are attached to the
rear window
● When the electronic key is placed near a battery charger or electronic
devices
Press twice while pressing and
holding . Confirm that the electronic
key indicator flashes 4 times.
While the battery-saving mode is set, the
smart entry & start system cannot be
used. To cancel the function, press any of
the electronic key buttons.
