2017 PEUGEOT PARTNER TEPEE ELECTRIC Owners Manual

31
Rear towing eye
To w i n g
Your vehicle cannot in any circumstances
be used to tow.
Motor and traction battery
Electric motor
TechnologySynchronous with permanent magnets
Max power in Kilowatts: EU standard (kW) 49
Max. power engine speed in revolutions per minute (rpm) from 4,000
to 9,200
Max torque in Newton metres: EC standard (Nm) 200
Max. torque engine speed in revolutions per minute (rpm) from 0
to 1,500
Traction battery
Technology Lithium-Ion
Normal charge
Voltage of the alternating current in Volts: (V) AC 230
Time for a complete charge (from 0% to 100%) according
to the power supply rating in Amps:
16


A
14


A
10


A
8
A
Depending on the power supply in the country.
Minimum time measured for outside temperatures of
between 0
and 40°C. 7
hours 30 minutes
8
hours 30 minutes
12


hour s
15


hours
Fast charge
Charging time (80% charge) from the reser ve level < 30
minutes
The rear towing eye must not be used for
towing on the road. It can be used to extract the
vehicle when stuck, for example.
5
Supplement for electric mode

32
The range of the vehicle, approved on
the NEDC cycle, is 105 miles (170 km).
This range may vary according to various
factors, the main ones being the use of
the heating and air conditioning, the style
of driving, the type of route taken and the
ageing of the traction battery.
Ageing of the traction battery also depends
on various factors, such as the ambient
temperature, the mileage of the vehicle, the
frequency of fast charges, etc.Identification markings
Serial number
A. This is engraved on the front right wheel
arch.
Tyres and paint colour code
B.The label B on the front door indicates:
-
t he wheel and tyre sizes,
-

t
he brands of tyres approved by the
manufacturer,
-

t
he tyre pressures (the tyre pressures
must be checked when the tyres are
cold, at least once a month),
-

t
he paint colour code.
Supplement for electric mode

3-17

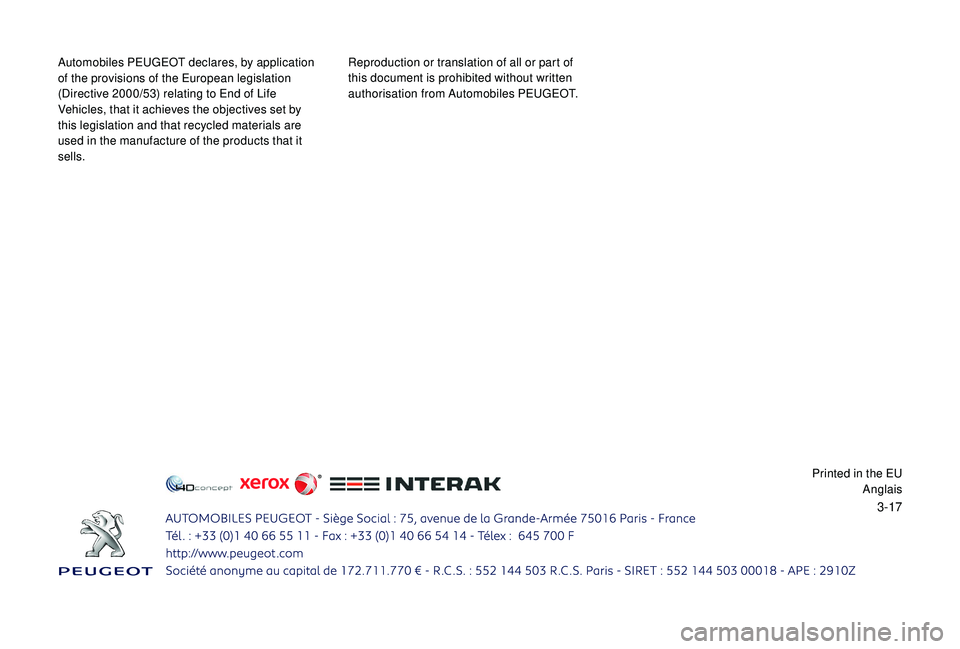

Automobiles PEUGEOT declares, by application
of the provisions of the European legislation
(Directive 2000/53) relating to End of Life
Vehicles, that it achieves the objectives set by
this legislation and that recycled materials are
used in the manufacture of the products that it
sells.Reproduction or translation of all or part of
this document is prohibited without written
authorisation from Automobiles PEUGEOT.
Printed in the EUAnglais

www.peugeot .comANG. 16PEL.0640*16PEL.0640*

PARTNER Tepee
PARTNER
HANDBOOK

Access to the Handbook
From the appropriate Store, download the Scan
MyPeugeot APP application for smartphone.
Direct access to the Handbook.
The Handbook
is available on the PEUGEOT website,
in the "Personal space" section or at the following
address:
http://public.servicebox.peugeot.com/ddb/
Then select:
-

t

he vehicle,
-

t

he print edition appropriate for the date of 1
st registration of your
vehicle.
Download the content of the vehicle's Handbook .Select:
-
t

he language,
-
t
he vehicle, its body style,
-
t
he print edition of your handbook appropriate for the date of 1
st
registration of your vehicle.
This symbol indicates the latest information
available.

Welcome
Thank you for choosing a Peugeot Partner.
This document presents the information and recommendations required
for you to be able to explore your vehicle in complete safety.
Your vehicle will be fitted with only some of the equipment described in
this document, depending on its trim level, version and the specification
for the country in which it was sold.
The descriptions and illustrations are given as indications only.
Automobiles PEUGEOT reser ves the right to modify the technical
specifications, equipment and accessories without having to update this
edition of the handbook.
If ownership of your vehicle is transferred, please ensure this Complete
Handbook is passed on to the new owner.
In this document you will find all of the instructions and
recommendations on use that will allow you to enjoy your vehicle to the
fullest. It is strongly recommended that you familiarise yourself with it
as well as the Warranty and Maintenance Record which will provide
you with information about the warranties, ser vicing and roadside
assistance associated with your vehicle. Key
Safety warning
Additional information
Contributes to the protection of the
environment
Left-hand drive vehicle
Right-hand drive vehicle
Key
This allows you to identify the special features of your vehicle: Partner Tepee passenger vehicle only
Partner commercial vehicle only

2
.
.
Instrument panel 7
W arning and indicator lamps 8
I
ndic ators

18
Lighting dimmer

2
2
Trip computer

2
2
Date and time setting

2
3
Instruments and controls

4
K
ey

25
Remote control

2
5
Front doors

2
8
Sliding side door(s)

2
8
Operation in the event of a battery failure

2
9
Tailgate


29
Side-hinged rear doors

3
0
Rear roof flap

3
2
Central locking

3
3
Alarm


34
Rear windows
3

5
Electric windows

3
5Steering wheel adjustment
3

7
Mirrors

37
Surveillance mirror
3
8
Front seats
3
8
Individual passenger seat
4
0
Multi-Flex bench seat
4
0
Rear bench seat
4
2
Rear seats (5 seats) 4 3
Rear seats (7 seats) 4 6
Crew cab

5
0
Seat modularity and configurations

5
2
Front fittings

5
4
Seating area fittings

5
5
Zenith


56
Fragrance diffuser
5

7
Courtesy lamps

5
9
Rear fittings (5 seats)

6
0
Rear fittings (7 seats)

6
1
Load space layout

6
4
Heating/Manual air conditioning
6

6
Dual-zone automatic air conditioning
6

7
Recommendations for ventilation
and air conditioning
6

9
Demisting and defrosting
7

0Lighting control stalk

7
1
Automatic illumination of headlamps
7
2
LED daytime running lamps
7
2
Guide-me-home lighting
7
2
Cornering lighting
7
3
Direction indicators
7
3
Headlamp beam
7
3
Wiper control stalk 7 3
General safety recommendations
7
6
Hazard warning lamps
7

7
Horn
77
Emergency or assistance call
7

7
Anti-lock braking system (ABS/EBFD)

7
9
Emergency braking assistance (EBA)
7

9
Anti-slip regulation (ASR) and electronic
stability control (ESC)

7
9
Grip control

8
0
Seat belts
8

2
Airbags


85
Child seats

8
9
Deactivating the passenger's front airbag
9

0
Reactivating the passenger's front airbag
9

1
Recommended child seats
9

4
Locations for child seats secured using
a seat belt

9
5
ISOFIX mountings and child seats
9

8
Instructions for child seats

1
01
Child lock

1
02
Over view
Instruments
Access Ease of use and comfort
Safety
Lighting and visibility
Eco-driving
Contents
