2017 PEUGEOT PARTNER TEPEE ELECTRIC Owners Manual

163
Diesel engines/weights
Five seats
EnginesGearboxEngine oil capacity with
filter replacement (litres) Unbraked trailer (kg)Recommended nose
weight (kg)
1.6 HDi 75 hp Manual 5-speed -600 70
1.6 HDi 75 hp PF Manual 5-speed -715 70
BlueHDi 75 hp Euro 6 Manual 5-speed -720 70
1.6 HDi 90 hp Manual 5-speed 3.75735 70
1.6 HDi 92 hp PF Manual 5-speed 3.75715 70
1.6 e- HDi 92 hp PF Manual 5-speed 3.75690 70
1.6 BlueHDi 100 hp Euro 6 Manual 5-speed 3.75600 70
1.6 BlueHDi 100 S&S Manual 5-speed
3.75600
70
Electronic 6-speed 60070
1.6 HDi 115 hp PF Manual 5-speed 3.75735 70
1.6 BlueHDi 120 hp Euro 6 Manual 6-speed 3.75600 70
PF: particle filter.
e-HDi: model fitted with Stop & Start.
9
Technical data

164
Seven seats
EnginesGearboxEngine oil capacity with
filter replacement (litres) Unbraked trailer (kg)Recommended nose
weight (kg)
1.6 HDi 92 hp PF Manual 5-speed 3.75750 70
1.6 BlueHDi 100 hp Euro 6 Manual 5-speed 3.75600 70
1.6 BlueHDi 100 hp Euro
6 S&S Manual 5-speed
3.75600 70
1.6 HDi 115 hp PF Manual 5-speed 3.75750 70
1.6 BlueHDi 120 hp Euro 6 Manual 6-speed 3.75600 70
PF: particle filter.
e-HDi: model fitted with Stop & Start.
Technical data

165
Dimensions
9
Technical data

166
LOverall length 4,380
H Overall height 1,8 01-1,8 62
A Wheelbase 2,728
B Front overhang 925
C Rear overhang 727
D Width over panels without mirrors
1,810
with mirrors 2 ,112
E Front track width 1,505-1,507
F Rear track width 1,5 5 4 -1,5 5 6
- Length of the loading sur face up to the seat Row 2
990
Row 2, seat in the fully folded position 1,3 4 3
With front passenger seat folded 3,000
Technical data

167
Rear doors (mm)Side-hinged doorsTailgate
Small Large
M
Maximum boot sill height with
205/65 R15 tyres and tailgate trim582
N Useable height of the opening
(under panel) 1,11 8
O Useable width 4955431,5 82
9
Technical data

168

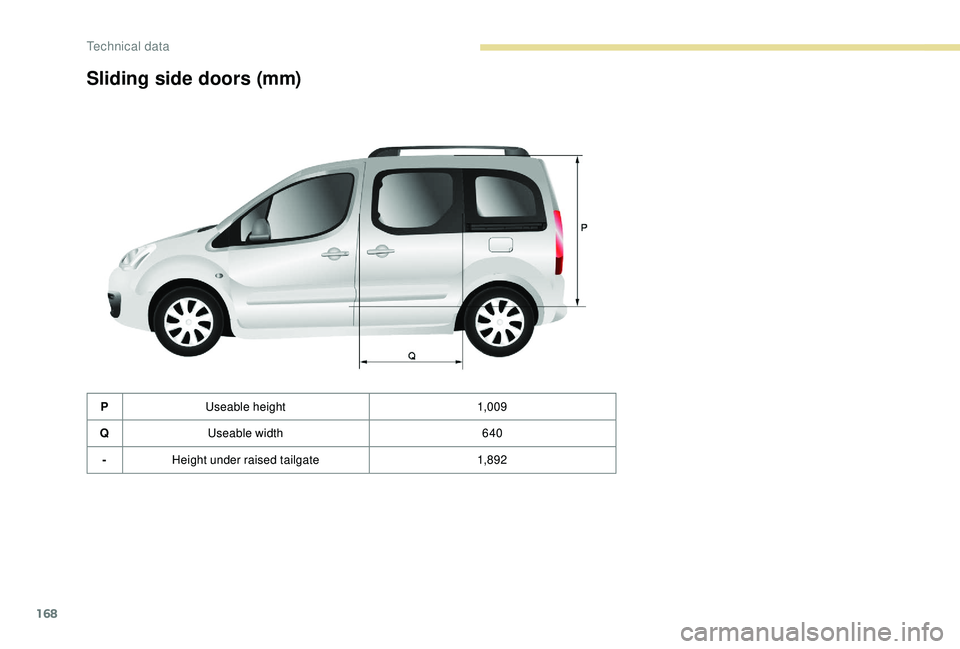

Sliding side doors (mm)
PUseable height 1,0 0 9
Q Useable width 640
- Height under raised tailgate 1,8 92
Technical data

169

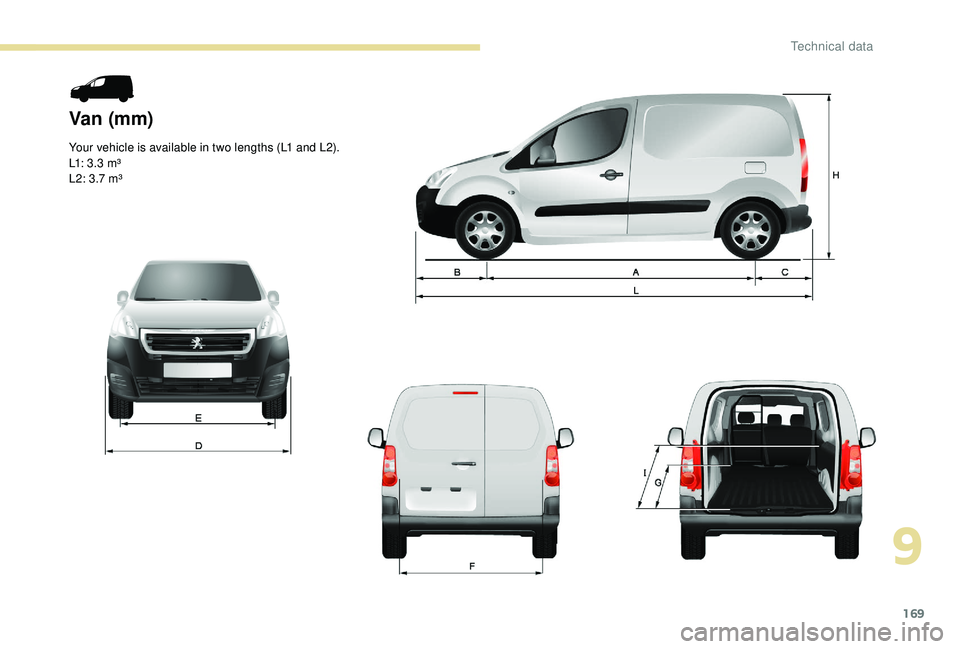

Van (mm)
Your vehicle is available in two lengths (L1 and L2).
L1: 3.3 m³
L2: 3.7
m³
9
Technical data

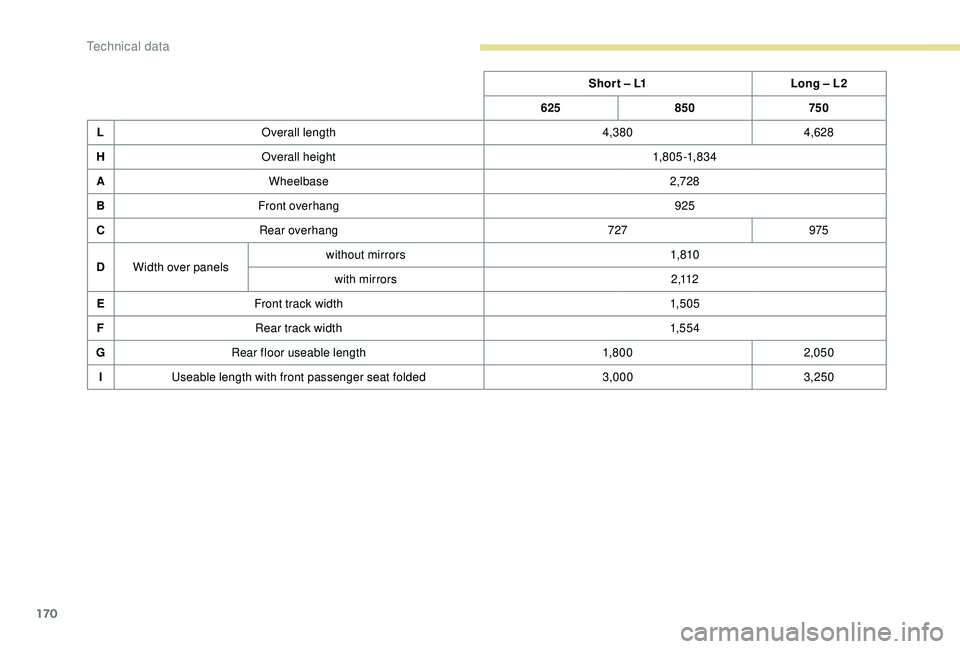

170
Shor t – L1Long – L2
625 850 750
L Overall length 4,3804,628
H Overall height 1,8 0 5 -1,8 3 4
A Wheelbase 2,728
B Front overhang 925
C Rear overhang 727975
D Width over panels without mirrors
1,810
with mirrors 2 ,112
E Front track width 1,505
F Rear track width 1,5 5 4
G Rear floor useable length 1,8 0 02,050
I Useable length with front passenger seat folded 3,0003,250
Technical data
