51

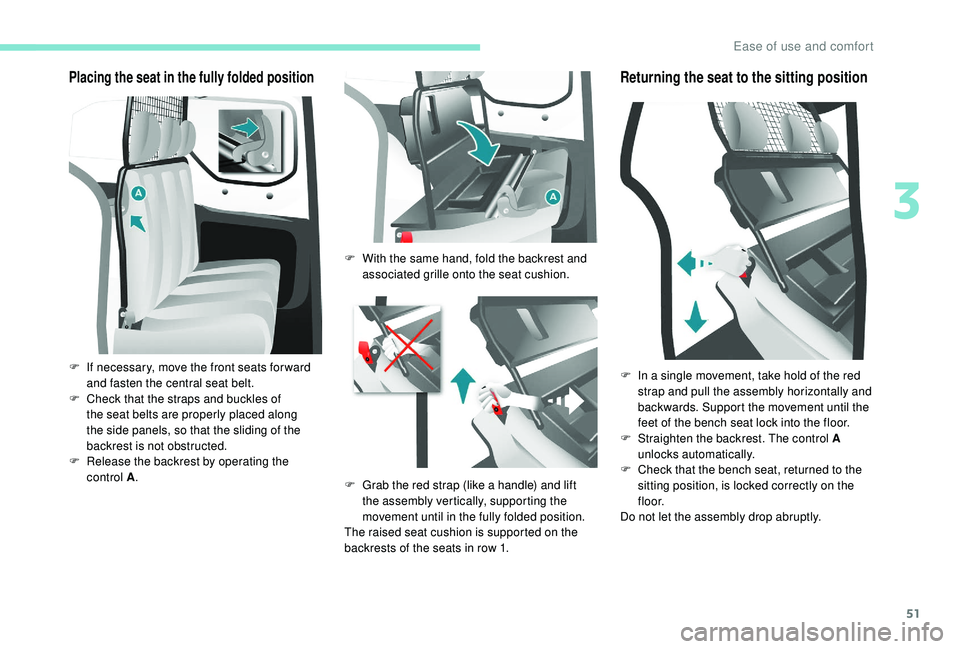

Placing the seat in the fully folded position
F If necessary, move the front seats for ward and fasten the central seat belt.
F

C
heck that the straps and buckles of
the seat belts are properly placed along
the side panels, so that the sliding of the
backrest is not obstructed.
F

R
elease the backrest by operating the
control
A. F

W
ith the same hand, fold the backrest and
associated grille onto the seat cushion.
F
G
rab the red strap (like a handle) and lift
the assembly vertically, supporting the
movement until in the fully folded position.
The raised seat cushion is supported on the
backrests of the seats in row 1.
Returning the seat to the sitting position
F In a single movement, take hold of the red strap and pull the assembly horizontally and
backwards. Support the movement until the
feet of the bench seat lock into the floor.
F

S
traighten the backrest. The control A
unlocks automatically.
F

C
heck that the bench seat, returned to the
sitting position, is locked correctly on the
f l o o r.
Do not let the assembly drop abruptly.
3
Ease of use and comfort

52
Seat modularity and configurations
The various operations must be carried
out when stationary.
5-seat configuration
Head restraints and seat
belts
The three seats are equipped with seat belts
with inertia reels. The seat belts of the side
seats are secured on the panels, while the
seat belt of the central seat is secured on the
backrest of the bench seat.
Each seat has a head restraint, screwed to the
load stop grille, which can be removed.
Do not place a head restraint inside the
vehicle without stowing it or securing it to a
support.
Do not drive with rear passengers without
having the head restraints screwed in place.
There is no need to assist, guide or retain
it by the arm that remains free during the
tilting movement.
The rear seat belt fittings are not designed
to secure the load. Use only the stowing
rings on the floor.
The crew cab bench seat is not suitable
for the installation of a child seat.
Ease of use and comfort

53

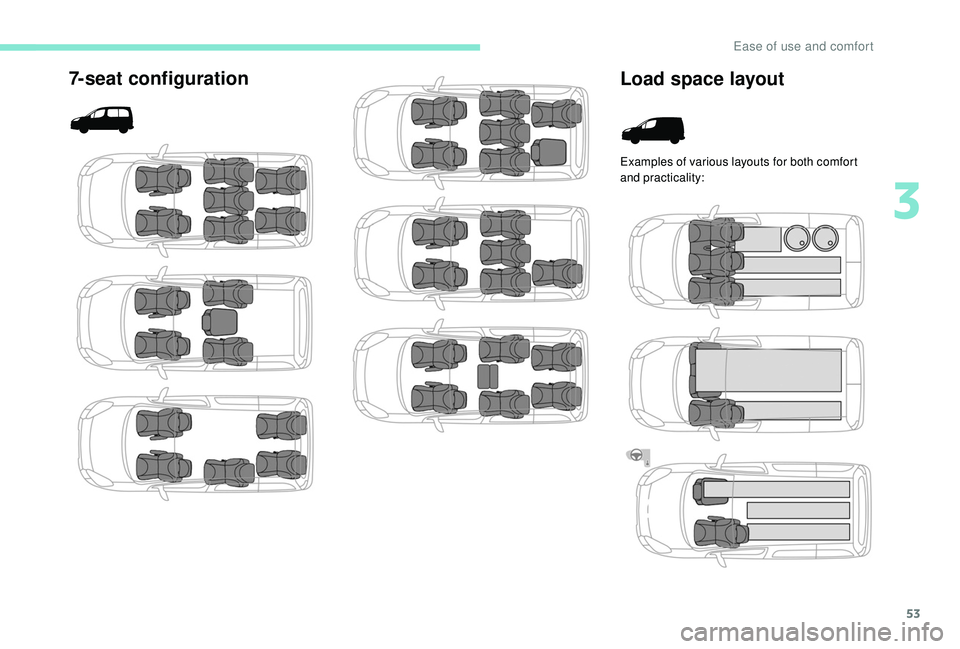

7-seat configurationLoad space layout
Examples of various layouts for both comfort
and practicality:
3
Ease of use and comfort

54
Centre storage console
This console offers a considerable additional
storage space: it is removable, and is clipped
on a base that also incorporates two cup
holders in the back.
Make sure that the object (bottle, can, etc.) in
the cup holder is held securely and does not
present a risk of falling while driving.
Any liquid which could spill risks damage on
contact with the controls in the dashboard and
centre console.
Ta k e c a r e .
Front fittings
1.Lower glove box (with or without lid).
Upper glove box
This is located in the dashboard, behind the
steering wheel.
A cut-out makes it easier to raise the cover to
open it. Guide it to its stop position.
To close it, guide the cover then press the
centre gently.
Any liquid which could spill risks causing an
electrical short circuit and therefore a potential
fire.
Never drive with the glove box open when
a passenger is sitting at the front. It may
cause injury during sharp deceleration. 2.
Storage tray and bottle holder (1.5 L).
3. Side storage.
4. Bag hook.
Only flexible bags which are not too heavy
can be hung on this hook.
Ease of use and comfort

55

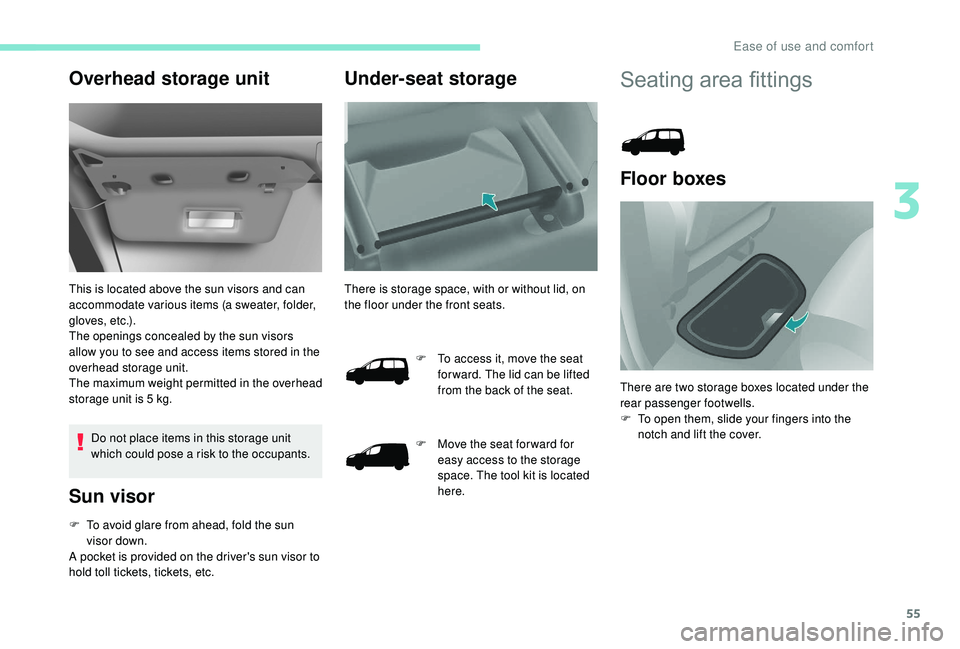

Overhead storage unit
This is located above the sun visors and can
accommodate various items (a sweater, folder,
gloves, etc.).
The openings concealed by the sun visors
allow you to see and access items stored in the
overhead storage unit.
The maximum weight permitted in the overhead
storage unit is 5 kg.
Do not place items in this storage unit
which could pose a risk to the occupants.
Sun visor
F To avoid glare from ahead, fold the sun visor down.
A pocket is provided on the driver's sun visor to
hold toll tickets, tickets, etc.
Under-seat storage
There is storage space, with or without lid, on
the floor under the front seats.
F

T
o access it, move the seat
for ward. The lid can be lifted
from the back of the seat.
F

M
ove the seat for ward for
easy access to the storage
space. The tool kit is located
here.
Seating area fittings
Floor boxes
There are two storage boxes located under the
rear passenger footwells.
F

T
o open them, slide your fingers into the
notch and lift the cover.
3
Ease of use and comfort

56
Aircraft style tables
Do not place hard or heavy objects on
the table. They could become dangerous
projectiles in the event of emergency
braking or collision.
A bag hook is available on the side of each
table.
Side blinds
F To put the table in place, pull it upwards and fold it down.
As a safety precaution, the aircraft style table is
designed to unhook itself if excessive pressure
is applied.
F

T
o put it back in place, with the table in a
vertical position, engage one side and then
the other, pushing gently.
Always guide the blind slowly using the
tab, both up and down.
Side blinds may be available on the sliding side
doors.
F

P
ull the side blind by the tab to install it.
To avoid damaging the blind when opening the
door, make sure the tab is securely fastened.
Zenith
Storage compartments
Storage compartments are provided on each
side of the roof. The maximum authorised load
is 6
kg.
The translucent base helps you to find objects
stored inside.
Do not place items in this storage unit
which could pose a risk to the occupants.
The multifunction roof extends the overhead
storage unit. It consists of the following
elements.
Ease of use and comfort

57
Courtesy lamp
For more information on the Courtesy
lamps, refer to the corresponding section.
Rear box
This roof box can be accessed from the rear
seats and from the boot.
Open carefully to prevent any objects
stored in this interior roof box from falling
out.
The maximum authorised load is 10
kg.
It operates in the same way as the front
courtesy lamp.
F
F
rom the rear seats, slide the flaps to open
the box.
F
F
rom the vehicle boot, place your thumb on
the recess then pull the handle to open.
Air vents
A 3 -position control allows you to adjust the air
flow through the vents.
The air vents are also fitted with a fragrance
diffuser.
Fragrance diffuser
The fragrance diffuser diffuses a fragrance
in the passenger compartment from the roof
console vents.
3
Ease of use and comfort

58

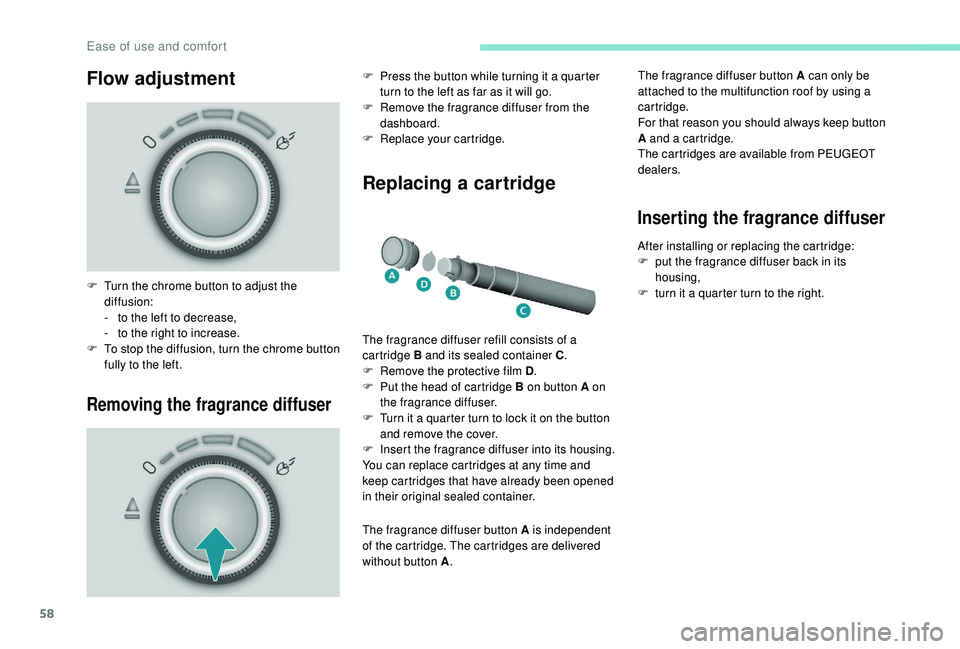

Flow adjustment
Removing the fragrance diffuser
Replacing a cartridge
F Turn the chrome button to adjust the diffusion:
-

t
o the left to decrease,
-

t
o the right to increase.
F

T
o stop the diffusion, turn the chrome button
fully to the left. F

P
ress the button while turning it a quarter
turn to the left as far as it will go.
F
R
emove the fragrance diffuser from the
dashboard.
F
R
eplace your cartridge.
The fragrance diffuser refill consists of a
cartridge B and its sealed container C .
F

R
emove the protective film D.
F

P
ut the head of cartridge B on button A on
the fragrance diffuser.
F

T
urn it a quarter turn to lock it on the button
and remove the cover.
F

I
nsert the fragrance diffuser into its housing.
You can replace cartridges at any time and
keep cartridges that have already been opened
in their original sealed container.
The fragrance diffuser button A is independent
of the cartridge. The cartridges are delivered
without button A . The fragrance diffuser button A can only be
attached to the multifunction roof by using a
cartridge.
For that reason you should always keep button
A and a cartridge.
The cartridges are available from PEUGEOT
dealers.
Inserting the fragrance diffuser
After installing or replacing the cartridge:
F
p ut the fragrance diffuser back in its
housing,
F

t
urn it a quarter turn to the right.
Ease of use and comfort
