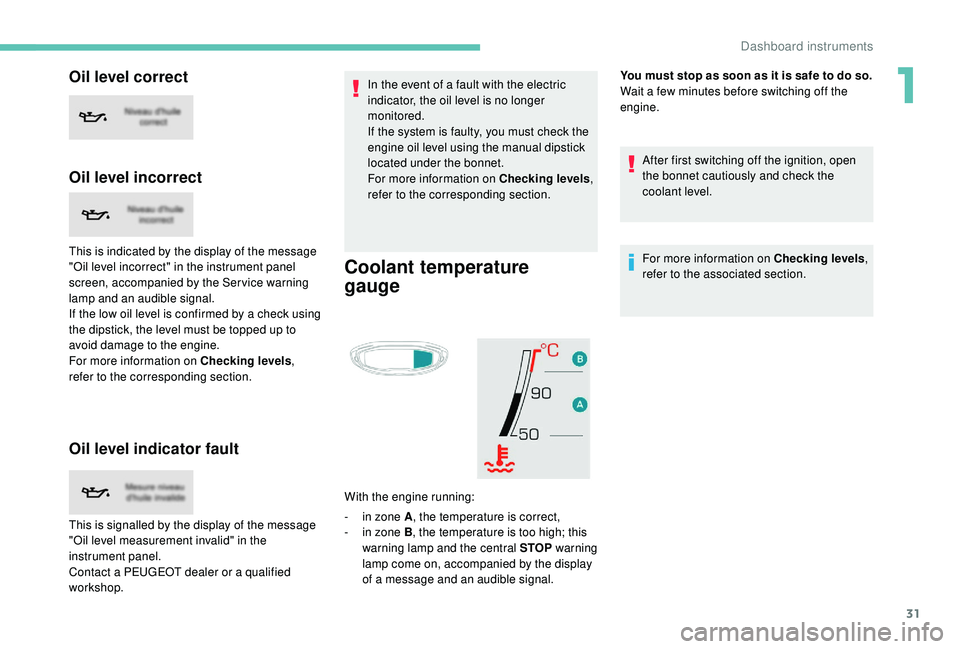

Oil level correct
Oil level incorrect
This is indicated by the display of the message
"Oil level incorrect" in the instrument panel
screen, accompanied by the Ser vice warning
lamp and an audible signal.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to
avoid damage to the engine.
For more information on Checking levels,
refer to the corresponding section.
Oil level indicator fault
Coolant temperature
gauge
With the engine running:
-

i
n zone A , the temperature is correct,
-

i
n zone B , the temperature is too high; this
warning lamp and the central STOP warning
lamp come on, accompanied by the display
of a message and an audible signal. You must stop as soon as it is safe to do so.
Wait a few minutes before switching off the
engine.
After first switching off the ignition, open
the bonnet cautiously and check the
coolant level.
For more information on Checking levels ,
refer to the associated section.
This is signalled by the display of the message
"Oil level measurement invalid" in the
instrument panel.
Contact a PEUGEOT dealer or a qualified
workshop. In the event of a fault with the electric
indicator, the oil level is no longer
monitored.
If the system is faulty, you must check the
engine oil level using the manual dipstick
located under the bonnet.
For more information on Checking levels
,
refer to the corresponding section.
1
Dashboard instruments

32

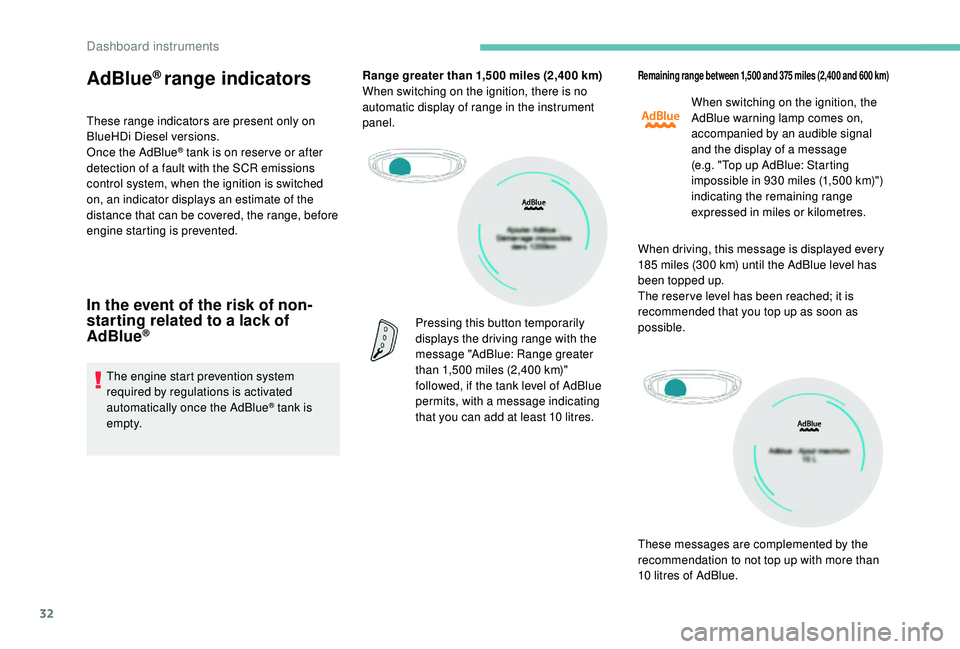

AdBlue® range indicators
These range indicators are present only on
BlueHDi Diesel versions.
Once the AdBlue
® tank is on reser ve or after
detection of a fault with the SCR emissions
control system, when the ignition is switched
on, an indicator displays an estimate of the
distance that can be covered, the range, before
engine starting is prevented.
Remaining range between 1,500 and 375 miles (2,400 and 600 km)
When switching on the ignition, the
AdBlue warning lamp comes on,
accompanied by an audible signal
and the display of a message
(e.g. "Top up AdBlue: Starting
impossible in 930
miles (1,500 km)")
indicating the remaining range
expressed in miles or kilometres.
When driving, this message is displayed every
185

miles (300 km) until the AdBlue level has
been topped up.
The reser ve level has been reached; it is
recommended that you top up as soon as
possible.
These messages are complemented by the
recommendation to not top up with more than
10

litres of AdBlue.
In the event of the risk of non-
starting related to a lack of
AdBlue
®
The engine start prevention system
required by regulations is activated
automatically once the AdBlue
® tank is
e m pt y. Range greater than 1,500
miles (2,400 km)
When switching on the ignition, there is no
automatic display of range in the instrument
panel.
Pressing this button temporarily
displays the driving range with the
message "AdBlue: Range greater
than 1,500 miles (2,400 km)"
followed, if the tank level of AdBlue
permits, with a message indicating
that you can add at least 10 litres.
Dashboard instruments

33

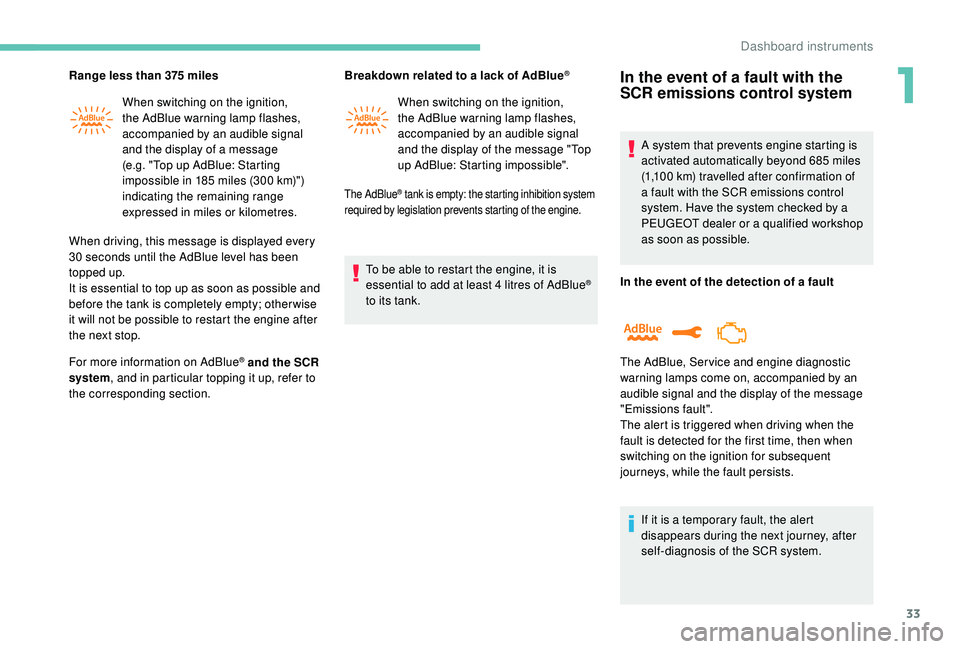

Range less than 375 miles
W hen switching on the ignition,
the AdBlue warning lamp flashes,
accompanied by an audible signal
and the display of a message
(e.g. "Top up AdBlue: Starting
impossible in 185
miles (300 km)")
indicating the remaining range
expressed in miles or kilometres.
When driving, this message is displayed every
30
seconds until the AdBlue level has been
topped up.
It is essential to top up as soon as possible and
before the tank is completely empty; other wise
it will not be possible to restart the engine after
the next stop.
For more information on AdBlue
® and the SCR
system, and in particular topping it up, refer to
the corresponding section. Breakdown related to a lack of AdBlue
®
When switching on the ignition,
the AdBlue warning lamp flashes,
accompanied by an audible signal
and the display of the message "Top
up AdBlue: Starting impossible".
The AdBlue® tank is empty: the starting inhibition system
required by legislation prevents starting of the engine.
To be able to restart the engine, it is
essential to add at least 4 litres of AdBlue®
to its tank.
In the event of a fault with the
SCR emissions control system
A system that prevents engine starting is
activated automatically beyond 685 miles
(1,100
km) travelled after confirmation of
a fault with the SCR emissions control
system. Have the system checked by a
PEUGEOT dealer or a qualified workshop
as soon as possible.
In the event of the detection of a fault
The AdBlue, Ser vice and engine diagnostic
warning lamps come on, accompanied by an
audible signal and the display of the message
"Emissions fault".
The alert is triggered when driving when the
fault is detected for the first time, then when
switching on the ignition for subsequent
journeys, while the fault persists.
If it is a temporary fault, the alert
disappears during the next journey, after
self-diagnosis of the SCR system.
1
Dashboard instruments

34

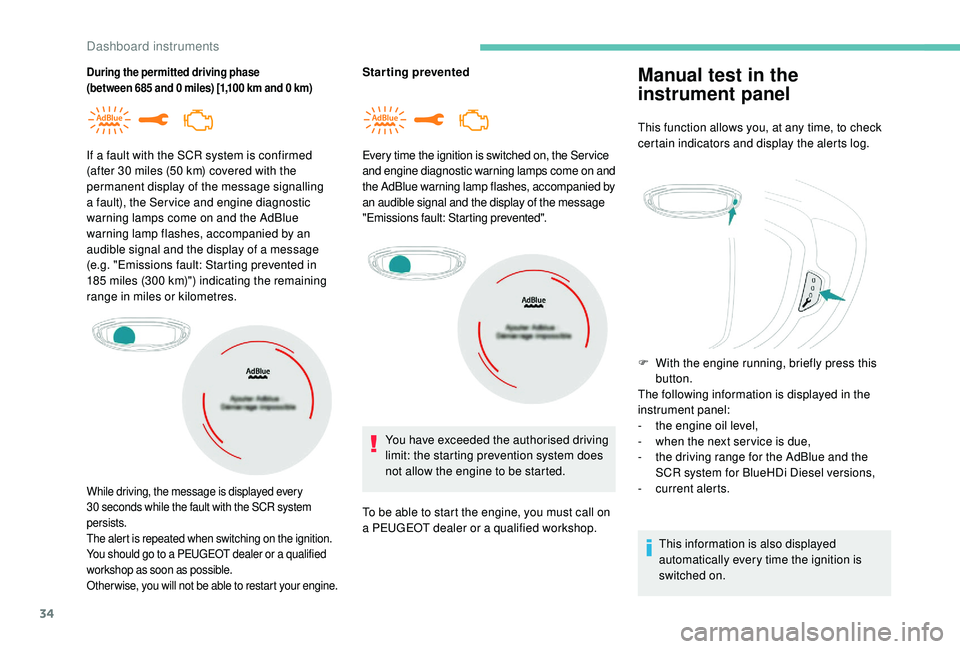

During the permitted driving phase
(between 685 and 0 miles) [1,100 km and 0 km)Starting prevented
If a fault with the SCR system is confirmed
(after 30

miles (50

km) covered with the
permanent display of the message signalling
a fault), the Ser vice and engine diagnostic
warning lamps come on and the AdBlue
warning lamp flashes, accompanied by an
audible signal and the display of a message
(e.g. "Emissions fault: Starting prevented in
185

miles (300

km)") indicating the remaining
range in miles or kilometres.
While driving, the message is displayed every
30 seconds while the fault with the SCR system
persists.
The alert is repeated when switching on the ignition.
You should go to a PEUGEOT dealer or a qualified
workshop as soon as possible.
Other wise, you will not be able to restart your engine.
Every time the ignition is switched on, the Ser vice
and engine diagnostic warning lamps come on and
the AdBlue warning lamp flashes, accompanied by
an audible signal and the display of the message
"Emissions fault: Starting prevented".
You have exceeded the authorised driving
limit: the starting prevention system does
not allow the engine to be started.
To be able to start the engine, you must call on
a PEUGEOT dealer or a qualified workshop.
Manual test in the
instrument panel
This function allows you, at any time, to check
certain indicators and display the alerts log.
F

W
ith the engine running, briefly press this
button.
The following information is displayed in the
instrument panel:
-

t
he engine oil level,
-

w
hen the next ser vice is due,
-

t
he driving range for the AdBlue and the
SCR system for BlueHDi Diesel versions,
-

c
urrent alerts.
This information is also displayed
automatically every time the ignition is
switched on.
Dashboard instruments

35

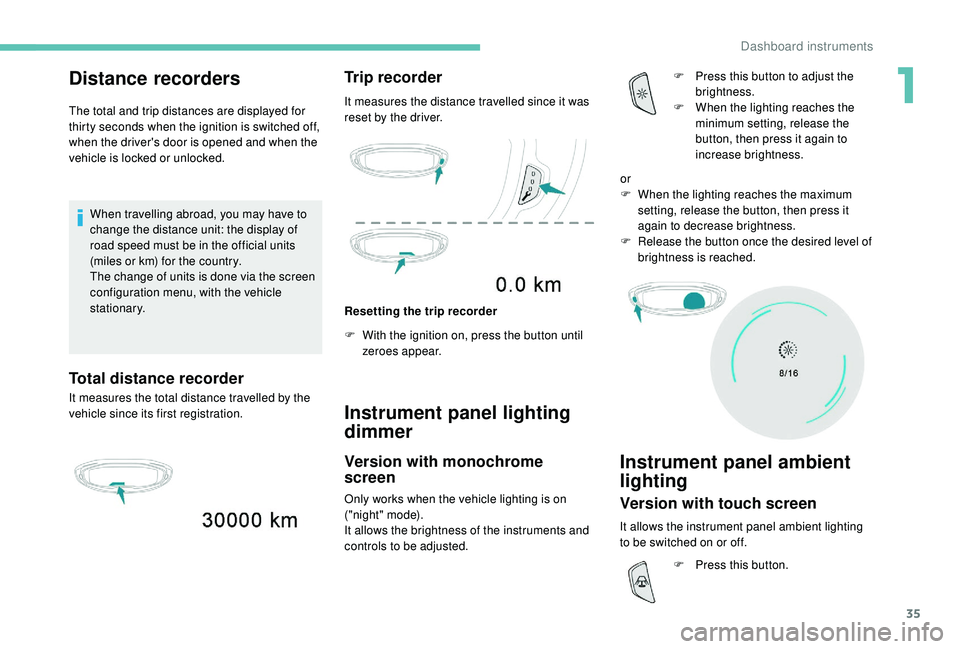

Distance recorders
The total and trip distances are displayed for
thirty seconds when the ignition is switched off,
when the driver's door is opened and when the
vehicle is locked or unlocked.When travelling abroad, you may have to
change the distance unit: the display of
road speed must be in the official units
(miles or km) for the country.
The change of units is done via the screen
configuration menu, with the vehicle
stationary.
Total distance recorder
It measures the total distance travelled by the
vehicle since its first registration.
Trip recorder
It measures the distance travelled since it was
reset by the driver.
Resetting the trip recorder
F

W
ith the ignition on, press the button until
zeroes appear.
Instrument panel lighting
dimmer
Version with monochrome
screen
Only works when the vehicle lighting is on
("night" mode).
It allows the brightness of the instruments and
controls to be adjusted. F

P
ress this button to adjust the
brightness.
F
W
hen the lighting reaches the
minimum setting, release the
button, then press it again to
increase brightness.
Instrument panel ambient
lighting
Version with touch screen
It allows the instrument panel ambient lighting
to be switched on or off. or
F

W
hen the lighting reaches the maximum
setting, release the button, then press it
again to decrease brightness.
F
R
elease the button once the desired level of
brightness is reached.
F
P
ress this button.
1
Dashboard instruments

36

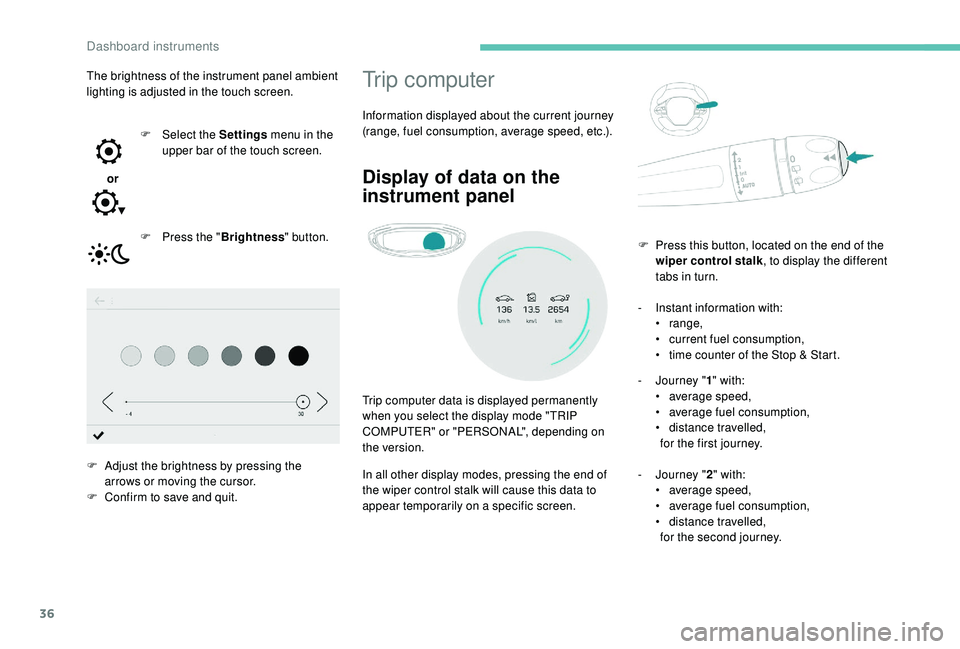

Trip computer
Information displayed about the current journey
(range, fuel consumption, average speed, etc.).
Display of data on the
instrument panel
Trip computer data is displayed permanently
when you select the display mode "TRIP
COMPUTER" or "PERSONAL", depending on
the version.
In all other display modes, pressing the end of
the wiper control stalk will cause this data to
appear temporarily on a specific screen.-
I

nstant information with:
•

range,
•
c
urrent fuel consumption,
•
t
ime counter of the Stop & Start.
-
J
ourney "
1" with:
• a verage speed,
• a verage fuel consumption,
•
d

istance travelled,
for the first journey.
-

J
ourney "2" with:
•
a

verage speed,
•
a

verage fuel consumption,
•
d

istance travelled,
for the second journey.
F

P
ress this button, located on the end of the
wiper control stalk , to display the different
tabs in turn.
The brightness of the instrument panel ambient
lighting is adjusted in the touch screen.
or F

Sel

ect the Settings
menu in the
upper bar of the touch screen.
F

P

ress the "
Brightness " button.
F

A

djust the brightness by pressing the
arrows or moving the cursor.
F

C

onfirm to save and quit.
Dashboard instruments

37
Resetting the trip recorder
A few definitions…
Range
(miles or km)The distance which can still be
travelled with the fuel remaining
in the tank (at the average fuel
consumption seen over the last few
miles (kilometres) travelled). This value may vary following a change in
the style of driving or the terrain, resulting
in a significant change in the current fuel
consumption.
When the range falls below 18 miles (30 km),
dashes are displayed.
After filling with at least 5 litres of fuel, the
range is recalculated and is displayed if it
exceeds 60 miles (100 km).
If dashes are displayed continuously while
driving in place of the digits, contact a
PEUGEOT dealer or a qualified workshop.
Current fuel consumption
(mpg or l/100 km or km/l)
C alculated over the last few
seconds.
This function is only displayed from
18
mph (30 km/h).
Average fuel consumption
(mpg or l/100 km or km/l)
C alculated since the last trip
computer reset.
Average speed(mph or km/h)
Calculated since the last trip
computer reset.
Distance travelled
(miles or km)Calculated since the last trip
computer reset.
Stop & Start time counter
F When the desired trip is displayed press the button on the end of the wiper control stalk
for more than two seconds.
Tr i p s " 1" and " 2" are independent and are used
identically.
Tr i p " 1" allows daily calculations to be carried
out, for example, and trip " 2" allows monthly
calculations.
(minutes / seconds or hours /
minutes)
If your vehicle is fitted with Stop & Start, a time
counter calculates the time spent in STOP
mode during a journey.
It resets to zero every time the ignition is
switched on.
1
Dashboard instruments

38
Monochrome screen C
DisplaysControls
Depending on the context, it displays:
-
time,
-


date,
-

e
xterior temperature (this flashes if there is
a risk of ice),
-
v

isual parking sensor information,
-

a
udio source being listened to,
-

t
elephone or hands-free kit information,
-

s
ettings menus for the screen and the
vehicle equipment. From the audio system control panel, press:
F

t
he "
MENU " button to access the main
menu ,
F
t
he "
5" or " 6" buttons to scroll through the
items in the screen,
F
t
he "
7" or " 8" buttons to change a setting
value,
F
t
he "
OK" button to confirm,
or
F t he "Back " button to abandon the operation
in progress.
Main menu
F Press the MENU button:
- "Multimedia",
-


"Telephone",
-


"Connections",
-


"Personalisation-configuration".
F

P
ress the " 7" or " 8" button to select the
menu required, then confirm by pressing the
" OK " button.
"Multimedia" menu
With the audio system switched on,
this menu allows you to activate or
deactivate the functions associated
with use of the radio (Frequency
search (RDS), DAB / FM auto tracking,
RadioText (TXT) display) or to choose
the media play mode (Normal,
Random, Random all, Repeat).
For more information on the "Multimedia"
application, refer to the "Audio equipment and
telematics" section.
"Telephone" menu
With the audio system switched
on, this menu allows you to make a
call, view the calls log or the various
telephone directories.
For more information on the "Telephone"
application, refer to the "Audio equipment and
telematics" section.
Dashboard instruments
