2017 PEUGEOT 5008 Owners Manual

39

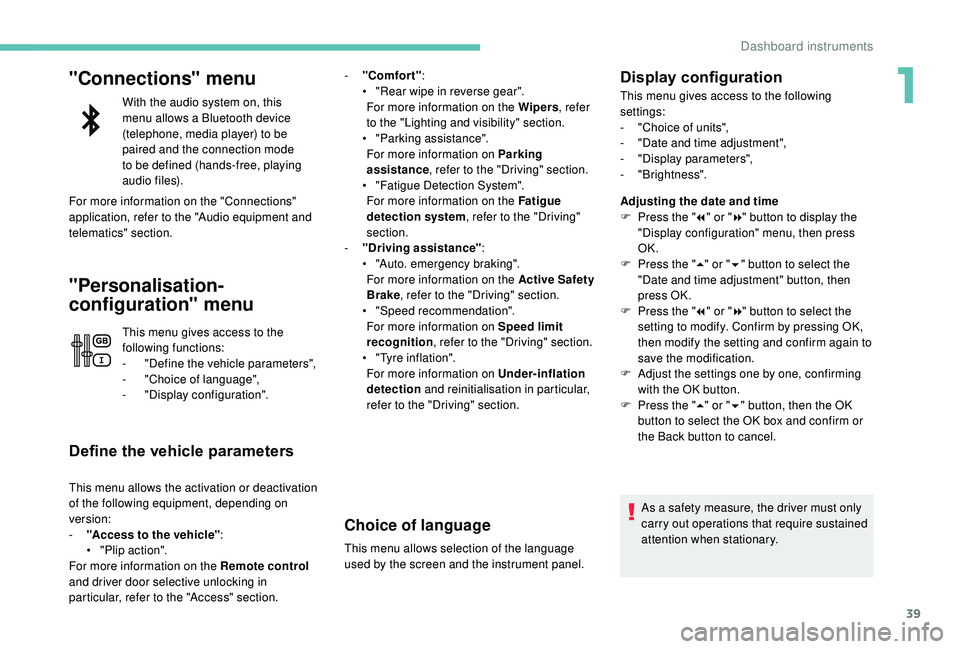

"Connections" menu
With the audio system on, this
menu allows a Bluetooth device
(telephone, media player) to be
paired and the connection mode
to be defined (hands-free, playing
audio files).
For more information on the "Connections"
application, refer to the "Audio equipment and
telematics" section.
"Personalisation-
configuration" menu
This menu gives access to the
following functions:
-

"
Define the vehicle parameters",
-
"

Choice of language",
-
"

Display configuration".
Define the vehicle parameters
This menu allows the activation or deactivation
of the following equipment, depending on
version:
-
"
Access to the vehicle" :
•

"
Plip action".
For more information on the Remote control
and driver door selective unlocking in
particular, refer to the "Access" section. -

"
Comfort"
:
•
"
Rear wipe in reverse gear".
For more information on the Wipers , refer
to the "Lighting and visibility" section.
•
"
Parking assistance".
For more information on Parking
assistance , refer to the "Driving" section.
•
"
Fatigue Detection System".
For more information on the Fatigue
detection system , refer to the "Driving"
section.
-
"
Driving assistance"
:
•
"
Auto. emergency braking".
For more information on the Active Safety
Brake , refer to the "Driving" section.
•
"
Speed recommendation".
For more information on Speed limit
recognition , refer to the "Driving" section.
•
"
Tyre inflation".
For more information on Under-inflation
detection and reinitialisation in particular,
refer to the "Driving" section.
Choice of language
This menu allows selection of the language
used by the screen and the instrument panel.
Display configuration
This menu gives access to the following
settings:
-

"
Choice of units",
-

"
Date and time adjustment",
-
"

Display parameters",
-


"Brightness".
Adjusting the date and time
F

P
ress the " 7" or " 8" button to display the
"Display configuration" menu, then press
OK.
F

P
ress the " 5" or " 6" button to select the
"Date and time adjustment" button, then
press OK.
F

P
ress the " 7" or " 8" button to select the
setting to modify. Confirm by pressing OK,
then modify the setting and confirm again to
save the modification.
F

A
djust the settings one by one, confirming
with the OK button.
F

P
ress the " 5" or " 6" button, then the OK
button to select the OK box and confirm or
the Back button to cancel.
As a safety measure, the driver must only
carry out operations that require sustained
attention when stationary.
1
Dashboard instruments

40
Touch screen
This system gives access to:
- t he permanent display of the time and
the exterior temperature (a blue symbol
appears when there is a risk of ice),
-
t

he heating/air conditioning controls,
-

m
enus for adjusting settings for vehicle
functions and systems,
-

a
udio system and telephone controls and
the display of associated information,
-
t

he display of visual parking aids (visual
parking sensor information, Park
A s s i s t ,e t c .),
-

I
nternet ser vices and the display of
associated information.
and, depending on equipment, allows:
-

a
ccess to the navigation system controls
and the display of associated information.
As a safety measure, the driver should
only carry out operations that require
close attention with the vehicle
stationary.
Some functions are not accessible when
driving.
General operation
Recommendations
This screen is of the capacitive type.
Use is possible in all temperatures.
Do not use pointed objects on the touch
screen.
Do not touch the touch screen with wet hands.
Uses a soft clean cloth to clean the touch
screen.
Use the buttons below the touch screen for
access to the menus, then press the virtual
buttons in the touch screen.
Some menus may display across two pages:
press the " OPTIONS" button to access the
second page.
MenusPrinciples
After a few moments with no action
on the second page, the first page is
displayed automatically.
To deactivate or activate a function, select
" OFF " or " ON". Use this button to adjust the settings
for a function.
Use this button for access to
additional information on the
function.
Use this button to confirm.
Use this button to return to the
previous page.
i-Cockpit Amplify function.
Allows a driving ambience to be
personalised.
For more information on the i-Cockpit Amplify
function , refer to the corresponding section.
Dashboard instruments

41

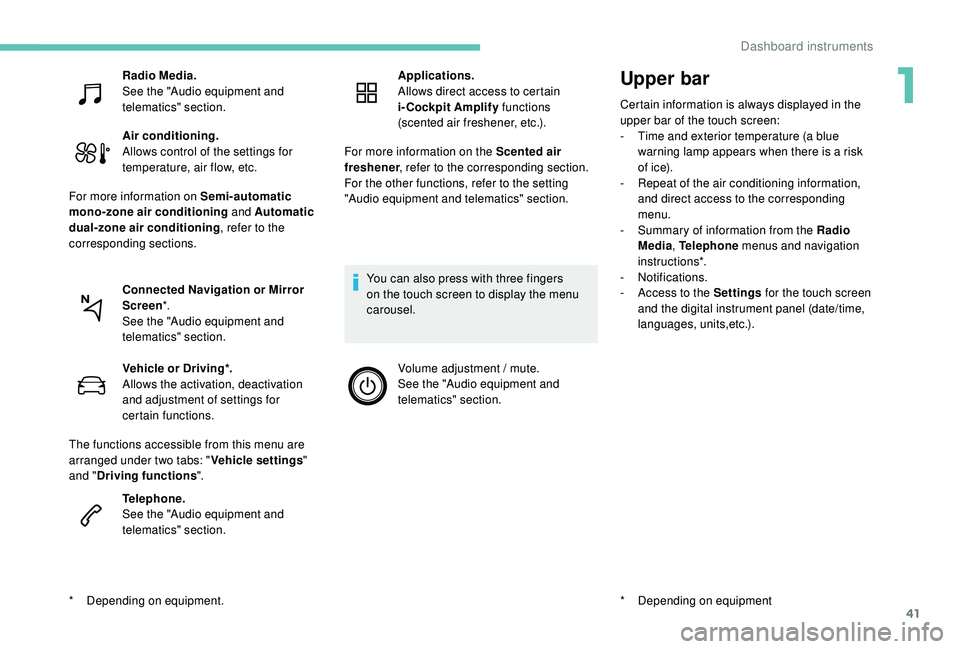

Upper bar
Certain information is always displayed in the
upper bar of the touch screen:
-
T
ime and exterior temperature (a blue
warning lamp appears when there is a risk
of i c e).
-

R
epeat of the air conditioning information,
and direct access to the corresponding
menu.
-

S
ummary of information from the Radio
Media , Telephone menus and navigation
instructions*.
-


Notifications.
-

A
ccess to the Settings for the touch screen
and the digital instrument panel (date/time,
languages, units,etc.).
*
D

epending on equipment
Radio Media.
See the "Audio equipment and
telematics" section.
Air conditioning.
Allows control of the settings for
temperature, air flow, etc.
For more information on Semi-automatic
mono-zone air conditioning and Automatic
dual-zone air conditioning , refer to the
corresponding sections.
Connected Navigation or Mirror
Screen *.
See the "Audio equipment and
telematics" section.
*
D

epending on equipment. Vehicle or Driving*.
Allows the activation, deactivation
and adjustment of settings for
certain functions.
The functions accessible from this menu are
arranged under two tabs: " Vehicle settings"
and " Driving functions ".
Telephone.
See the "Audio equipment and
telematics" section. Applications.
Allows direct access to certain
i-Cockpit Amplify
functions
(scented air freshener, etc.).
For more information on the Scented air
freshener , refer to the corresponding section.
For the other functions, refer to the setting
"Audio equipment and telematics" section.
You can also press with three fingers
on the touch screen to display the menu
carousel. Volume adjustment / mute.
See the "Audio equipment and
telematics" section.
1
Dashboard instruments

42
Vehicle / Driving menu
"Vehicle settings" tab
FamiliesFunctions
"Driving lighting" -
"

Directional headlamps": activation / deactivation of cornering lighting.
"Vehicle access" -

"
Plip action: Driver only": activation / deactivation of selective unlocking of the driver’s door.
-

"
Unlock boot only": activation / deactivation of selective unlocking at the tailgate.
-

"
Motorised tailgate": activation / deactivation of motorised operation of the tailgate.
-

"
Hands-Free Tailgate Access": activation / deactivation of the hands-free tailgate access system.
"Comfort lighting" -

"
Rear wiper in reverse": activation / deactivation of the rear wiper on with reverse gear.
-

"
Mirror adaptation in reverse": activation / deactivation of the automatic door mirror tilt when engaging reverse gear.
-
"

Guide-me-home lighting": activation / deactivation of automatic guide-me-home lighting.
-
"

Welcome lighting": activation / deactivation of exterior welcome lighting.
-

"
Ambient lighting": activation / deactivation of ambient lighting and adjustment of brightness.
"Security" -

"
Collision risk alert": activation / deactivation of the collision risk alert and automatic emergency braking.
-

"
Recommended speed display": activation / deactivation of speed limit sign recognition.
-
"

Fatigue Detection System": activation / deactivation of the driver fatigue detection system.
PEUGEOT Connect Nav
Dashboard instruments

43

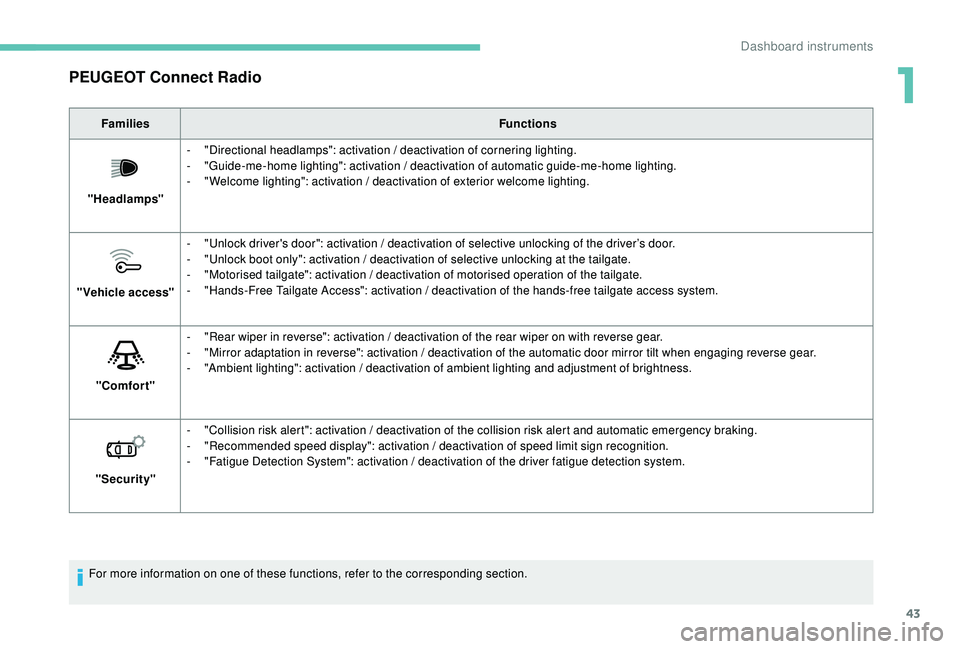

PEUGEOT Connect Radio
FamiliesFunctions
"Headlamps" -
"

Directional headlamps": activation / deactivation of cornering lighting.
-
"

Guide-me-home lighting": activation / deactivation of automatic guide-me-home lighting.
-
"

Welcome lighting": activation / deactivation of exterior welcome lighting.
"Vehicle access" -

"
Unlock driver's door": activation / deactivation of selective unlocking of the driver’s door.
-

"
Unlock boot only": activation / deactivation of selective unlocking at the tailgate.
-

"
Motorised tailgate": activation / deactivation of motorised operation of the tailgate.
-

"
Hands-Free Tailgate Access": activation / deactivation of the hands-free tailgate access system.
"Comfort" -

"
Rear wiper in reverse": activation / deactivation of the rear wiper on with reverse gear.
-

"
Mirror adaptation in reverse": activation / deactivation of the automatic door mirror tilt when engaging reverse gear.
-

"
Ambient lighting": activation / deactivation of ambient lighting and adjustment of brightness.
"Security" -

"
Collision risk alert": activation / deactivation of the collision risk alert and automatic emergency braking.
-

"
Recommended speed display": activation / deactivation of speed limit sign recognition.
-
"

Fatigue Detection System": activation / deactivation of the driver fatigue detection system.
For more information on one of these functions, refer to the corresponding section.
1
Dashboard instruments

44
"Driving functions" tab
FunctionComment
"Adjusting Speeds" Memorisation of speed settings for the speed limiter or programmable
cruise control.
"


Under-inflation initialisation" Reinitialisation of the under-inflation detection system.
"Lane departure warning system" Activation / deactivation of the function.
"Lane assist" Activation / deactivation of the function.
"Parking sensors" Activation / deactivation of the function.
"Park Assist" Activation / deactivation of the function.
"Automatic headlamp dip" Activation / deactivation of the function.
"Stop & Star t" Activation / deactivation of the function.
"Blind spot sensors" Activation / deactivation of the function.
"Panoramic visual aid" Activation of the Visiopark 2


function.
"Traction control" Activation / deactivation of the function.
For more information on one of these functions, refer to the corresponding section.
Dashboard instruments

45
Settings
The functions available through the upper menu bar are detailed in the table below.
PEUGEOT Connect Nav
ButtonComments
Selection of a topic.
Audio settings (sound ambience, distribution, level, voice volume, ringer
vo l u m e).
Switch off the screen.
Settings for the touch screen and the digital instrument panel.
1
Dashboard instruments

46
Settings for the touch screen and the digital
instrument panelButton Comments
Choice of units:
-
t

emperature (°Celsius or °Fahrenheit),
-

d
istances and fuel consumption (l/100 km, mpg or km/l).
Choice of display language on the touch screen and digital instrument panel.
Setting the date and time.
Option of synchronisation with GPS.
Adjustment of the display parameters (text scrolling, animations, etc.) and
brightness.
Choice and settings for three user profiles.
Choice of the type of information displayed in the digital instrument panel.
Dashboard instruments
