2017 PEUGEOT 5008 Owners Manual

103

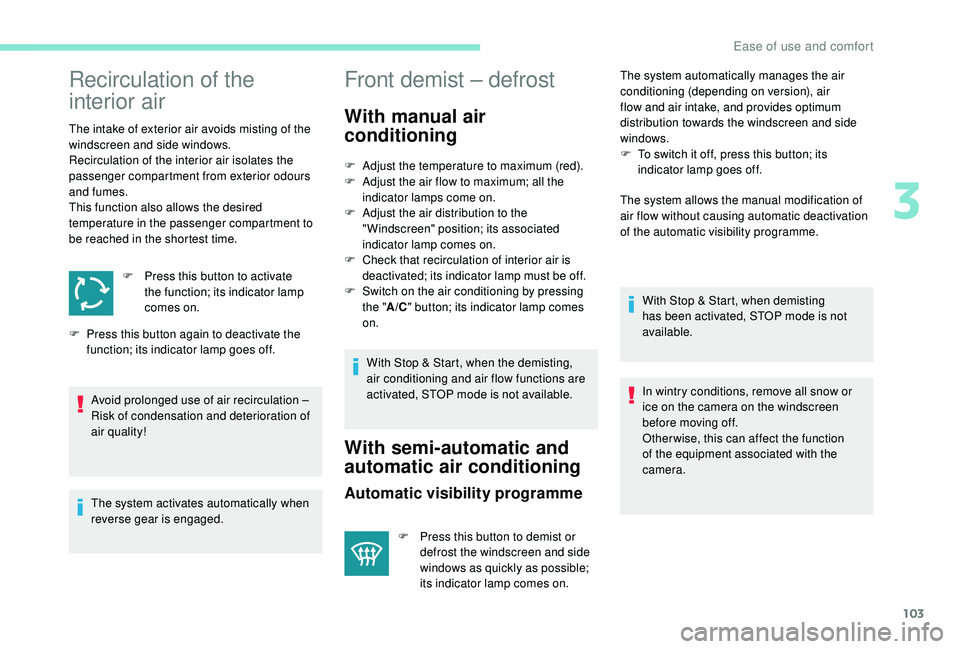

Recirculation of the
interior air
The intake of exterior air avoids misting of the
windscreen and side windows.
Recirculation of the interior air isolates the
passenger compartment from exterior odours
and fumes.
This function also allows the desired
temperature in the passenger compartment to
be reached in the shortest time.F

P
ress this button to activate
the function; its indicator lamp
comes on.
Avoid prolonged use of air recirculation –
Risk of condensation and deterioration of
air quality!
The system activates automatically when
reverse gear is engaged.
F

P
ress this button again to deactivate the
function; its indicator lamp goes off.
Front demist – defrost
With manual air
conditioning
F Adjust the temperature to maximum (red).
F A djust the air flow to maximum; all the
indicator lamps come on.
F

A
djust the air distribution to the
" Windscreen" position; its associated
indicator lamp comes on.
F

C
heck that recirculation of interior air is
deactivated; its indicator lamp must be off.
F

S
witch on the air conditioning by pressing
the " A/C" button; its indicator lamp comes
on.
With Stop & Start, when the demisting,
air conditioning and air flow functions are
activated, STOP mode is not available.
With semi-automatic and
automatic air conditioning
Automatic visibility programme
F Press this button to demist or defrost the windscreen and side
windows as quickly as possible;
its indicator lamp comes on. The system automatically manages the air
conditioning (depending on version), air
flow and air intake, and provides optimum
distribution towards the windscreen and side
windows.
F

T
o switch it off, press this button; its
indicator lamp goes off.
The system allows the manual modification of
air flow without causing automatic deactivation
of the automatic visibility programme.
With Stop & Start, when demisting
has been activated, STOP mode is not
available.
In wintry conditions, remove all snow or
ice on the camera on the windscreen
before moving off.
Other wise, this can affect the function
of the equipment associated with the
camera.
3
Ease of use and comfort

104

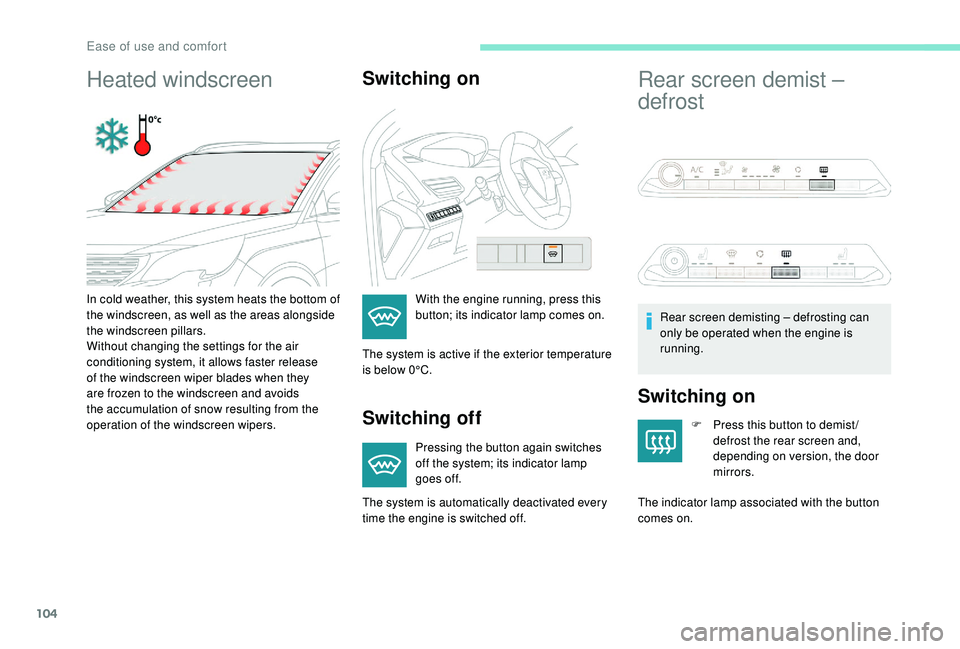

Heated windscreenSwitching on
Switching off
Pressing the button again switches
off the system; its indicator lamp
goes off.
Rear screen demist –
defrost
Switching on
F Press this button to demist /defrost the rear screen and,
depending on version, the door
mirrors.
The indicator lamp associated with the button
comes on.
In cold weather, this system heats the bottom of
the windscreen, as well as the areas alongside
the windscreen pillars.
Without changing the settings for the air
conditioning system, it allows faster release
of the windscreen wiper blades when they
are frozen to the windscreen and avoids
the accumulation of snow resulting from the
operation of the windscreen wipers.
With the engine running, press this
button; its indicator lamp comes on.
The system is active if the exterior temperature
is below 0°C.
The system is automatically deactivated every
time the engine is switched off. Rear screen demisting – defrosting can
only be operated when the engine is
running.
Ease of use and comfort

105

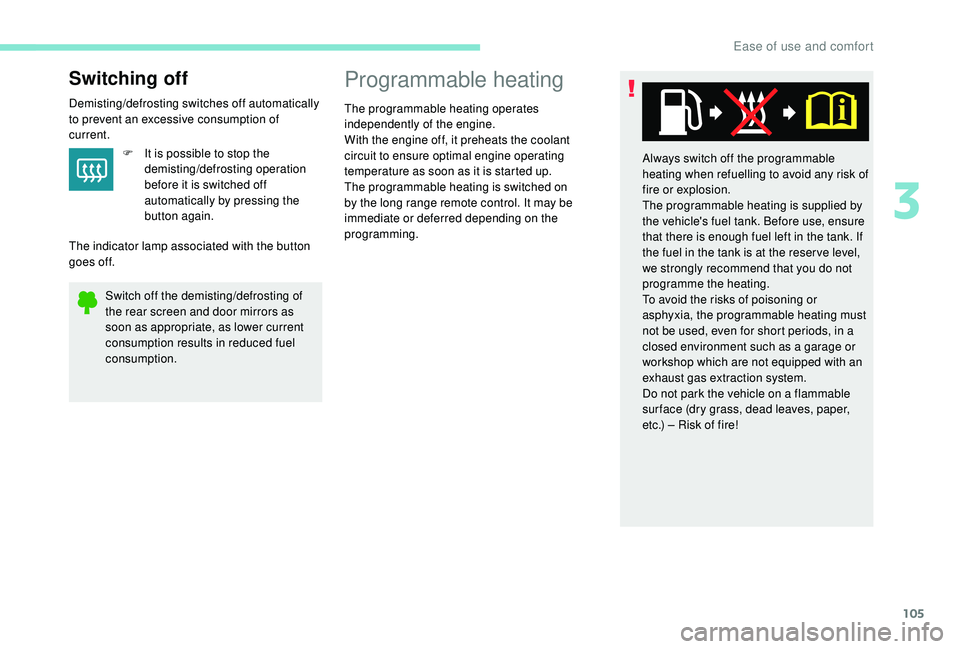

Switching off
Demisting/defrosting switches off automatically
to prevent an excessive consumption of
current.F

I
t is possible to stop the
demisting/defrosting operation
before it is switched off
automatically by pressing the
button again.
The indicator lamp associated with the button
goes off.
Switch off the demisting/defrosting of
the rear screen and door mirrors as
soon as appropriate, as lower current
consumption results in reduced fuel
consumption.
Programmable heating
The programmable heating operates
independently of the engine.
With the engine off, it preheats the coolant
circuit to ensure optimal engine operating
temperature as soon as it is started up.
The programmable heating is switched on
by the long range remote control. It may be
immediate or deferred depending on the
programming. Always switch off the programmable
heating when refuelling to avoid any risk of
fire or explosion.
The programmable heating is supplied by
the vehicle's fuel tank. Before use, ensure
that there is enough fuel left in the tank. If
the fuel in the tank is at the reser ve level,
we strongly recommend that you do not
programme the heating.
To avoid the risks of poisoning or
asphyxia, the programmable heating must
not be used, even for short periods, in a
closed environment such as a garage or
workshop which are not equipped with an
exhaust gas extraction system.
Do not park the vehicle on a flammable
sur face (dry grass, dead leaves, paper,
etc.) – Risk of fire!
3
Ease of use and comfort

106
Adapting the programmable heating
enables you to use it to preheat the
passenger compartment of your vehicle.
Contact a PEUGEOT dealer or a qualified
workshop.
Presentation
Remote controlOperating indicator lamp
Function display
The volumetric alarm movement detector
may be disrupted by the programmable
heating air flows when it is operating.
To avoid any untimely triggering of the
alarm when using the programmable
heating, it is advisable that the volumetric
monitoring is deactivated. 1.Buttons for functions scroll-down menu.
2. Function symbols:
clock, temperature, operating time,
programmed time, heater operation,
heating management.
3. Digital displays:
time, temperature, operating time,
programmed time or heating level.
4. Off button.
5. On button. lit up: deferred programmed start-
up.
flashing: heating on.
unlit: heating off.
F

P
ress the buttons 1 several times to display
the functions.
Ease of use and comfort

107

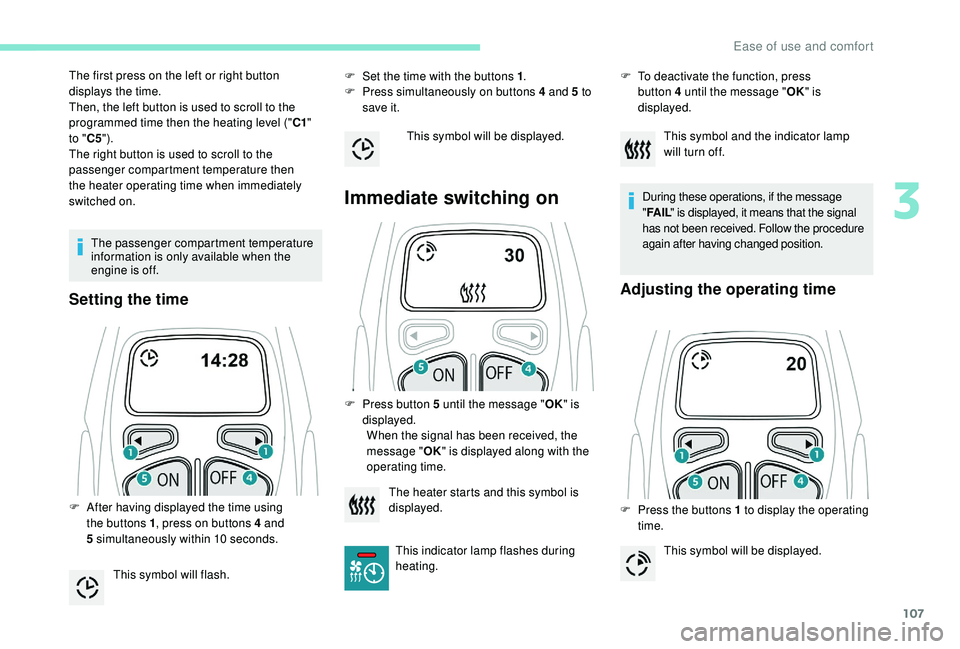

The passenger compartment temperature
information is only available when the
engine is off.
Setting the time
F Set the time with the buttons 1.
F P ress simultaneously on buttons 4 and 5 to
save it.
Immediate switching on
The first press on the left or right button
displays the time.
Then, the left button is used to scroll to the
programmed time then the heating level (" C1"
to " C5").
The right button is used to scroll to the
passenger compartment temperature then
the heater operating time when immediately
switched on.
F

A
fter having displayed the time using
the buttons 1 , press on buttons 4
and
5
simultaneously within 10

seconds.
This symbol will flash. This symbol will be displayed.
F

P
ress button 5 until the message "OK" is
displayed. When the signal has been received, the
message " OK" is displayed along with the
operating time. F
T o deactivate the function, press
button 4
until the message "OK" is
displayed.
During these operations, if the message
"FA I L " is displayed, it means that the signal
has not been received. Follow the procedure
again after having changed position.
Adjusting the operating time
F Press the buttons 1 to display the operating
time.
The heater starts and this symbol is
displayed.
This indicator lamp flashes during
heating. This symbol and the indicator lamp
will turn off.
This symbol will be displayed.
3
Ease of use and comfort

108

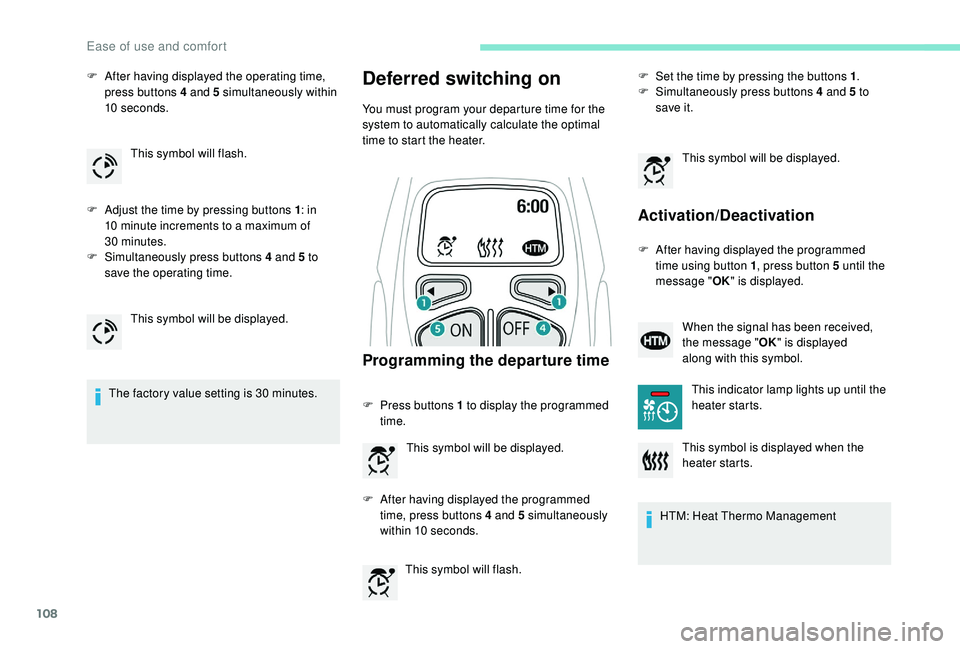

F After having displayed the operating time, press buttons 4 and 5 simultaneously within
10


seconds.
F

A
djust the time by pressing buttons 1 : in
10
minute increments to a maximum of
30


minutes.
F

S
imultaneously press buttons 4 and 5 to
save the operating time.
The factory value setting is 30
minutes.Deferred switching on
You must program your departure time for the
system to automatically calculate the optimal
time to start the heater.
Programming the departure time
F Press buttons 1 to display the programmed
time.
This symbol will flash. F

S
et the time by pressing the buttons 1
.
F
S
imultaneously press buttons 4 and 5 to
save it.
Activation/Deactivation
F After having displayed the programmed time using button 1 , press button 5
until the
message " OK" is displayed.
HTM: Heat Thermo Management
This symbol will flash.
This symbol will be displayed. This symbol will be displayed.
F

A

fter having displayed the programmed
time, press buttons 4

and 5

simultaneously
within 10

seconds. This symbol will be displayed.
When the signal has been received,
the message "
OK" is displayed
along with this symbol.
This indicator lamp lights up until the
heater starts.
This symbol is displayed when the
heater starts.
Ease of use and comfort

109

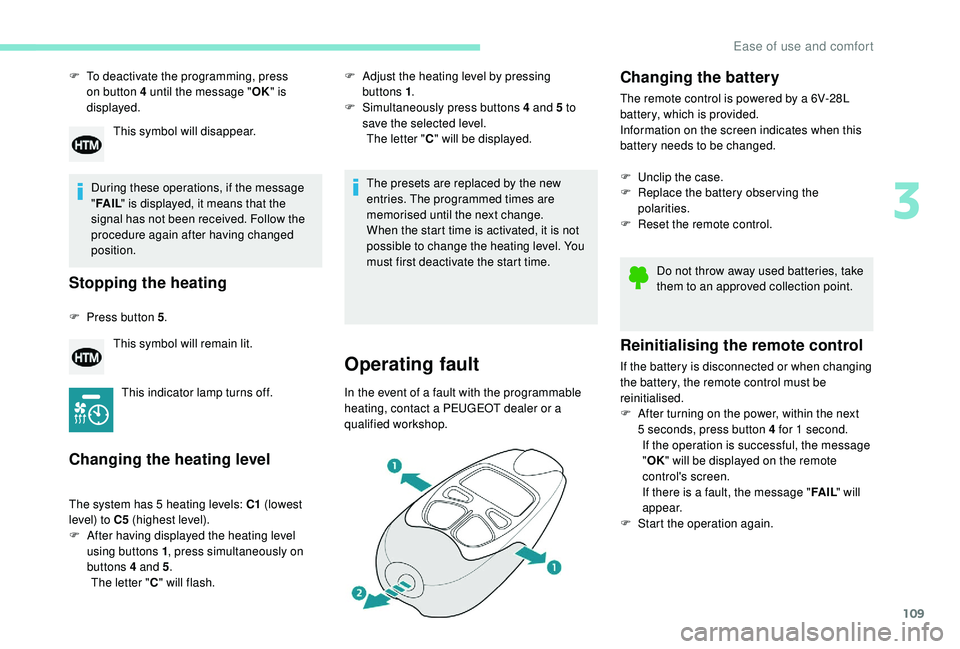

F To deactivate the programming, press on button 4 until the message " OK" is
displayed.
During these operations, if the message
" FA I L " is displayed, it means that the
signal has not been received. Follow the
procedure again after having changed
position.
Stopping the heating
F Press button 5 .
Changing the heating level
The system has 5 heating levels: C1 (lowest
level) to C5 (highest level).
F

A
fter having displayed the heating level
using buttons 1 , press simultaneously on
buttons 4
and 5.
The letter " C" will flash.
This symbol will disappear.
This symbol will remain lit.
This indicator lamp turns off. F
A
djust the heating level by pressing
buttons 1 .
F
S
imultaneously press buttons 4 and 5 to
save the selected level. The letter " C" will be displayed.
The presets are replaced by the new
entries. The programmed times are
memorised until the next change.
When the start time is activated, it is not
possible to change the heating level. You
must first deactivate the start time.
Operating fault
In the event of a fault with the programmable
heating, contact a PEUGEOT dealer or a
qualified workshop.
Changing the battery
The remote control is powered by a 6V-28L
battery, which is provided.
Information on the screen indicates when this
battery needs to be changed.
F

U
nclip the case.
F

R
eplace the battery observing the
polarities.
F

R
eset the remote control.
Reinitialising the remote control
If the battery is disconnected or when changing
the battery, the remote control must be
reinitialised.
F
A
fter turning on the power, within the next
5
seconds, press button 4 for 1 second.
If the operation is successful, the message
" OK " will be displayed on the remote
control's screen.
If there is a fault, the message " FA I L" will
appear.
F

St
art the operation again.Do not throw away used batteries, take
them to an approved collection point.
3
Ease of use and comfort

110
Front fittings
1.Grab handle
2. Sun visor
3. Card holder
4. Storage compar tment below the
steering wheel
5. Illuminated glove box
6. Door pockets
7. Scented air freshener
8. USB socket
9. Front 12
V accessor y socket (120 W)
10. Storage compartment or CD player or
Wireless charger
11. Storage compartment
12 . Cup holder
13. Front armrest with storage
compartment
14 . Rear 12
V accessor y socket (120 W)
15. Rear blower
16. 230
V socket
Ease of use and comfort
